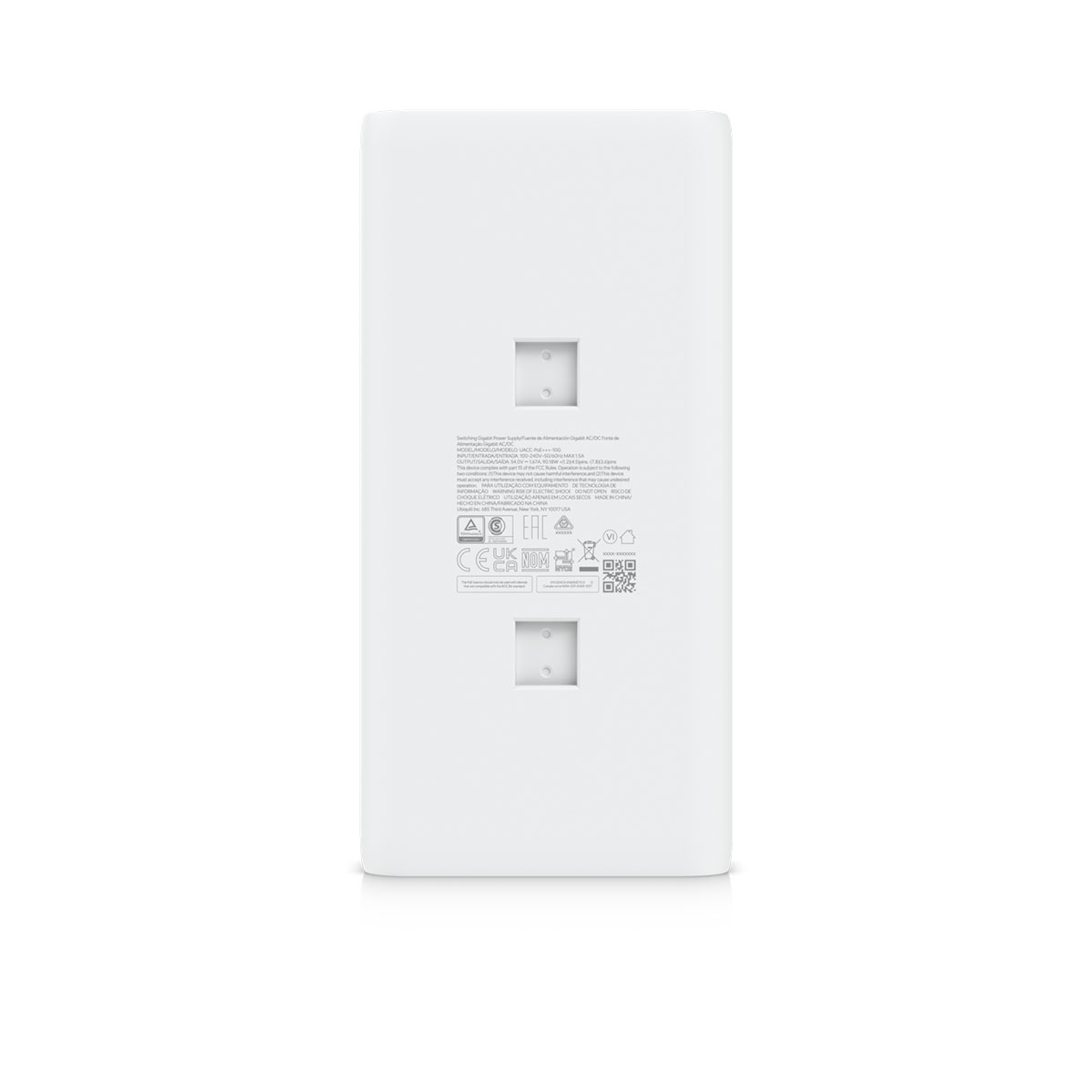

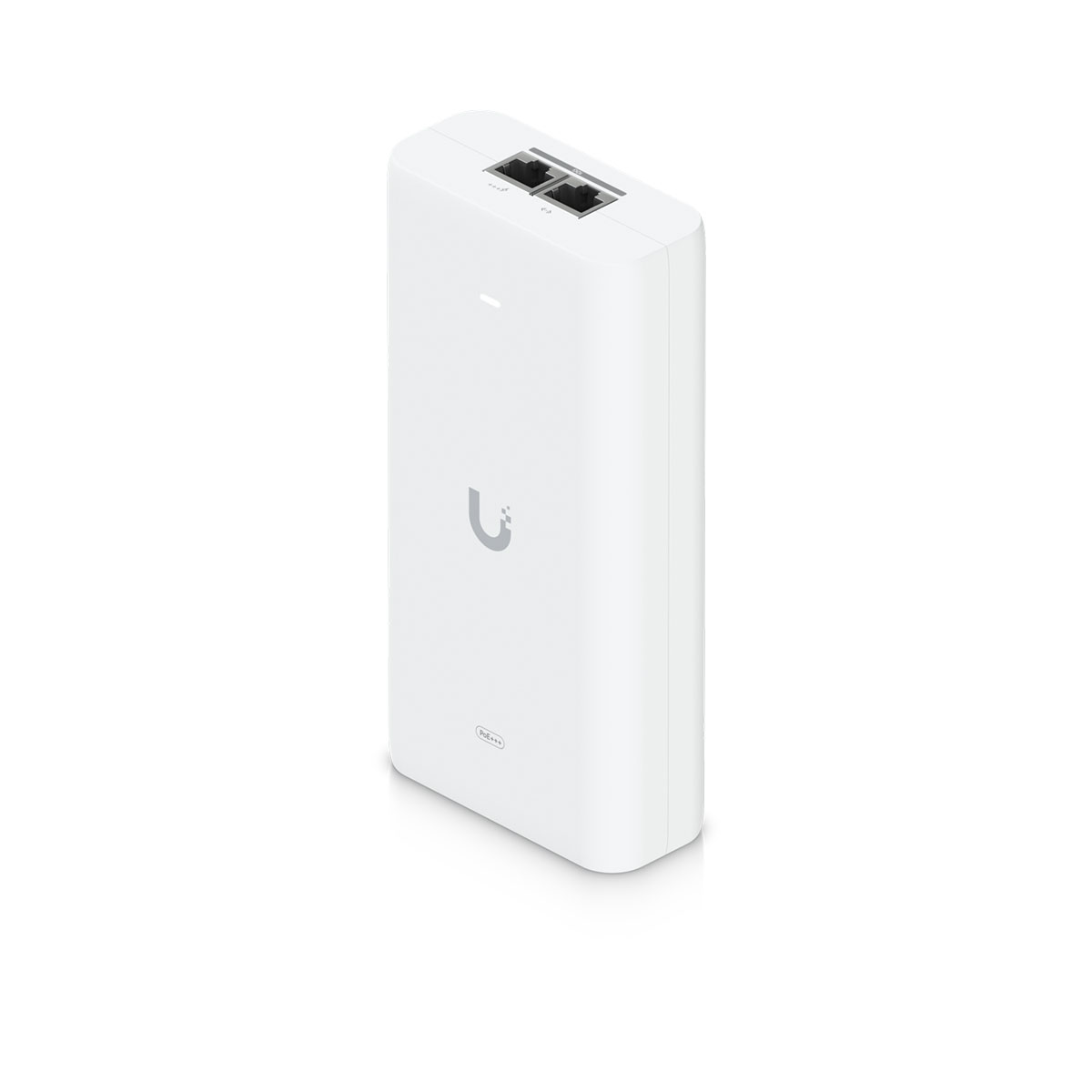

Ubiquiti UACC-PoE+++-10G, 10Gigabit PoE+++ Adapter 54V, 90W
Κωδικός προϊόντος:
UACC-PoE+++-10G
63,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
50,81 €
Άμεσα διαθέσιμο
Ubiquiti UACC-PoE+++-10G, 10Gigabit PoE+++ Adapter 54V, 90W
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

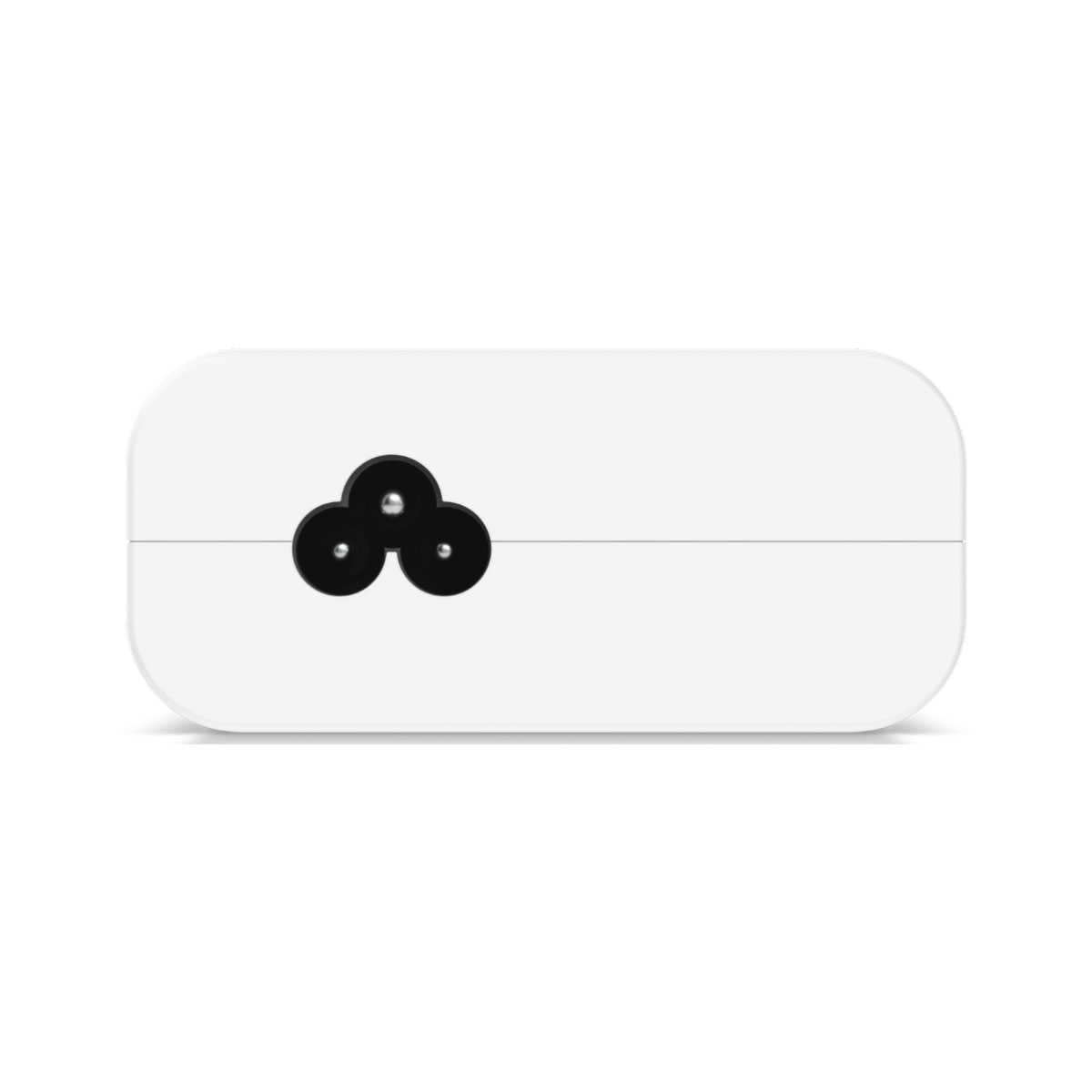

Multi Gigabit PoE injector with support for speeds of up to 10 Gbps from Ubiquiti Networks is a high-quality passive PoE injector with one output PoE port for powering devices with passive 54V with a maximum output power of 90 W, which is sufficient even for the latest devices such as specialized Access Points (USW-Flex-2.5G-8-PoE etc.). Power is transmitted through wires 1,2,4,5 (+) and 3,6,7,8 (-). The power supply also includes protection against electrical surges. A 3-pin power cable is included in the package.
Χαρακτηριστικά
| Overview | |
| Dimensions | 164.5 x 71 x 42 mm |
| Weight | 372 g |
| Output Voltage | 54V DC @ 1.67A |
| Gigabit LAN Port | Yes |
| Rated Voltage | 100—240V AC at 50/60Hz |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |

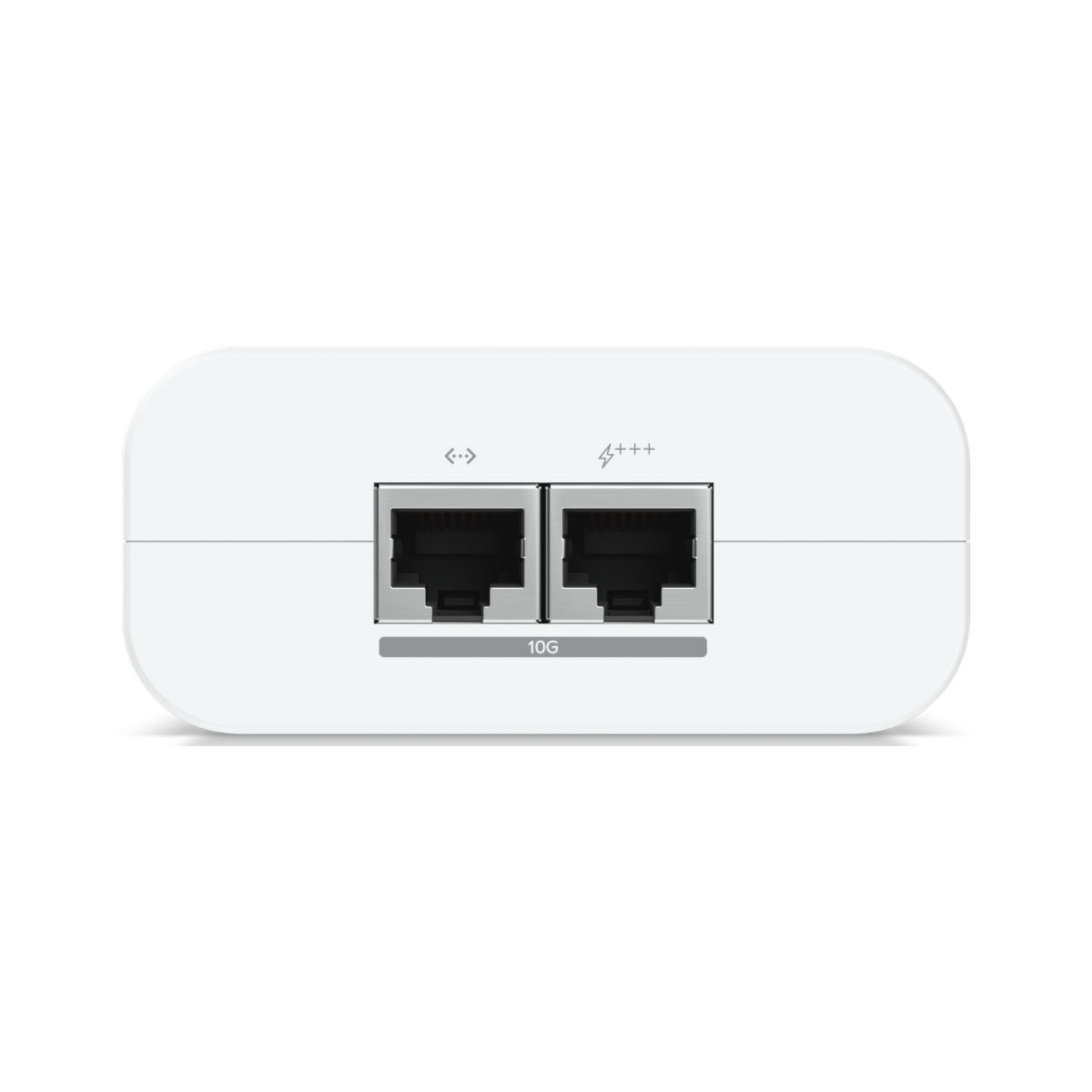

| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A Max. |
| Inrush Current | <120A peak @ 230V AC |
| Efficiency | >88% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max |
| Line Regulation | ≤ 2% |
| Load Regulation | ≤ 5% |
| Max. PoE+ Wattage per Port by PSE | 90W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
