Ubiquiti USW-Ultra-60W 8-port, Layer 2 GBE PoE Switch
Κωδικός προϊόντος:
USW-Ultra-60W
180,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
145,16 €
Άμεσα διαθέσιμο
Ubiquiti USW-Ultra-60W 8-port, Layer 2 GBE PoE Switch
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
A compact, 8-port, Layer 2 GbE PoE switch with versatile mounting options. The switch has 1 PoE in port and 7 PoE out ports with PoE 802.3af/at with max wattage 30W per port. Switch is managed by UniFi network providing central management and cloud access.
Max PoE budget depend on method how switch is powered:
• 60W PoE++ input: 45W
• DC adapter input: 52W
• Passive PoE adapter input: 45W

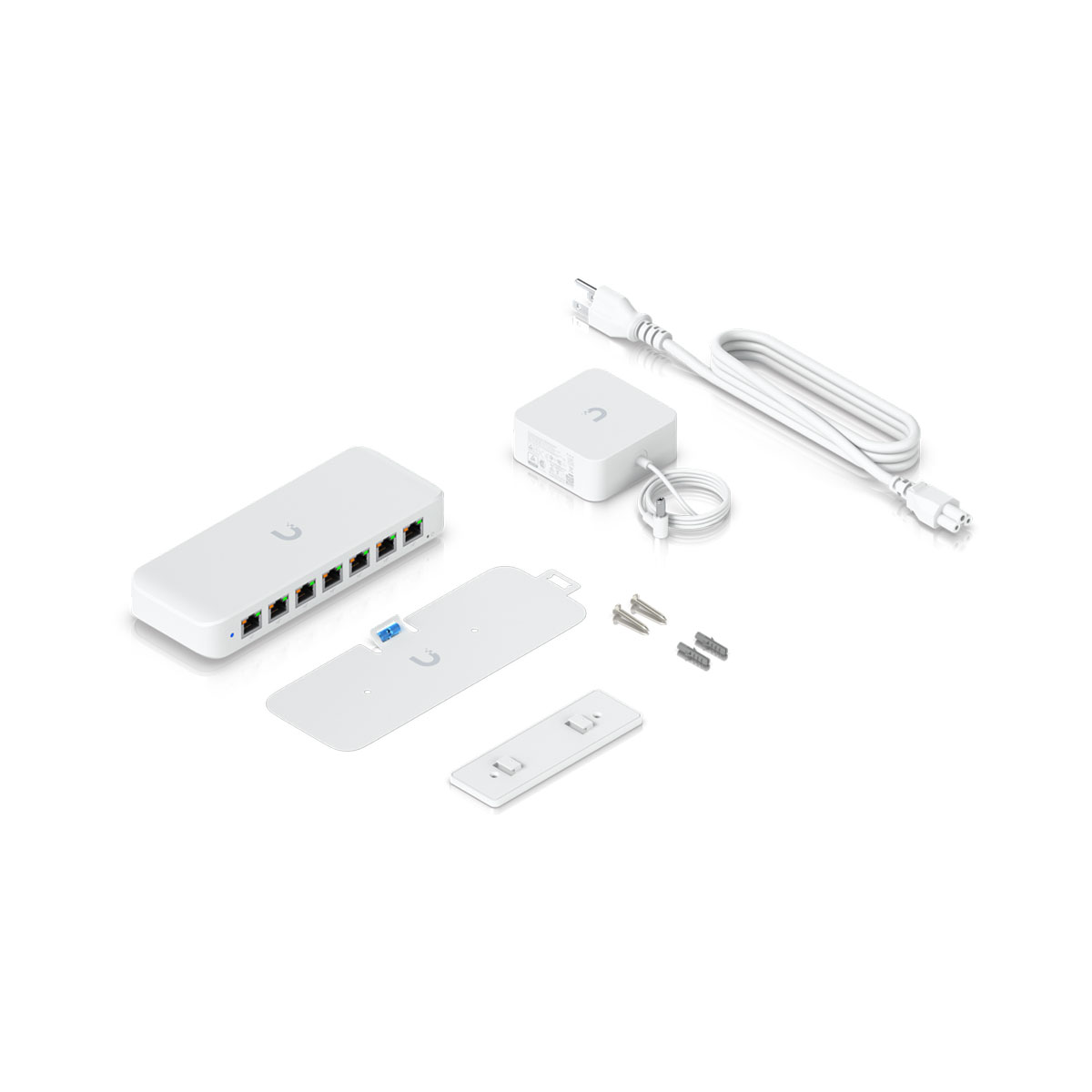

Package content
• switch
• power adapter 54V/1.1A
• mount kit
Χαρακτηριστικά
| Specifications | |

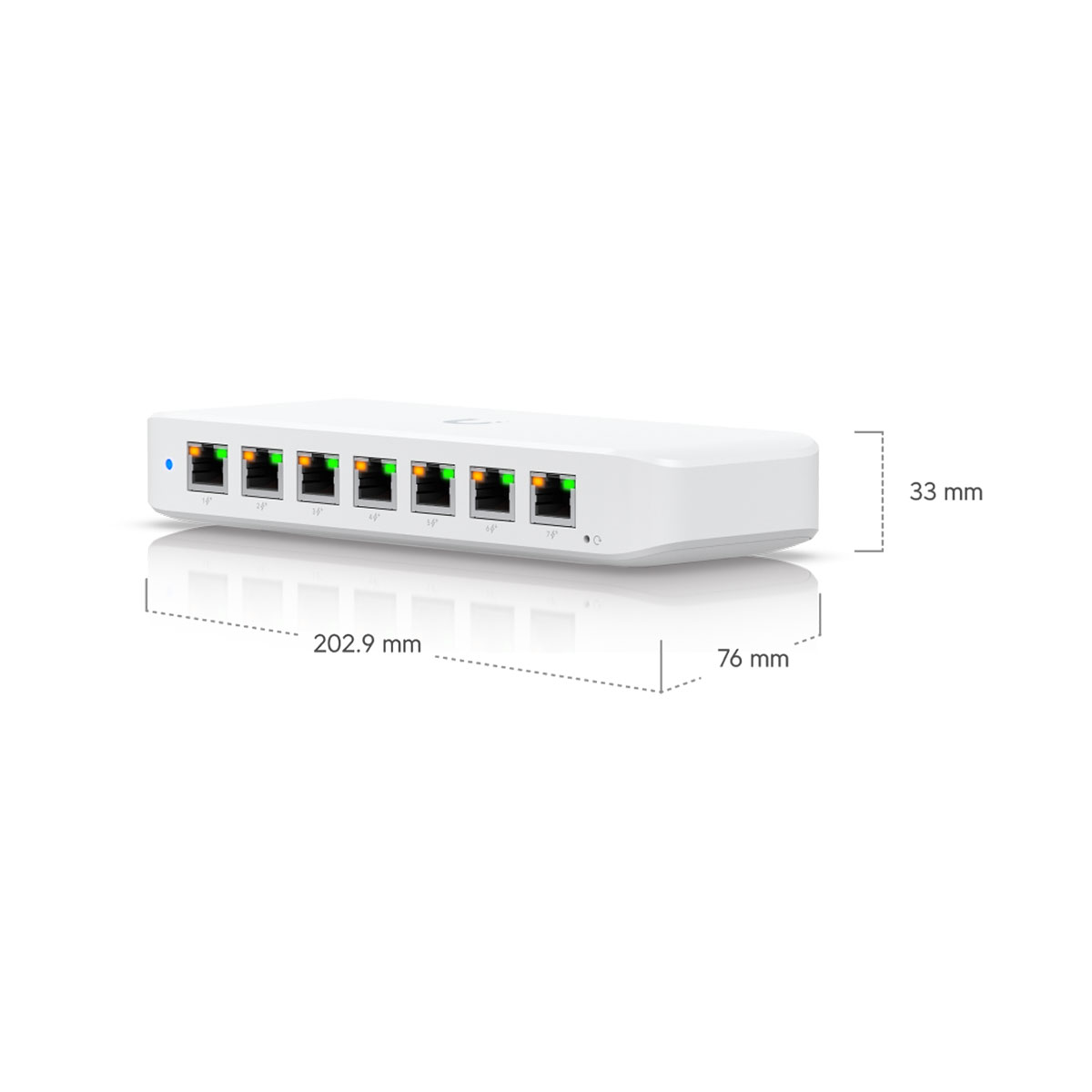

| Dimensions | 203 x 76 x 33 mm |
| Weight | Device: 320 g Wall mount: 45 g 60W adapter: 330 g |
| Enclosure material | Polycarbonate |
| Hardware | |
| Networking Interface | (8) GbE RJ45 ports |
| Management Interface | Ethernet In-Band |
| PoE interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Power method | (1) 54V, 1.1A power adapter (Included) PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Power supply | 54V, external, 1.1A/60W |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W with PoE input (Excluding PoE output) 8W with AC adapter input (Excluding PoE output) |
| Total available PoE | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W* *At 45° C operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C |
| Max. PoE+ wattage per port by PSE | 30W |
| Button | Factory reset |
| Ambient operating temperature | PoE++ input: -30 to 60° C 60W AC adapter input: -20 to 45° C 210W AC adapter input: -20 to 60° C |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| LEDs | |
| System | Status |
| Ethernet | PoE Link/activity |
| Application Requirements | |
| UniFi Network | Version 8.0.7 and later |
