Περιγραφή
Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας

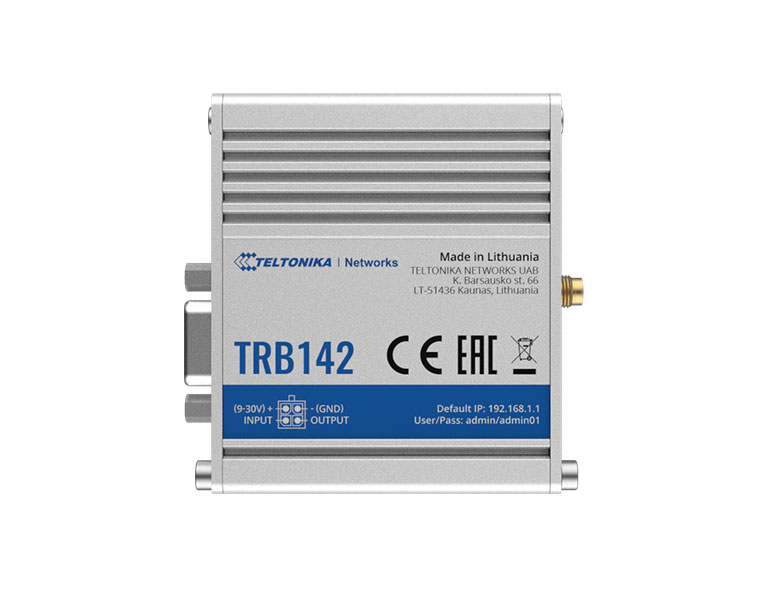

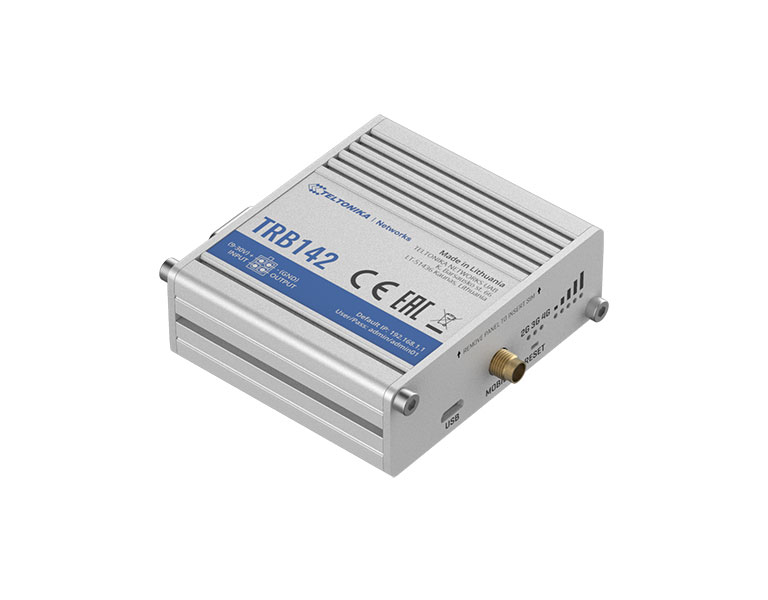

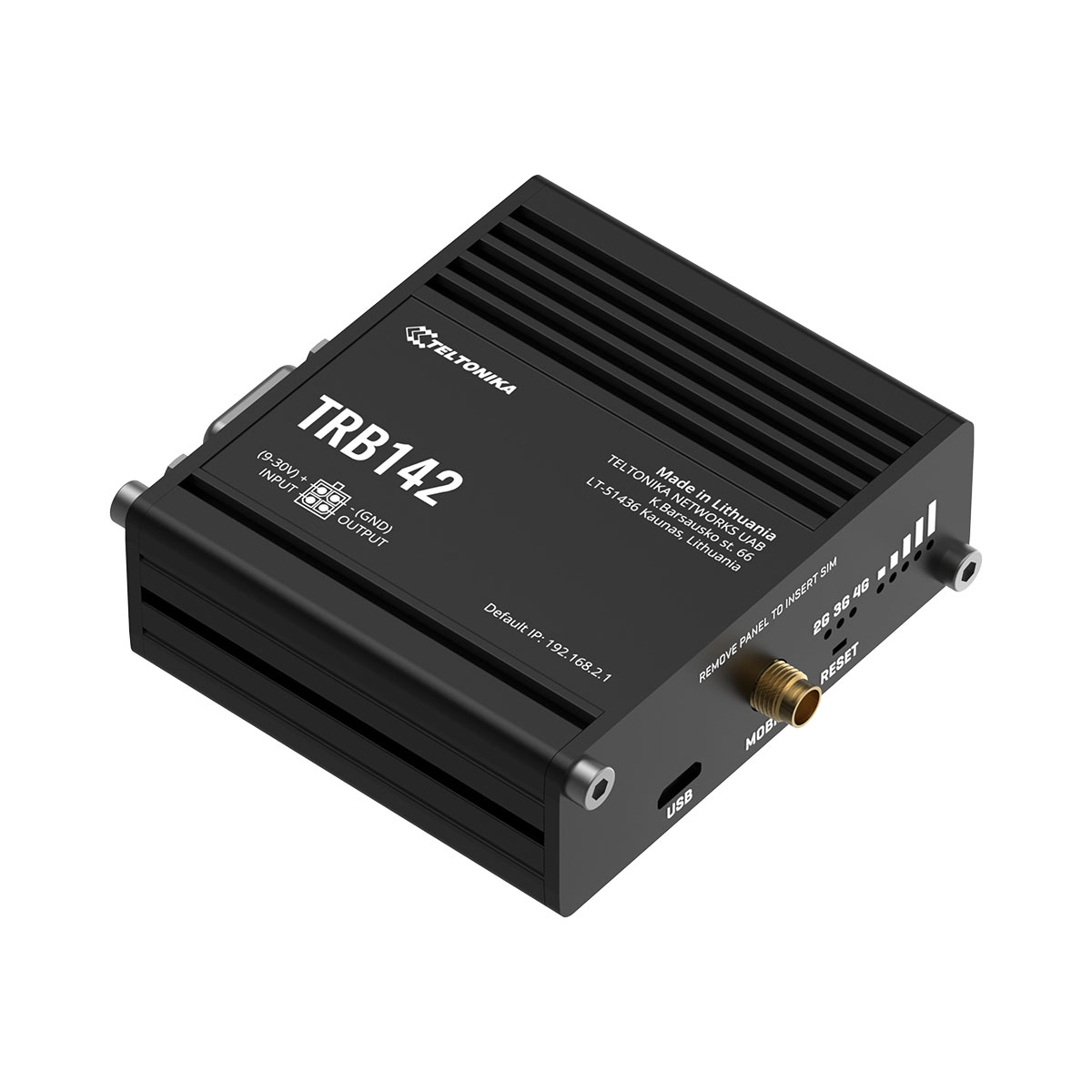

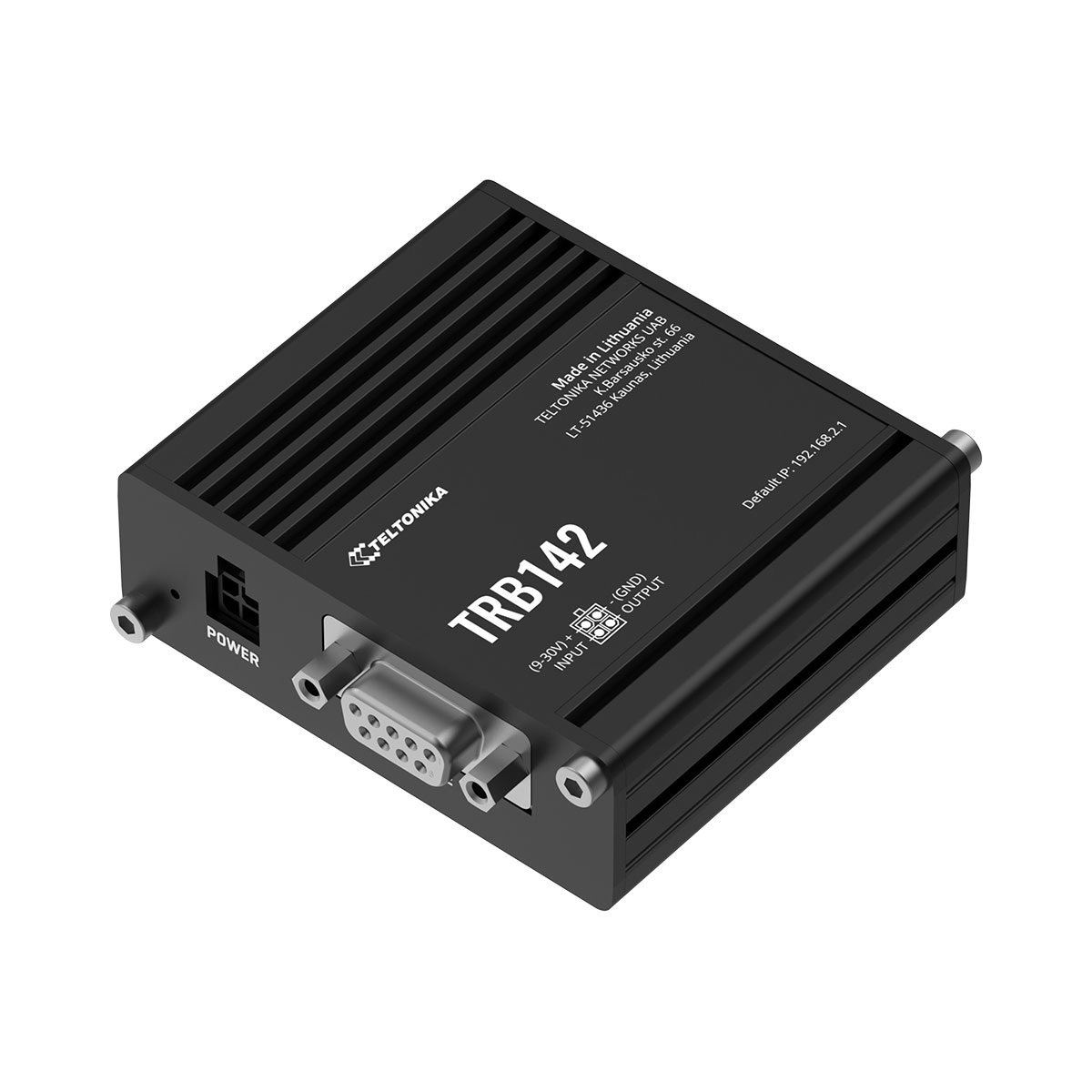

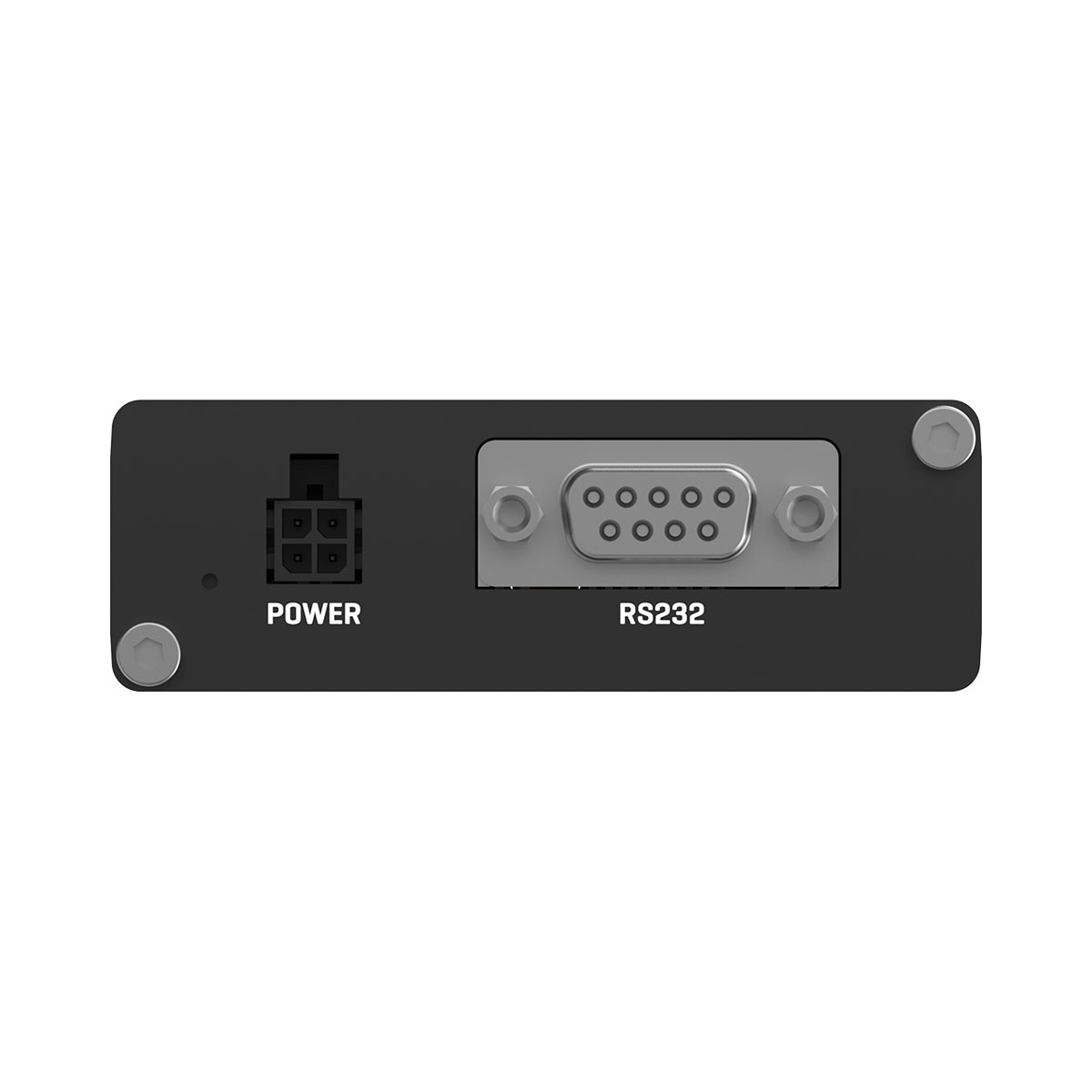

TRB142 comes with a widely used RS232 interface for remote device management. It is equipped with mission-critical LTE Cat 1 capabilities and software based on OpenWRT, hence offering a high degree of customization. Just like the other TRB series products, it provides a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support. This gateway is durable, offers a wide range of power supply voltages, and is compatible with Teltonika Networks Remote Management System (RMS).
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| Mobile | 4G/LTE (Cat 1), 3G, 2G |
| CPU | Qualcomm, ARM Cortex A7, 1.2 GHz |
| Memory | 128 MB RAM (50 MB for userspace) |
| Storage | 512 MB Flash (200 MB for userspace) |
| Powering option | 4pin power socket, 9-30 VDC |
| SIM | 1 x Internal SIM holder (2FF) |
| Antenna connectors | 1 x SMA for mobile |
| Inputs/Outputs | On 4pin socket: 2 x Digital input/Digital open collector output (configurable) |

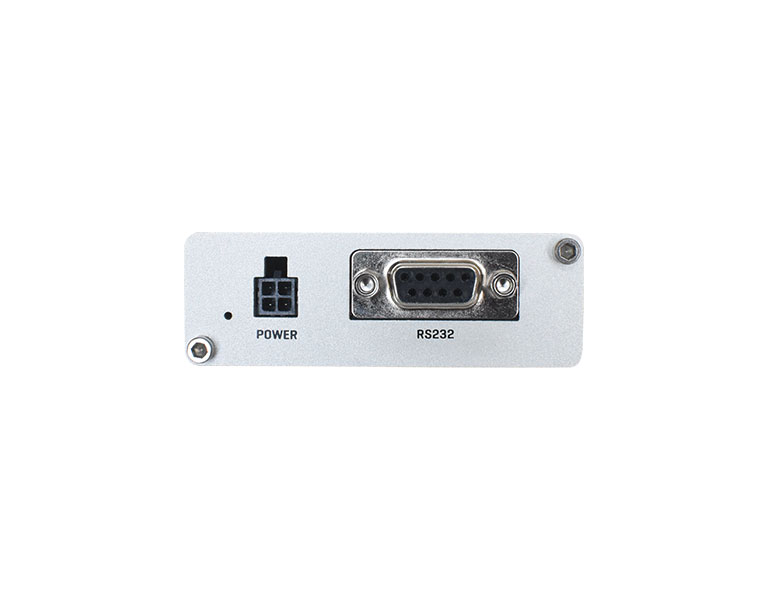

| Serial | 1 x RS232 |

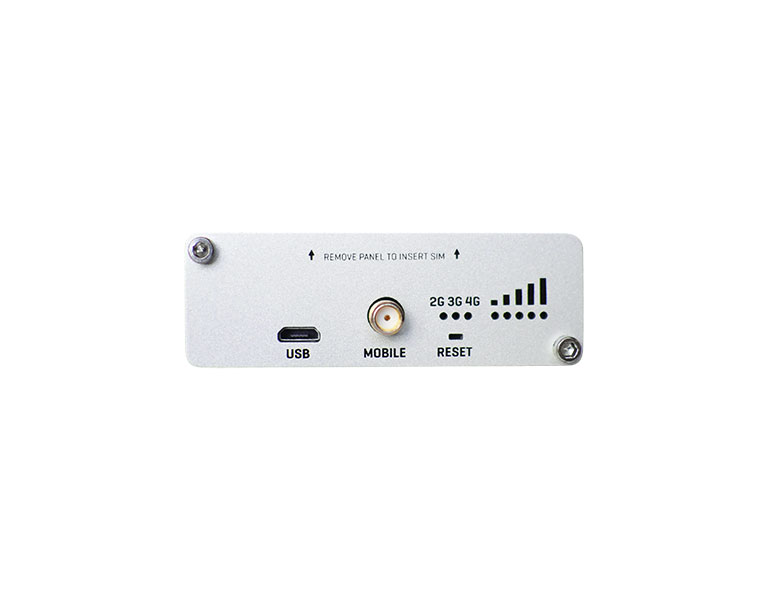

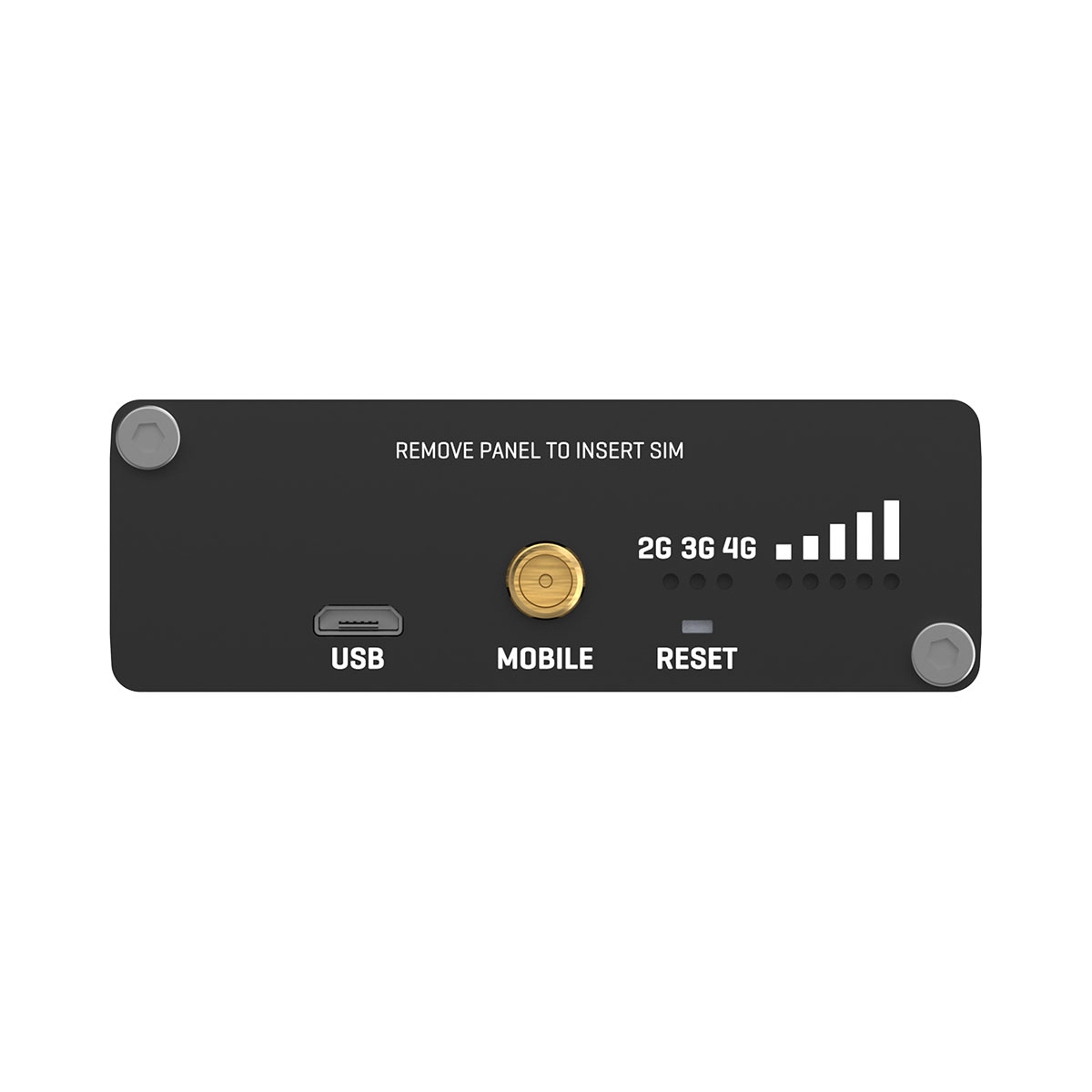

| Other | 1 x Virtual network interface via micro USB |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 1 x Power |
| Operating temperature | -40° C to 75° C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions(WxHxD) | 74.5 x 25 x 64.4 mm |
| Weight | 135 g |
| Software | |
| Operating system | RutOS |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT |
| Serial | Console, Over IP, Modem, NTRIP, Modbus |
|
Standard package contains |
• TRB142 board • 9 W PSU • 1 x LTE antenna (magnetic mount, SMA male, 3 m cable) • Micro-USB cable (0.8 m) • 1 x hex key • QSG (Quick Start Guide) • Packaging box |
