Tescom BAT.0296 XMS LL - Battery 12V 9AH
Κωδικός προϊόντος:
BAT.0296
22,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
17,74 €
Άμεσα διαθέσιμο
Tescom BAT.0296 XMS LL - Battery 12V 9AH
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

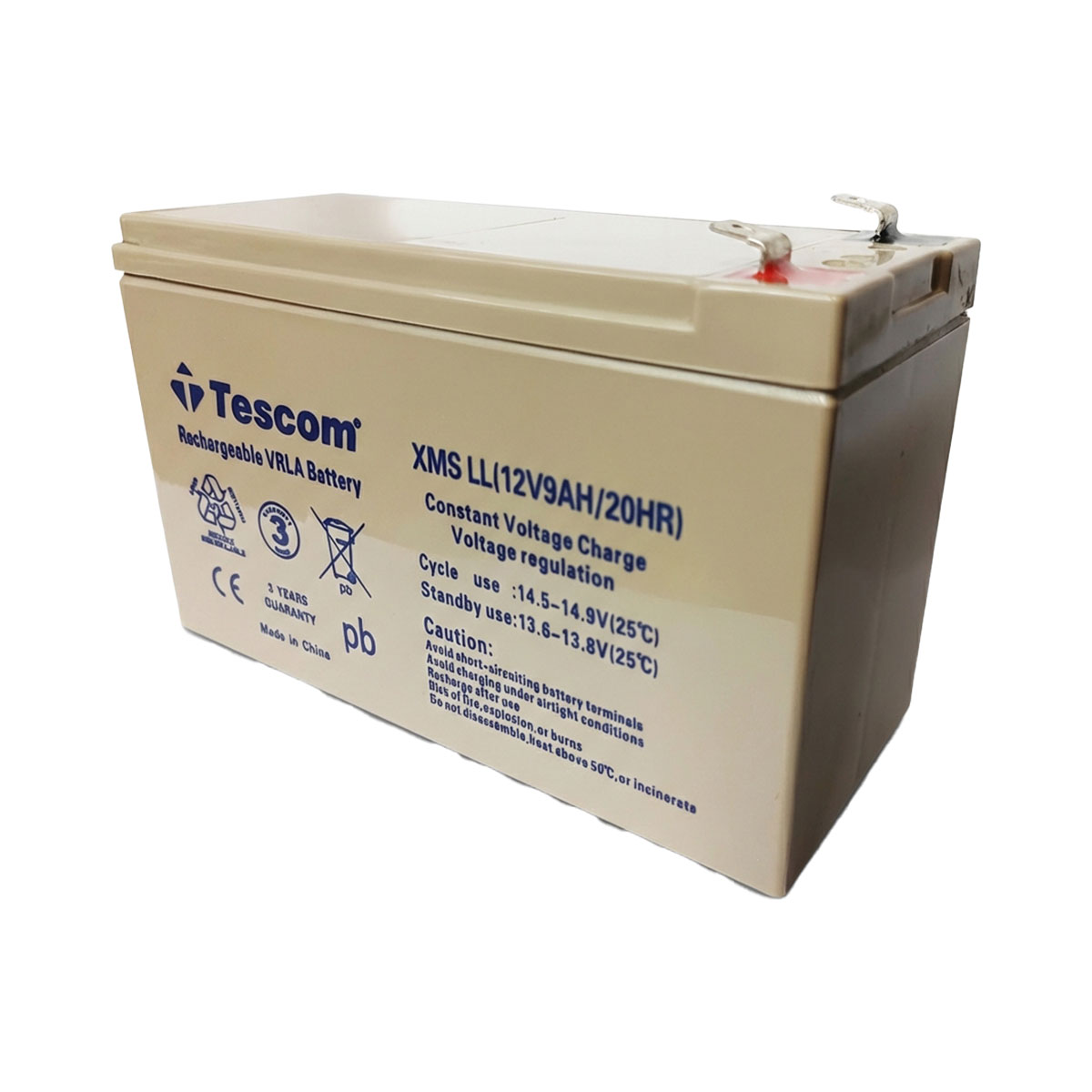

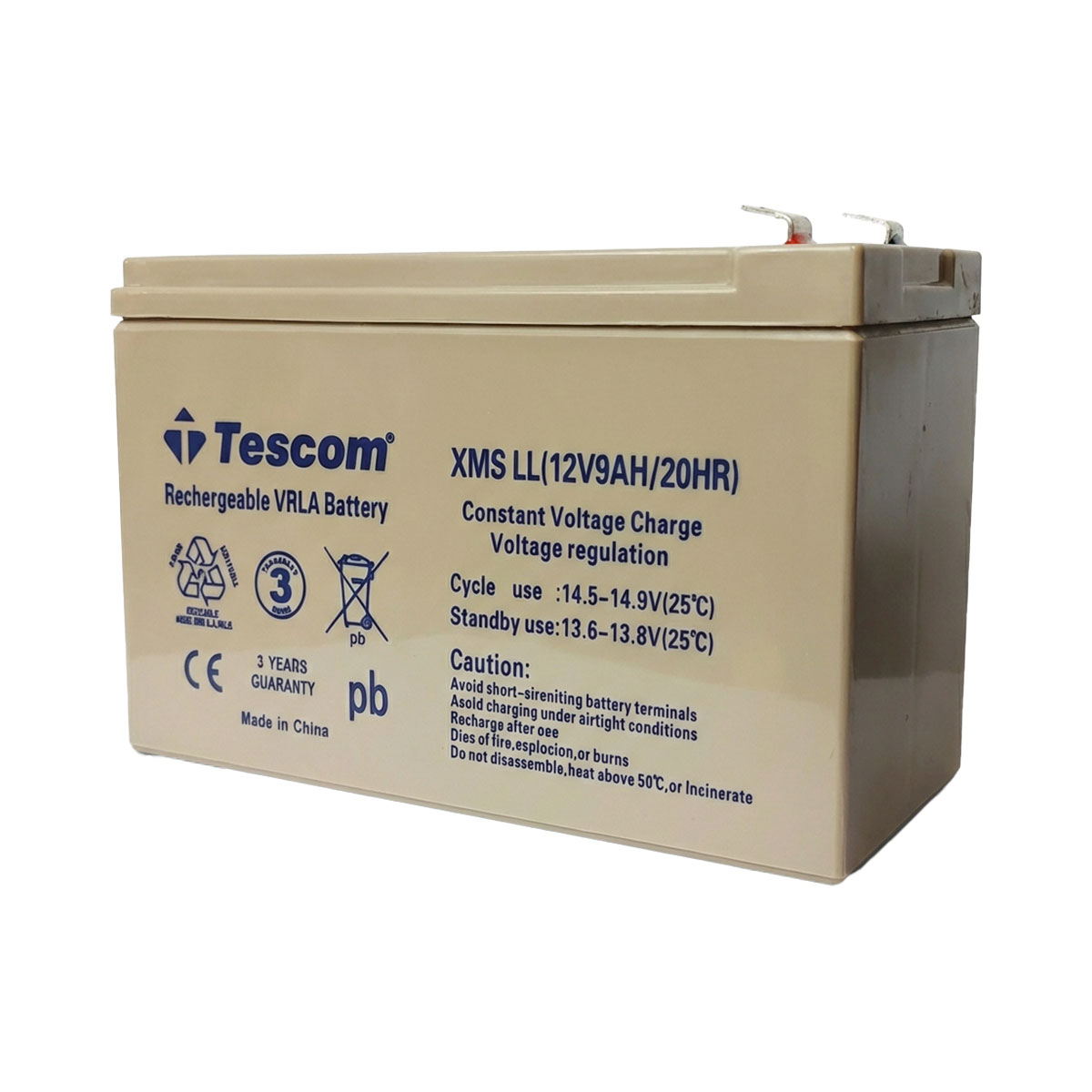

Battery Tescom XMS LL Lead Acid 12V-9.0Ah
Χαρακτηριστικά
| Specifications | |
| Nominal Voltage | 12 V |
| Capacity (25°C) | 10HR(10.8V) 9.0Ah 5HR(10.5V) 8.4Ah 1HR(9.60V) 6.4Ah |
| Dimension | Length: 151 1.5mm Width: 65 1mm Height: 94 1mm Total Height: 100 1mm |
| Approx. Weight | 2.65kg+-5% |
| Terminal type | T1/T2 |
| Internal resistance(25°C) | Approx. 19m |
| Capacity affected by temperature (20HR) | 40°C 102% 25°C 100% 0°C 85% -15°C 65% |
| Self-discharge(25°C) | 3 month: Remaining Capacity: 91% 6 month: Remaining Capacity: 82% 12 month: Remaining Capacity: 65% |
| Nominal operating temperature |
25°C +- 3°C |
| Operating temperature range | Discharge -15°C- 50°C Charge -10°C- 50°C Storage -20°C- 50°C |
| Float charging voltage(25°C) | 13.60 to 13.80V Temperature compensation: -18mV/°C |
| Cyclic charging voltage(25°C) | 14.50 to 14.90V Temperature compensation: -30mV/°C |
| Maximum charging current | 2.7A |
| Terminal material | Copper |
| Maximum discharge current | 135A(5 sec.) |
| Designed floating life(20°C) | 15 years |
