Grandstream WIGSHT802v2 HandyTone 802
Κωδικός προϊόντος:
WIGSHT802
49,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
39,52 €
Άμεσα διαθέσιμο

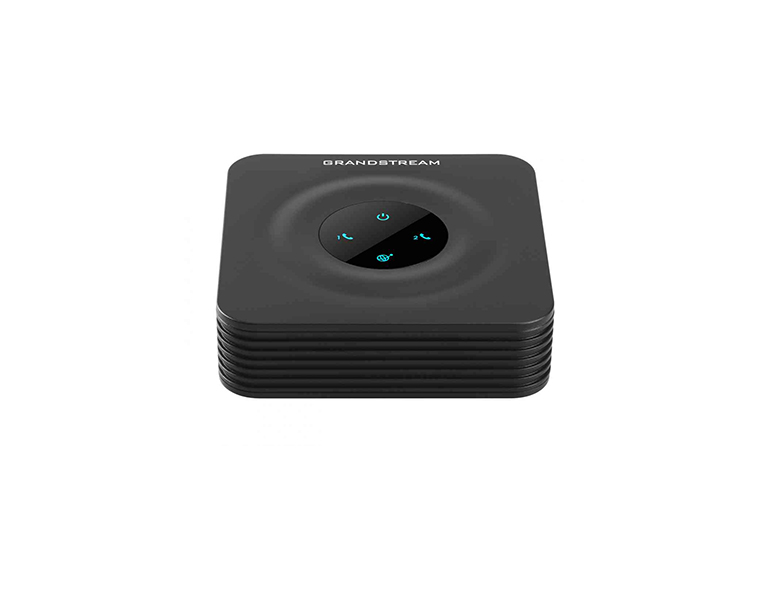

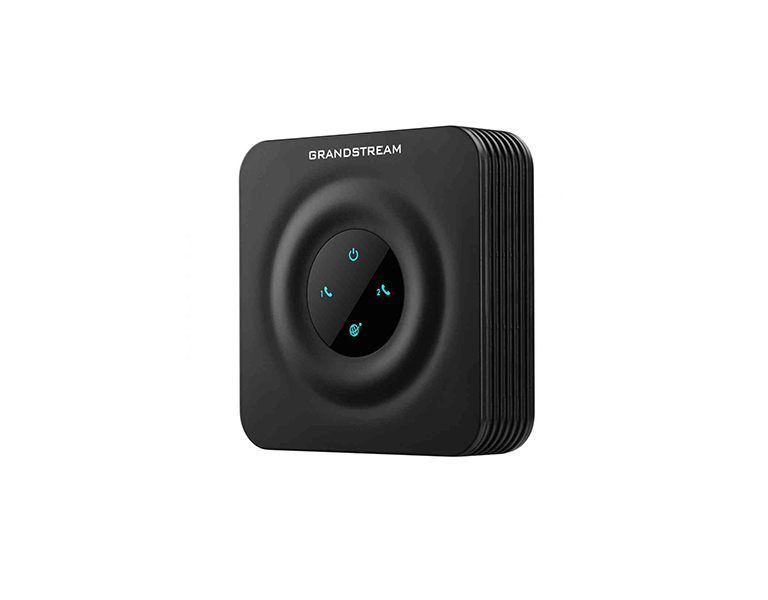

Grandstream HT802 HandyTone 802
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
The HT802 is a 2 port analog telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analog phones and enables service providers to offer high quality IP service. The HT802 is an ideal ATA for individual use and for large scale commercial IP voice deployments.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Interfaces | |

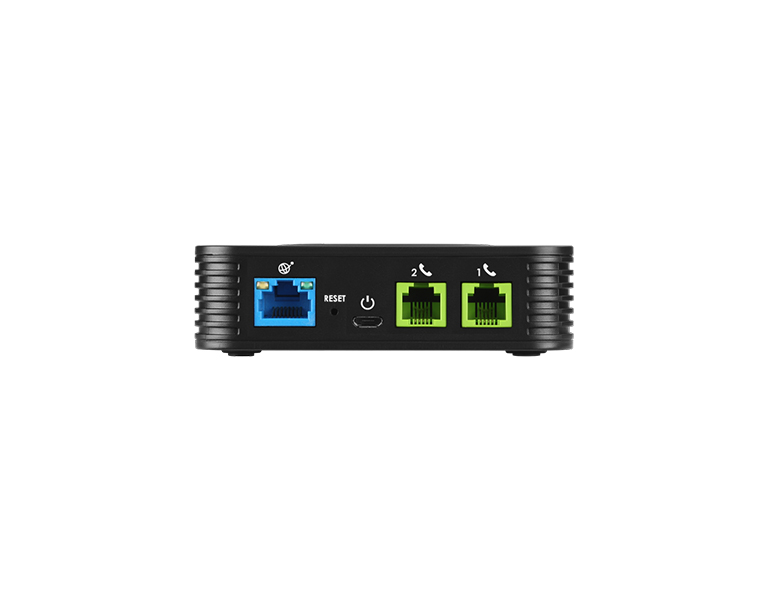

| Telephone Interfaces | Two (2) FXS port (RJ11) |
| Network Interfaces | One (1) 10/100Mbps auto-sensing ethernet ports (RJ45) |
| LED Indicators | Power,WAN, LAN, PHONE 1 and PHONE 2 |
| Factory Reset Button | Yes |
| Voice, Fax, Modem | |
| Telephony Features | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
| Voice Codecs | G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B/E, G.728, G.726-40/32/24/16, iLBC |
| Fax Over IP | T.38 compliant Group 3 fax relay up to 14.4kbps, Fax datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay |
| Short/Long Haul Ring Load | REN 3: Up to 150 ft on 24 AWG lines |
| Caller ID | Bellcore type 1 & 2, ETSI, BT, NTT and DTMF-based CID |
| Disconnect Methods | Polarity Reversal/Wink |
| Signaling | |
| Network Protocols | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN |
| QoS | Layer 2 (802.1Q VLAN/802.1p) and Layer 3 (ToS, Diffserv, MPLS) |
| DTMF Method | RFC2833 and/or SIP INFO |
| Provisioning and Control | UPnP, HTTP, HTTPS, TELNET, TFTP, TR069, secure and automated provisioning using AES encryption, syslog |
| Security | |
| Media | SRTP |
| Control | TLS/SIPS/HTTPS |
| Management | Syslog support, telnet, remote management using web broswer |
| Physical | |
| Universal Power Supply | Input: 100-240VAC, 50-60Hz Output: 12 VDC, 0.5A |
| Environmental | Operational: 32° ~ 104°F or 0° ~ 40°C; Storage: -10 ~ 130°F Humidity: 10 - 90% non condensing |
| Dimensions | 25mm x 115mm x 75mm (when laying flat) |
| Compliance | FCC (Part 68 & 15B), C-Tick, AS/NZS CISPR22, CISPR24, CE, EN55022, EN55024, TBR21, EN60950, EN61000-3-2, EN61000-3-3, UL (Power supply) |
Λήψεις
Datasheet
User Guide
