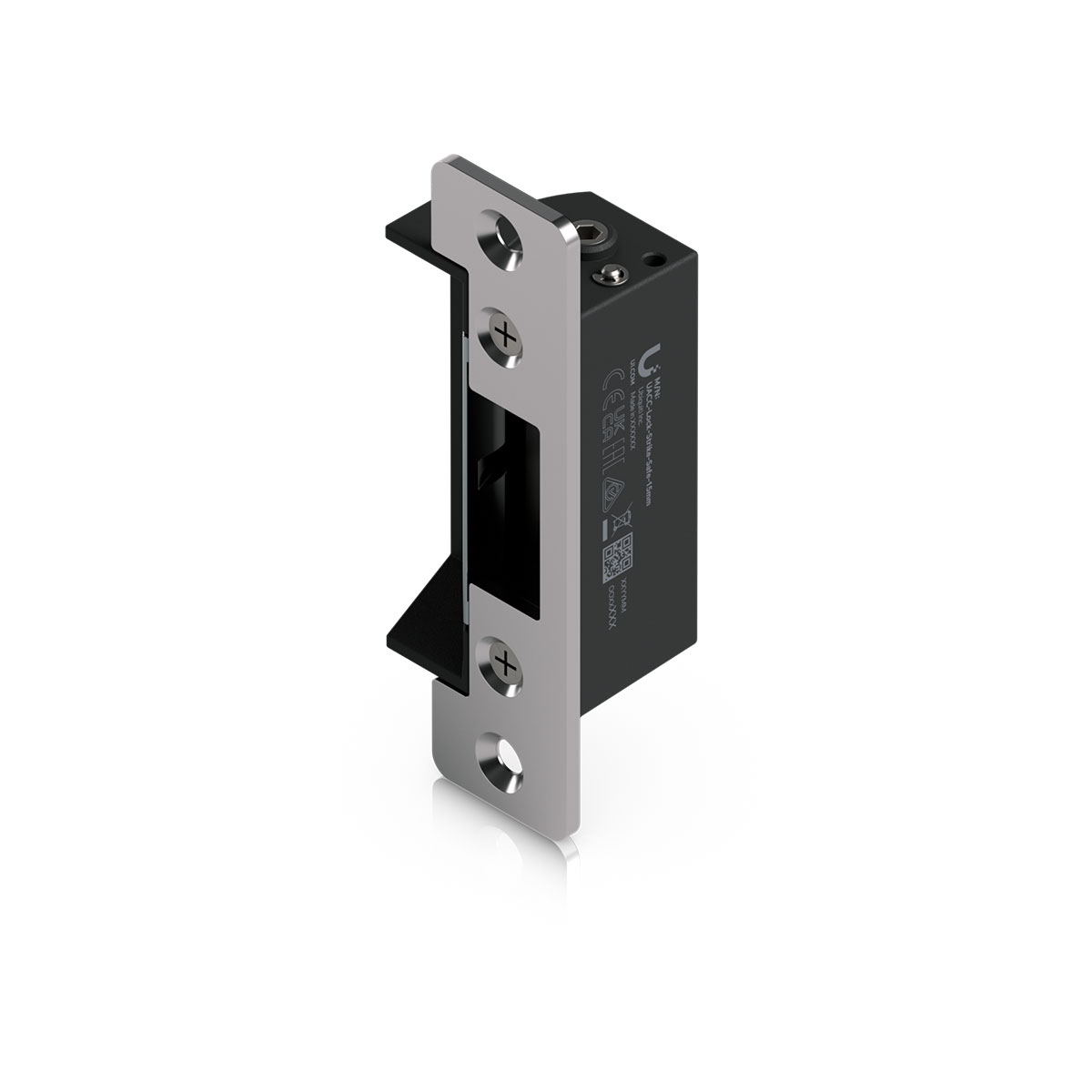

Ubiquiti UACC-LOCK-STRIKE-SAFE-15MM, Fail-Safe Strike Lock
Ubiquiti UACC-LOCK-STRIKE-SAFE-15MM, Fail-Safe Strike Lock
The electromagnetic door lock in fail-safe design ensures safe unlocking during power outages and is an ideal choice for controlled access in office, commercial, and technical spaces. With a holding force of up to 1 200 kg, it provides a high level of mechanical protection and stable door locking. Power supply 12 V DC / 0.4 A via terminal block allows easy integration into existing infrastructure, and dry contact supports accurate signaling of the lock's status in the access system.
Full Compatibility with UniFi Access
The lock is designed for direct connection to the UniFi Access Hub and is fully compatible with the UA-Hub-Door, UA-Hub-Door-Mini, UA-Ultra, EAH-8, and UA-Hub-Gate units. Its robust stainless steel construction ensures long lifespan even under heavy use, while the wide operating temperature range of -20 to 70 °C allows for use in indoor as well as protected outdoor installations. Compliance with NDAA requirements confirms the suitability of the solution for security-sensitive deployments.
Key Features
- Electromagnetic lock in fail-safe design
- Holding force of up to 1 200 kg
- Power supply 12 V DC / 0.4 A (terminal block)
- Support for dry contact
- Full compatibility with UniFi Access Hub
- Stainless steel construction
- Operating temperature -20 to 70 °C
- Lock groove depth 15 mm
- Compatible with UA-Hub-Door, UA-Hub-Door-Mini, UA-Ultra, EAH-8, UA-Hub-Gate
| Mechanical | |

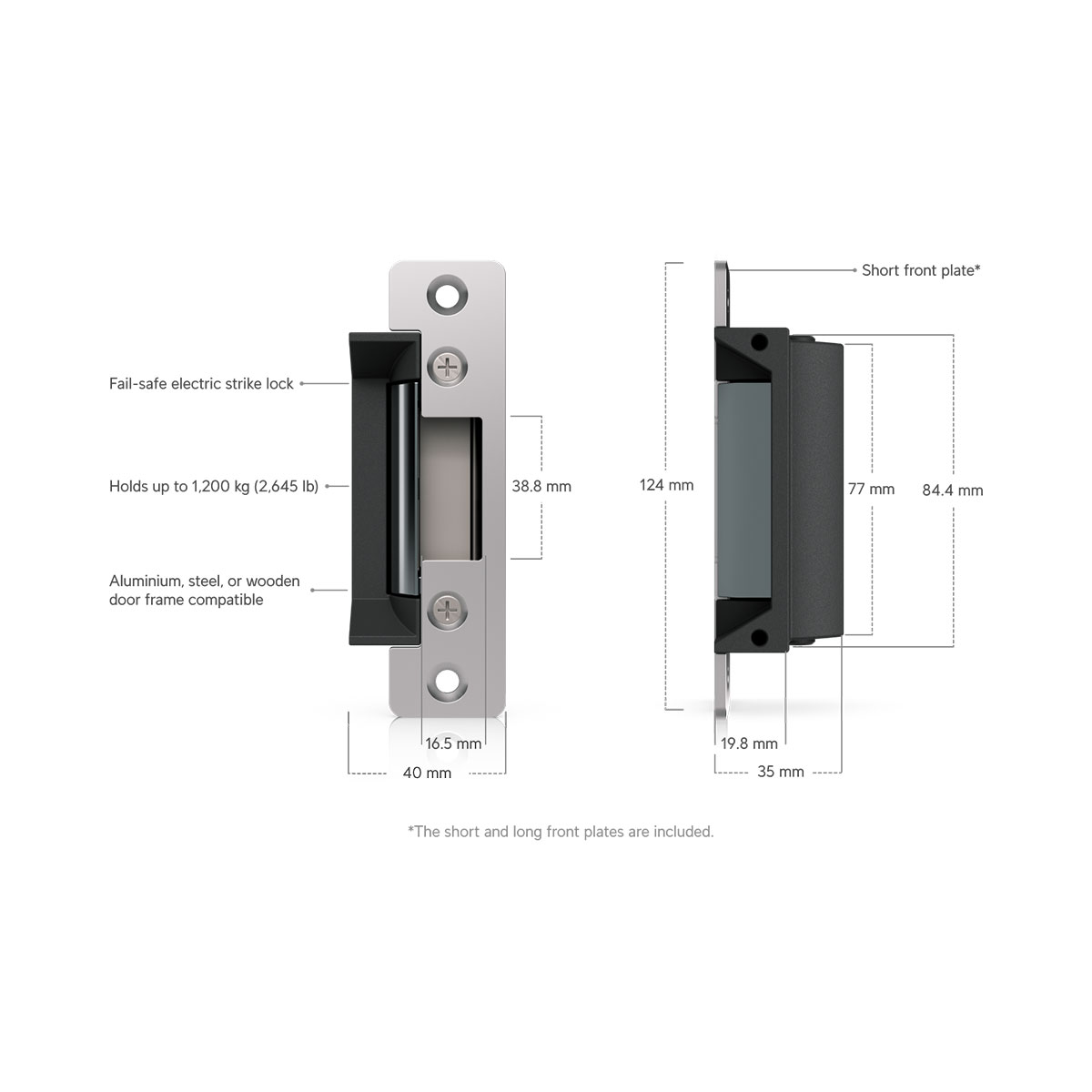

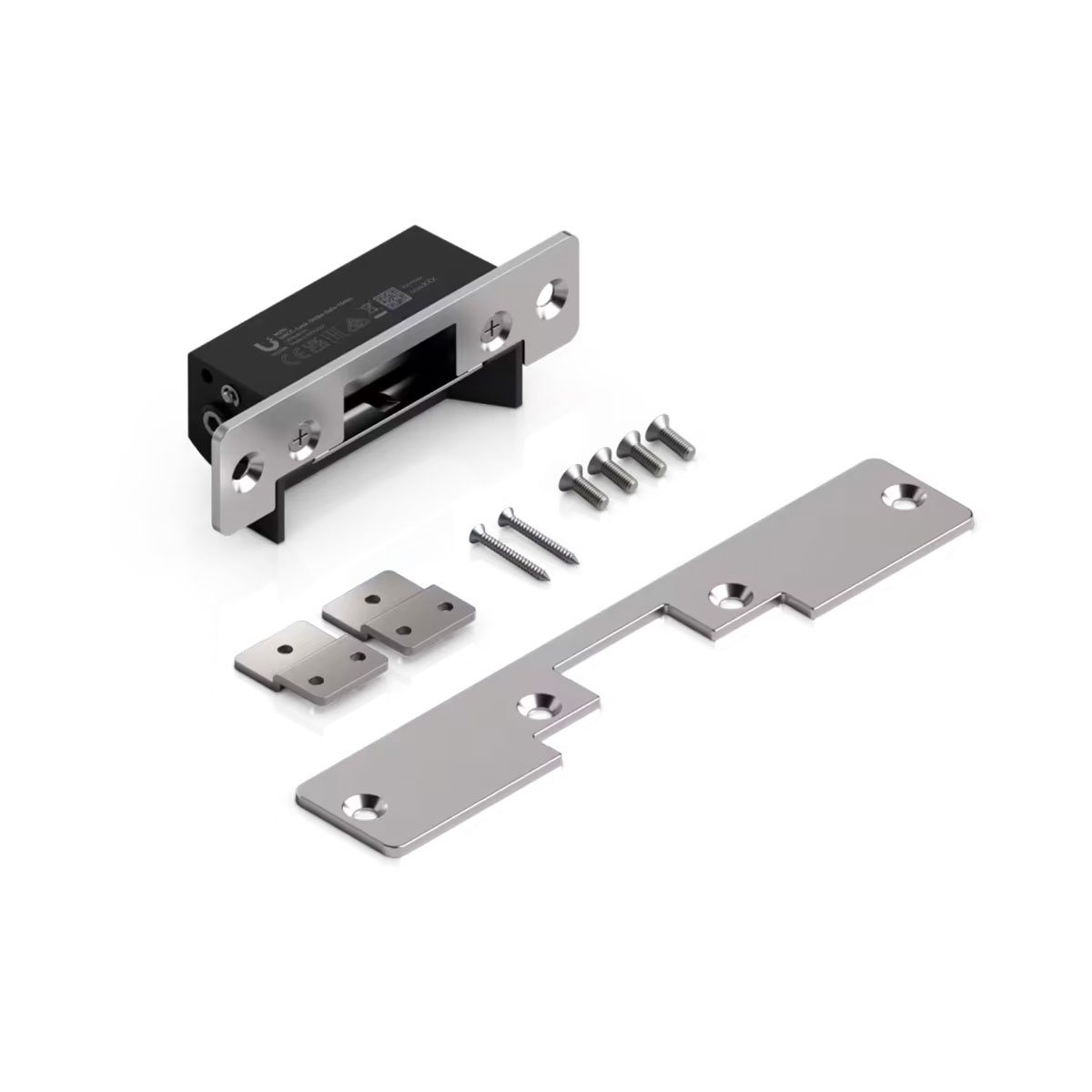

| Dimensions | Lock body: 80 x 40 x 35 mm Short front plate: 124 x 32 x 3 mm Long front plate: 202 x 36 x 3 mm |
| Weight | Lock body: 185 g Short front plate: 50 g Long front plate: 130 g |
| Enclosure materials | Lock body: zinc alloy Front plate/latches: stainless steel |
| Lock Features |
Lock Type - Fail safe Support Door Type - Single door (Wooden/metal) Holding Force - 1,200 kg Current Power - 400mA ±10% Support Voltage Range - 12V DC ±10% Wiring - (1) Lock 12V/NC (red) Mounting - Door frame recess mount |
| Door Status Contact |
Type - Dry contact Logic - Door Open: DPS/+ & DPS/- = Open Rating - Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C |
| Ambient Operating Temperature | -10 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
