Ubiquiti UA-BUTTON Access Button
Product Code:
UA-BUTTON
52,00 €
(Includes VAT 24%)
Sales price without VAT:
41,94 €
Available
Ubiquiti UA-BUTTON Access Button
Shipping cost calculation:
Quantity
Category:
Manufacturer:
Description
Characteristics
Downloads
Description

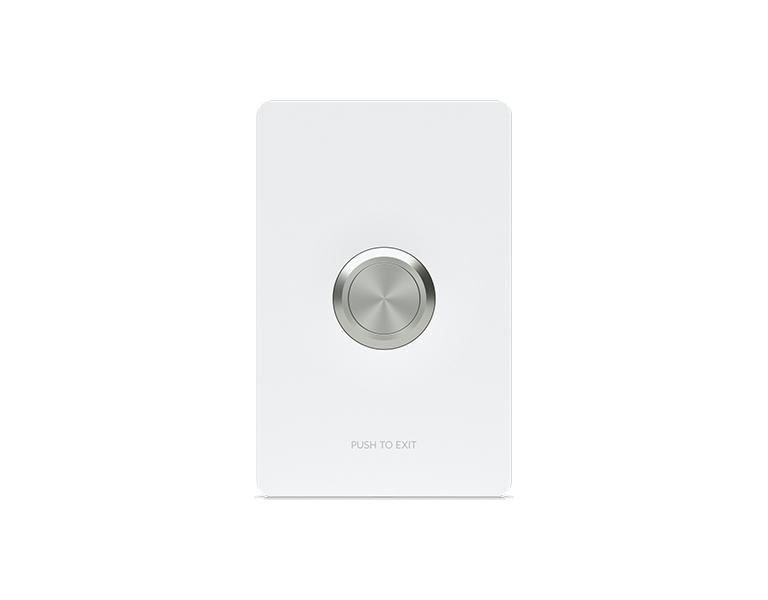

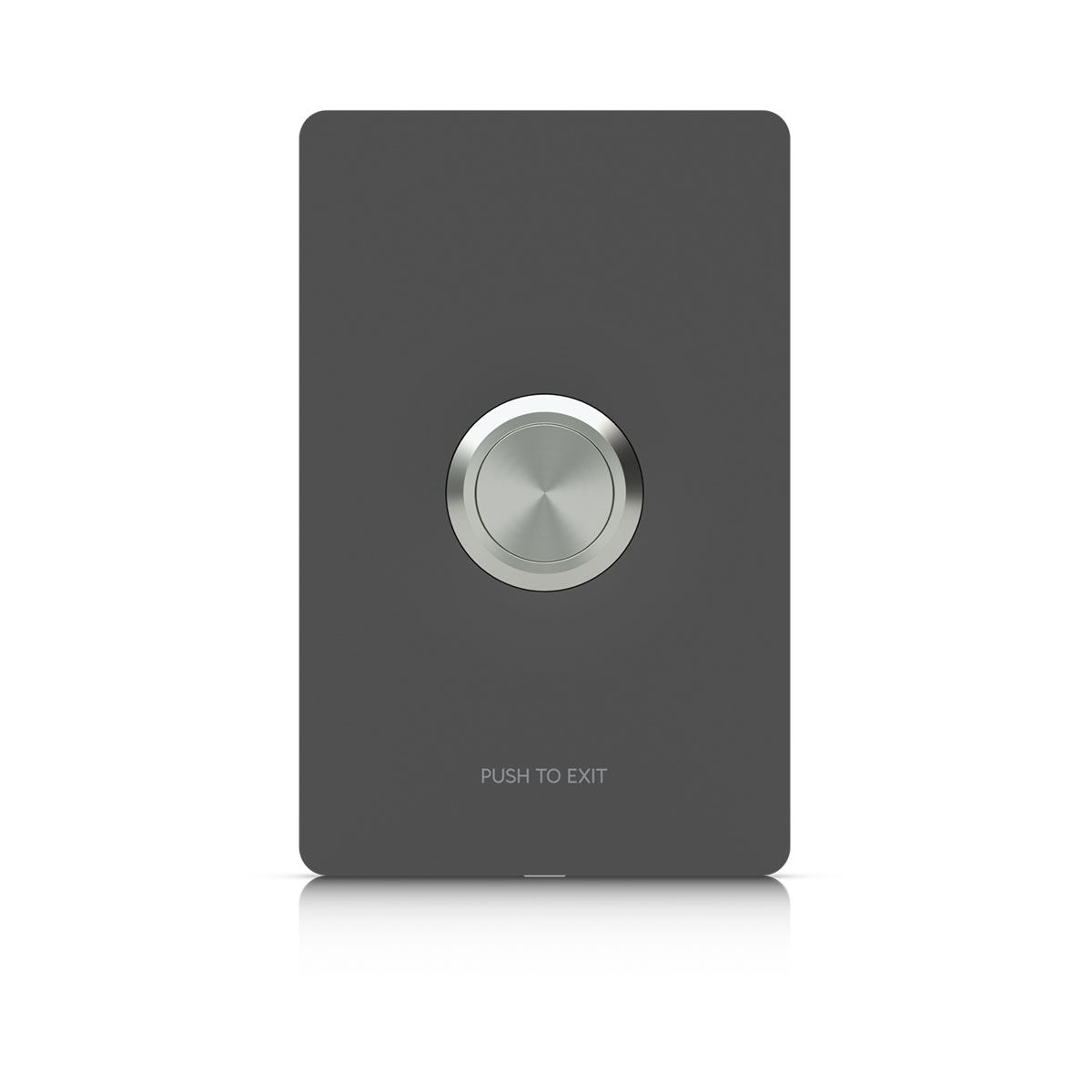

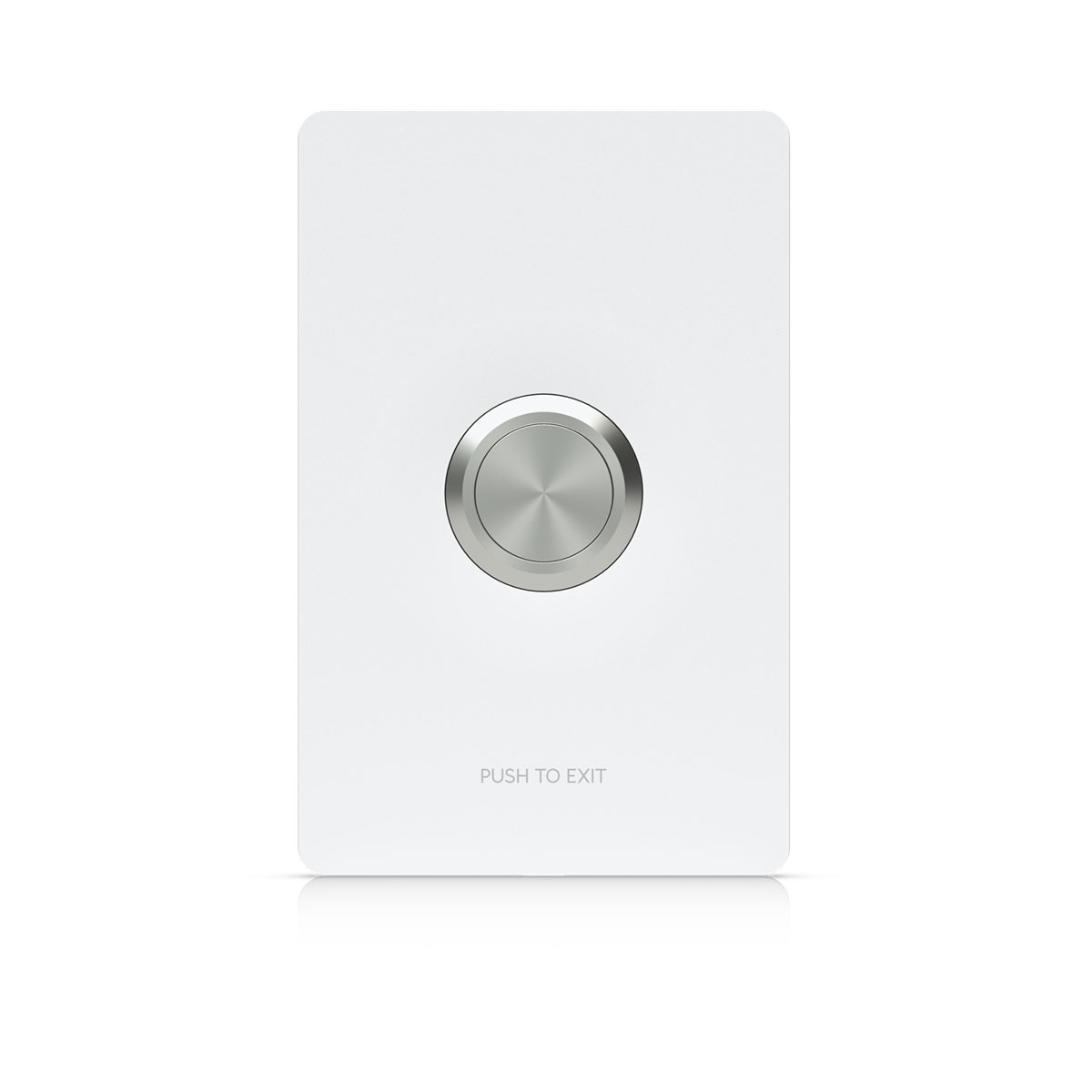

Push-to-exit button designed for UniFi Access Hubs.

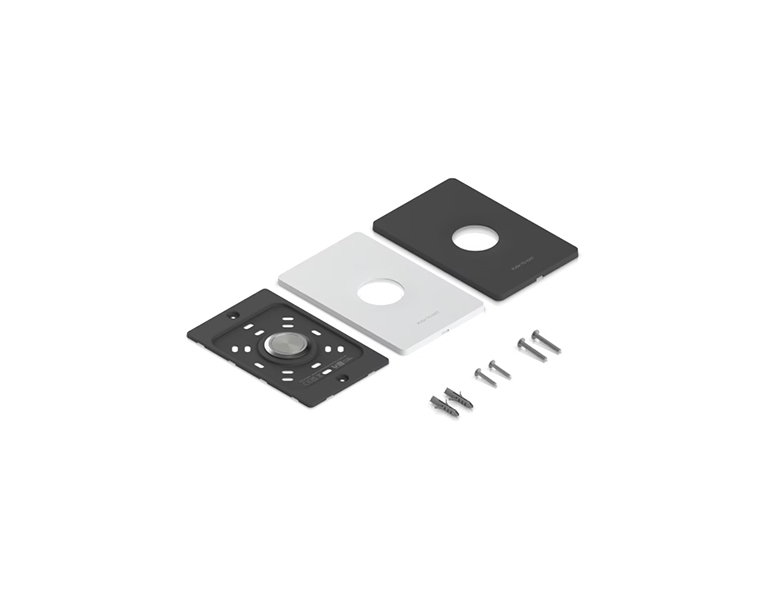

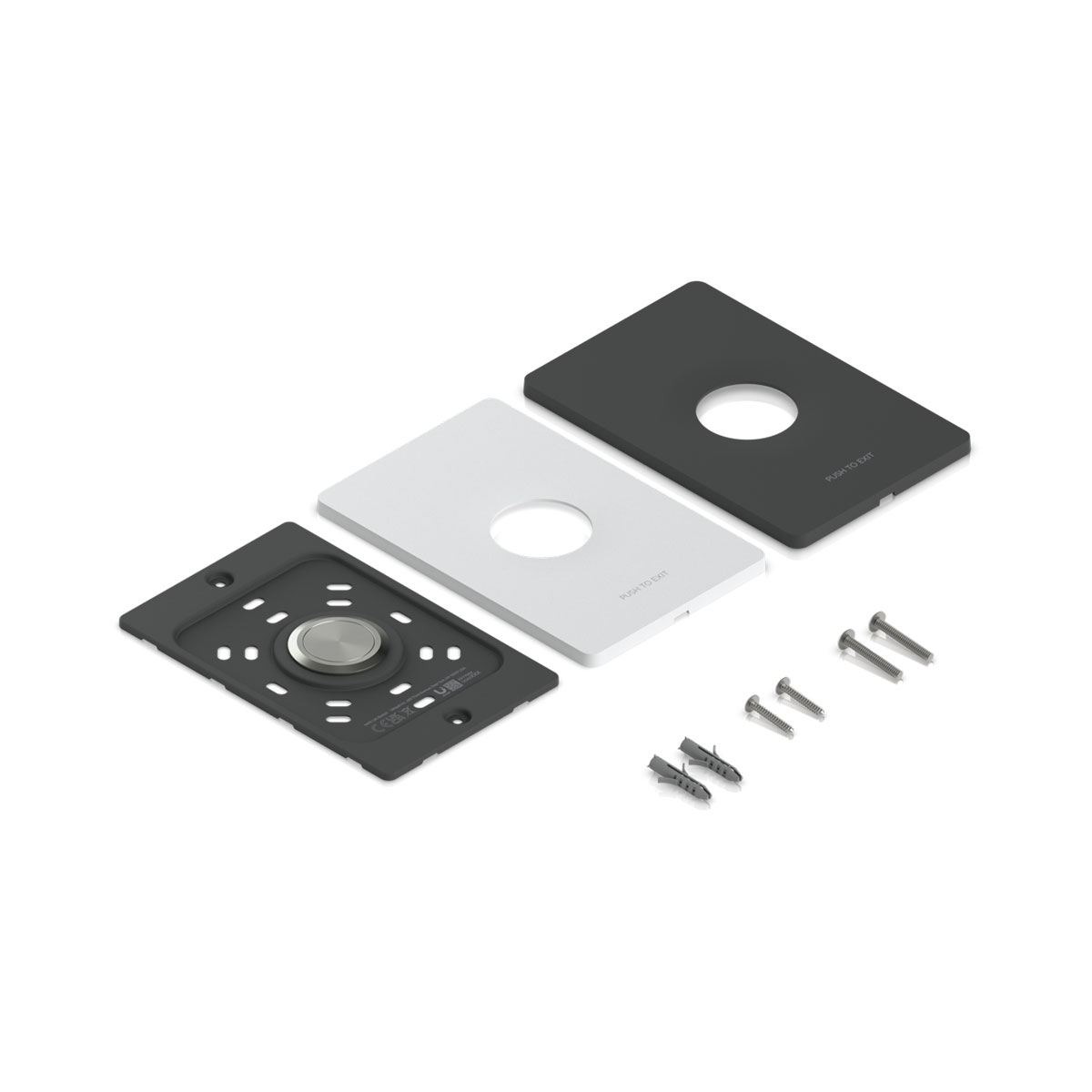

Package content:

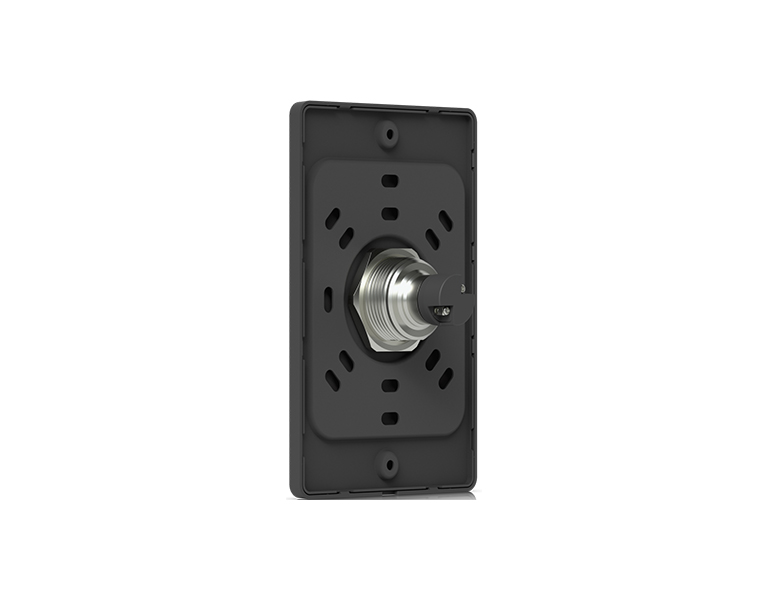

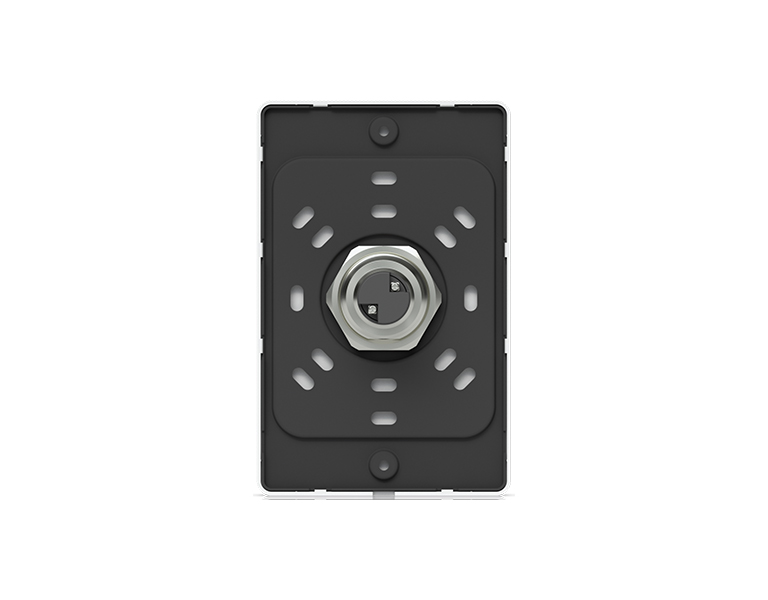

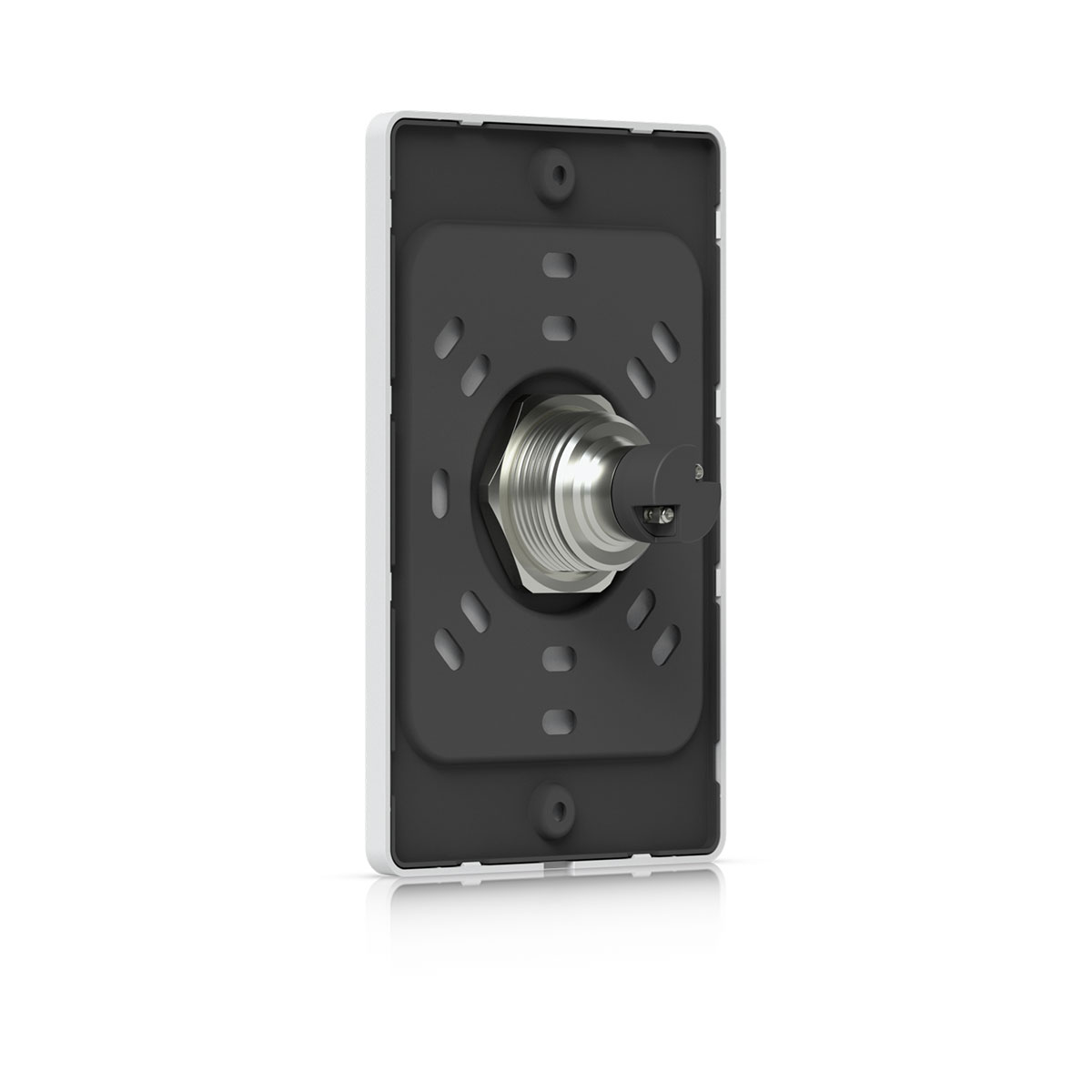

• Mounting frame
• White cover
• Black cover
• Screws
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
Characteristics
| Specifications | |
| Mechanical | |
| Dimensions | 137 x 88 x 38.1 mm |
| Weight | 180 g |
| Enclosure material | Polycarbonate |
| Mounting material | Metal |
| Color | Black/White |
| Hardware | |
| Contact type | (1) Normal open |
| Power method | UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Contact rating | 30V DC, 2A |
| Mechanical life | 1,000,000 clicks |
| Environment | Indoor only |
| Storage temperature | -40 to 70° C |
| Ambient operating temperature | 0 to 40° C |
| Ambient operating humidity | 5 to 90% noncondensing |
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certification | CE, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | Yes |
| Document number, and issue date and/or revision level | UA-Button, V01 |
