Ubiquiti UACC-USL-ANT-HG, Superlink High-Gain Antenna
Ubiquiti UACC-USL-ANT-HG, Superlink High-Gain Antenna

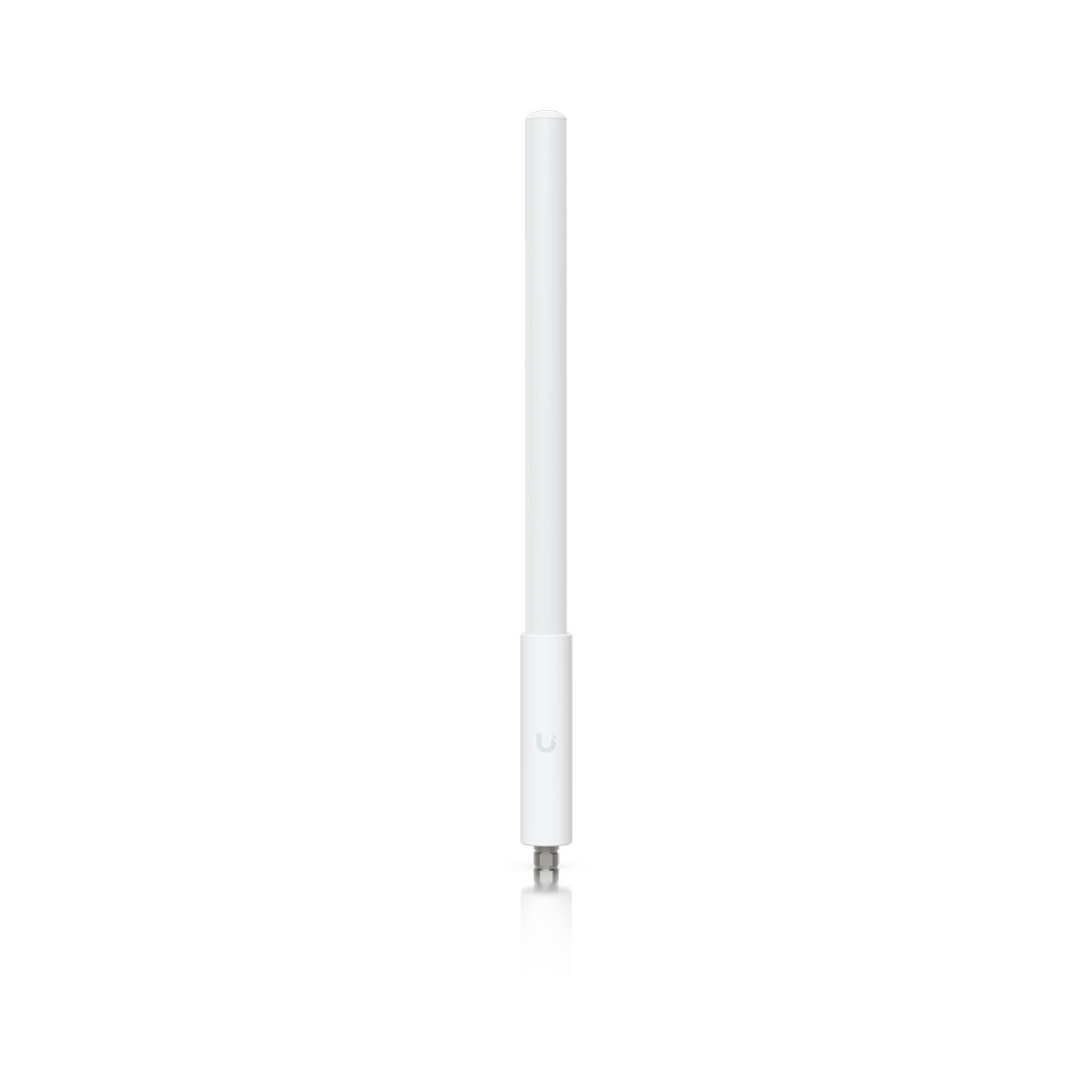

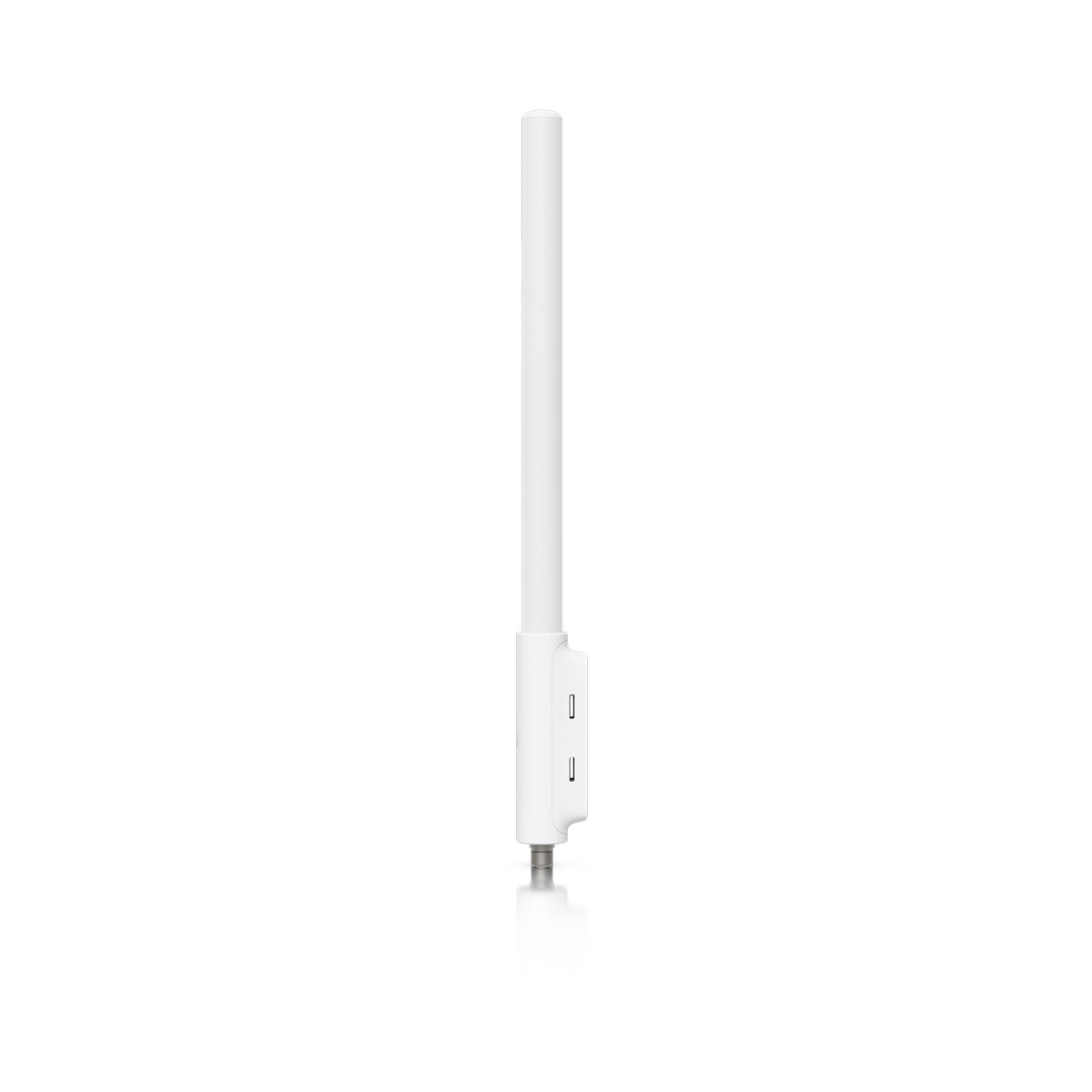

The Ubiquiti UACC-USL-ANT-HG is an omnidirectional antenna designed for use with the SuperLink Gateway. This outdoor-rated antenna with an IP67 certification provides a 7 dBi gain in the 860–930 MHz band, and a 4 dBi gain for the 2400–2480 MHz (Bluetooth) band.
When using the SuperLink protocol in open space, the antenna enables a range of up to 5 km thanks to its high gain. Bluetooth range in open space reaches up to 100 m.
SuperLink is a modern wireless protocol designed for reliable, low-latency, long-range communication. It offers significantly better range and power efficiency compared to standard BLE technology while minimizing delays. With advanced update management and high stability, it is ideal for security systems, automation, and industrial applications.

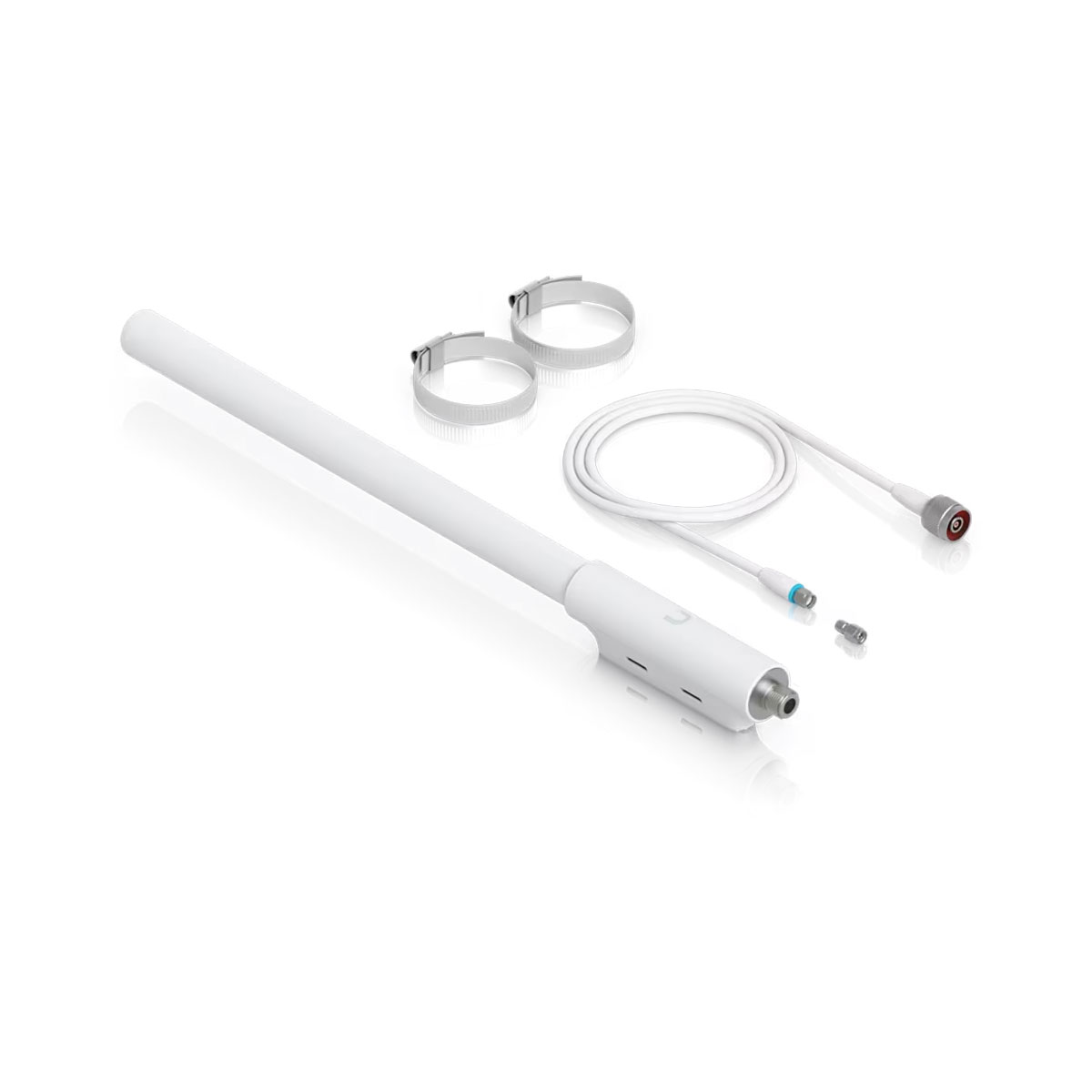

Package Contents
• Antenna
• (2) Metal mounting straps
• RF cable
• SMA Adapter
| Overview | |
| Dimensions | Device: 468.9 x 31.8 x 44.1 mm With cable: 1458.4 x 31.8 x 44.1 mm Cable: ⌀5.2 x 1000 mm |
| Weatherproofing | IP67 |
| Mounting | Pole mount |
| Pole Mount Diameter | 1–2.17" (25–55 mm) |
| Wind Loading | 25.4 N at 200 km/h |
| UniFi Application Suite | Protect |
| Performance | |
| Operating Frequency | US 860–930 MHz EU 860–930 MHz Bluetooth 2400–2480 MHz |
| Antenna Gain | Bluetooth 4 dBi SuperLink 7 dBi |
| Max. Range | Bluetooth Up to 100 m SuperLink 5 km |
| Hardware | |
| Weight | Device: 275 g Cable: 65 g |
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |
| Ambient Operating Temperature | -40 to 60° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE |
