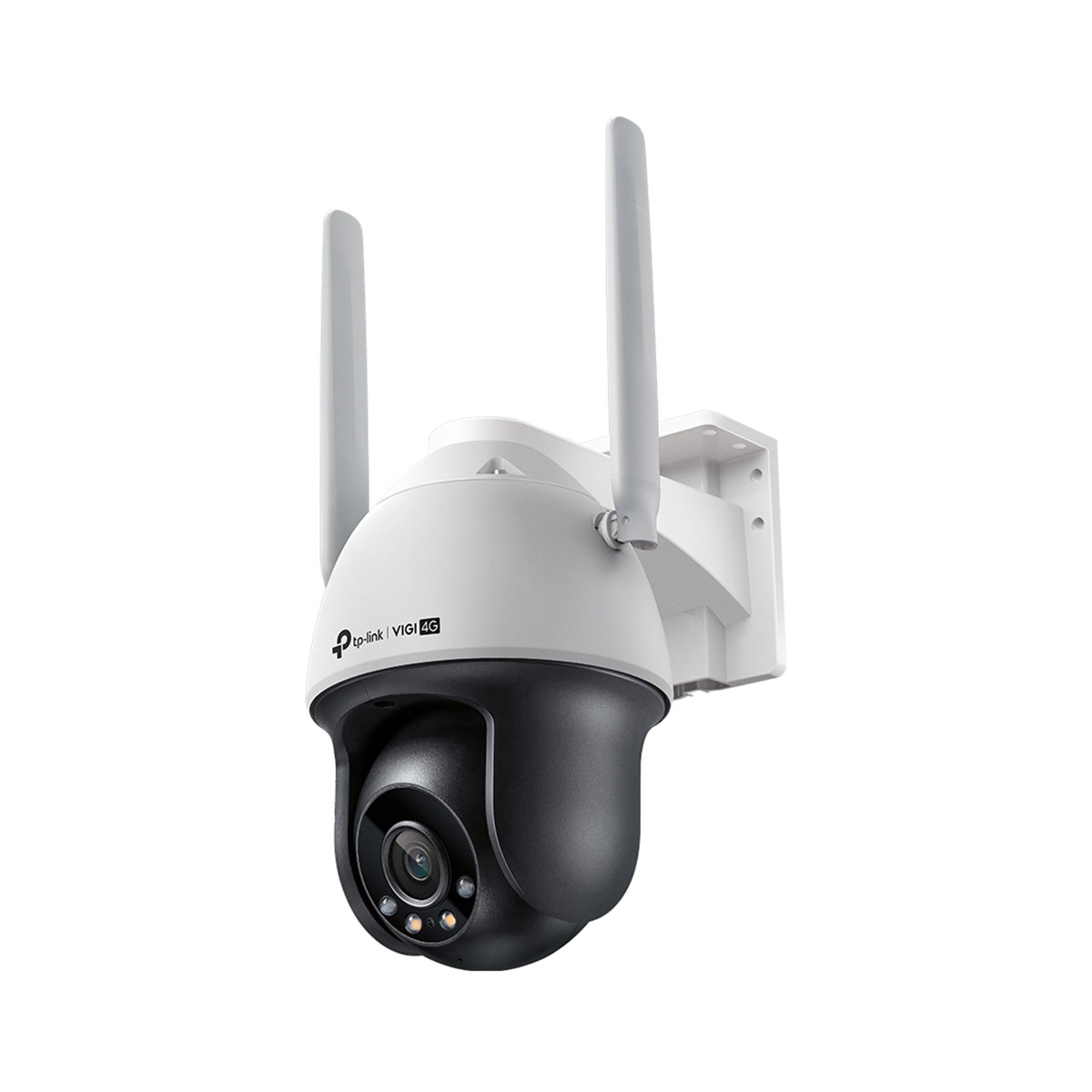

TP-LINK VIGI C540-4G-4 V1 4MP Outdoor Full-Color 4G Pan Tilt Network Camera (4mm)
TP-LINK VIGI C540-4G-4 V1 4MP Outdoor Full-Color 4G Pan Tilt Network Camera (4mm)
Caution!! The package does not include power supply!
| • 4MP Super-High Definition and 24h Full-Color • 4G Mobile Networking • 360° Monitoring and Auto Tracking • 1 LAN Ports for Downstream Devices • Human & Vehicle Classification • Smart Detection • Smart Video Enhancement Technology • Active Defense and Two-Way Audio • H.265+ Compression Technology • IP66† Waterproof and Onboard Storage§ |
Smart Video Enhancement Technology
DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
†To maintain IP66 protection, install the camera perpendicular to the ground.
§MicroSD card and Nano-SIM card are not included in the package.
*Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/3.06” Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux; 0 Lux with IR/white light |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| PTZ | |
| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 120° |
| Pan Speed | Configurable from 8° to 44°/s; Preset Speed: 44°/s |
| Tilt Speed | Configurable from 8° to 44°/s; Preset Speed: 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes. Auto restore to previous PTZ and lens status after power failure |
| Park Action | Yes. Preset; Patrol Scan |
| 3D Positioning | Yes |
| Lens | |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12X0.5 |
| Angle Adjustment (Manual) | |
| Range | Pan: 0° to 348°, Tilt: 0° to 120° |
| Illuminator | |
| IR LED | Quantity: 2 Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Video | |
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°) |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| 4G | |
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM |
| Category | 4 |
| Frequency | LTE-FDD: B 1/3/5/7/8/20/28 LTE-TDD: B 38/40/41 WCDMA: B 1/5/8 |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP |
| API | Open Network Video Interface (Profile S) |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 2 Main Streams & 2 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR (for local management only), Web |
| Cloud | Yes |
| ONVIF | Yes |
| Interface |
|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Nano-SIM Card Slot | Yes |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Reset Button | Yes |
| Alarm and Event Management |
|
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Output Notification | Message Push |
| General |
|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Material | Plastic |
| Protection | IP66 |
| Antenna | • Quantity: 2 • Type: 690~960&1710~2690MHz Dipole OmniDirectional Antenna • Gain: Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |

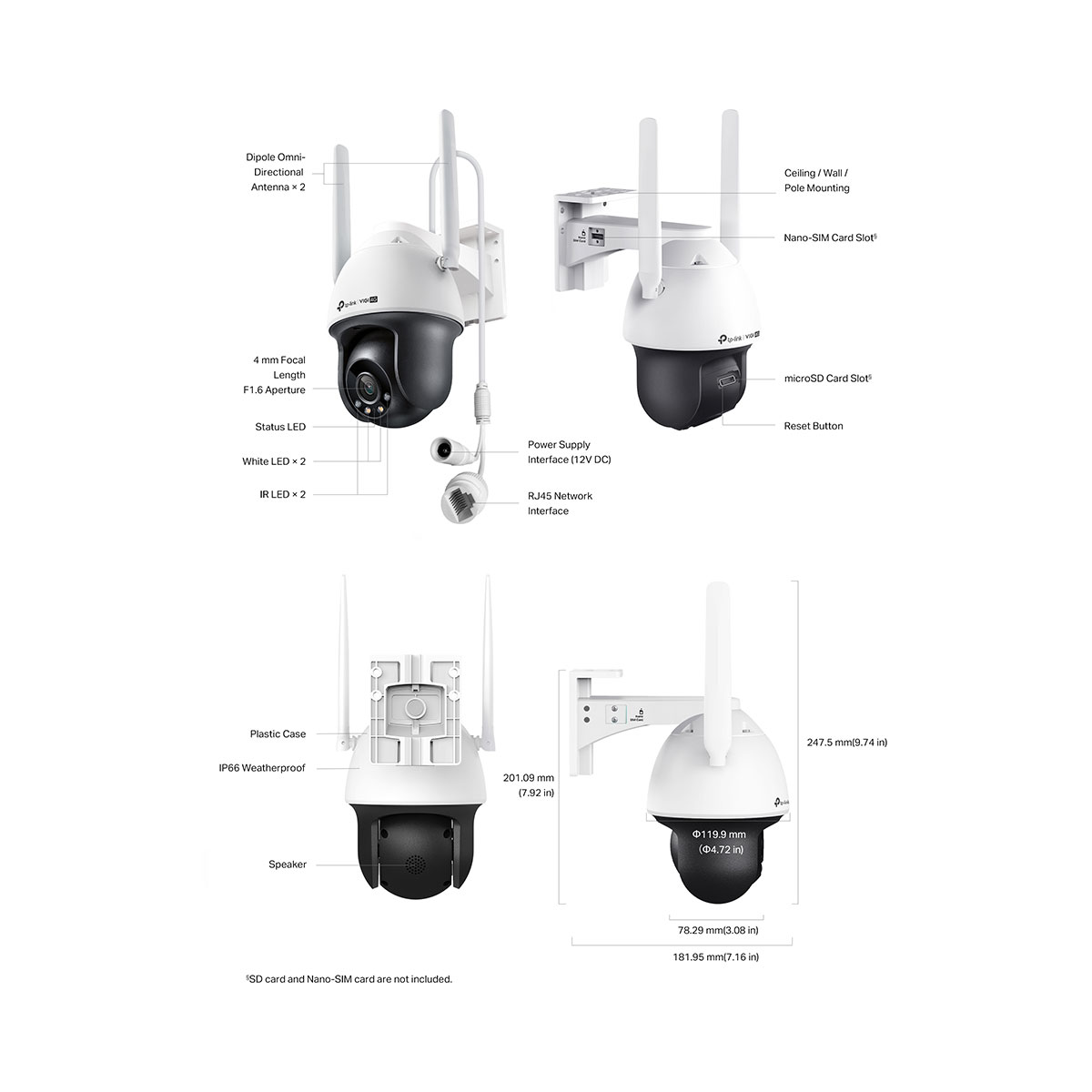

| Product Dimensions (L x W x H) | 120 × 182 × 201 mm |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
| Net Weight | 0.69KG |
| Gross Weight | 1.16KG |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
