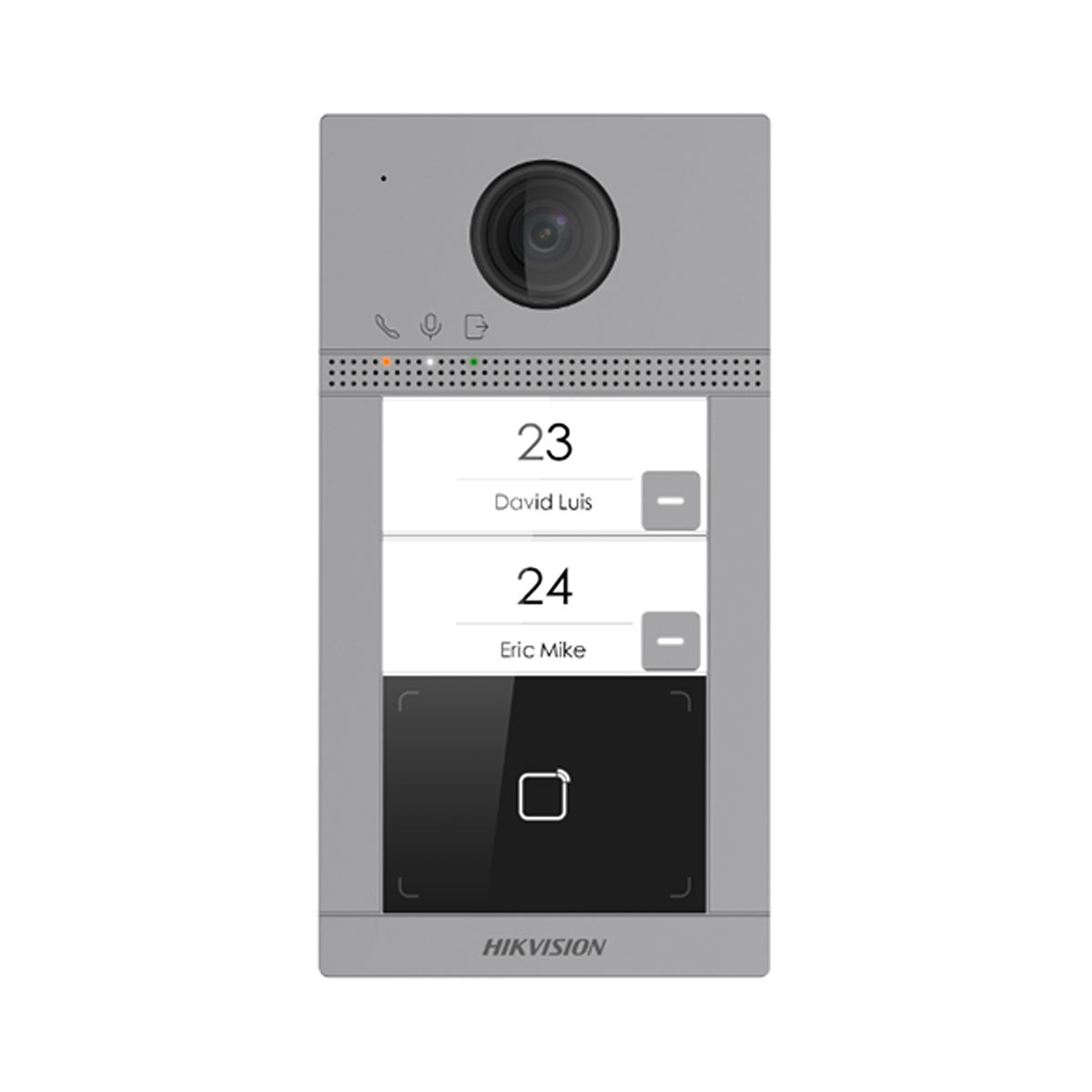

Hikvision DS-KV8213-WME1(C) Video Intercom Villa Door Station
Product Code:
DS-KV8213-WME1(C)
.jpg "Hikvision DS-KV8213-WME1(C) Video Intercom Villa Door Station")
Available
Hikvision DS-KV8213-WME1(C) Video Intercom Villa Door Station
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Legal Notice
Description
• 2 MP camera with IR supplement
• Two nametag buttons calling design for easier calls
• Built-in card reader module
• Standard PoE power supply
• IK08 ＆ IP65 higher protection level with aluminum alloy material
• Convenient Hik-Connect APP mobile control
Characteristics
| Specifications | |
| System parameters | |
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 256 M |
| Processor | Embeded high performance processor |
| Video parameters | |
| Lens | 1 |
| Resolution | Main stream:1920 × 1080p and 1280 × 720p Sub stream: 640 × 480p |
| FOV | Horizontal: 124° Vertical: 75° |
| Wide dynamic range (WDR | Digital WDR/76.9 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Card capacity | 10000 |
| Linked indoor station capacity | 2 (main indoor station) |
| Sub door station capacity | 16 |
| Network parameters | |
| Network protocol | TCP/IP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Received frequency | 2.4 to 2.4835 GHz |
| Transmitted frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20/40 MHz |
| Frequency power | 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm |
| Authentication | |
| Card reading frequency | 13.56 MHz |
| Device interfaces | |
| Alarm input | 4 |
| Network interface | 1 RJ-45,10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| TF card | Reserved |
| Lock control | 2 relays, Max. 30 VDC 2 A |
| Door contact input | 2 |
| General | |
| Button | 2 physical buttons |
| Installation | Surface mounting |
| Indicator | 3 |
| Weight | Net weight: 0.370 kg Gross weight: 0.637 kg |
| Protective level | IP65, IK08 |
| Working temperature | -40 °C to 53 °C |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 174 mm × 91 mm × 29 mm |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Language | English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
Downloads
Legal Notice
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
