Teracom TSC201, 1-Wire isolated current sensor
Teracom TSC201, 1-Wire isolated current sensor

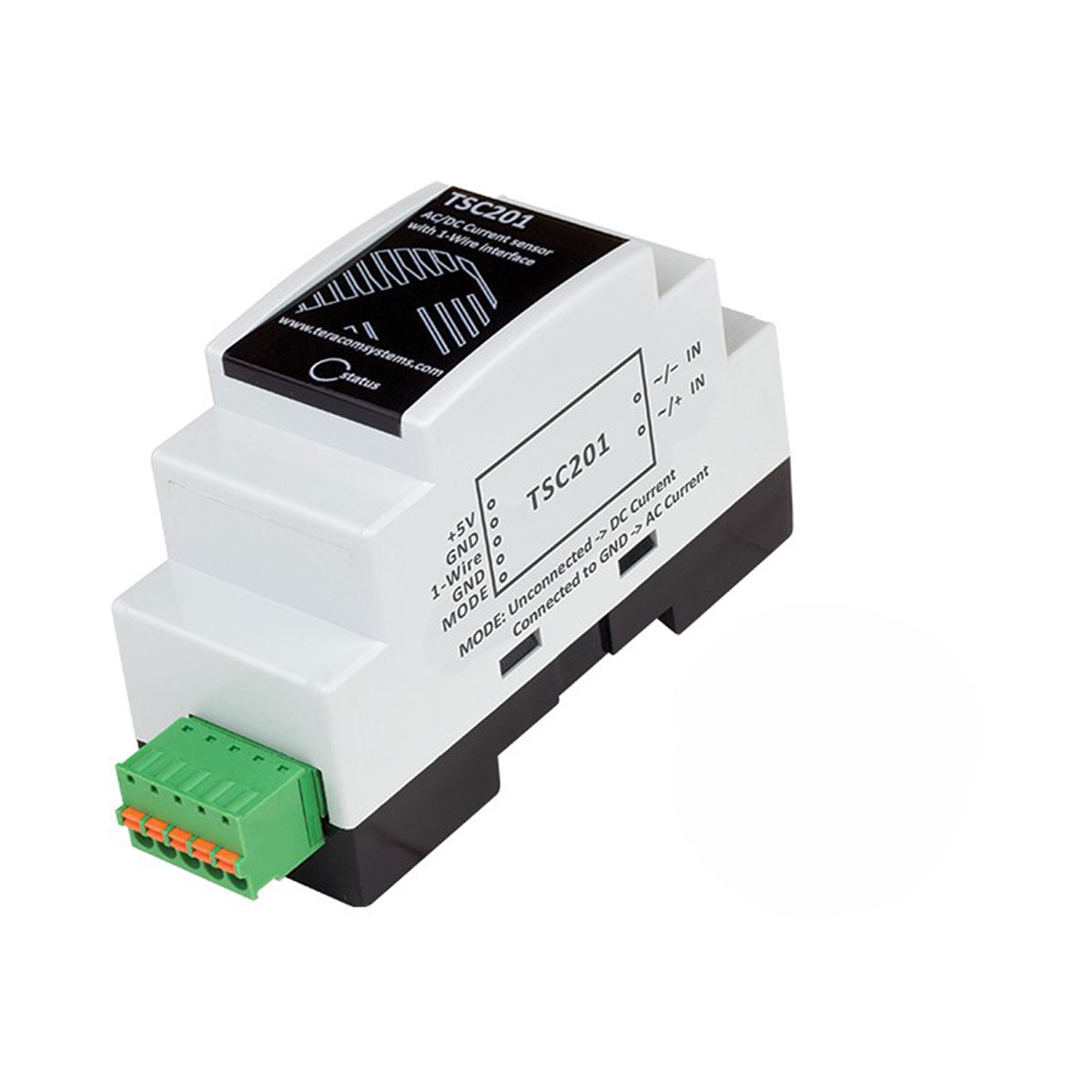

TSC201 is a compact current sensor module with a 1-Wire communication interface and an input range up to 10 A, designed for monitoring both AC and DC currents. It is optimized for use with current transformers (CTs) that provide a 10 A secondary output, enabling the indirect measurement of higher primary currents. The module features a 16-bit ADC for high-resolution measurements and galvanic isolation between the current input and the communication interface, ensuring electrical safety and system protection.
The device is factory calibrated and requires no user adjustment. It can be powered externally with 4 to 5.5 VDC. When used with Teracom controllers, the power supply is delivered through the 1-Wire interface itself. Data update frequency depends on the master device. Teracom controllers typically request sensor data every second, which is close to the maximum practical polling rate for the 1-Wire protocol.
The sensor is enclosed in a compact 2-DIN module housing suitable for mounting in electrical panels and industrial enclosures.
Features
• 1-Wire interface;
• LED indicator for communication status;
• Galvanically isolated current input for enhanced system safety;
• Designed for easy DIN rail installation;
• Firmware update via the interface;
• Factory calibrated – no configuration needed, ready for use.
Applications:
• Current consumption monitoring in electrical distribution systems;
• AC load measurement for motors, pumps, and compressors;
• Integration in industrial control systems for process monitoring;
• Current monitoring for inverters and UPS systems.
Usage
• Ethernet data logger TCW220
• Ethernet IO module TCW241
• 4G LTE wireless I/O module TCG120-4
• 4G LTE universal IO module TCG140-4
| Specifications | |
| Physical characteristics | |
| Dimensions | 36x107x59mm (2-DIN module enclosure) |
| Weight | 65g |
| Environmental limits | |
| Operating temperature range | -20 to 60°C |
| Operating relative humidity range | 10 to 90% (non-condensing) |
| Storage temperature range | -25 to 65°C |
| Storage relative humidity range | 5 to 95% (non-condensing) |
| Ingress protection | IP40 (connections IP20) |
| Power supply | |
| Operating voltage range | 4 to 5.5VDC |
| Current consumption | 30mA@5V |
| Input | |
| Input AC current range | 0.1 to 10 Aac |
| Input DC current range | ± (0.1 to 10) Adc |
| Accuracy | ± 1% |
| Resolution | 0.01A |
| Maximum working voltage for basic isolation | 277Vac |
| AC frequency | 48 to 65Hz |
| Connectors | |

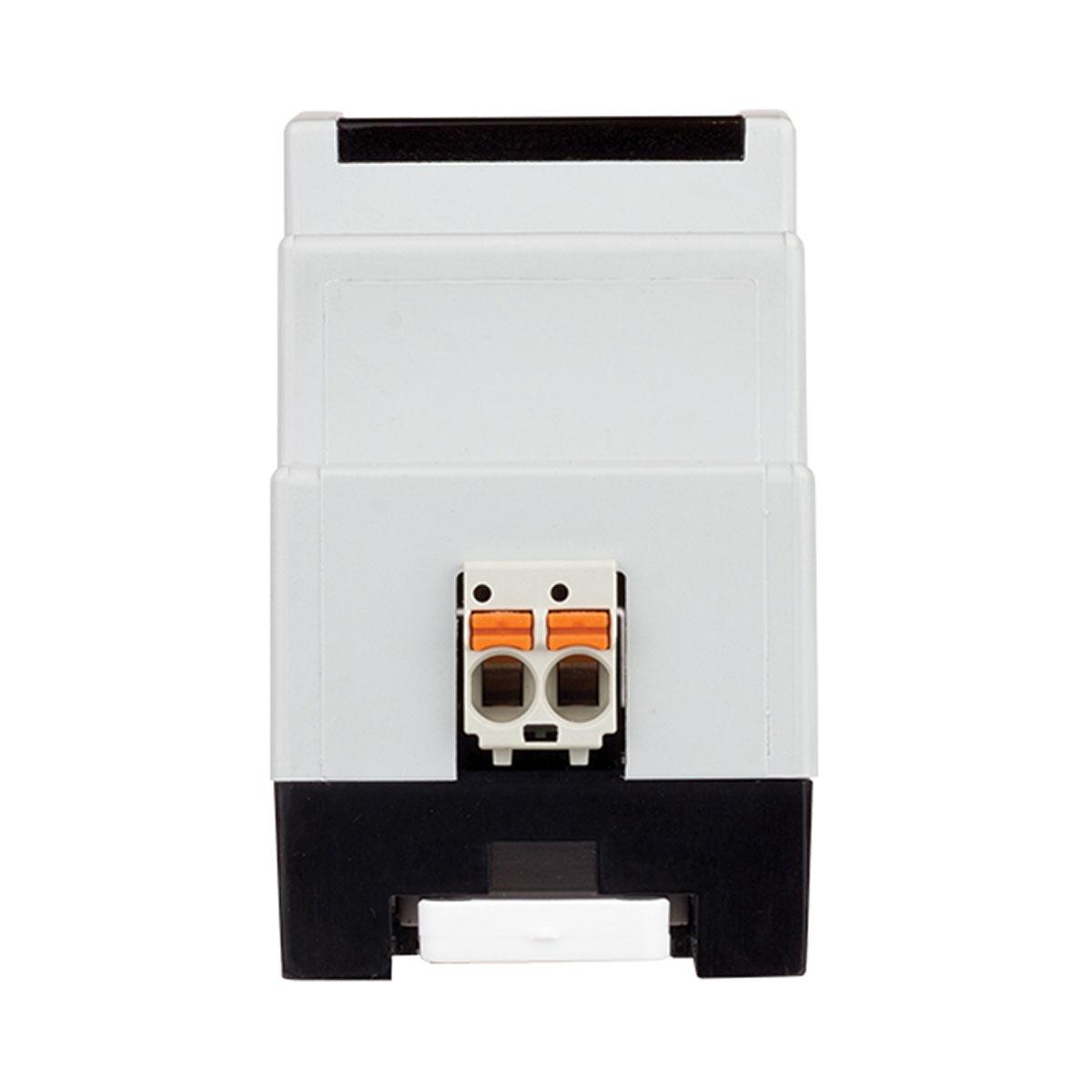

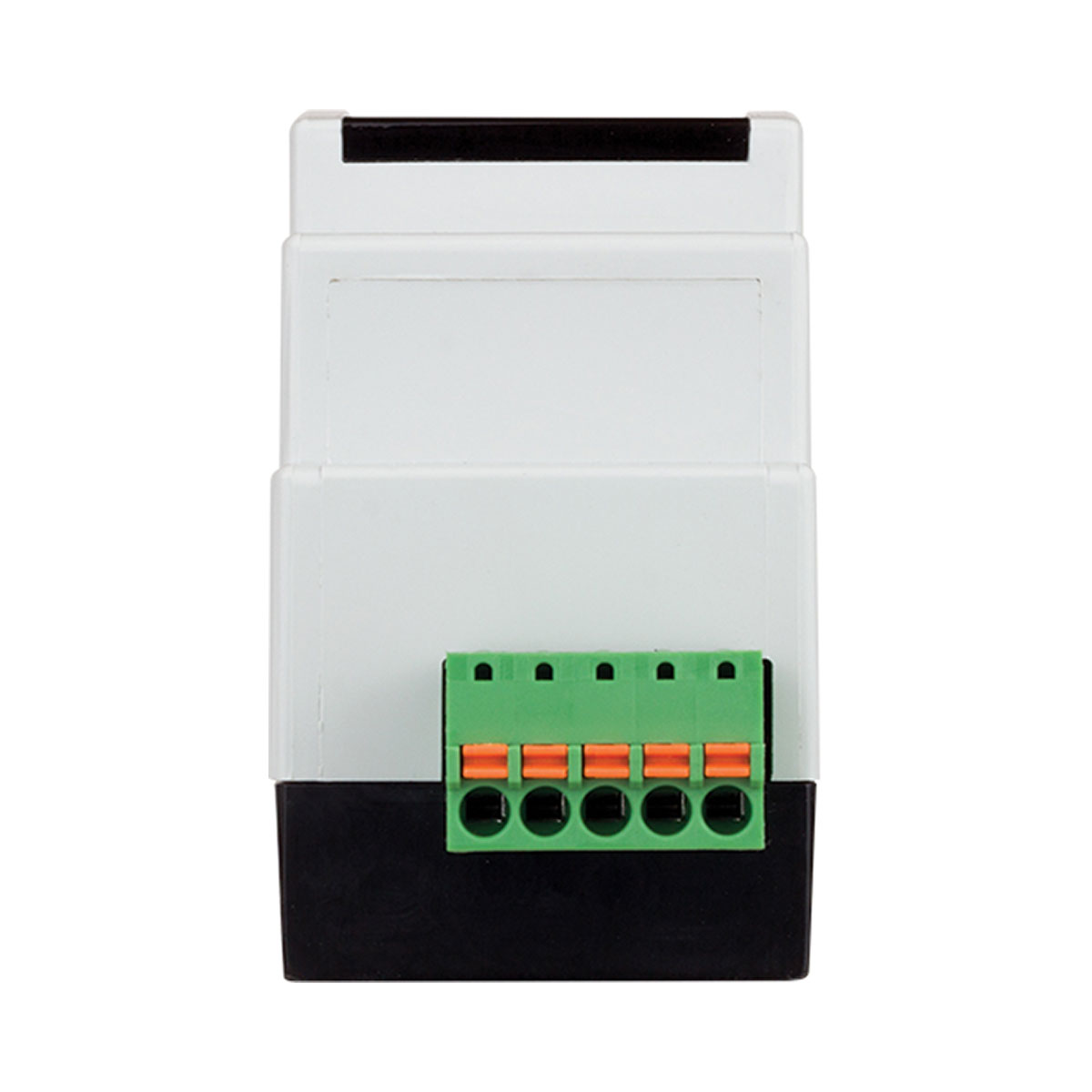

| Type 3.81mm pitch screwless pluggable; |
Wire range: 28 to 16 AWG / 0.081 to 1.31 mm²; |
| Type 5.00 mm pitch screwless push-in; | Wire range: 24 to 12 AWG / 0.2 to 2.5 mm²; |
