TP-LINK TL-SG2428P V5.3 JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Product Code:
TL-SG2428P
279,00 €
(Includes VAT 24%)
Sales price without VAT:
225,00 €
Available
TP-LINK TL-SG2428P V5.3 JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
| • 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots • 250 W total PoE budget with up to 30 W PoE output per port • Centralized cloud management via the web or the Omada app† • Standalone management via web, CLI, SNMP, and RMON • Static Routing helps route internal traffic for higher efficiency • VLAN, ACL, QoS, and IGMP Snooping • Durable metal casing and rackmountable design |
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
• Surveillance
• Conference Call
• Wi-Fi Coverage
• Wired Connections
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
Characteristics
| HARDWARE FEATURES | |
| GENERAL | |
| Interface | 24 10/100/1000Mbps RJ45 ports 4 Gigabit SFP Slots |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical fiber) |
| PoE | |
| PoE Standard | 802.3af/at |
| PoE Ports | 24, up to 30W |
| PoE Power Budget | 250 W |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Number of IP Interfaces | 16 |
| Transmission Method | Store and Forward |
| Number of Static Routers | 32 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| PHYSICAL & ENVIRONMENT | |
| Fan Quantity | 2 |
| Installation | Rackmount |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 14.4 W (110V/60 Hz) |
| Max Heat Dissipation | 1025.0 BTU/hr (110 V/60 Hz) (with 250 W PD connected) |
| Standby Power Consumption | 15.6 W (110 V/60 Hz) |
| Power Supply | 100-240V AC, 50/60Hz |
| Surge Protection | 6 kV for port and 4 kV for power module |
| Dimensions(WxDxH) | 440 x 220 x 44 mm |
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |

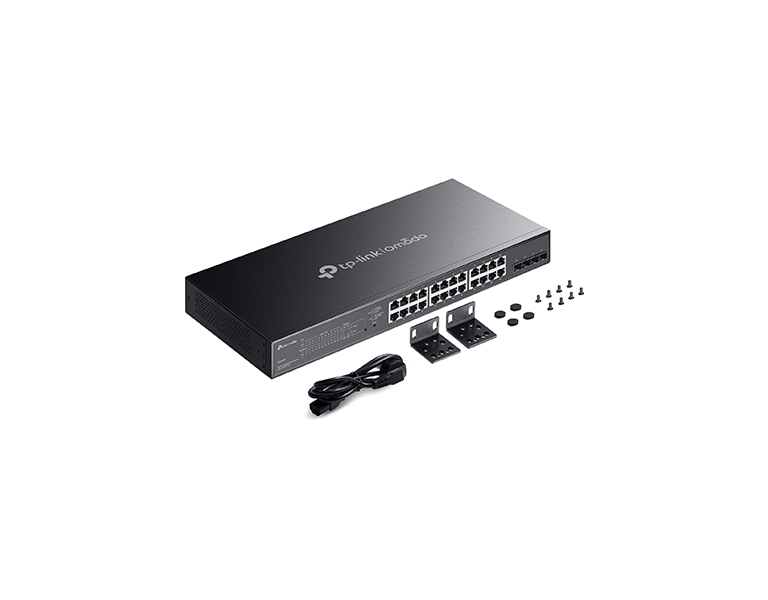

| Package Contents | • SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
