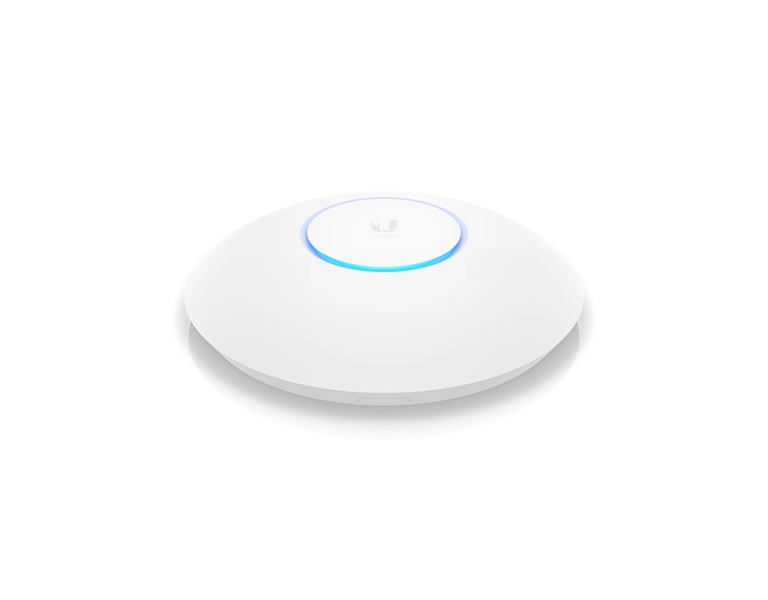

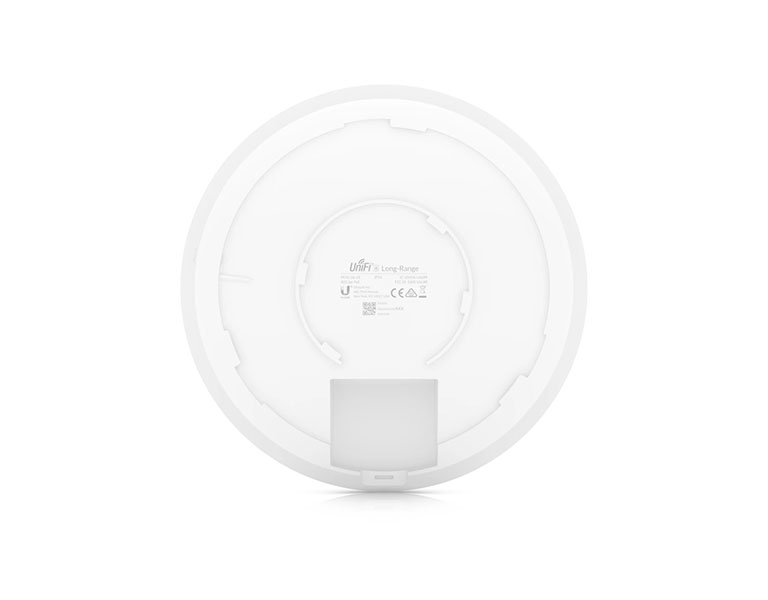

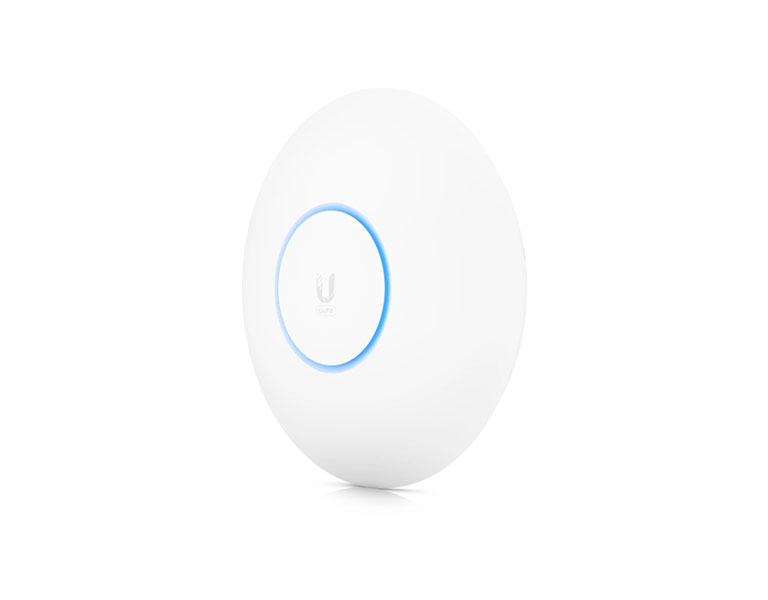

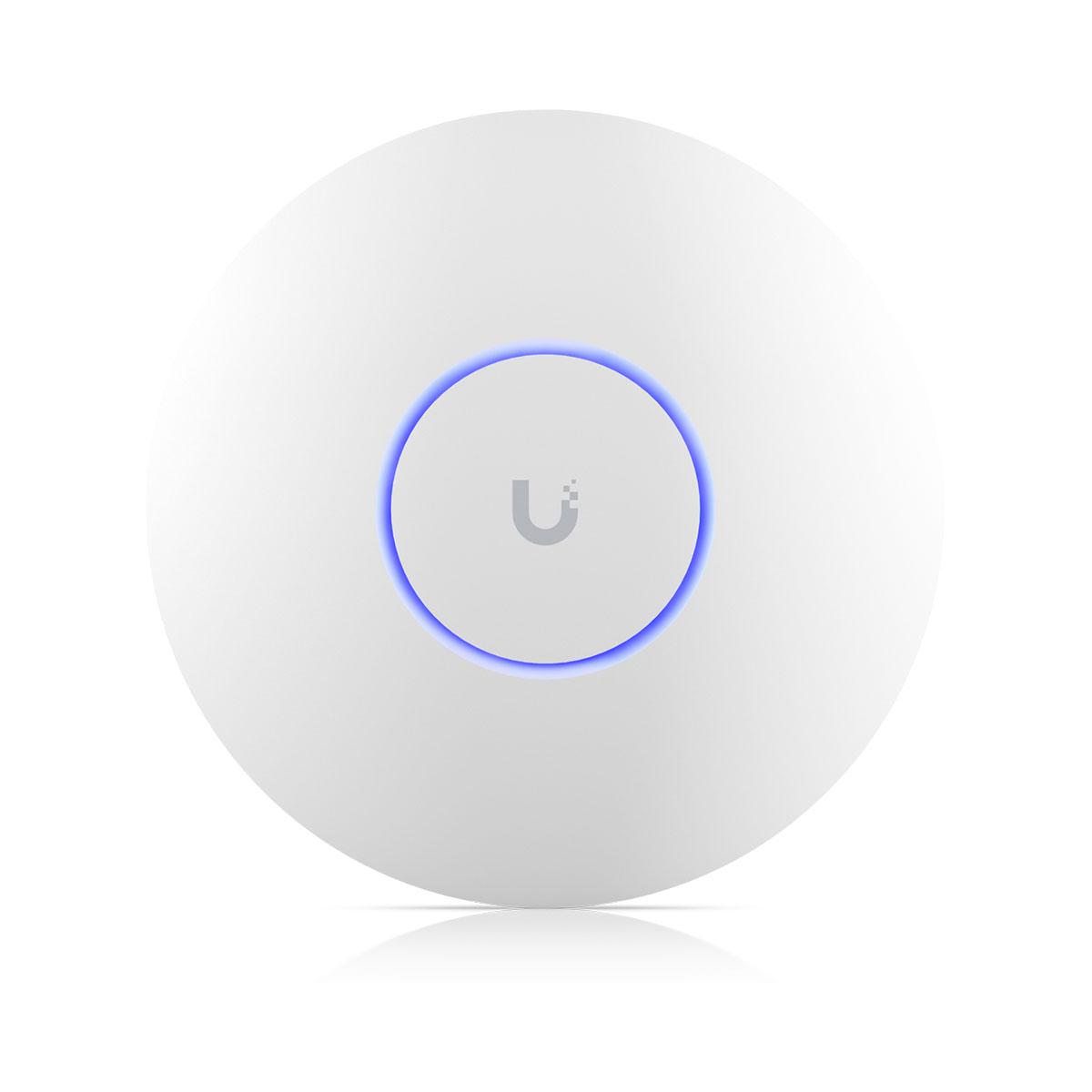

Ubiquiti U6-LR, UniFi 6 Long-Range Access Point
CAUTION PACKAGE DOES NOT INCLUDE POE ADAPTER
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
• 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
• Four-stream high-efficiency Wi-Fi 6 technology
• 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
• 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
• Powered with 802.3at PoE (PoE injector not included)
Managed by UniFi Network Controller version: 6.0.34 or higher.
Works with UniFi Network Controller
• Manage Your Networks from a Single Control Plane
• Intuitive and Robust Configuration, Control and Monitoring
• Remote Firmware Upgrade
• Users and Guests
• Guest Portal/Hotspot Support
Best-in-class Wi-Fi coverage and performance
With its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet.
Four-stream high-efficiency Wi-Fi 6 technology
Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios.
Powerful, wider wireless coverage
The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.
Simultaneously connect to more devices
Create and support over 300 distinct client connections.
Easily set up and grow your network
The U6-LR access point seamlessly integrates with the UniFi Network Controller and simplifies network bridging.
| Specifications | |
| Mechanical | |

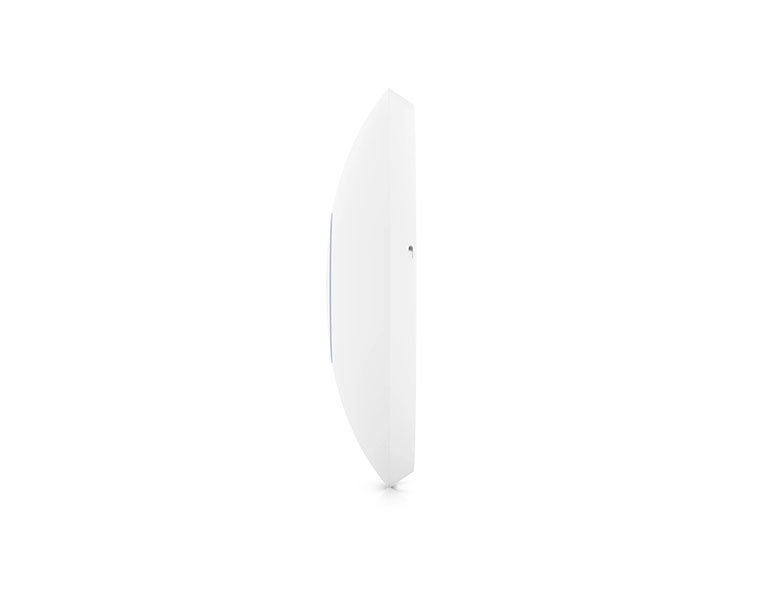

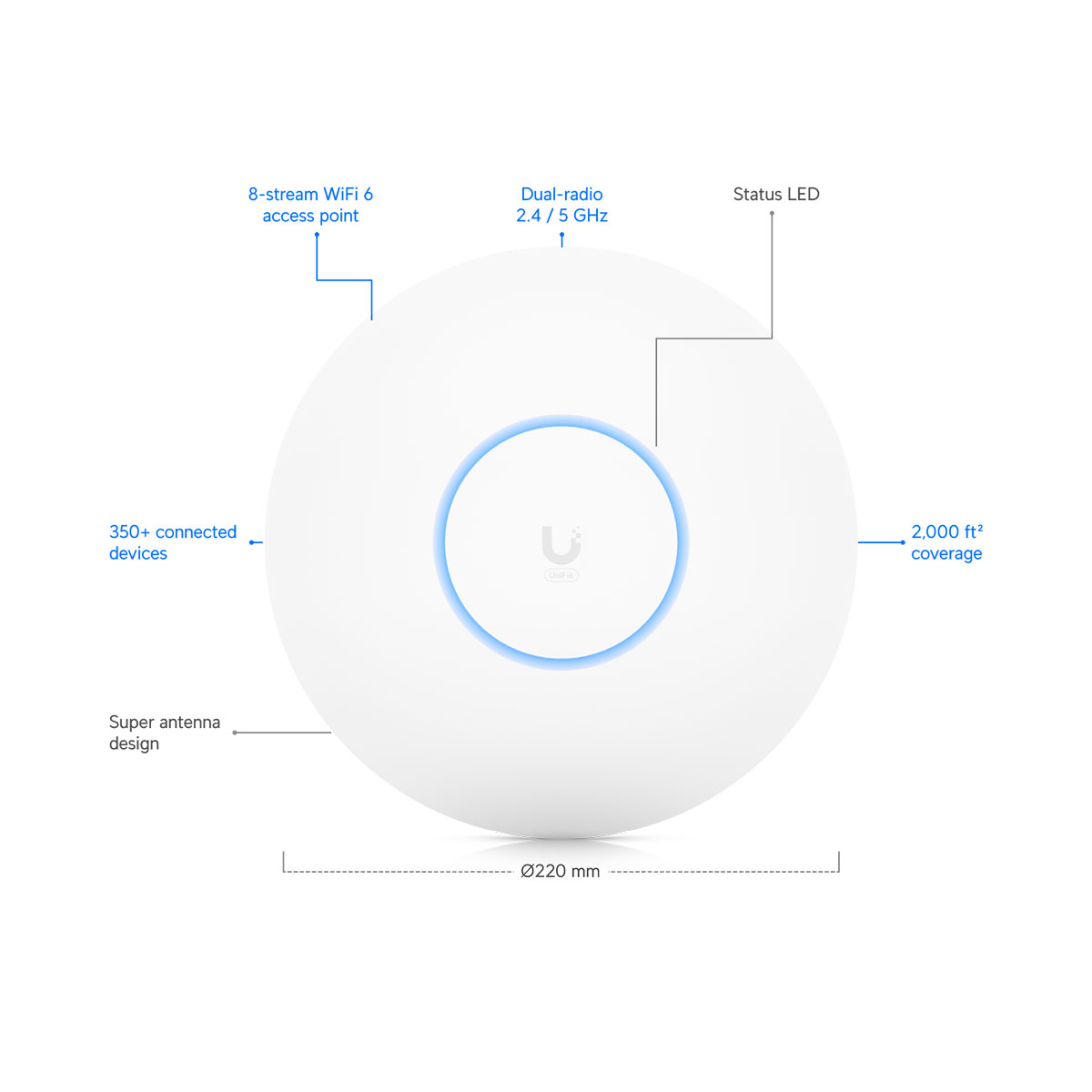

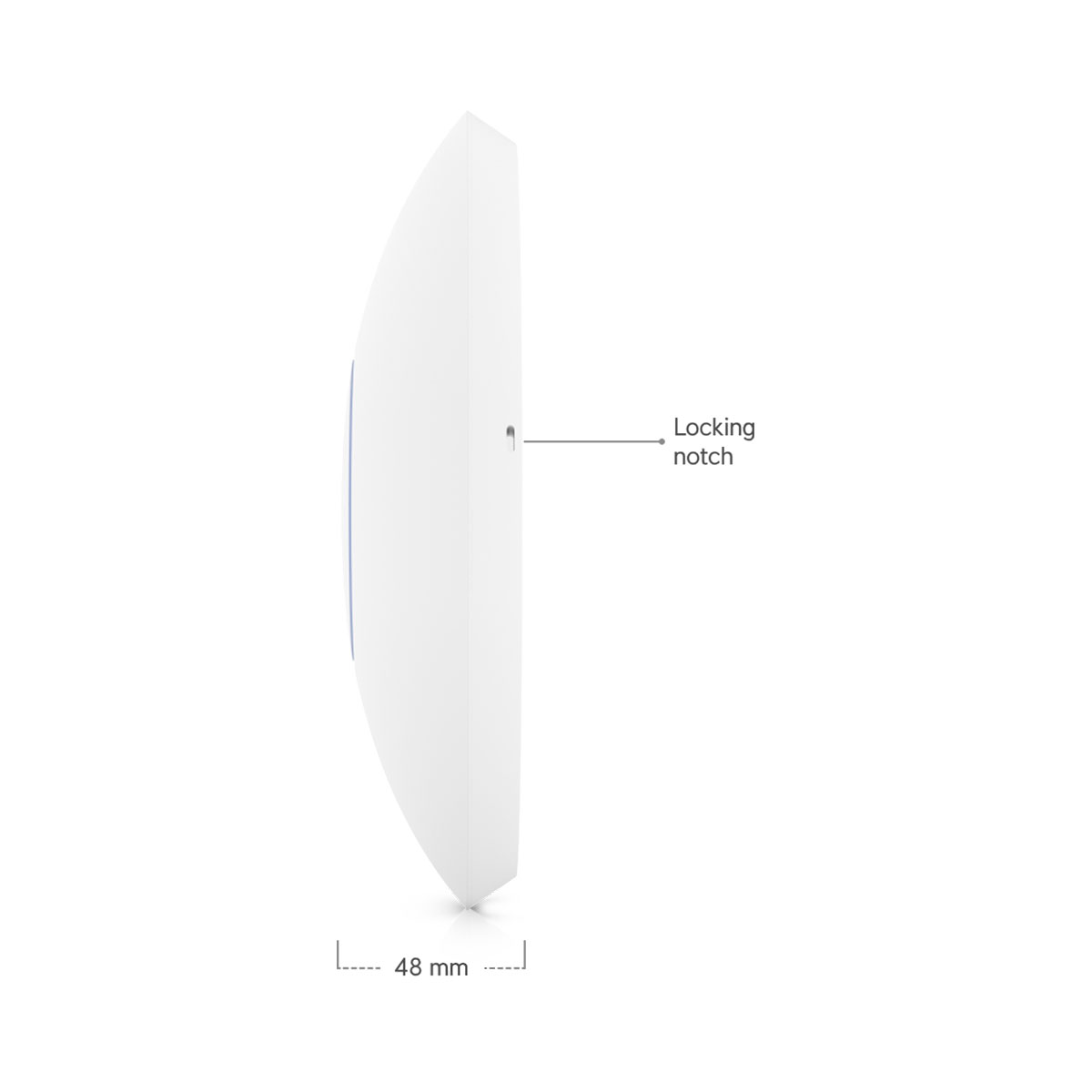

| Dimensions | Ø220 x 48 mm |
| Weight | Without Mount: 800 g With Mount: 930 g |
| Enclosure Characteristics | Polycarbonate |

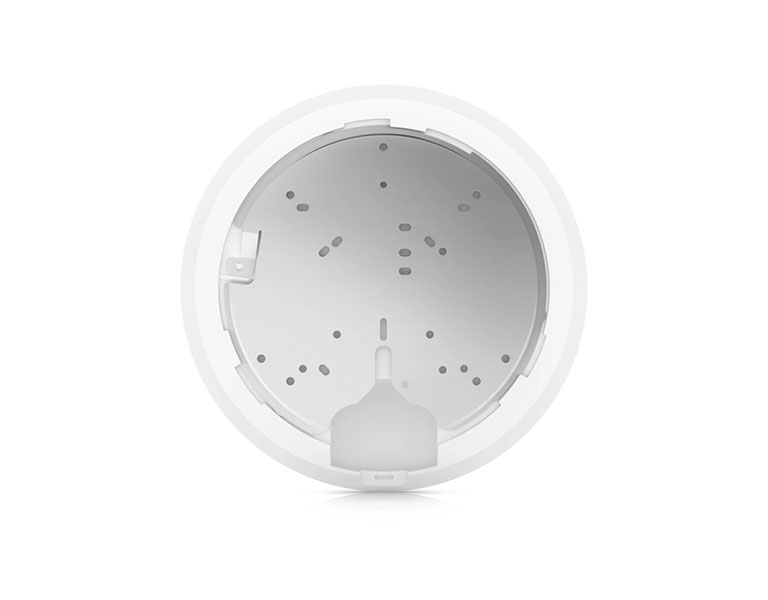

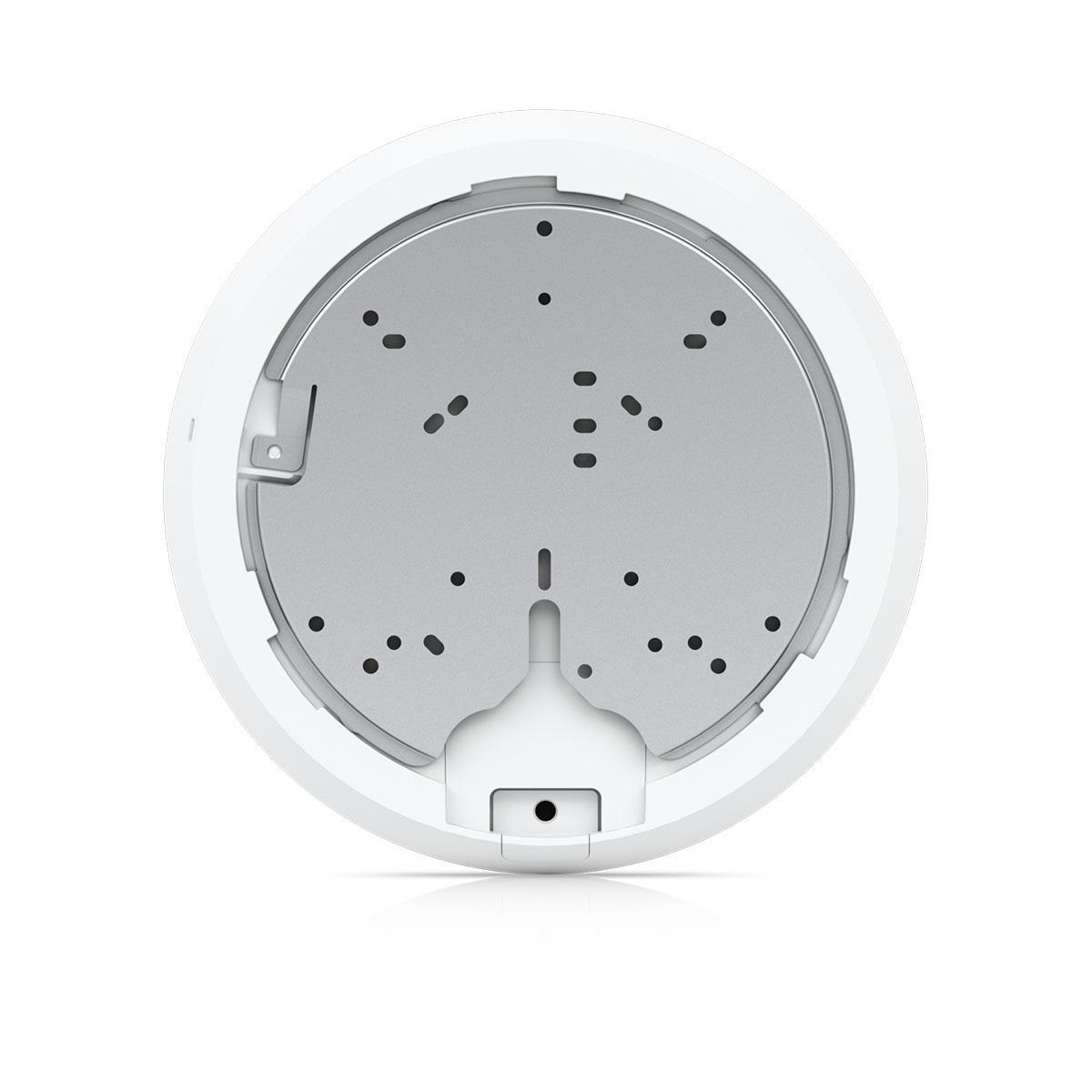

| Mounting Characteristics | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |
| Management Interface | Ethernet Bluetooth |
| Networking Interface | (1) 1 GbE RJ45 port |
| Buttons | Factory Reset |
| LEDs | RGB |
| Power Method | PoE+ |
| Power Supply | UniFi PoE Switch 48V, 0.5A PoE Adapter (Not Included) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 18.5W |
| Max. TX Power 2.4GHz 5GHz |
26 dBm 26 dBm |
| MIMO 2.4GHz 5GHz |
4 x 4 4 x 4 |
| Throughput Speeds 2.4GHz 5GHz |
600 Mbps 2400 Mbps |
| Antenna Gain 2.4GHz 5GHz |
4 dBi 5.5 dBi |

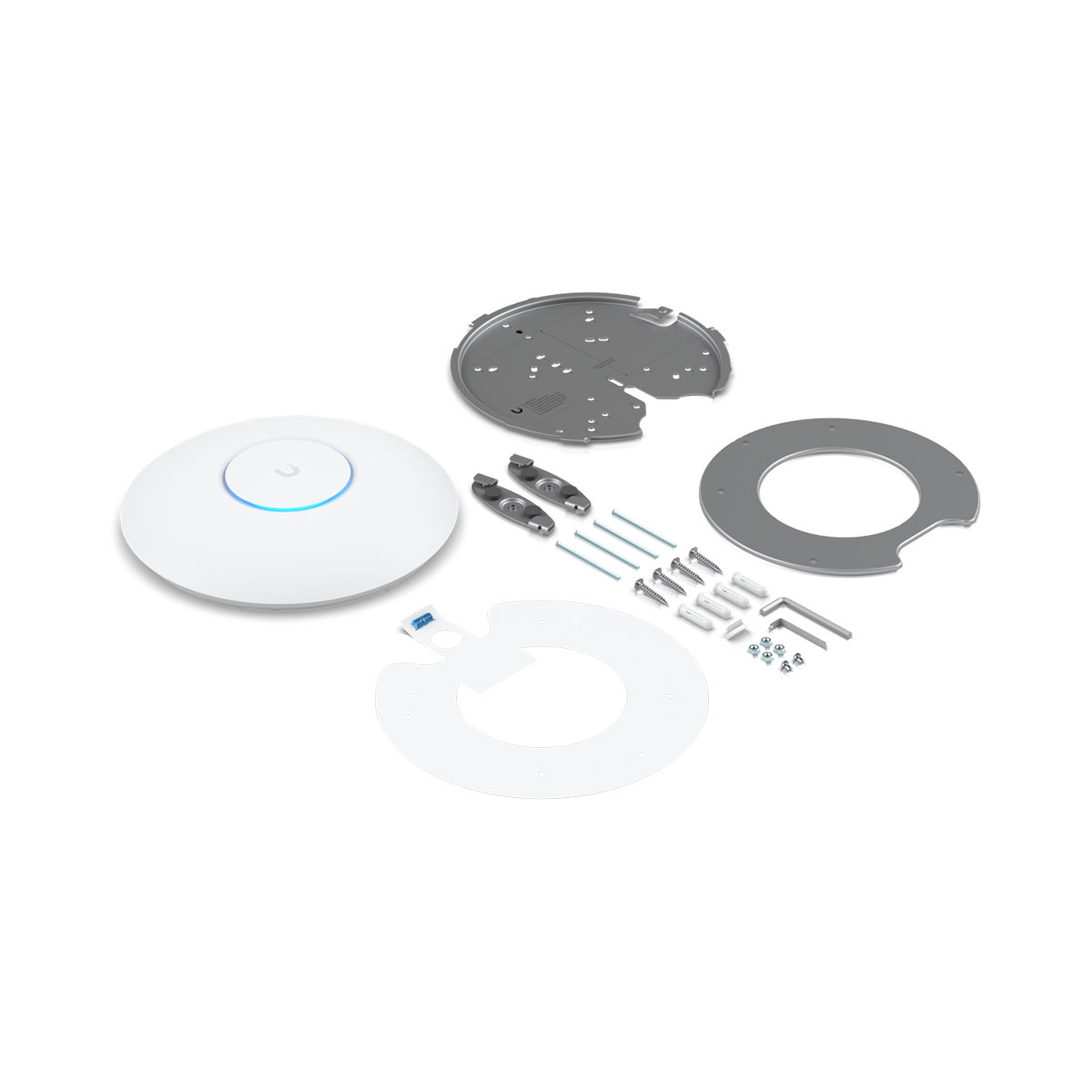

| Mounting | Wall/Ceiling (Included) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
