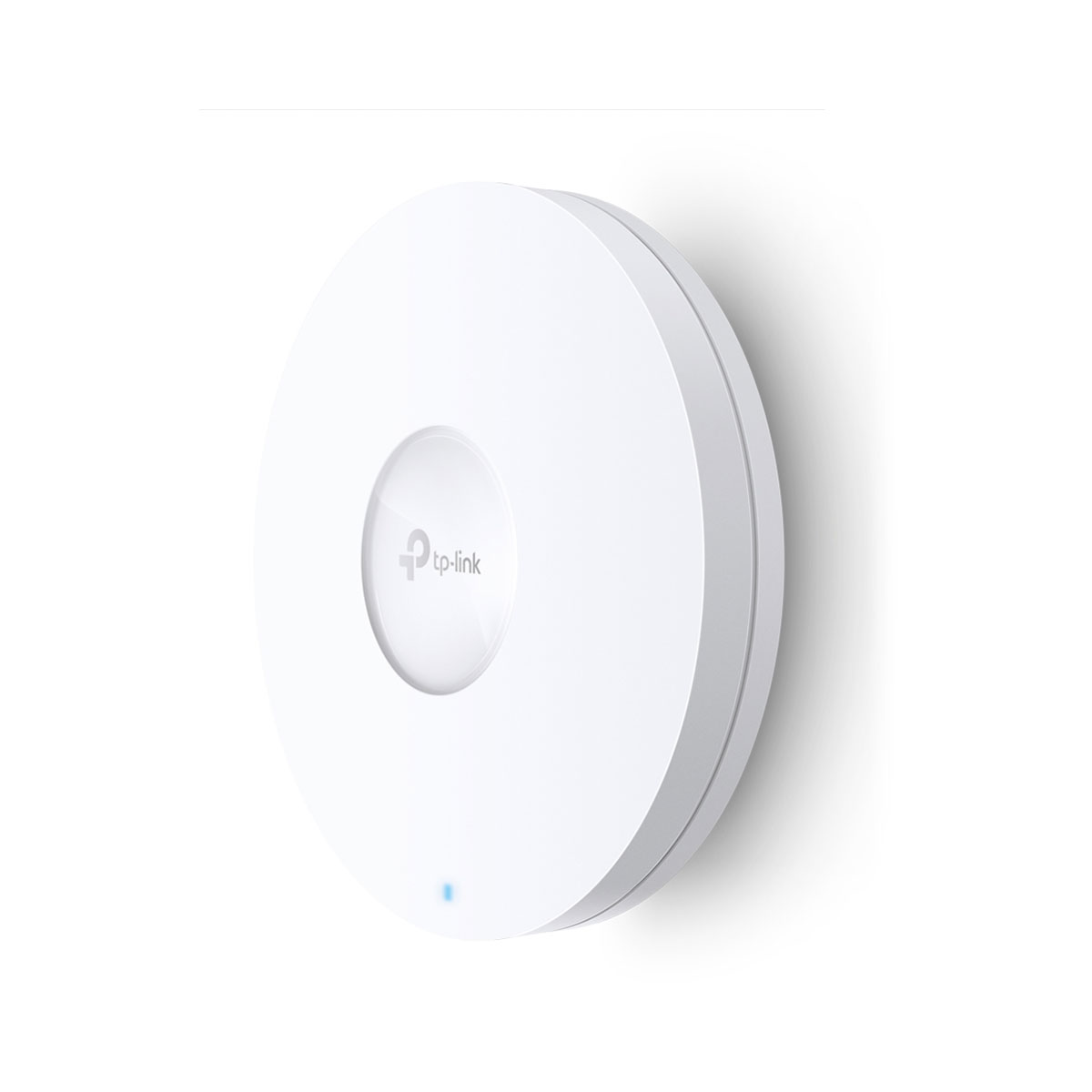

TP-LINK EAP620 HD V3.3 AX1800 Wireless Dual Band Ceiling Mount Access Point
| • 4-Stream Dual-Band Wi-Fi 6: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.† • High-Density Connectivity: Up to 1000+ concurrent connections in crowded network environments.** • 1× Gigabit Port: Ensures fast connectivity throughout the network. • Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡ • Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup. • Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△ • Wider Coverage: Covers up to 1500 ft² (140 m²) for reliable and extensive wireless connectivity.* |
Reliable Performance for High-Density Scenes
OFDMA and Uplink/Downlink MU-MIMO provide simultaneous connections for dozens of clients, optimizing network efficiency in high-density deployments. Leverage multi-user capabilities and upgrade your business like never before.
Optimized Wired Performance with Gigabit PoE+ Port
Boost overall network efficiency with a high-performance Gigabit PoE+ port, delivering blazing-fast data speeds. Compatibility with 802.3at PoE is ideal for flexible deployment.
Empowering Businesses with Reliable Omada SDN Solutions
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller
| HARDWARE FEATURES | |
| Wi-Fi Standards | 5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/ax |
| Antenna | Wi-Fi • 2.4 GHz: 2 × 4 dBi (peak gain), internal omnidirectional antennas •5 GHz: 2 × 5 dBi (peak gain), internal omnidirectional antennas• The down tilt angle for maximum gain: 2.4G: 30° to 45°, 5G: 30° to 45° Note: The gains above are the single-antenna peak gains |

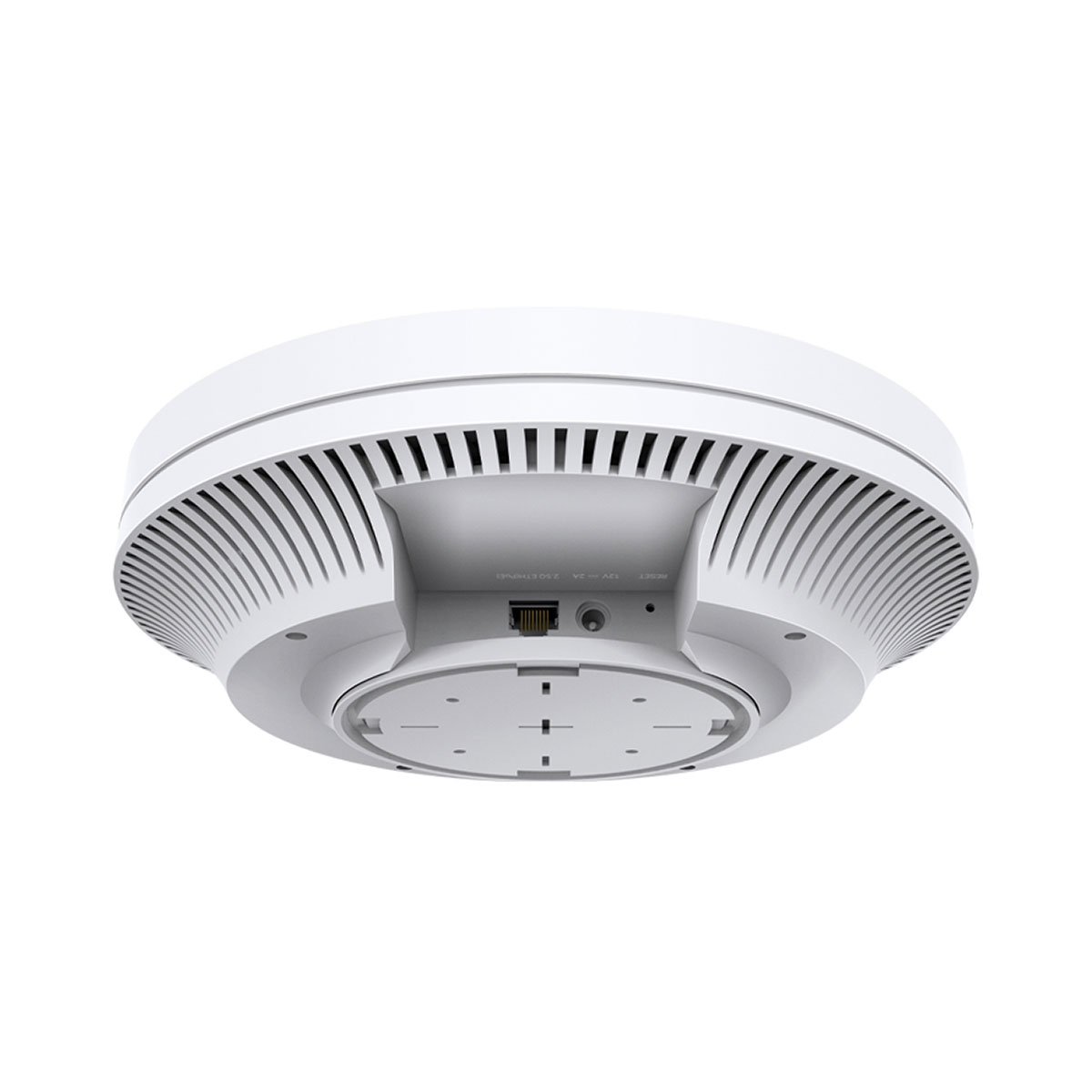

| Interfaces | • 1 x 10M/100M/1000M Gigabit Ethernet Port (RJ45); PoE in • 1 x DC power interface: 12VDC |
| Memory | • Flash: 1Gbit • DRAM: 4Gbi |
| Button | 1 × Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Indicator | 1 × single-color system LED indicates on the front: •Power-on status •Firmware initialization or upgrade status •Uplink service status •Error status |
| Reliability | MTBF (Mean Time between Failure) |
| Power Supply | Input: • 48V Passive POE or 802.3at POE • DC:12V/1.5A |
| Power Consumption |
•802.3at (PoE+): EU: 14.4W, 2.4GHz radio 2×2, 5GHz radio 2×2. •DC: EU: 13.1W, 2.4GHz radio 2×2, 5GHz radio 2×2. •Idle mode: 7.35W(PoE) or 6.45W(DC) Note: Actual power consumption may vary depending on the AP usage. |
| Surge/Lightning Protection |
Ethernet Ports: ±4 kV |
| ESD/EMP Protection |
•Air discharge: ±8 kV •Contact discharge: ±4 kV Note: ESD/EMP Protection means Electrostatic Discharge/Electromagnetic Pulse Protection independently. |
| Tx Power | Maximum transmit power: CE(EIRP) •2.4GHz: 20 dBm •5GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2CFCC (conducted power) •2.4GHz: 25 dBm •5GHz: 25 dBm in U-NII-1, 25 dBm in U-NII-2A, 25 dBm in U-NII-2C, 25 dBm in U-NII-3 Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations. |
| Temperature | •Operating: 0°Cto +40°C •Storage: -40°Cto +70°C |
| Humidity | •Operating: 10% to 90% (non-condensing) •Storage: 5% to 90% (non-condensing) |
| Altitude | •Storage: upto + 2000 m (6561feet) •Operating: up to + 2000 m (6561feet) |
| Dimensions (W×D×H) |
•Main Unit: 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in.) •Shipping Unit: 245 × 228 × 65 mm (9.7 × 9.0 × 2.6 in.) |
| Weight | •Main Unit: 0.38 kg •Mounting Bracket: 0.054 kg •Shipping Unit:0.85kg |
| Mounting | •Ceiling /Wall/Junction Box/T-Bar Mounting (Kits included) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
