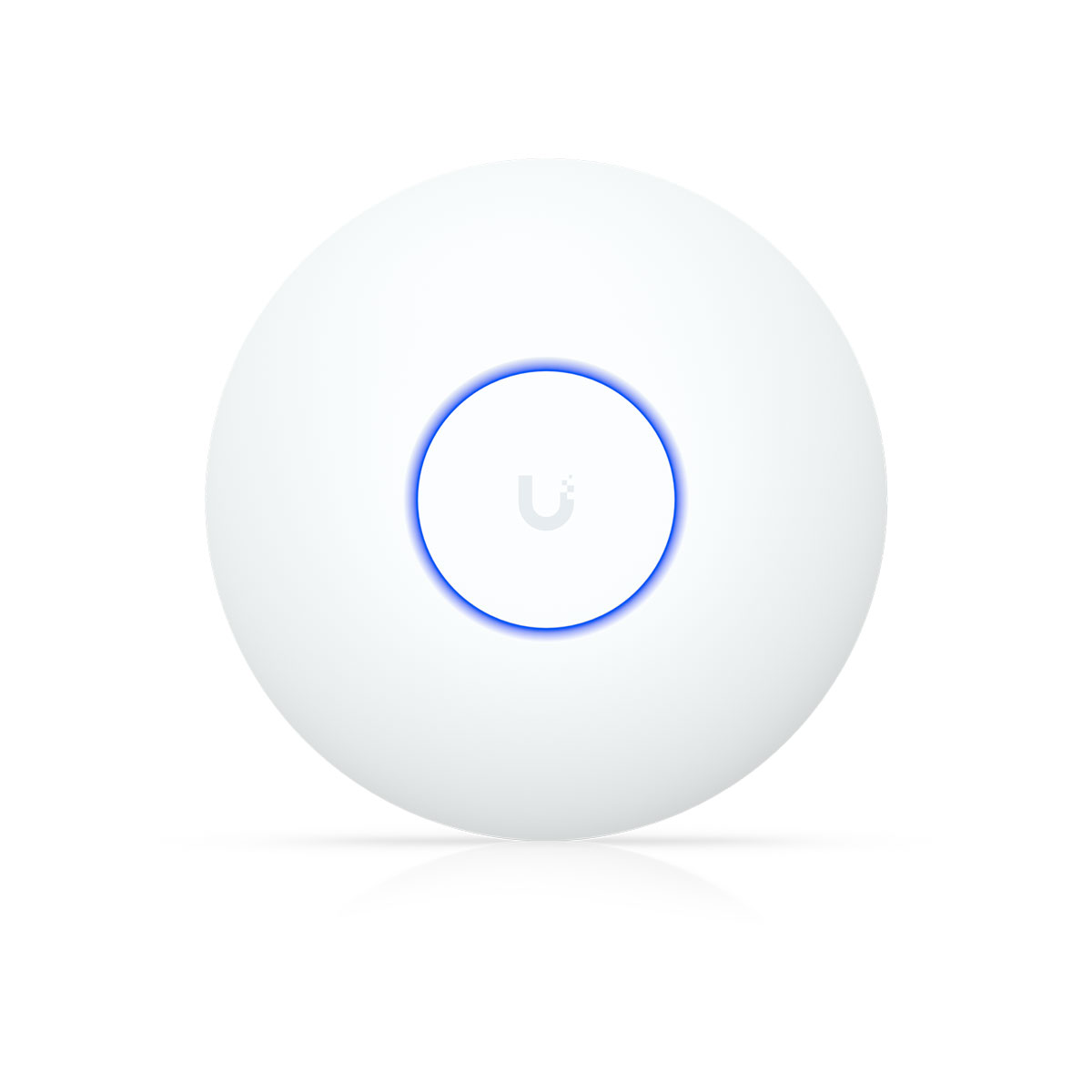

Ubiquiti U7-LITE WiFi 7 AP with 4 Spatial Streams and 2.5 GbE Uplink
Ubiquiti U7-LITE WiFi 7 AP with 4 Spatial Streams and 2.5 GbE Uplink

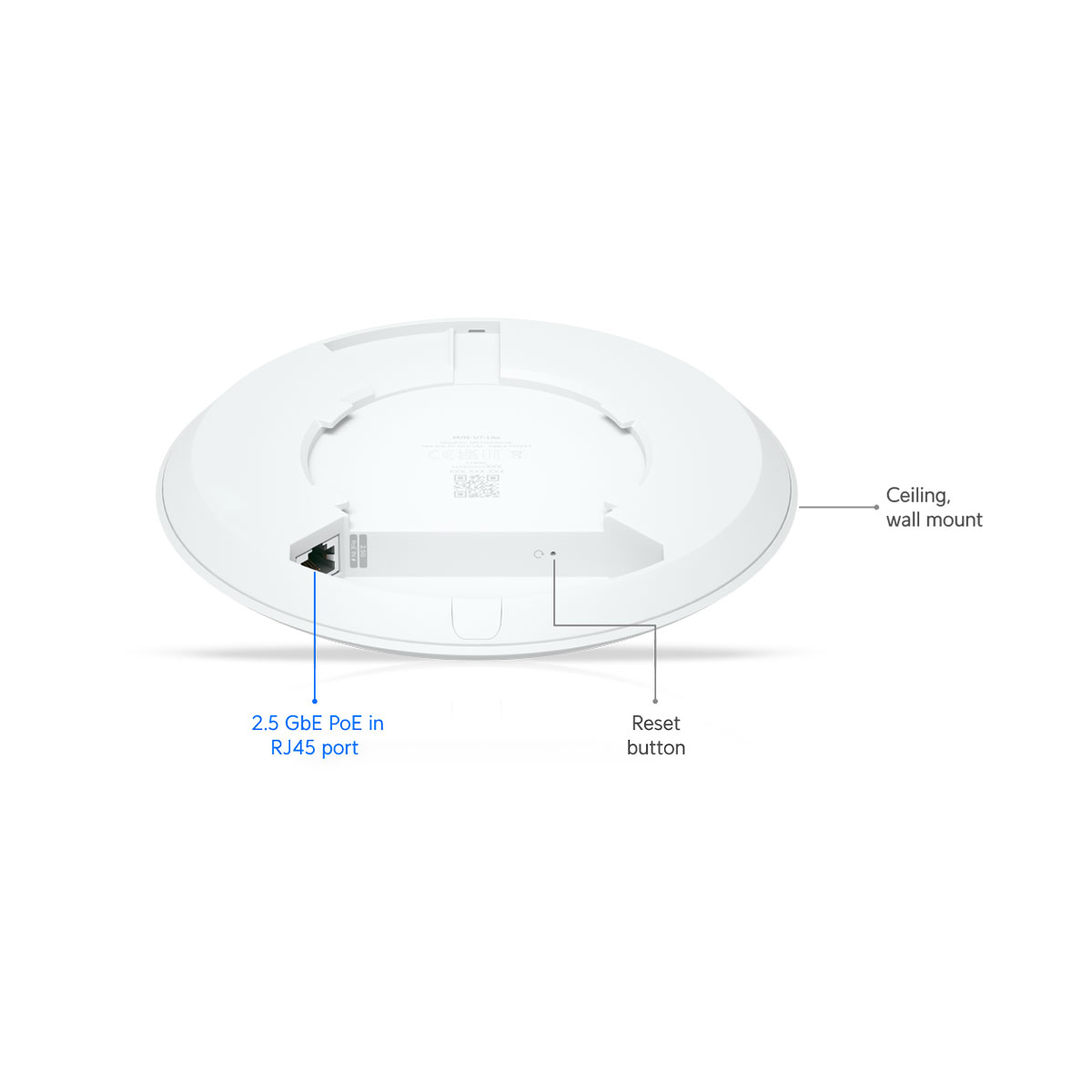

Ubiquiti U7-Lite is the most affordable WiFi 7 UniFi AP. It is a dual-band access point with a transmission speed of up to 4.3Gbps* in the 5GHz band and up to 688 Mbps in the 2.4GHz band, featuring advanced WPA3 encryption. The U7-Lite is designed to provide WiFi coverage for your home, office, hotel, or warehouse. Full roaming support ensures seamless transition of connected clients between individual APs. For network connectivity, the AP is equipped with a 2.5G ETH port, which also serves for power supply via PoE 802.3af or passive PoE in the range of 42.5-57V DC (PoE injector is not included in the package).
*The maximum transfer speed depends on regulatory requirements in the country of use.
Advantages of the UniFi solution:
Roaming - seamless transition between APs without dropouts
Wireless uplink – ideal for locations where a data cable cannot be installed
Up to 8 SSIDs
Detailed traffic statistics
Guest network
Load balancing - maintaining even load distribution / client switching
Speed limiting for each SSID

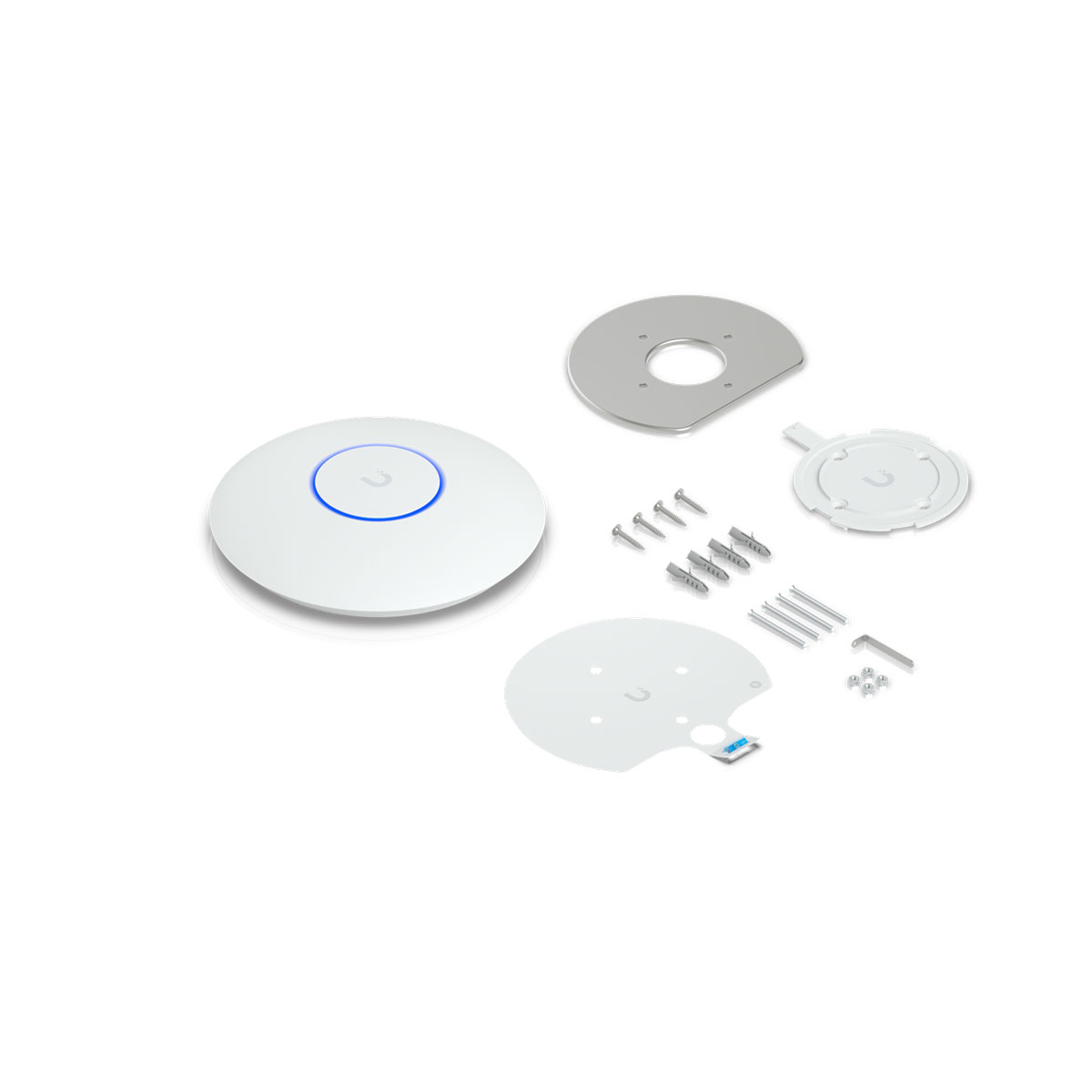

Package contents:
Device
Ceiling mount kit
Screw set
| Specifications | |

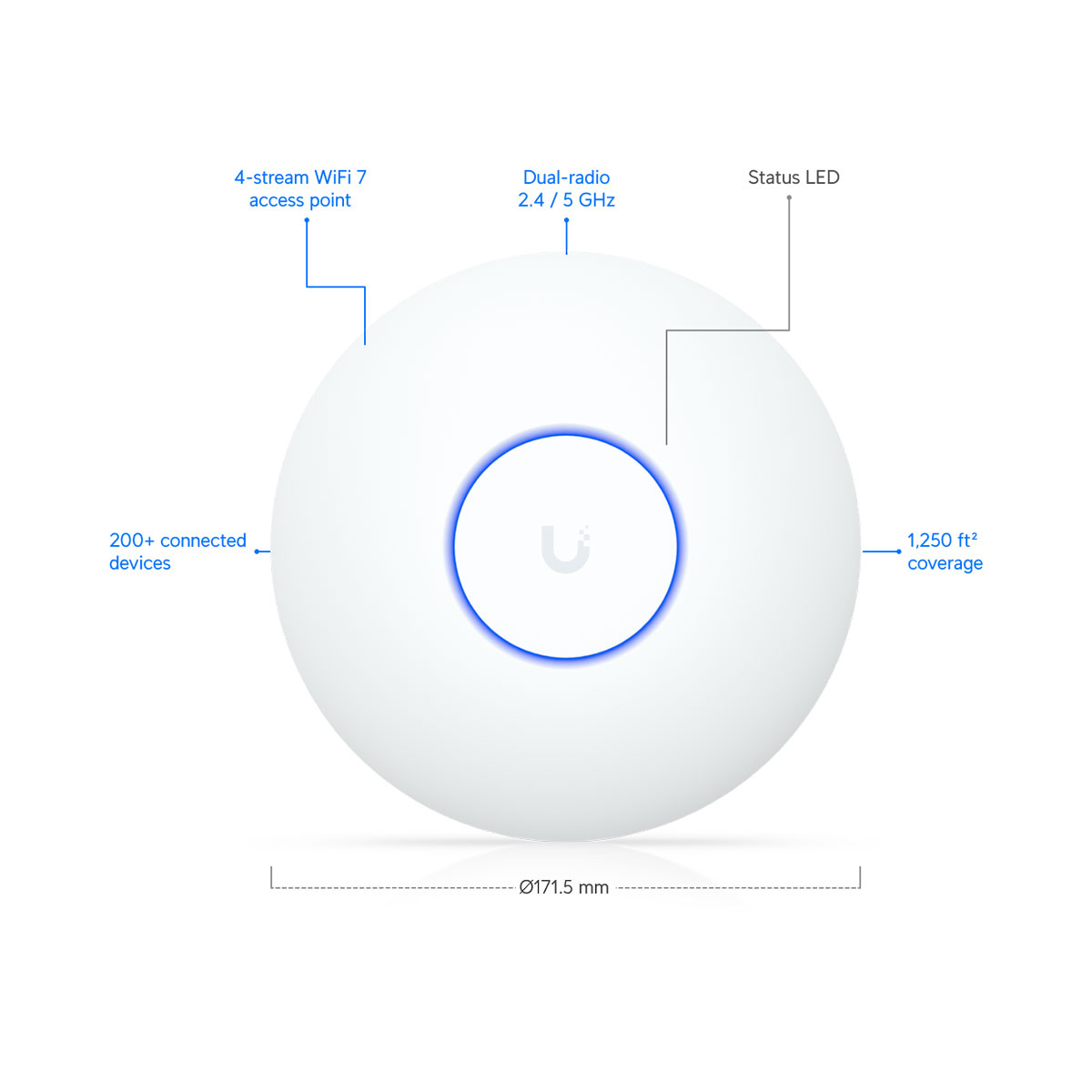

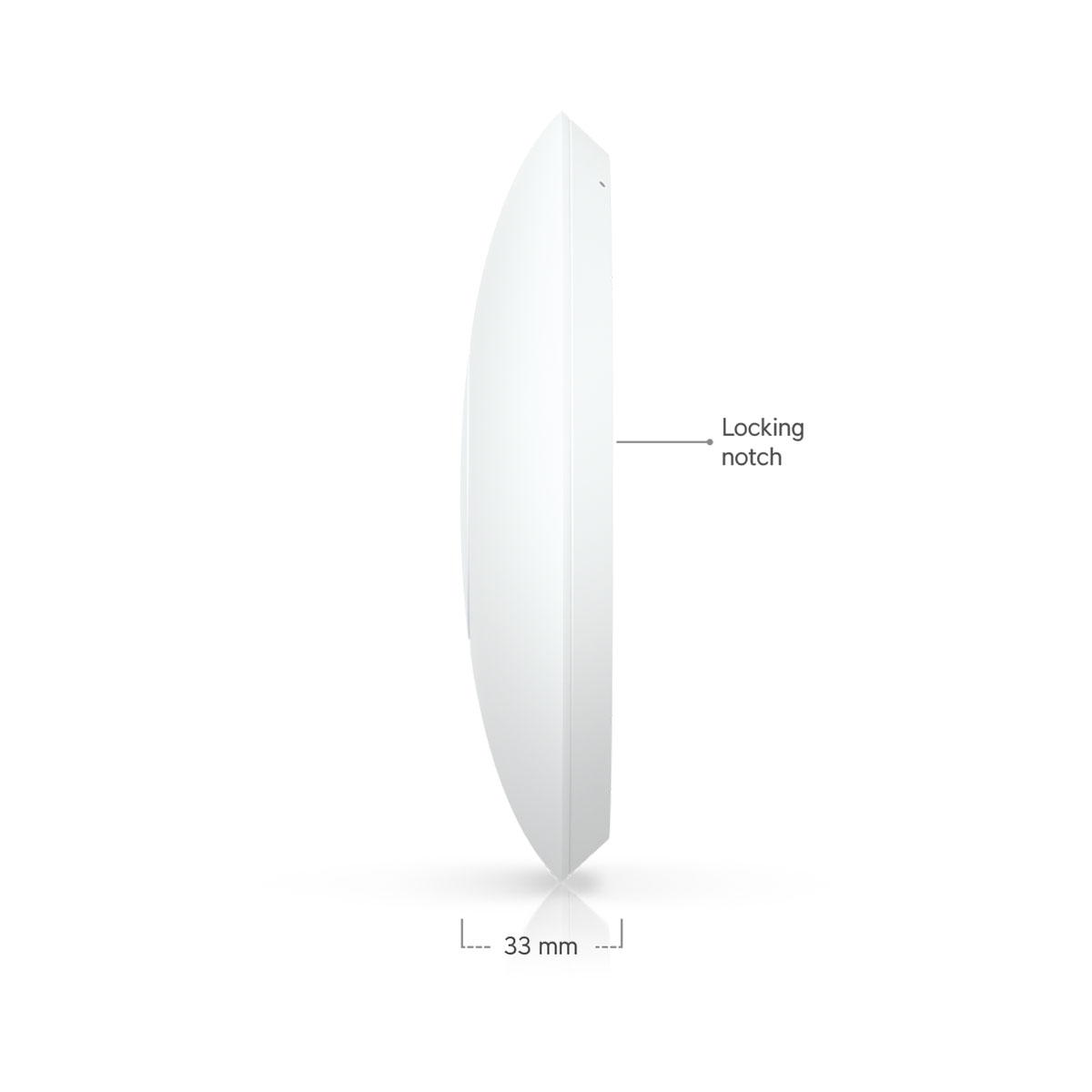

| Dimensions | Ø171.5 x 33 mm |
| WiFi Standard | WIFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 160 m² |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LEDs | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| UniFi Network | Version 9.0.114 and later |
| UniFi OS | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
