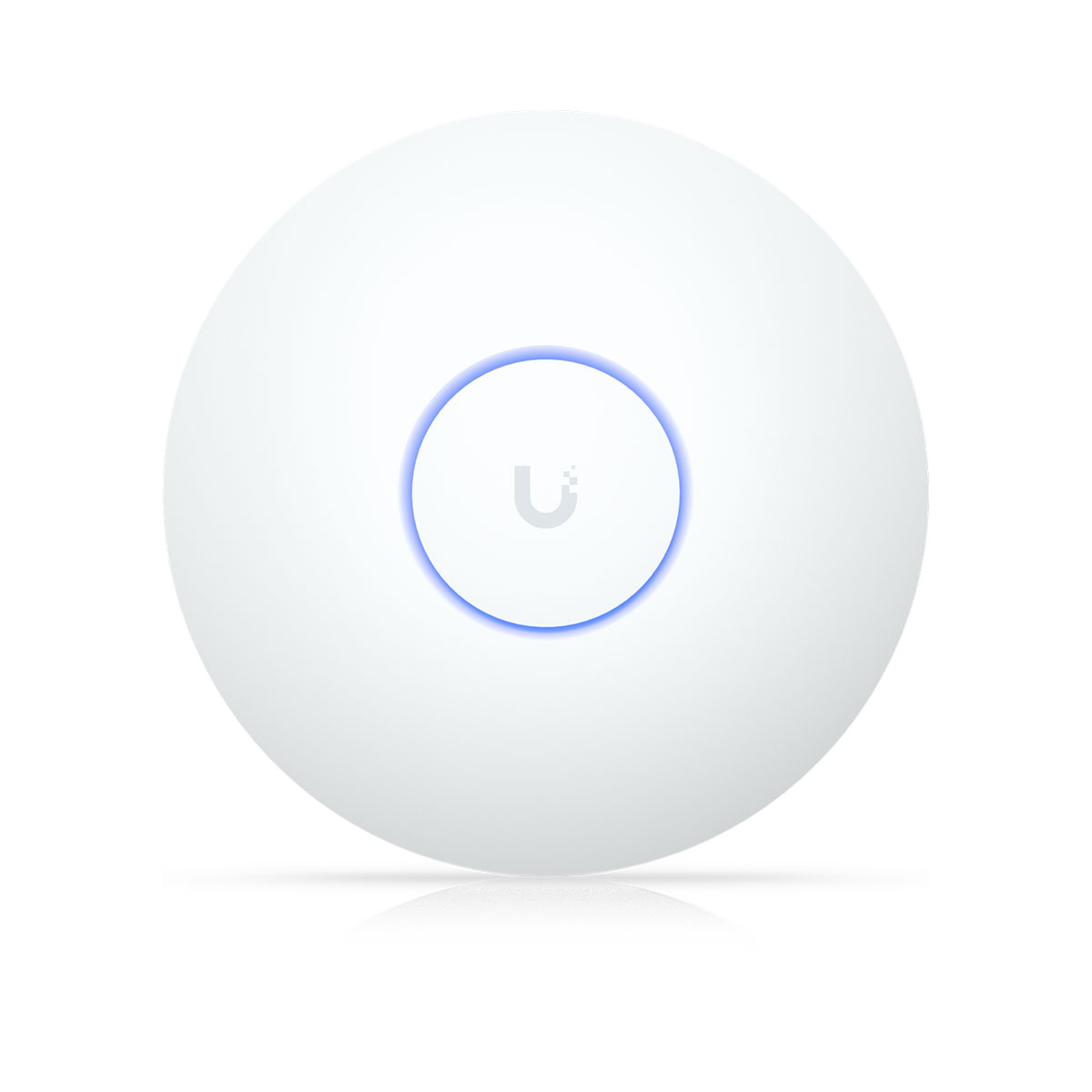

Ubiquiti U7-LR WiFi 7 AP with 5 Spatial Streams, Long Range, 2.5 GbE Uplink
Caution!! The package does not include power supply.
U7-LR is a high-performance Access Point leveraging advanced WiFi 7 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 5.0 Gbps with 5 GHz (3x3 MU-MIMO) and 2.4 GHz 2x2 MU-MIMO radios. The U7-LR seamlessly blends into any environment.
Features:
Five-stream high-efficiency Wi-Fi 7 technology
5 GHz band 3x3 MU-MIMO with radio rate of 4.3 Gbps
2.4 GHz band 2x2 MU-MIMO with radio rate of 688 Mbps
Powered with 802.3af PoE / passive 43V - 57V DC
Managed by UniFi Network Controller version: 9.0.114 or higher
Unit central management
UniFi APs doesn't have own web GUI and you manage them via UniFi Controller, which you can download on UBNT websites here: http://www.ubnt.com. Or you can manage UAP devices using UniFi Cloud Key which has UniFi Controller preinstalled. Additional benefit is fact that UniFi Controller software is free of costs and includes advanced functions without limitations.
General advantages of UniFi products:
Zero Handoff Roaming
Wireless uplink
Up to 8 SSID
Detailed traffic stats
Guest network
Load balance
Speed limitaions for each SSID

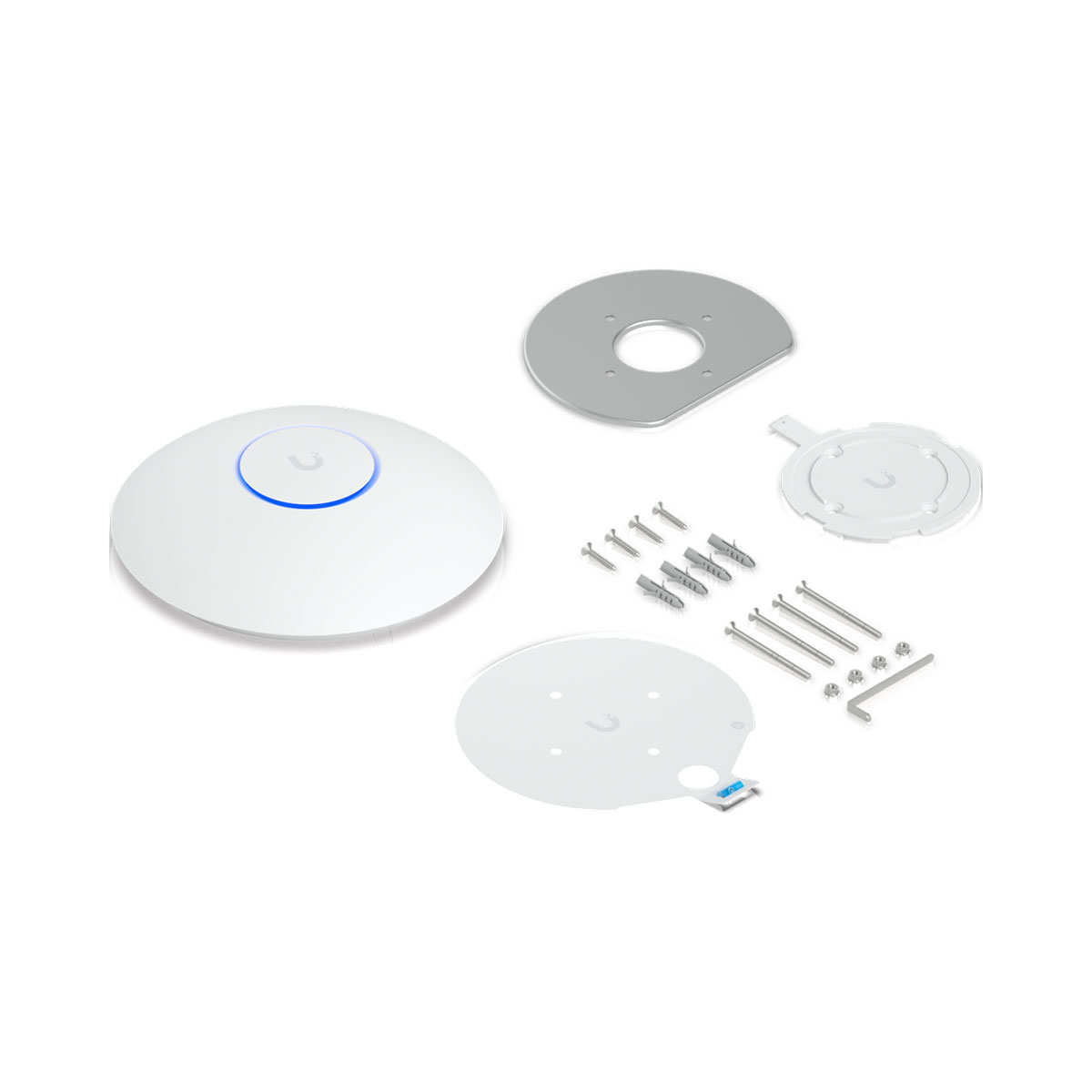

Package contains:
Device
Ceiling / wall mount kit
Drilling template
Screws
| Specifications | |

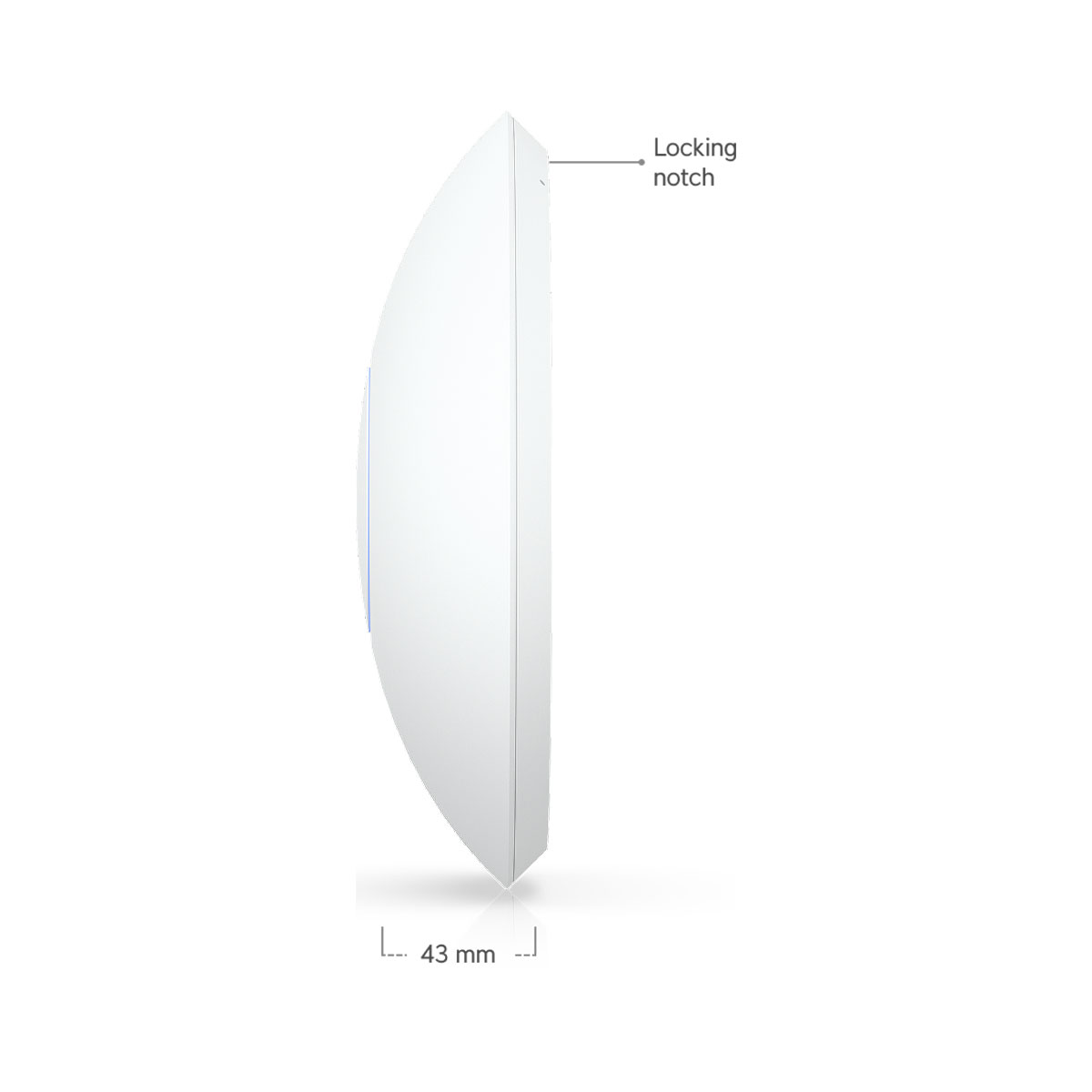

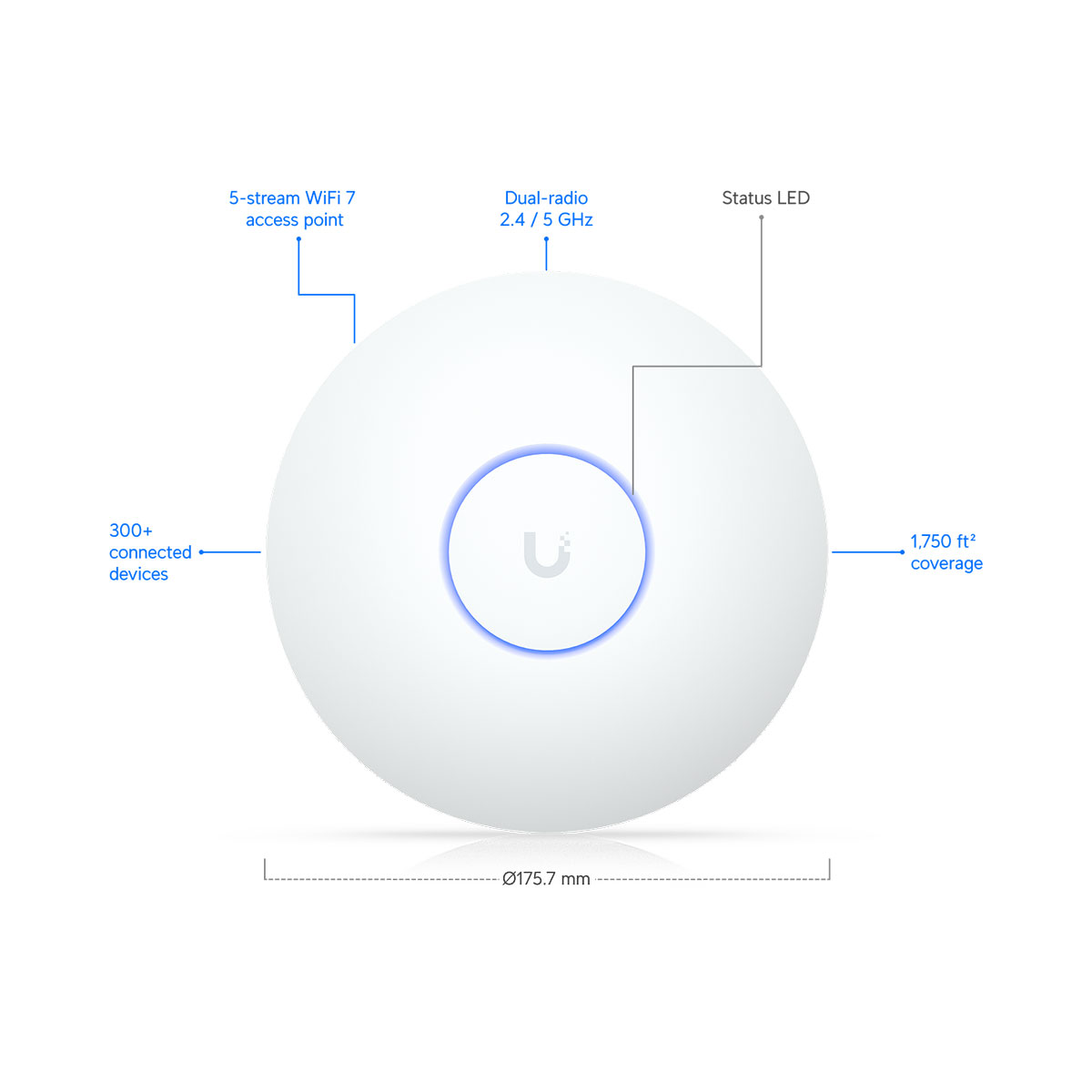

| Dimensions | Ø171.5 x 33 mm |
| WiFi Standard | WIFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 3 x 3 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: 6 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 5 GHz: 27 dBm 2.4 GHz: 26 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40) |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 42.5—57V DC |

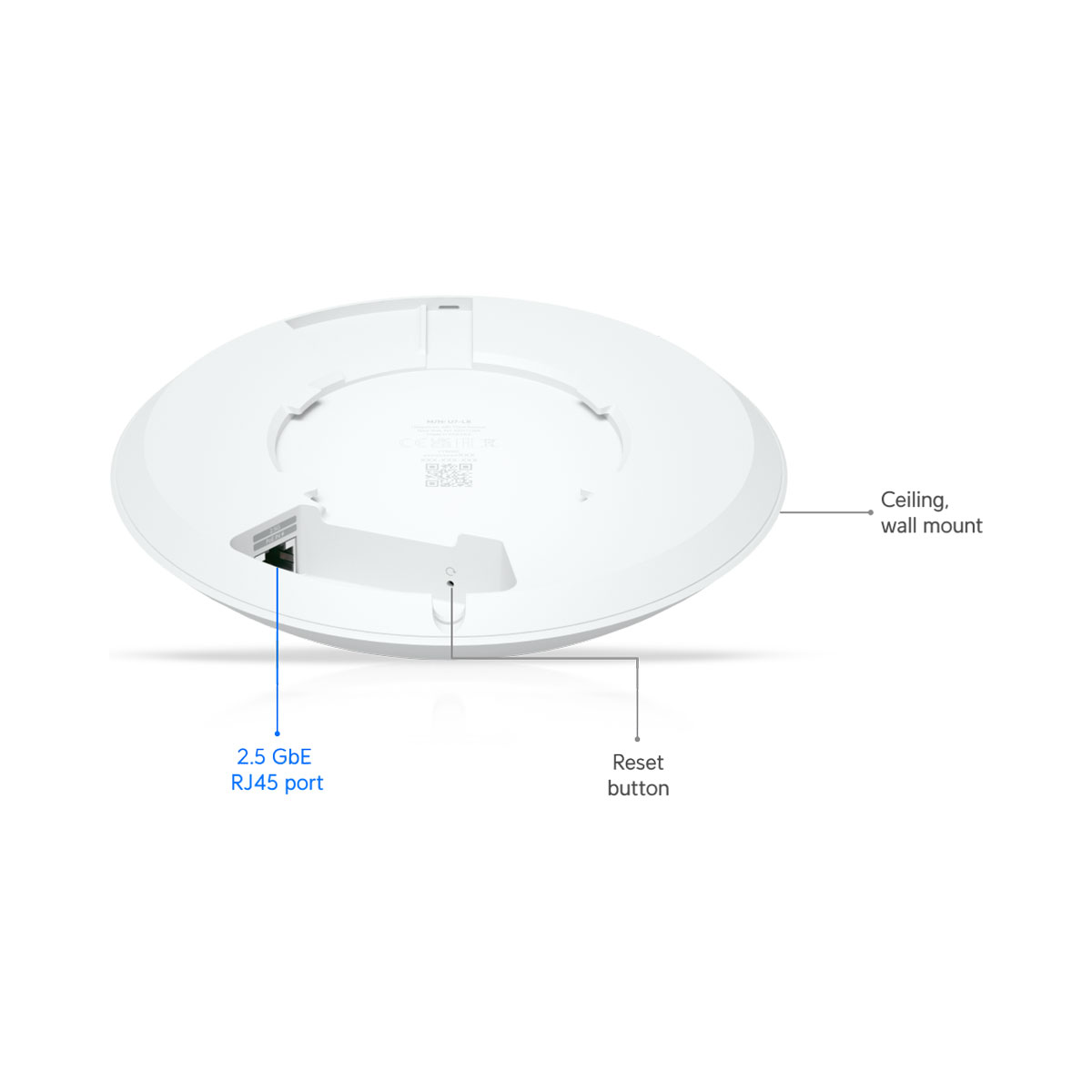

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LEDs | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| UniFi Network | Version 9.0.114 and later |
| UniFi OS | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
