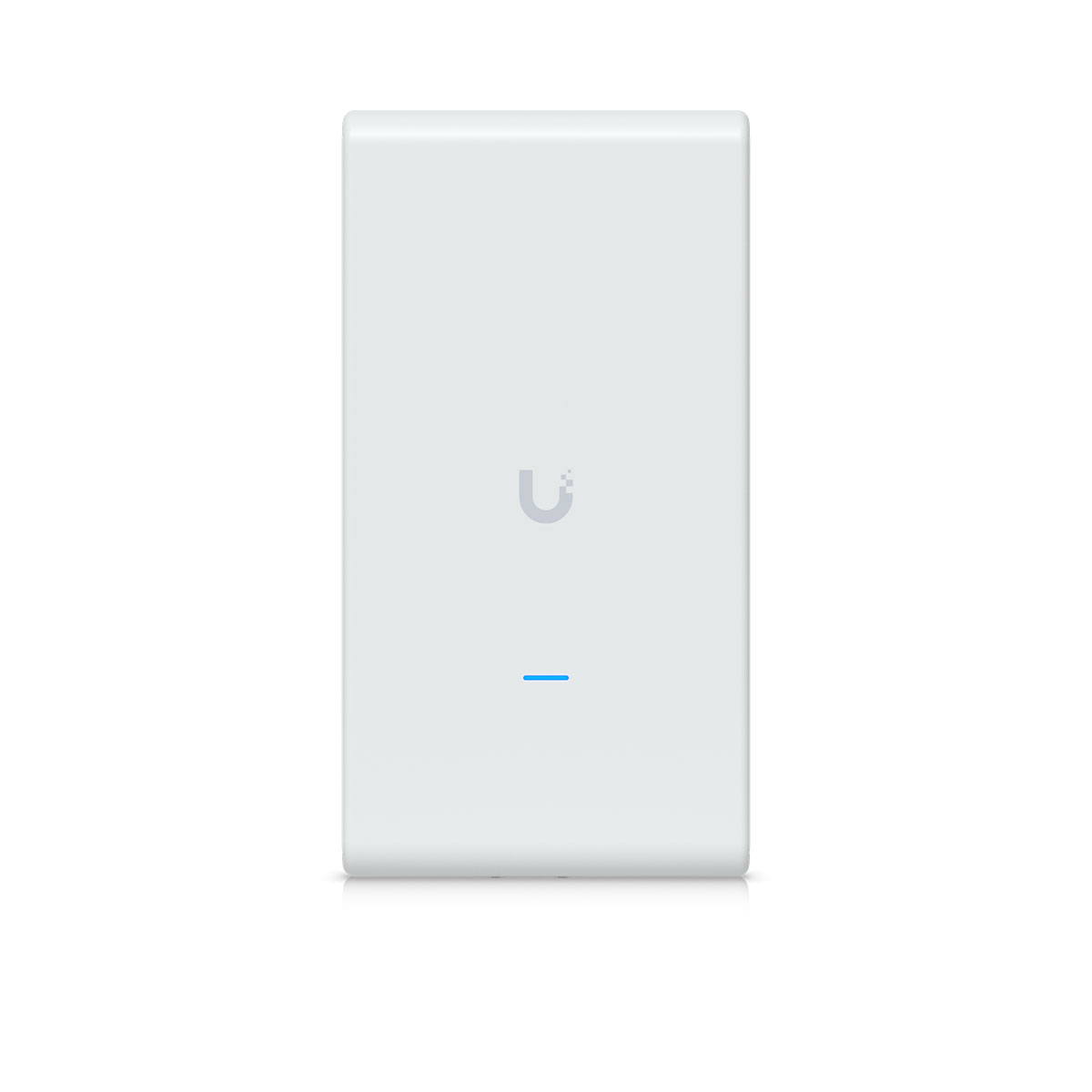

Ubiquiti U6-Mesh-Pro Indoor/Outdoor WiFi 6 AP with 4 Spatial Streams
Ubiquiti U6-Mesh-Pro Indoor/Outdoor WiFi 6 AP with 4 Spatial Streams
Features:
• WiFi 6
• 4 spatial streams
• 185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
• 350+ connected devices
• Powered using PoE
• GbE uplink with (1) GbE passthrough port
• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)
Specifications | |
Mechanical | |

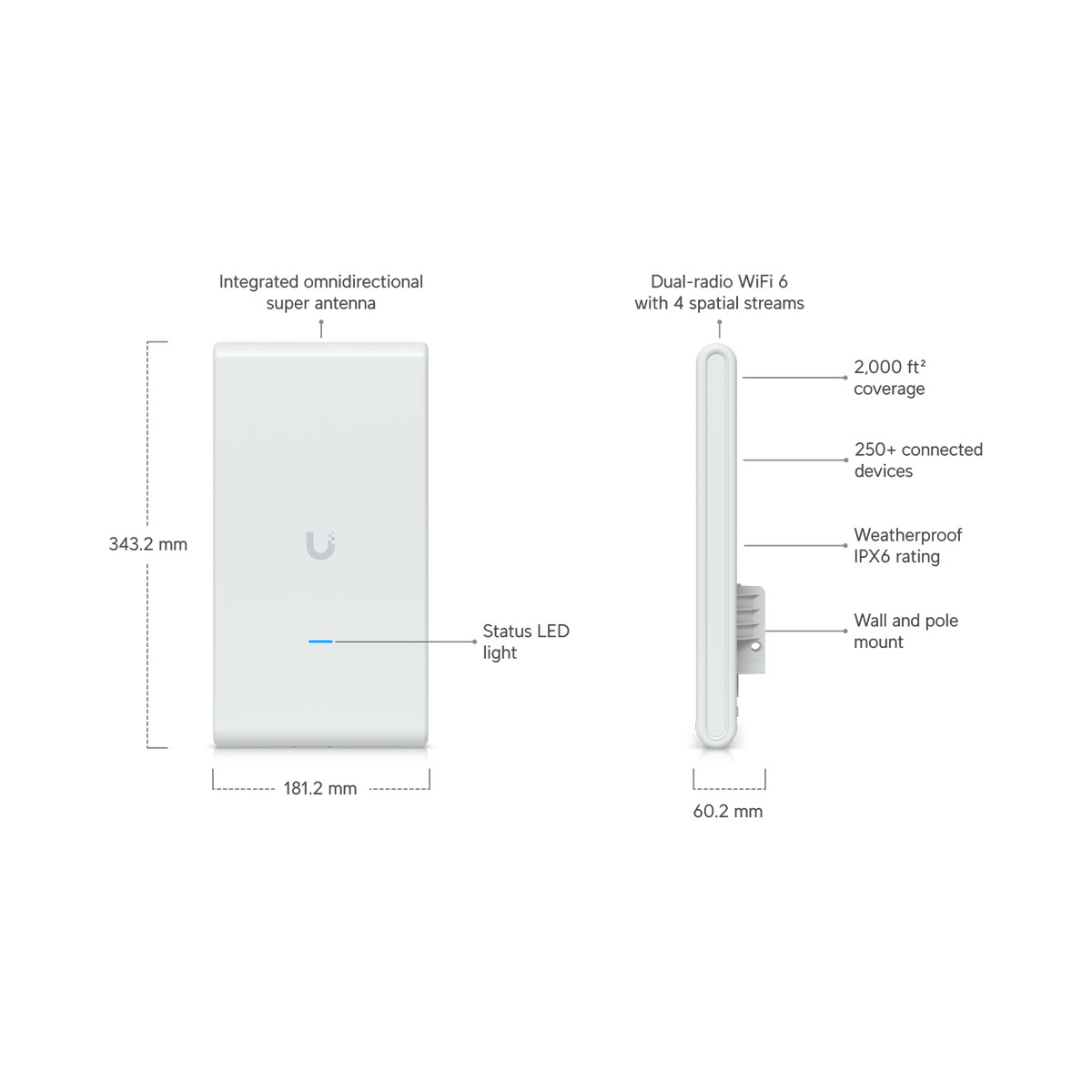

Dimensions | 343.2 x 181.2 x 60.2 mm |
Weight | 819 g |
Enclosure Material | UV-stabilized polycarbonate |
Mount material | Aluminum alloy, steel |
Pole mount diameter | 1-2.5" on pipe outer diameter |
Weatherproofing | IPX6 |
Hardware | |
Management Interfaces | Ethernet WiFi |

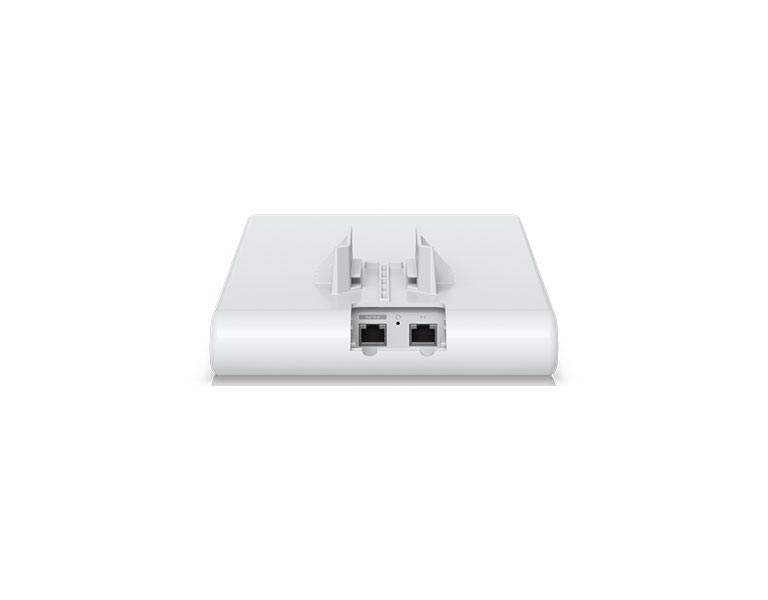

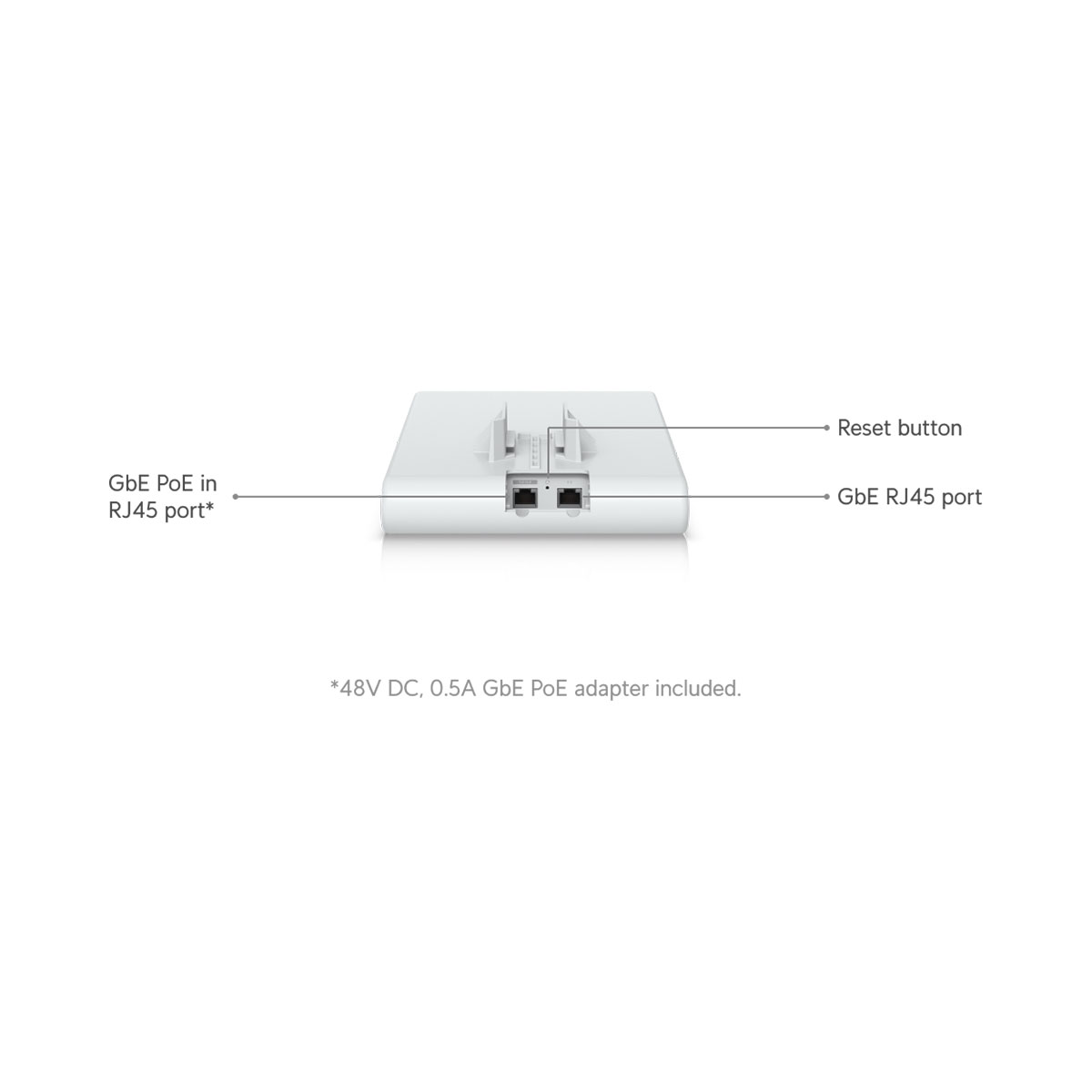

Networking Interface | (2) GbE RJ45 port |
Buttons | Factory Reset |
LEDs | White/Blue |
Power Method | PoE |
Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter (included) |
Supported Voltage Range | 42.5—57V DC |
Max. Power Consumption | 9W |
Max. TX Power 2.4GHz 5GHz |
22 dBm 27 dBm |
MIMO 2.4GHz 5GHz |
2 x 2 (UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
Throughput Speeds 2.4GHz 5GHz |
573.5 Mbps 2.4 Gbps |
Antenna Gain 2.4GHz 5GHz |
8 dBi 8 dBi |

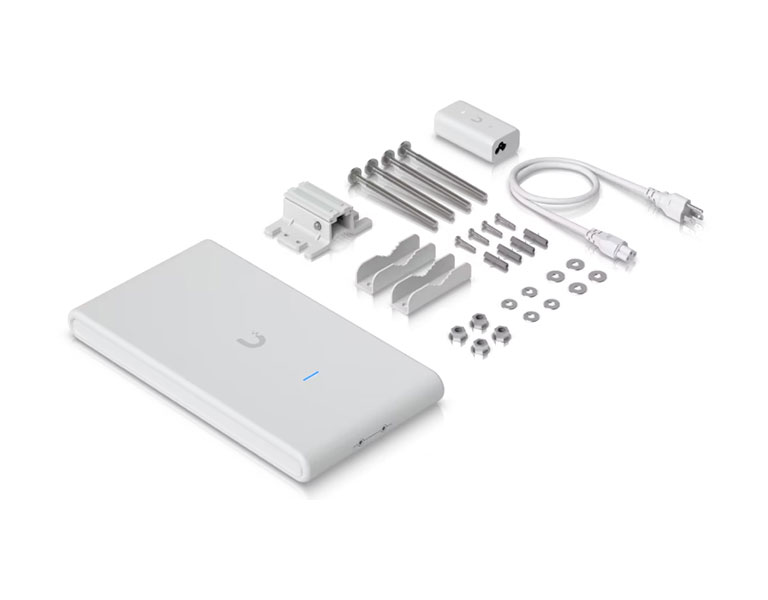

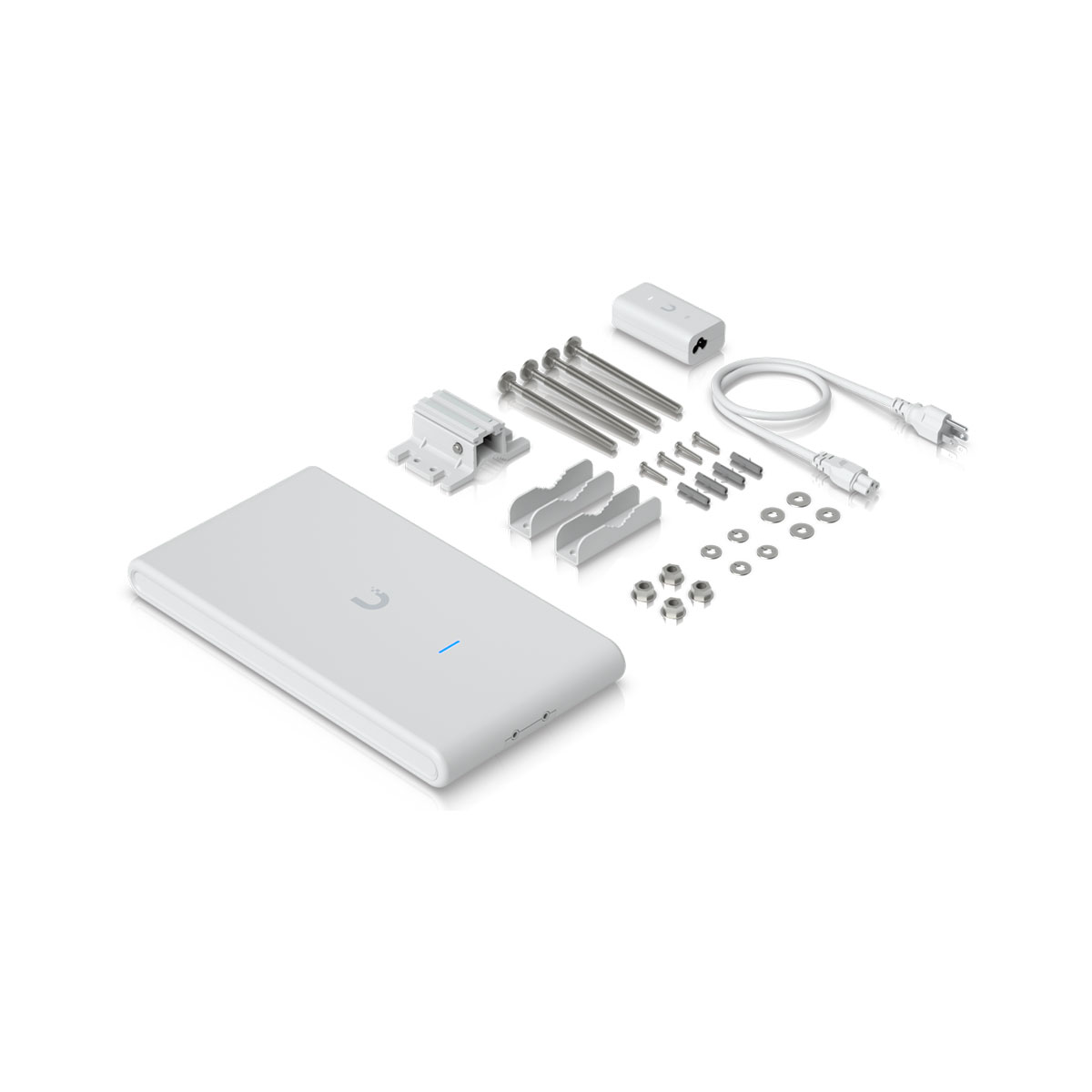

Mounting | Wall, pole (included) |
Operating Temperature | -30 to 60° C |
Operating Humidity | 5 - 95% Noncondensing |
Certifications | CE, FCC, IC |
Software | |
Wi-Fi Standards | 802.11a/b/g/ac/ax |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | 8 per Radio |
VLAN | 802.1Q |
Advanced QoS | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
Concurrent Clients | 350+ |
Supported Data Rates | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS31, HT 20/40) |
802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
