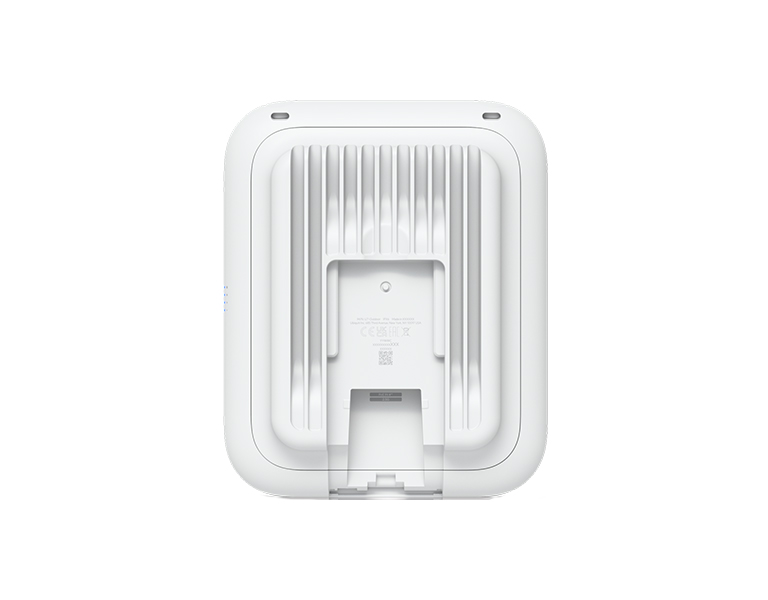

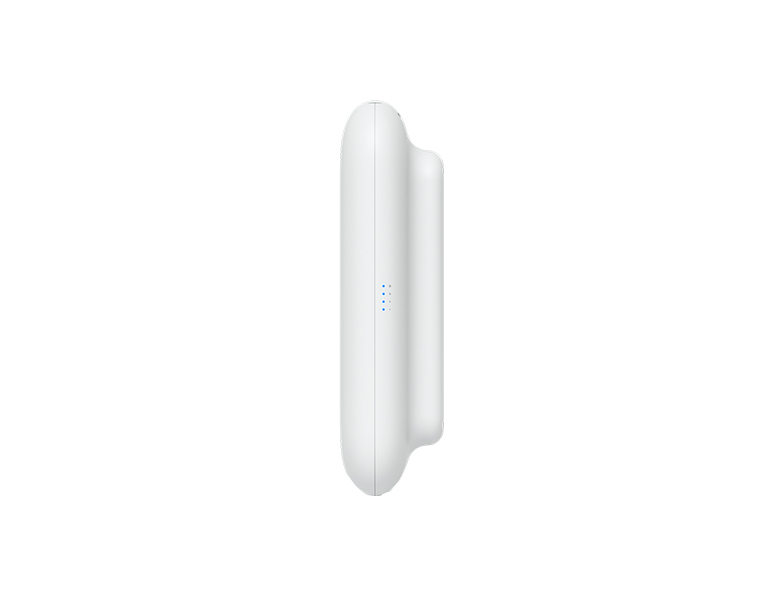

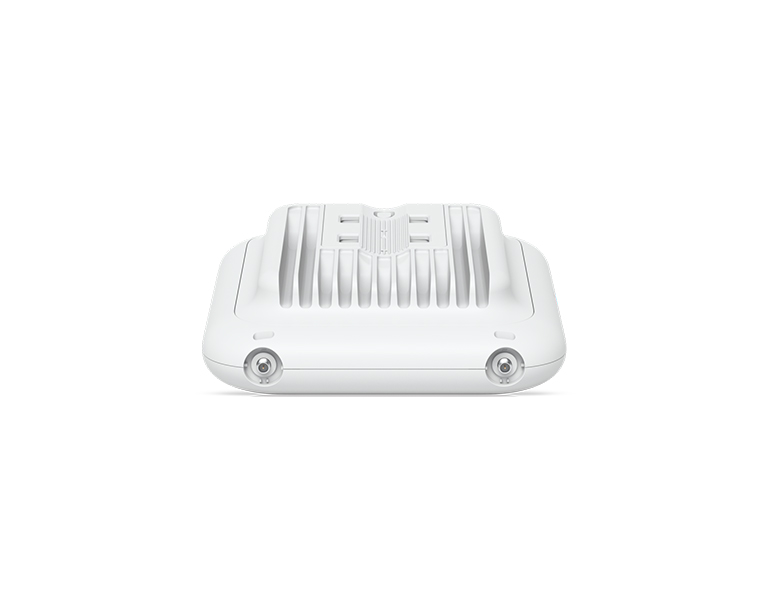

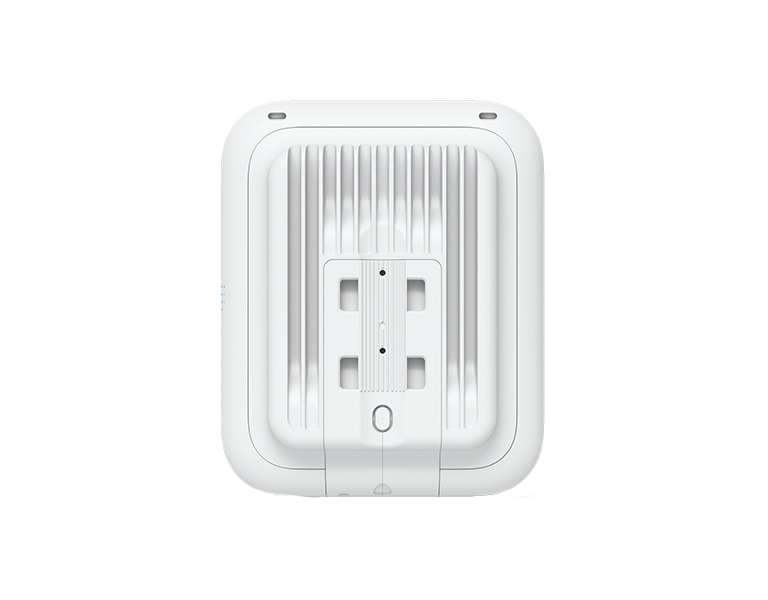

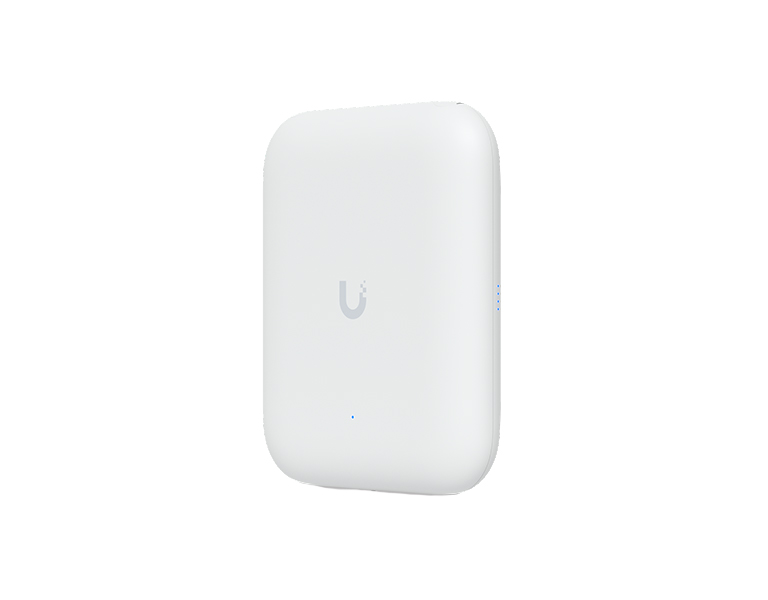

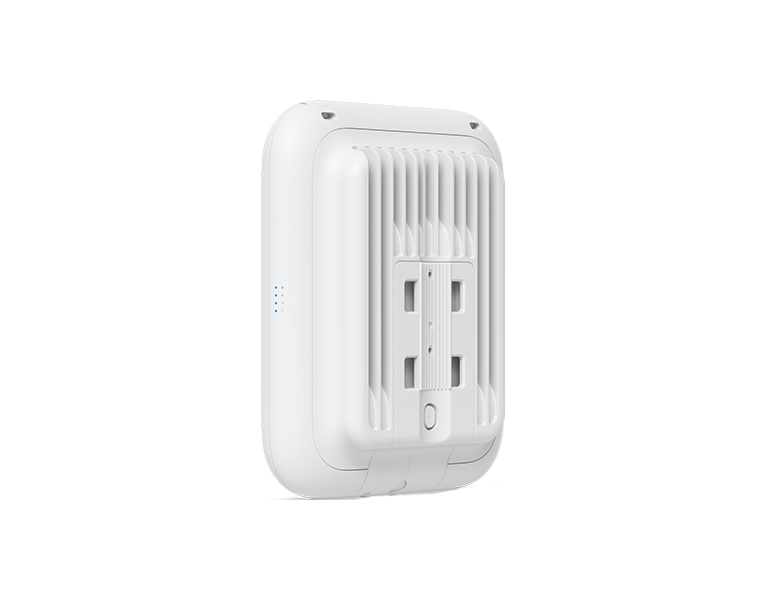

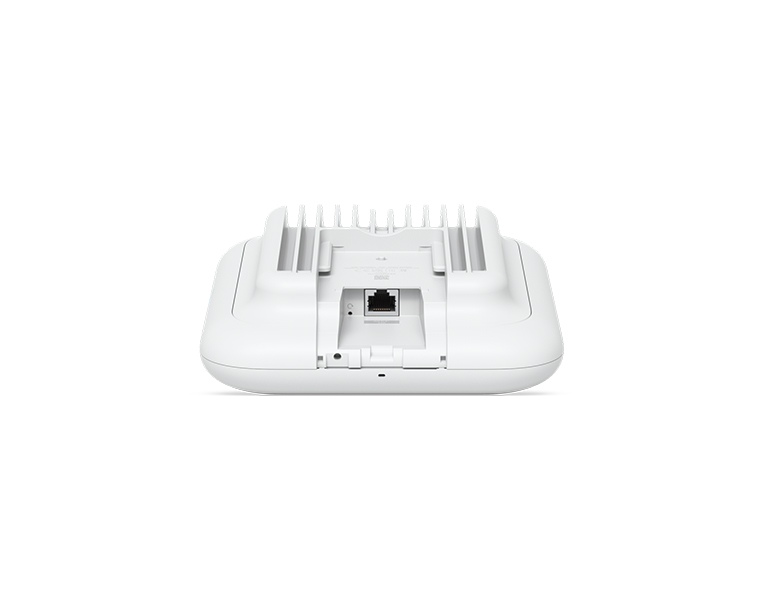

Ubiquiti U7-Outdoor UniFi WiFi 7 Access Point
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Features:
• WiFi 7
• 4 spatial streams
• 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna

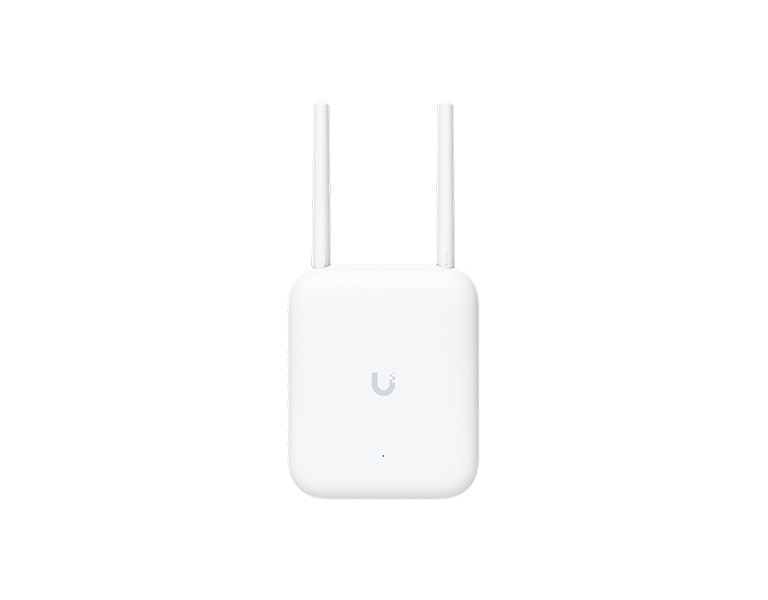

• Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas
• 200+ connected devices
• Powered using PoE+
• 2.5 GbE uplink

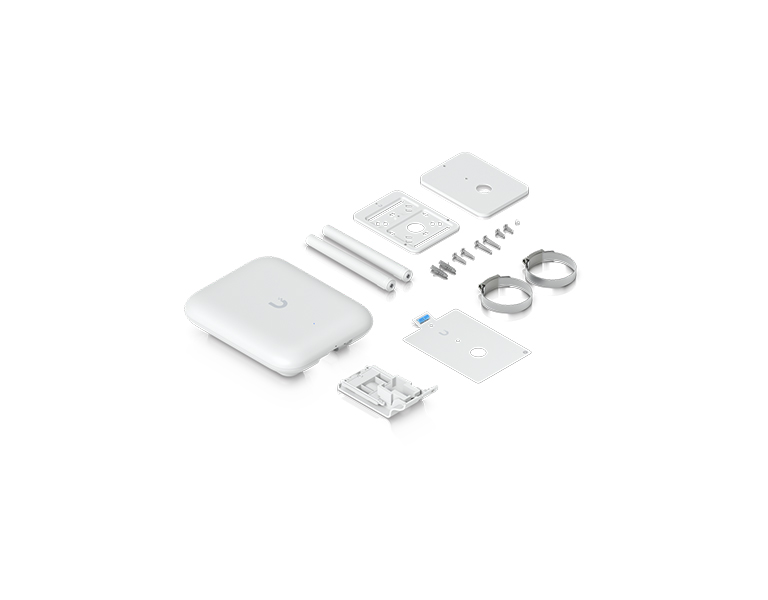

• Versatile wall and pole mounting
• Weatherproof (outdoor exposed)
| Specifications | |
| Mechanical | |
| Dimensions | 170 x 208 x 54.5 mm |
| Weight | 1.2 kg |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount material | Aluminum alloy, steel |
| Pole mount diameter | 25–60 mm (1–2.36") on pipe outer diameter |
| Wind survivability | 74.6 N at 200 km/h |
| Weatherproofing | IPX6 |
| Hardware | |
| Management Interfaces | Ethernet |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Buttons | (1) Power: white/blue (4) Mesh signal: blue |
| LEDs | White/Blue |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 42.5—57V DC |
| Max. Power Consumption | 19W |
| Max. TX Power 2.4GHz 5GHz |
23 dBm 26 dBm |
| MIMO 2.4GHz 5GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Max. data rate 2.4GHz 5GHz |
688 Mbps (BW40) 4.3 Gbps (BW240) |
| Antenna Gain 2.4GHz 5GHz |
Directional internal: 8 dBi/External omni: 3 dBi Directional internal: 12.5 dBi/External omni: 4 dBi |
| Antenna beamwidth 2.4GHz 5GHz |
|
| Mounting | Wall, ceiling, pole (Included) |
| Operating Temperature | -30 to 60° C |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g/ac/ax/be |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5945 – 6425 MHz defined in this document, Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017.
