Ubiquiti UISP-Horn, Asymmetrical sector antenna, 5GHz, 19.5dBi, 30°/25°
High-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

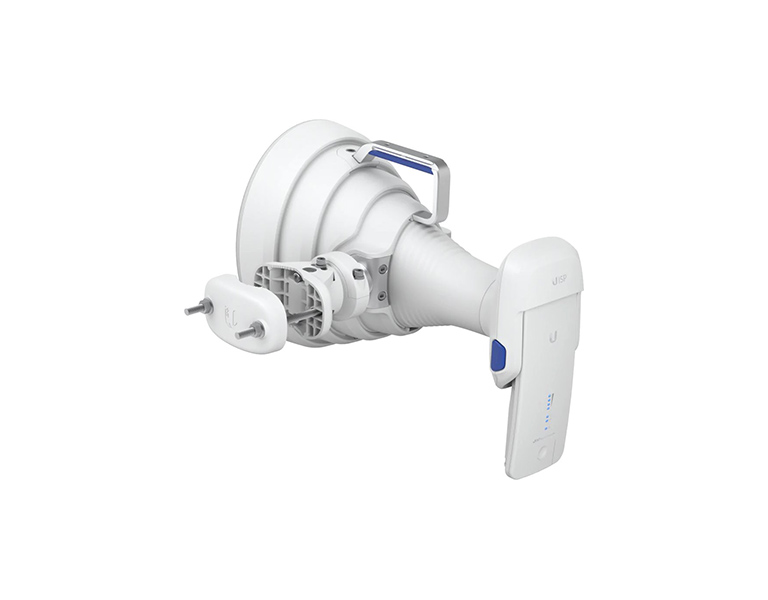

The UISP Horn is an efficient PtMP antenna that provides high isolation within congested environments by utilizing its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD), LTU Rocket , or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection. Operation frequency may vary based on regional radio frequencies and regulations.
Features:
• High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
• Low backlobes for device co-location
• 15+ km PtMP link range
• Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

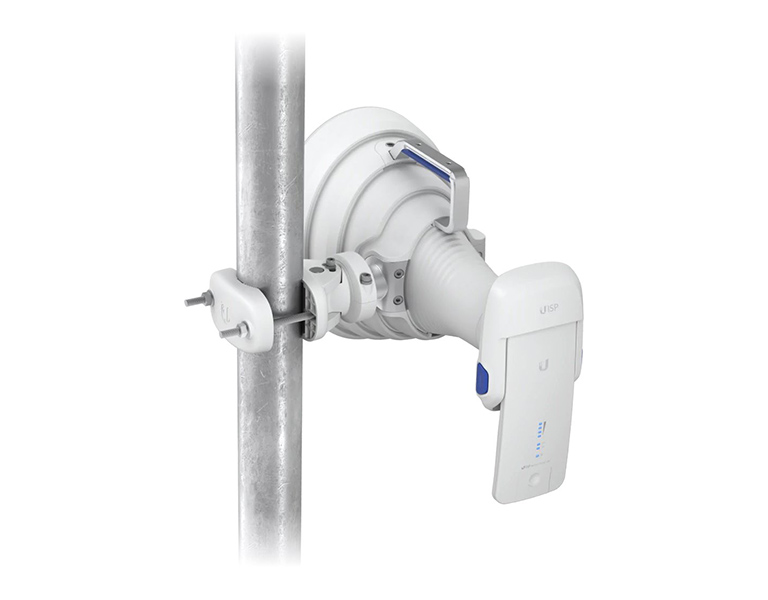

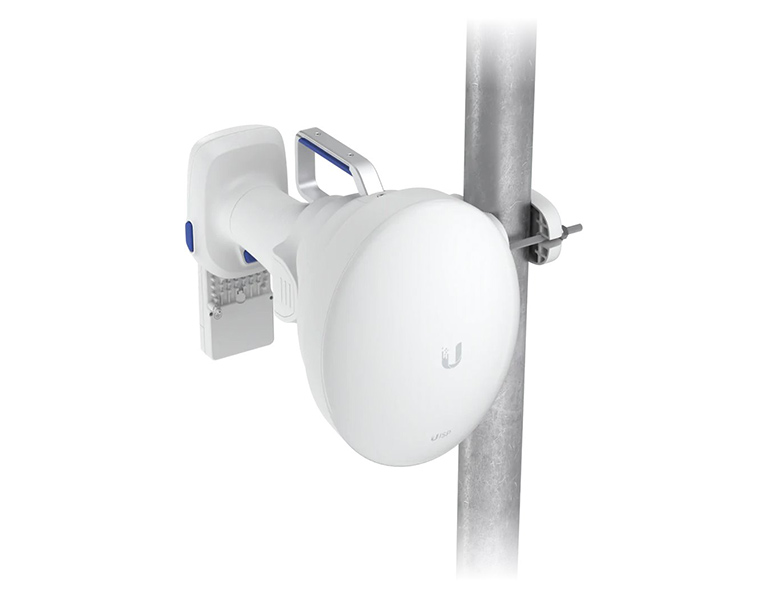

• Pole-mountable antenna with a metal carrying handle

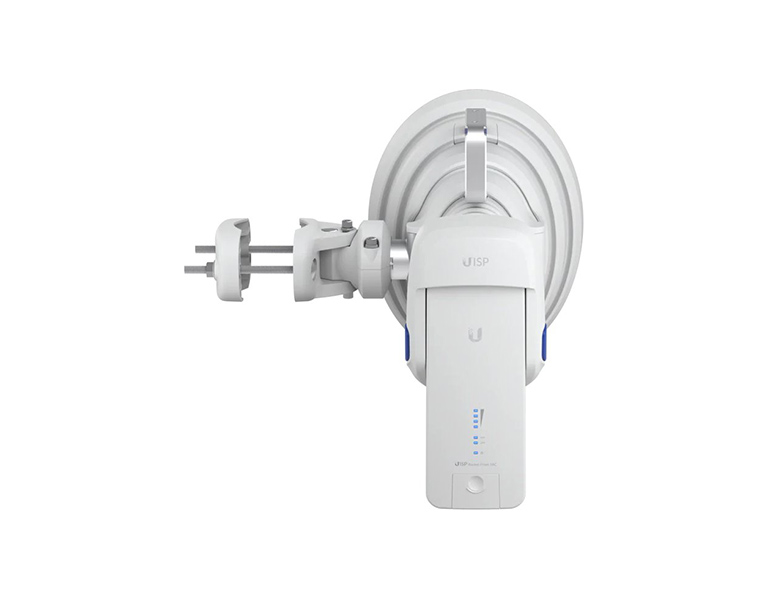

• Two side latches for secure, snap-in radio connection
Notes:
Compatible with the AF 5XHD, RP 5AC, and LTU Rocket. Operation frequency may vary based on regional radio frequencies and regulations.
| Mechanical | |
| Dimensions | 282 x 224 x 380 mm |
| Weight | Device: 3.06 kg Mount: 925 g |
| Enclosure materials | UV stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind loading | 90 N at 200 km/h |

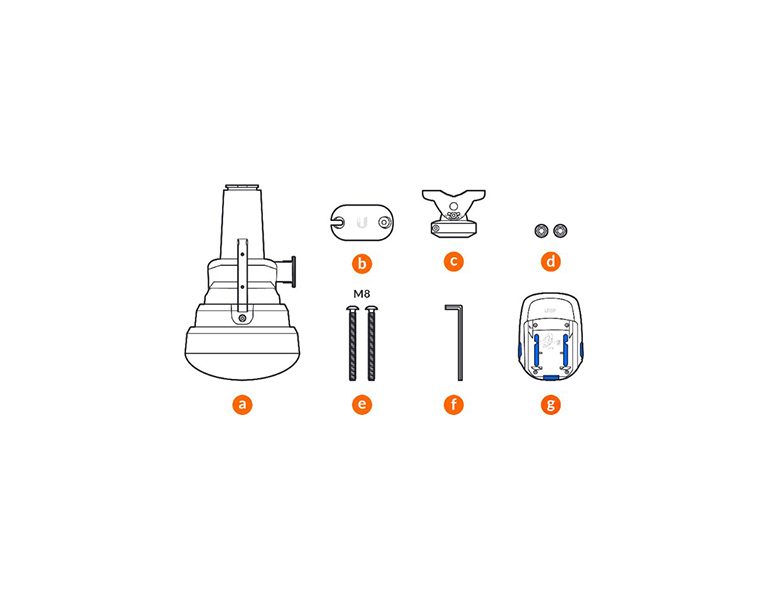

| Mounting | Alignment mounting kit (included) Mechanical adjustment: ±20° elevation, ±25° azimuth Pole compatibility: Ø25 to 70 mm (Ø1 to 3") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 19.5 dBi |
| Beamwidth | Azimuth: 30° (6 dB) Elevation: 25° (6 dB) |
| Electrical downtilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Front-to-back ratio | Typical: 45 to 50 dB Min.: 40 dB |
