CAUTION! PACKAGE DOES NOT INCLUDE POWER SUPPLY!

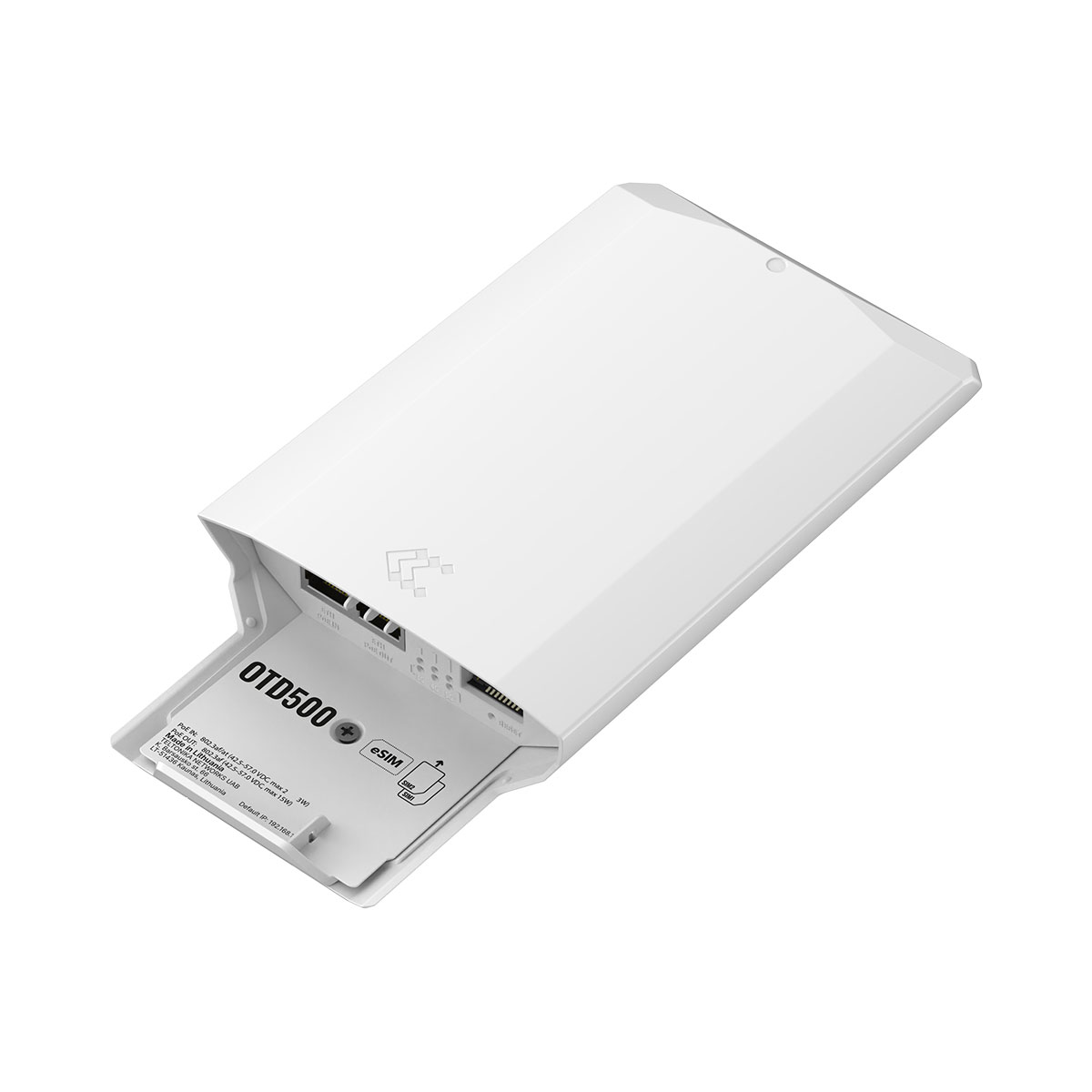

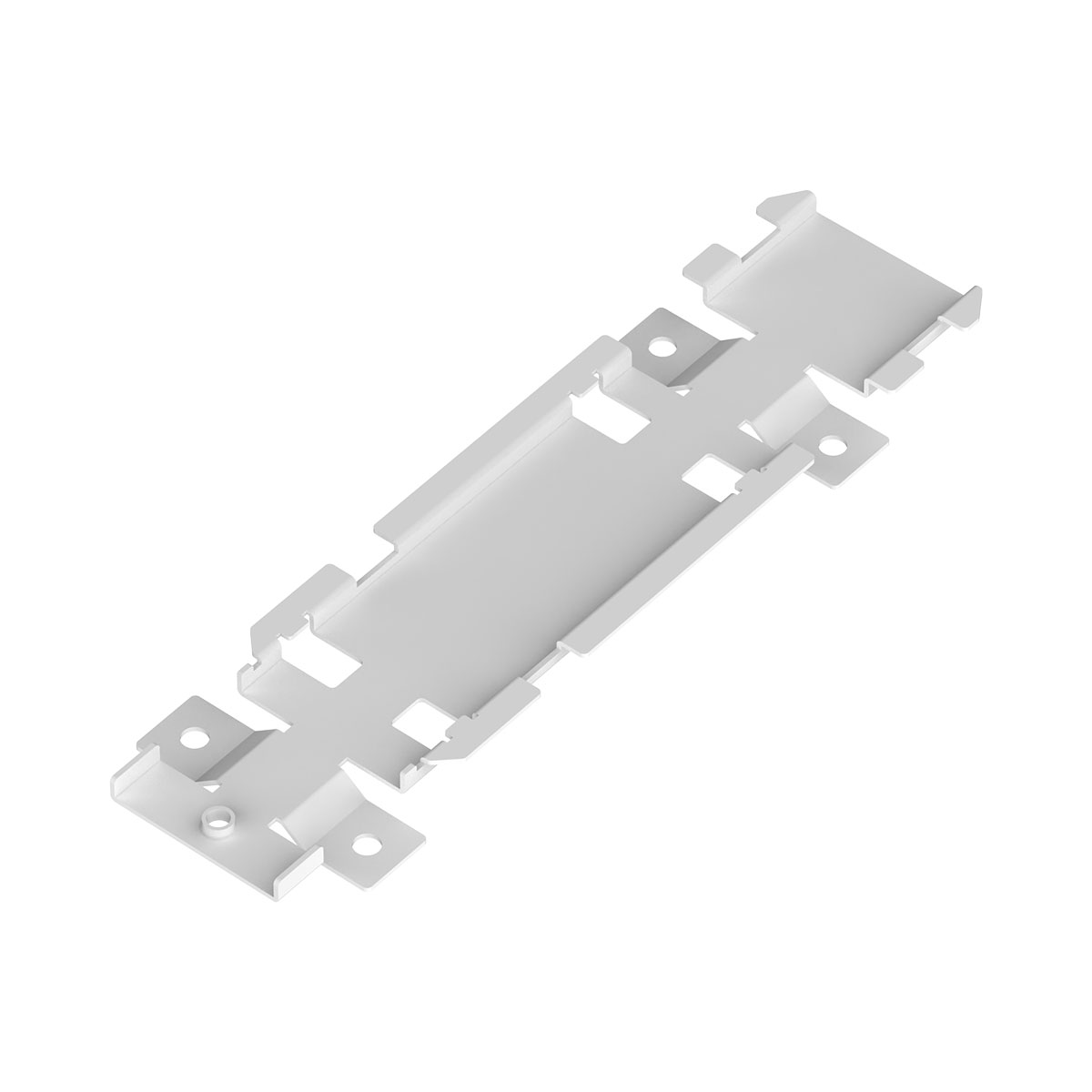

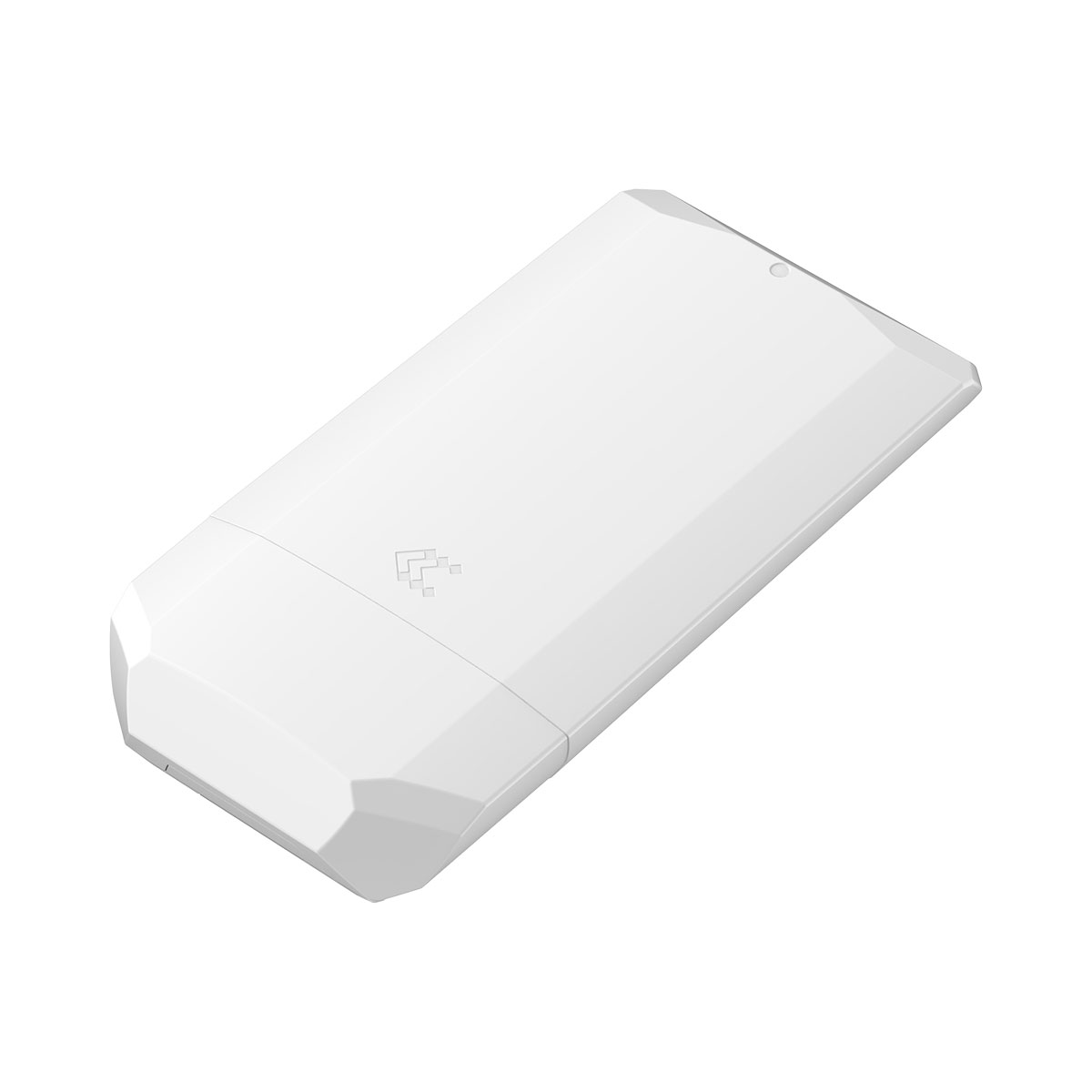

The OTD500 is a durable 5G outdoor router built for reliable connectivity in demanding environments. Its IP55-rated housing withstands harsh conditions, and the integrated mounting bracket enables quick, hassle-free installation. Dual SIM and eSIM with automatic switching provide exceptional network flexibility and redundancy. Gigabit Ethernet ports with PoE-in and PoE-out simplify setup by combining power and data in a single cable. Fully RMS-compatible, the OTD500 offers effortless remote management, making it perfect for outdoor connectivity solutions.
Characteristics
| Specifications | |
| Hardware | |
| Mobile | 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB DDR3 |
| Storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
| TPM | Identification and authentication module, TPM 2.0 standard |
| Powering options (PoE In) | RJ45, PoE In: 802.3af/at (42.5 – 57 VDC, max 23W) |
| PoE Out | PoE Out: 802.3af (42.5 – 57 VDC, max 15W) Alternative B |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V |
| Antenna connectors | 4 x internal antennas |

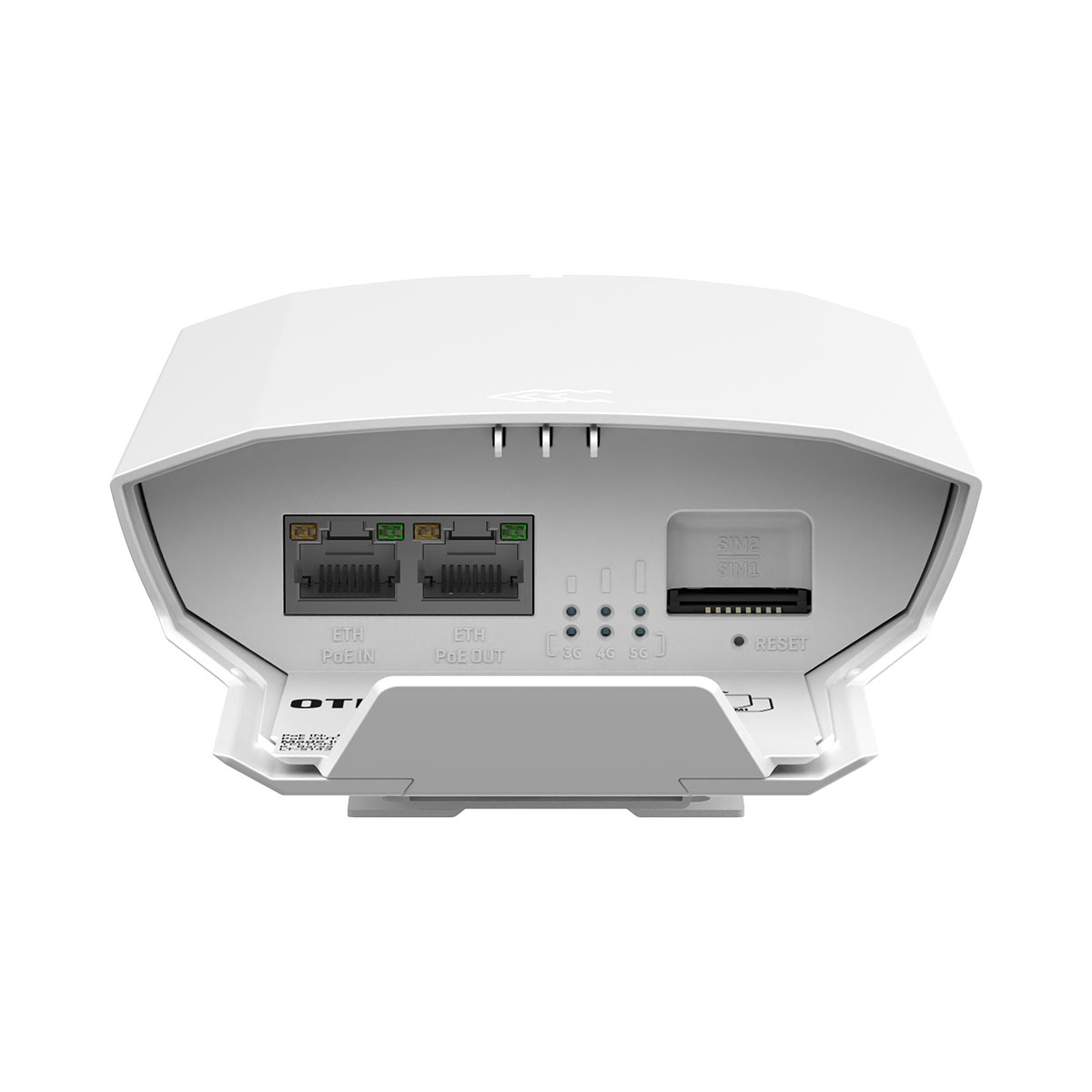

| Ethernet | 2 x RJ45 ports, 10/100/1000 Mbps: 2 x ETH ports (configurable as WAN) |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
| Operating temperature | -40 °C to 55 °C |
| Housing | Plastic (PC+ASA) |
| Dimensions (W x H x D) | 110 x 49.30 x 235 mm |
| Weight | 385 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Network features | Routing, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support , Traffic Management |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, TPM, SSL certificate generation, 802.1x |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS, RMS API |
