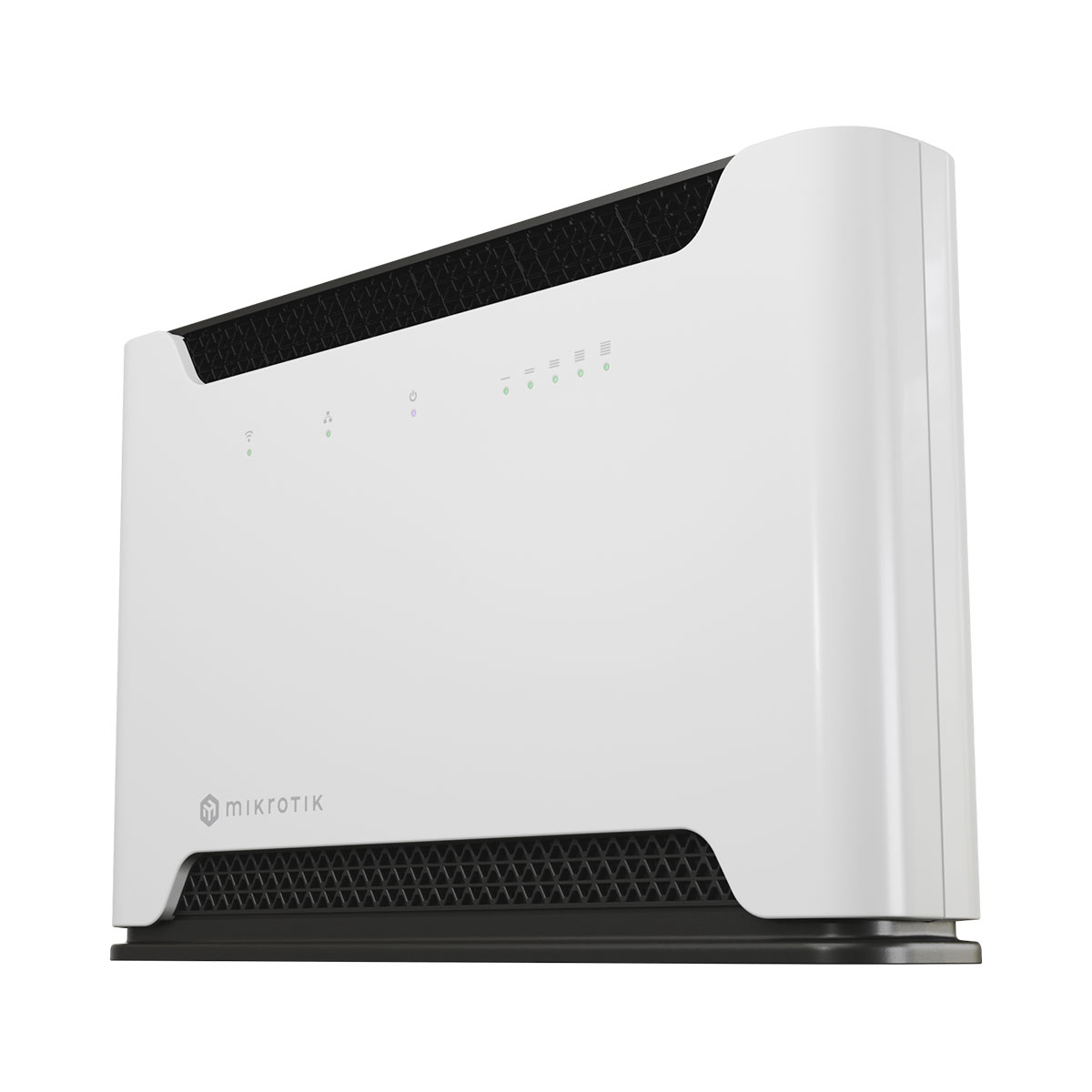

MikroTik D53G-5HACD2HND-TC_EG120K-EA, Chateau LTE12 with RouterOS L4 Licence
Product Code:
D53G-5HACD2HND-TC_EG120K-EA
200,00 €
(Includes VAT 24%)
Sales price without VAT:
161,29 €
Available
Next pickup date: 20/06/2025
MikroTik D53G-5HACD2HND-TC_EG120K-EA, Chateau LTE12 with RouterOS L4 Licence
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
Mikrotik introduces the new Chateau LTE12 (2025) with an upgraded LTE modem. The Chateau LTE12 (2025) is a dual-band home WiFi router with 5x Gigabit LAN ports and a category 12 LTE modem, including a USB port. The modulation speed of the 2.4GHz reaches up to 300Mbps, while the 5GHz band supports up to 866Mbps.

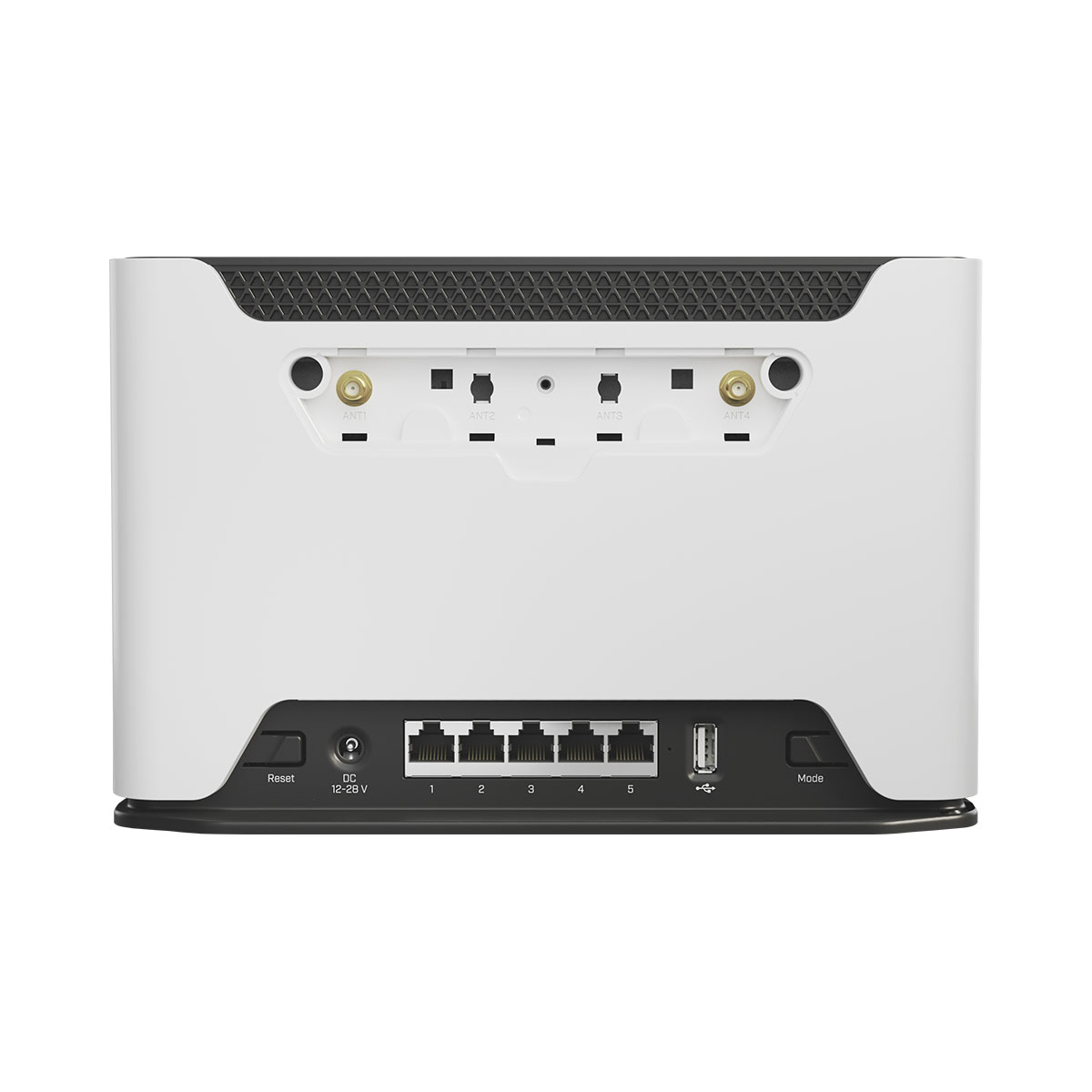

The Chateau features four built-in WiFi antennas and two connectors for external LTE antennas (antennas are not included in the package).
With the Chateau LTE12 kit, you are no longer restricted by cabling – CAT12 LTE provides speeds of up to 600 Mbps for download and up to 150 Mbps for upload with low latency. LTE CAT12 enables devices to use three bands simultaneously, which is beneficial in areas with high LTE traffic or weak signal strength.
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
Characteristics
| Specifications | |
| Product code | D53G-5HACD2HND-TC_EG120K-EA |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 448-896 (auto) MHz |
| Switch chip model | IPQ-4019 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Powering | |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 18 W |
| FAN count | Passive |
| Mobile |
|
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 12 (600Mbps Downlink, 150Mbps Uplink) |
| MIMO DL | 4x4 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz) |
| LTE TDD bands | 40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz) |
| Wireless | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | IPQ-4019 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Number of M.2 slots | 1 |
| Other | |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
