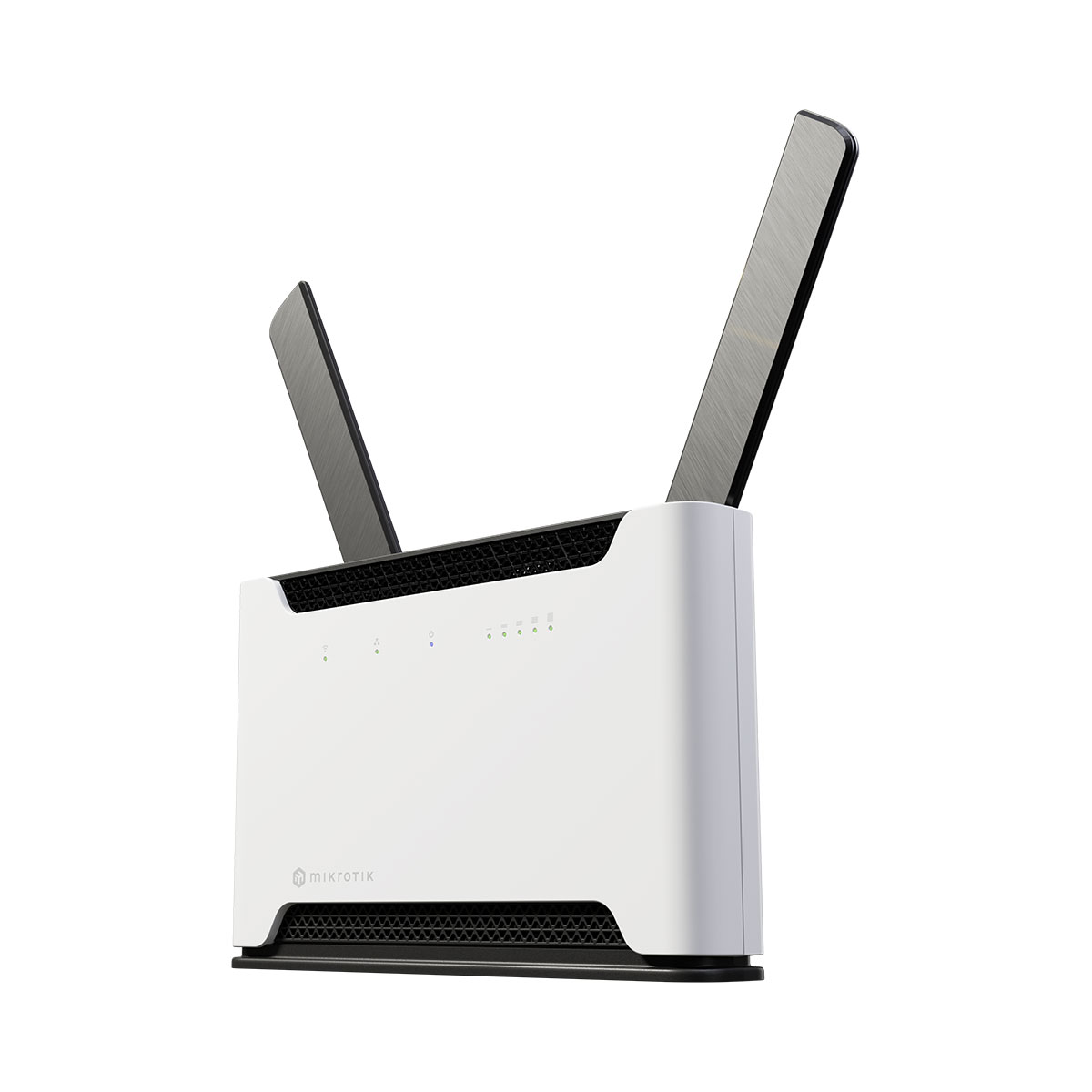

MikroTik S53UG+5HAXD2HAXD-TC_R11E-LTE7 , Chateau LTE7 AX
Your favorite high-performance home and office LTE router just got a major upgrade. Chateau LTE7 ax keeps the same powerful hardware, sleek design, and Wi-Fi 6 performance – but now features an LTE Category 7 modem, expanded frequency support, and a significantly lower price than the previous LTE6 ax version.
Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau.
Why upgrade to CAT7?
• Twice the upload speed (Depending on the LTE tower infrastructure and other variables)
• Expanded frequency support, including Band 28 (700 MHz) & Band 32 (1500 MHz) for better performance in congested areas
• Carrier aggregation (2×CA) for higher efficiency and responsiveness in busy networks
• Same trusted design – no changes to installation or configuration
• Lower cost – better connectivity that actually costs less, especially on volume orders
A powerful LTE router for demanding networks
Chateau LTE7 ax combines the new R11e-LTE7 modem with a quad-core ARM CPU, 1GB of RAM, Wi-Fi 6(802.11ax) dual-band wireless, and a 2.5 Gigabit Ethernet port for ultra-fast local connections. Run multiplesecure VPN tunnels, advanced firewall rules, advanced container setups, or complex routing scenarios– all while enjoying faster and more reliable mobile connectivity. Whether LTE is your primary connectionor a rock-solid backup to fiber, Chateau LTE7 ax adapts to your setup effortlessly… and in style!
Perfect for home offices, businesses, and ISPs

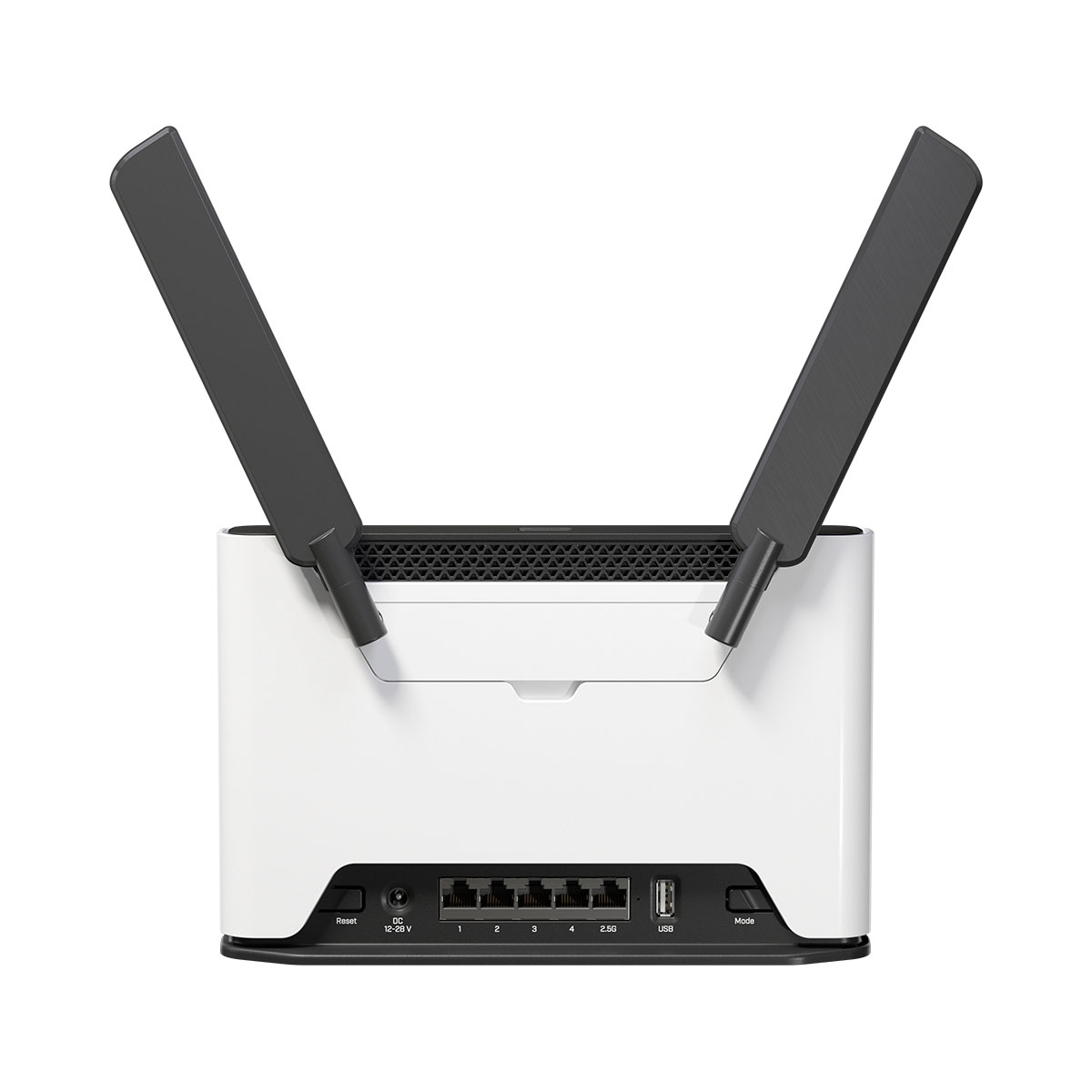

With five Ethernet ports (including a 2.5G port!), 2×2 MIMO LTE and full RouterOS v7 functionality, Chateau LTE7 ax fits a wide range of use cases:
• Secure home offices and remote work
• Small and medium-sized businesses
• LTE-based or hybrid ISP deployments
• Households that want performance and clean design
It’s equally comfortable in the hands of seasoned system administrators who need true flexibility – or users who just want to plug it in and forget it’s there.
Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill.
| Specifications | ||
|---|---|---|
| Product code | S53UG+5HaxD2HaxD-TC&R11e-LTE7 | |
| Architecture | ARM 64bit | |
| CPU | IPQ-6010 | |
| CPU core count | 4 | |
| CPU nominal frequency | auto MHz | |
| CPU Threads count | 4 | |
| Switch chip model | IPQ-6010 | |
| RouterOS license | 4 | |
| Operating System | RouterOS v7 | |
| Size of RAM | 1 GB | |
| Storage size | 128 MB | |
| Storage type | NAND | |
| MTBF | Approximately 200'000 hours at 25C | |
| Tested ambient temperature | -40°C to 70°C | |
| Powering | ||
| Number of DC inputs | 1 (DC jack) | |
| DC jack input Voltage | 12-28 V | |
| Max power consumption | 21.5 W | |
| Max power consumption without attachments | 15.5 W | |
| Cooling type | Passive | |
| Mobile | ||
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) | |
| 3G bands | 1 (2100 MHz) 5 (850 MHz) 8 (900 MHz) 3 (1800 MHz) |
|
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) | |
| MIMO DL | 2x2 | |
| MIMO UL | 1x1 | |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz) |
|
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
|
| TAC | 35312597 | |
| Wireless specifications | ||
| Wireless 2.4GHz Max data rate | 574 Mbit/s | |
| Wireless 2.4GHz number of chains | 2 | |
| Wireless 2.4GHz standards | 802.11b/g/n/ax | |
| Antenna gain dBi for 2.4GHz | 3 | |
| Wireless 2.4GHz chip model | QCN-5022 | |
| Wireless 2.4GHz generation | Wi-Fi 6 | |
| Wireless 5GHz Max data rate | 1200 Mbit/s | |
| Wireless 5GHz number of chains | 2 | |
| Wireless 5GHz standards | 802.11a/n/ac/ax | |
| Antenna gain dBi for 5GHz | 6 | |
| Wireless 5GHz chip model | QCN-5052 | |
| Wireless 5GHz generation | Wi-Fi 6 | |
| Ethernet | ||
| 10/100/1000 Ethernet ports | 4 | |
| Number of 2.5G Ethernet ports | 1 | |
| Peripherals | ||
| Number of SIM slots | 1 Modem (Micro SIM) | |
| Number of USB ports | 1 | |
| USB Power Reset | Yes | |
| USB slot type | USB type A | |
| Max USB current (A) | 1 | |
| Other | ||
| CPU temperature monitor | Yes | |
| PCB temperature monitor | Yes | |
| Voltage Monitor | Yes | |
| Mode button | Yes | |
| Certification & Approvals | ||
| Certification | CE, EAC, ROHS | |
| IP | 20 | |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
