Ubiquiti UDB-PRO UniFi Device Bridge Pro
This 5 GHz wireless bridge allows for point-to-point connection to another Bridge Pro device or seamless uplink using the UniFi Wi-Fi Auto-Link feature. It has two GbE RJ-45 ports, one of which supports PoE output for powering additional PoE devices. The device is powered via PoE/PoE+ and is designed for outdoor installations with resistance to weather conditions (IPX6).
- Support for point-to-point connections
- Uplink capability with UniFi Wi-Fi Auto-Link
- 2 Gigabit Ethernet ports (PoE+ input is required for PoE passthrough, 30W injector)
- Powered by PoE/PoE+ (PoE adapter is included)
- Maximum throughput of 867 Mbps in the 5 GHz band
- Integrated 2x2 MIMO antenna with 19 dBi gain
- Weather resistance (IPX6), suitable for outdoor installation
- Option for pole mounting (mounting adapter included)
- Supports Wi-Fi standards 802.11a/n/ac with WPA2 AES security
The device cannot be set up independently and must be managed using the UniFi console, official UniFi hosting, or a UniFi Network Server with self-hosting.

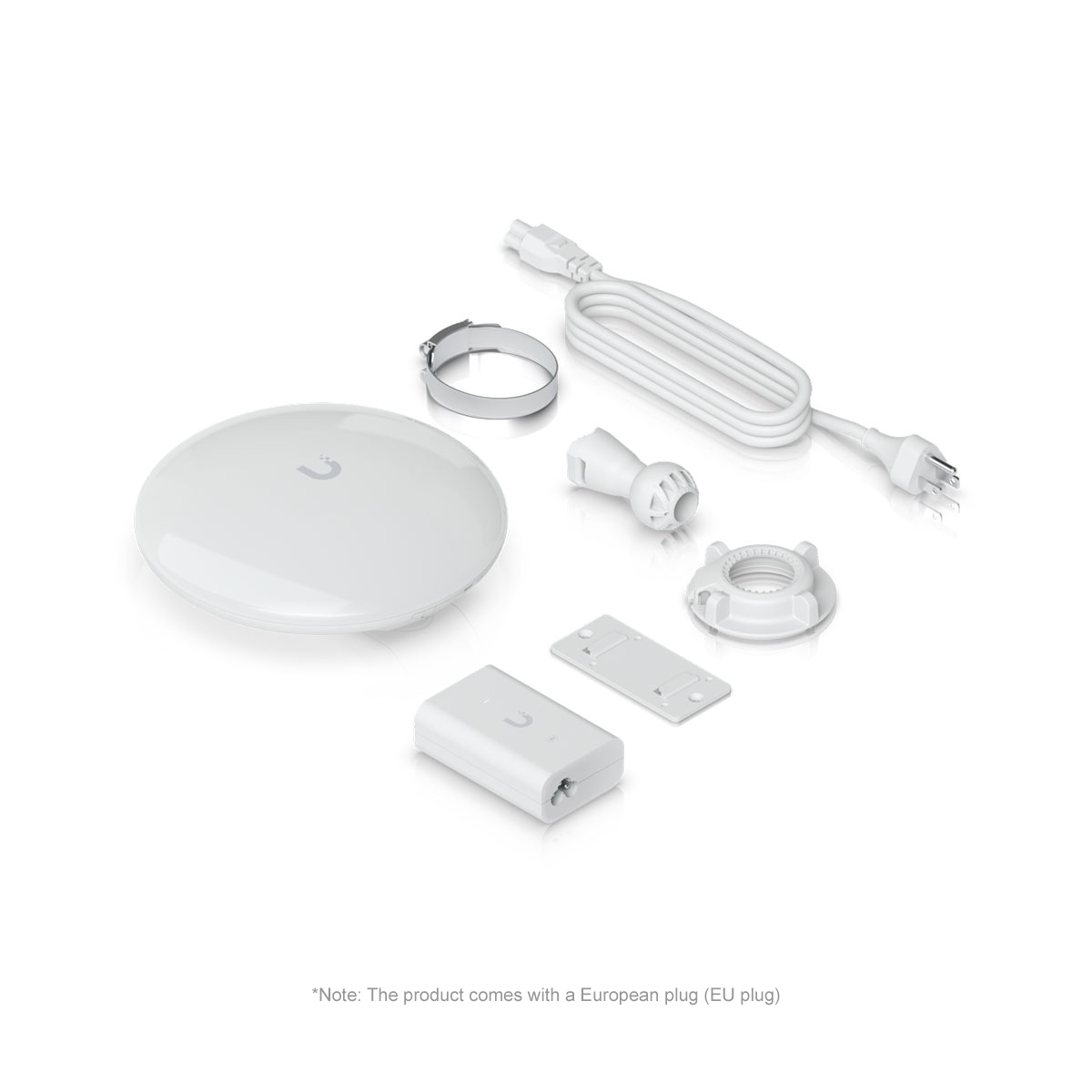

Contents of the Package
- Device
- Power cable
- Mounting accessories
- PoE injector (48 V / 0.32 A)
| Specifications | |
| Overview | |
| Dimensions | Ø189.5 x 64.3 mm |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE PoE+ (Required for PoE output) |
| Performance | |
| MIMO | 5 GHz:2 x 2 |
| Max. Data Rate | 5 GHz:867 Mbps (BW80) |
| Antenna Gain | 5 GHz:19 dBi |
| Max. TX Power | 5 GHz:25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES (Always On) |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g With mount: 515 g |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Enclosure Material | UV-resistant polycarbonate |
| Pole Mount Diameter | 20–53.1 mm |
| Button | (1) Factory-reset |
| LEDs | System: Power, Ethernet, (4) signal strength |
| Channel Bandwidth | 20/40/80 (MHz) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Operating Frequency | 5150 - 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
