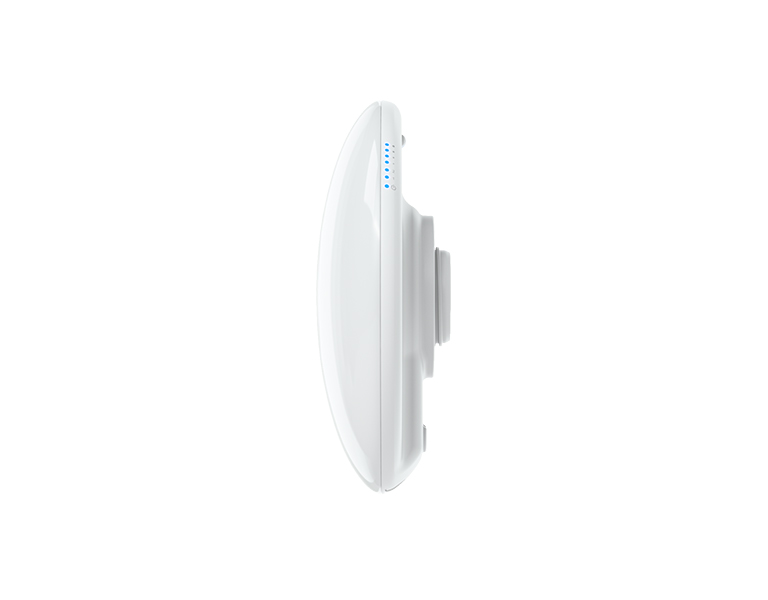

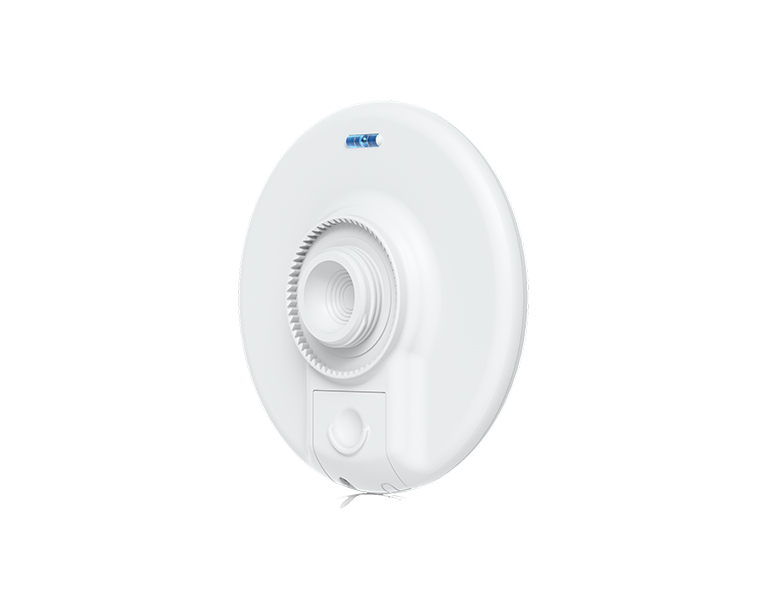

Ubiquiti UDB-PRO UniFi Device Bridge Pro
This 5 GHz wireless bridge allows for point-to-point connection to another Bridge Pro device or seamless uplink using the UniFi Wi-Fi Auto-Link feature. It has two GbE RJ-45 ports, one of which supports PoE output for powering additional PoE devices. The device is powered via PoE/PoE+ and is designed for outdoor installations with resistance to weather conditions (IPX6).
- Support for point-to-point connections
- Uplink capability with UniFi Wi-Fi Auto-Link

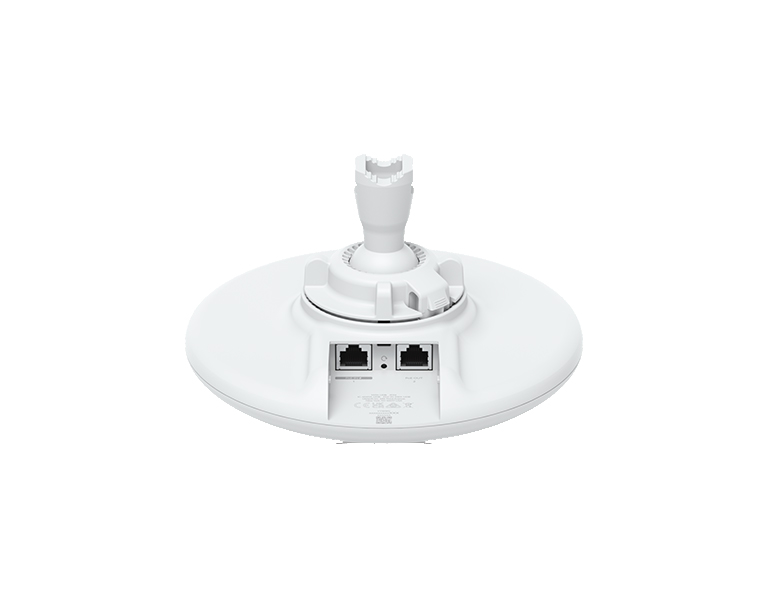

- 2 Gigabit Ethernet ports (PoE+ input is required for PoE passthrough, 30W injector)
- Powered by PoE/PoE+ (PoE adapter is included)
- Maximum throughput of 867 Mbps in the 5 GHz band
- Integrated 2x2 MIMO antenna with 19 dBi gain
- Weather resistance (IPX6), suitable for outdoor installation

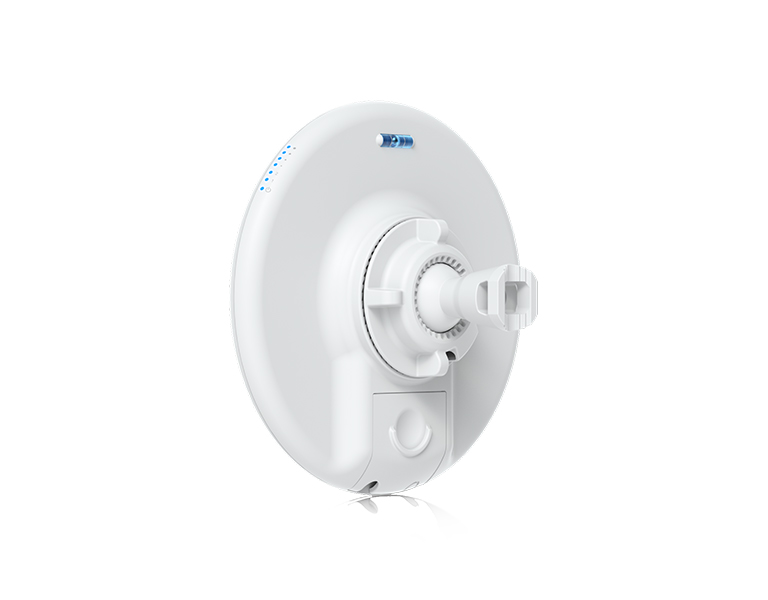

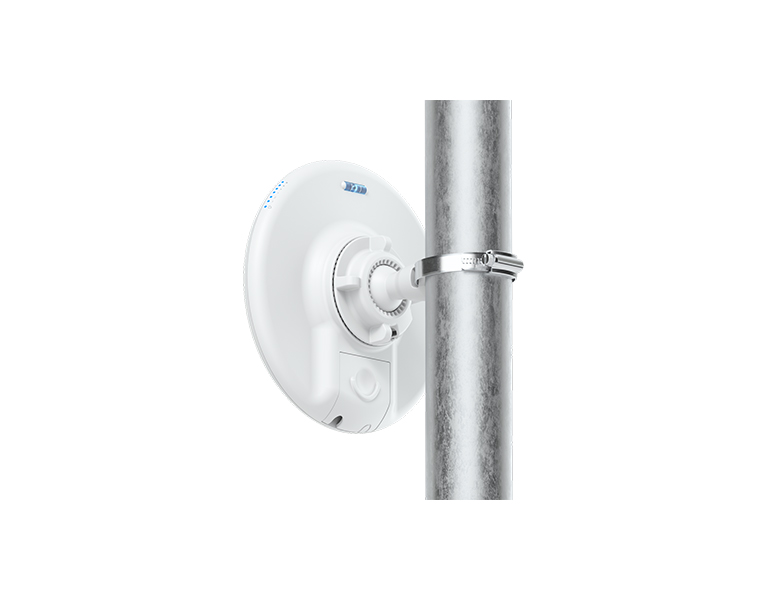

- Option for pole mounting (mounting adapter included)
- Supports Wi-Fi standards 802.11a/n/ac with WPA2 AES security
The device cannot be set up independently and must be managed using the UniFi console, official UniFi hosting, or a UniFi Network Server with self-hosting.

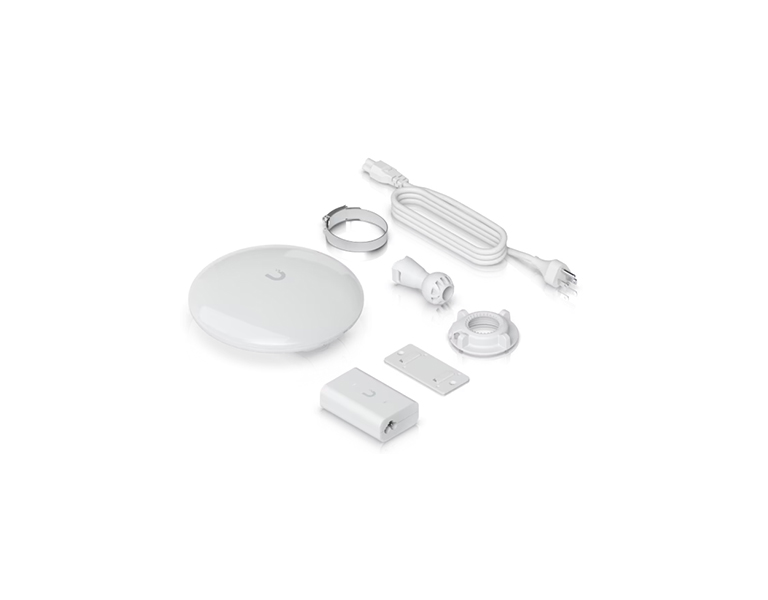

Contents of the Package
- Device
- Power cable
- Mounting accessories

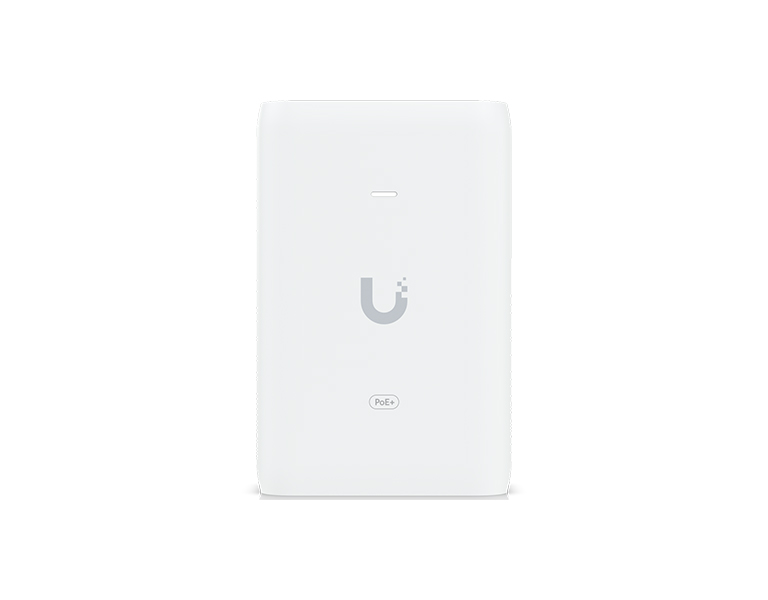

- PoE injector (48 V / 0.32 A)
| Specifications | |
| Overview | |
| Dimensions | Ø189.5 x 64.3 mm |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE PoE+ (Required for PoE output) |
| Performance | |
| MIMO | 5 GHz:2 x 2 |
| Max. Data Rate | 5 GHz:867 Mbps (BW80) |
| Antenna Gain | 5 GHz:19 dBi |
| Max. TX Power | 5 GHz:25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | 802.11ac (WiFi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES (Always On) |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Antennas | Internal |
| Management | (1) PoE in (PoE output not used) (1) Passive PoE output |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight | Device: 431 g With mount: 515 g |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Enclosure Material | UV-resistant polycarbonate |
| Pole Mount Diameter | 20–53.1 mm |
| Button | (1) Factory-reset |
| LEDs | System: Power, Ethernet, (4) signal strength |
| Channel Bandwidth | 20/40/80 (MHz) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Operating Frequency | 5150 - 5875 MHz |
| Ambient Operating Temperature | -40 to 60° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
