Ubiquiti UK-Ultra Swiss Army Knife Ultra
ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!

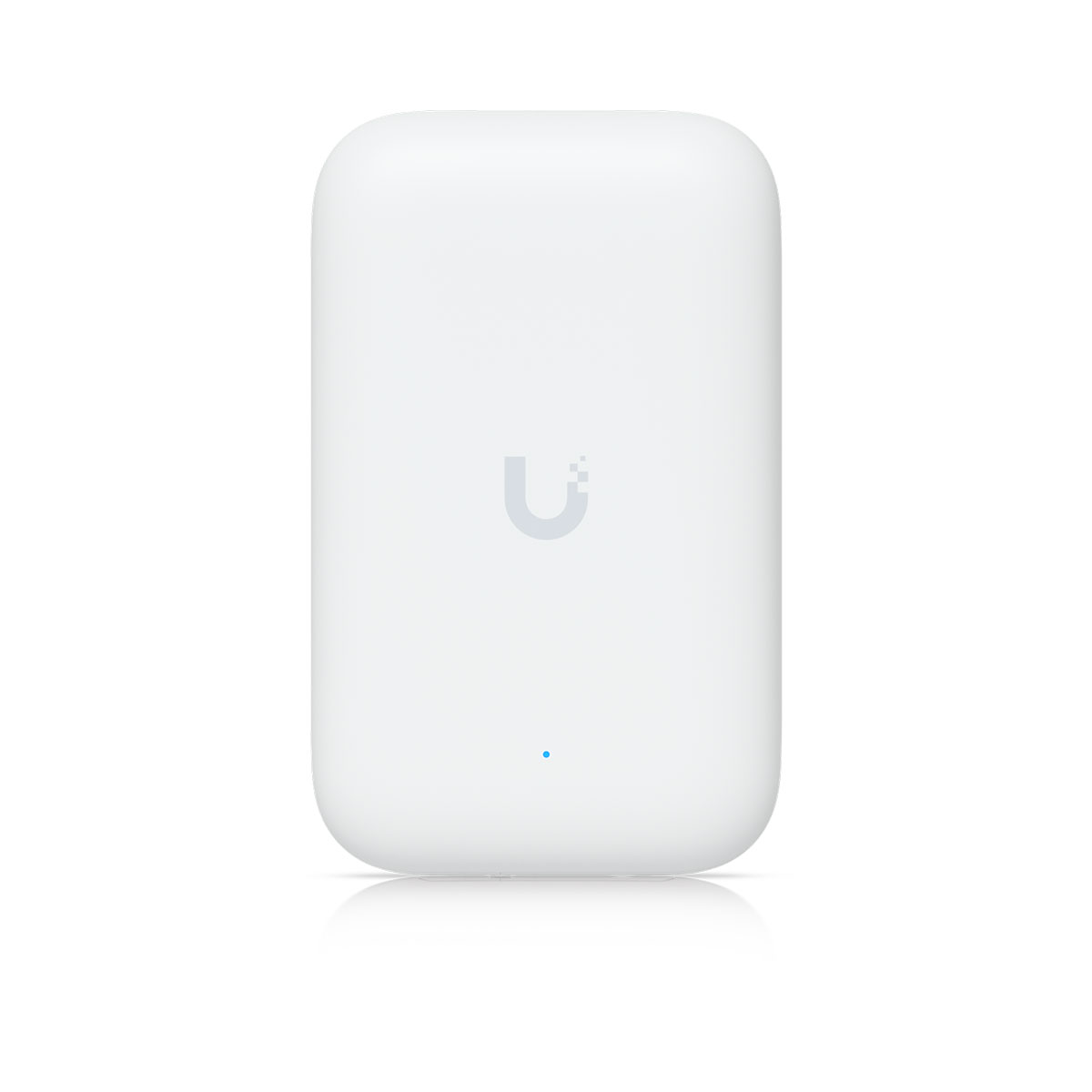

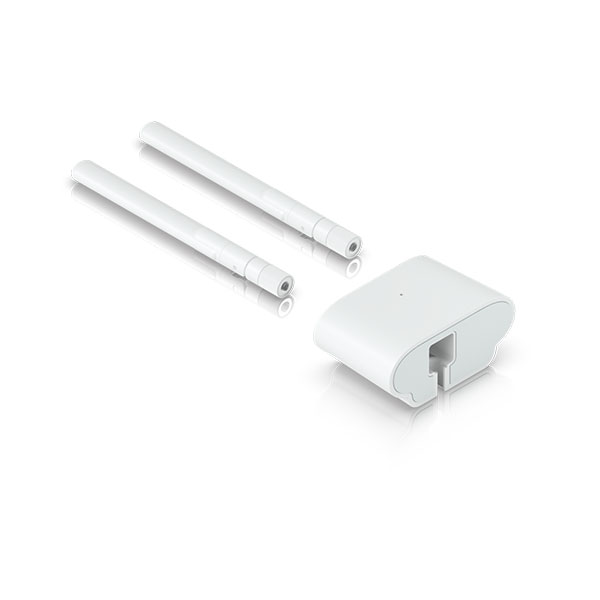

An incredibly compact Access point from the UniFi family for indoor and, thanks to IPx6 protection, outdoor use, this is the new Ubiquiti Swiss Army Knife Ultra. The UK-Ultra is equipped with 1x Gbit Ethernet, which in addition to data transmission is also used for PoE power supply with 44-57V. It supports 8021.11a/b/g/n/ac wireless standards in a 2x2 MIMO configuration for both frequency bands and can handle 200+ connected clients. With a pair of RSMA connectors, it is possible to connect an omnidirectional or sector external antenna to increase the transmitter's range.
The access point offers a wide range of wall, ceiling or mast mounting options, with mounting accessories included.
Central unit control
To manage the device, you need to download the original software called UniFi Network Controller from the official website, which allows you to manage the entire network. The undeniable advantage of UniFi Controller is that it is completely free without any restrictions! This central management will allow you to upload maps and set basic parameters and advanced features such as SSID, guest account, homepage, traffic statistics as well as the list and status of associated clients quickly and easily.
Benefits of UniFi solutions:
• Fast Roaming - failover between APs
• Wireless uplink (handy where a data cable can't reach)
• Up to 8 SSIDs
• Detailed traffic statistics
• Guest network
• Load balance - maintain a steady load / switch clients
• Rate limiting for each SSID

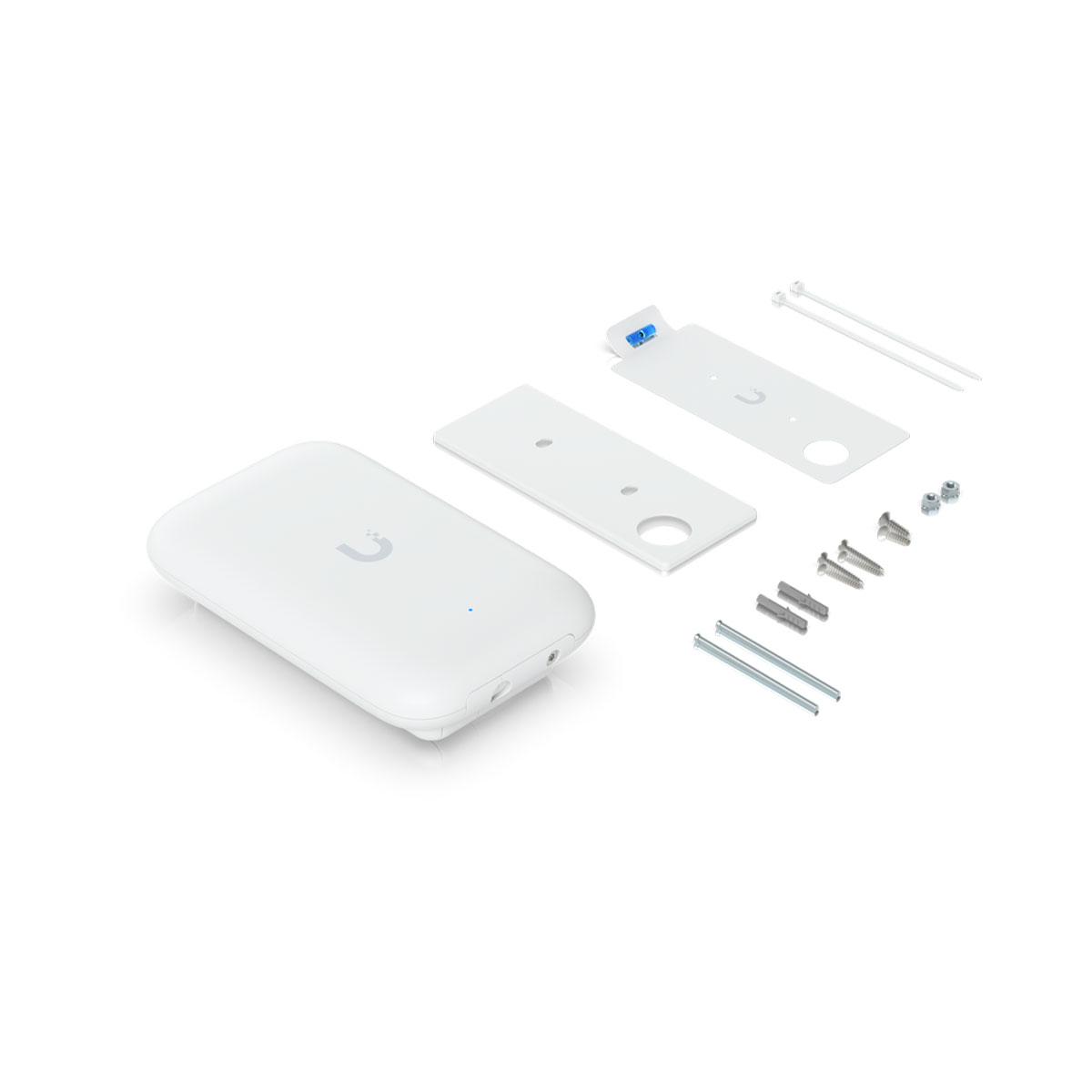

Package contents:
• Equipment
• Wall, ceiling and pipe brackets
• Drilling template
• Tensioning tape
• Mounting kit
| Specifications | |

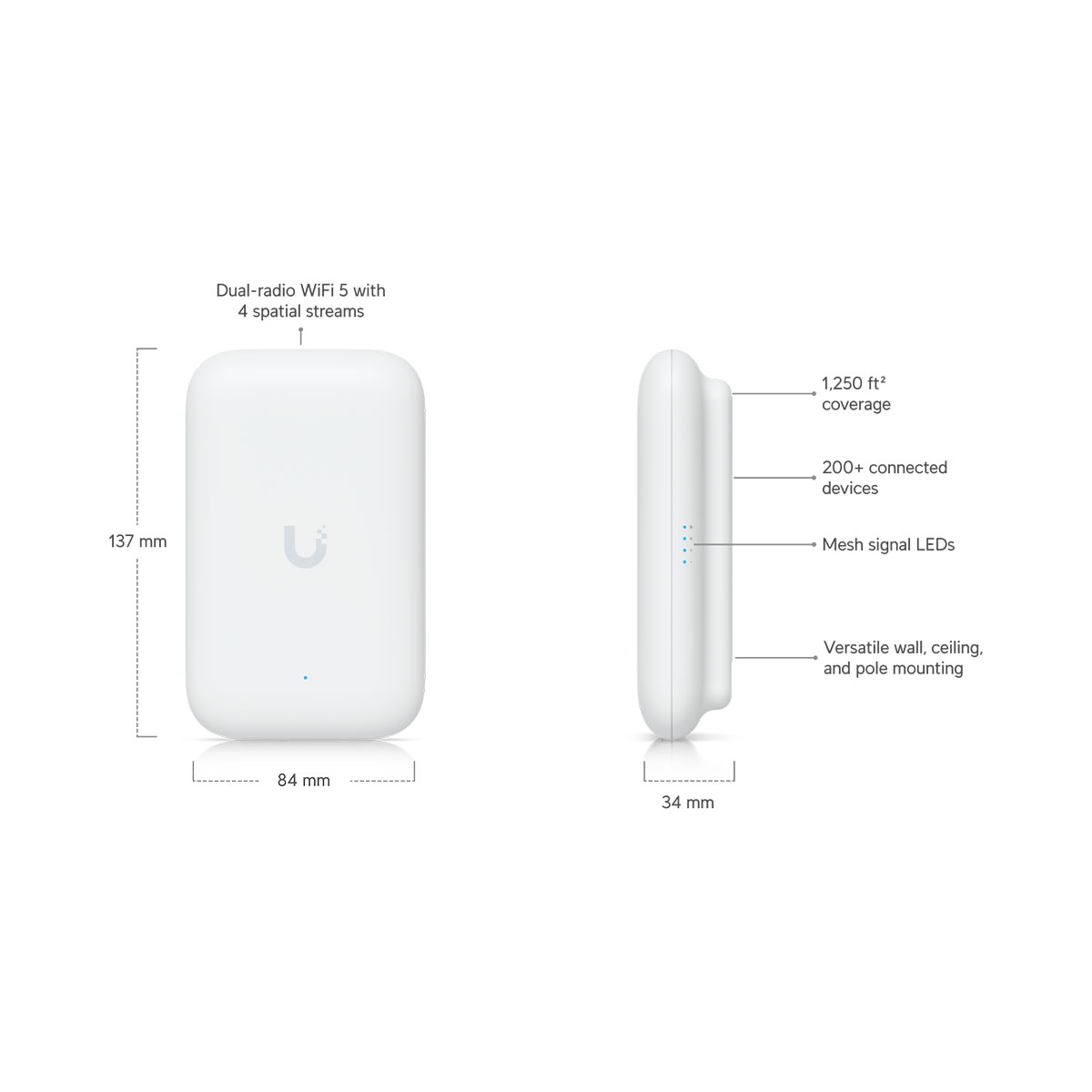

| Dimensions | 137 x 84 x 34 mm |
| Weight | 173 g |
| Enclosure material | UV-stabilized polycarbonate |
| Mount material | Polycarbonate, SGCC steel, plastic |
| Pole mount diameter | 1-2" on pipe outer diameter |
| Wind survivability | 33.2 N at 200 km/h |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8W |
| Max. TX power | |
| 2.4 GHz | 20 dBm |
| 5 GHz | 20 dBm |
| MIMO | |
| 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| Throughput rate | |
| 2.4 GHz | 300 Mbps |
| 5 GHz | 866.7 Mbps |
| Antenna gain | |
| 2.4 GHz | 4.7 dBi |
| 5 GHz | 6 dBi |

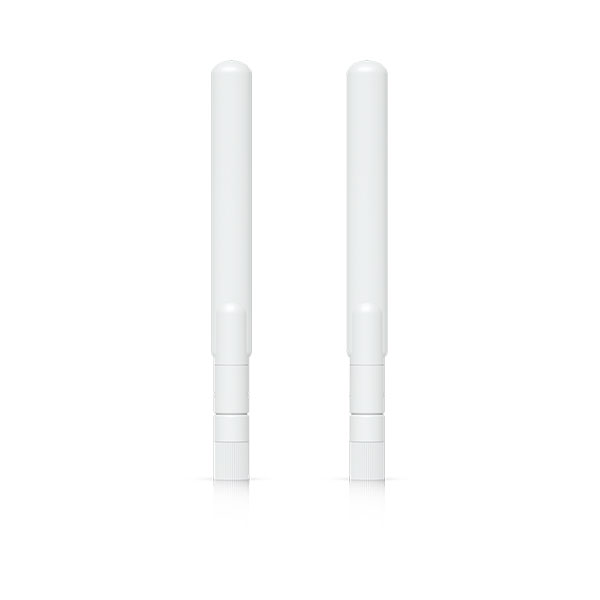

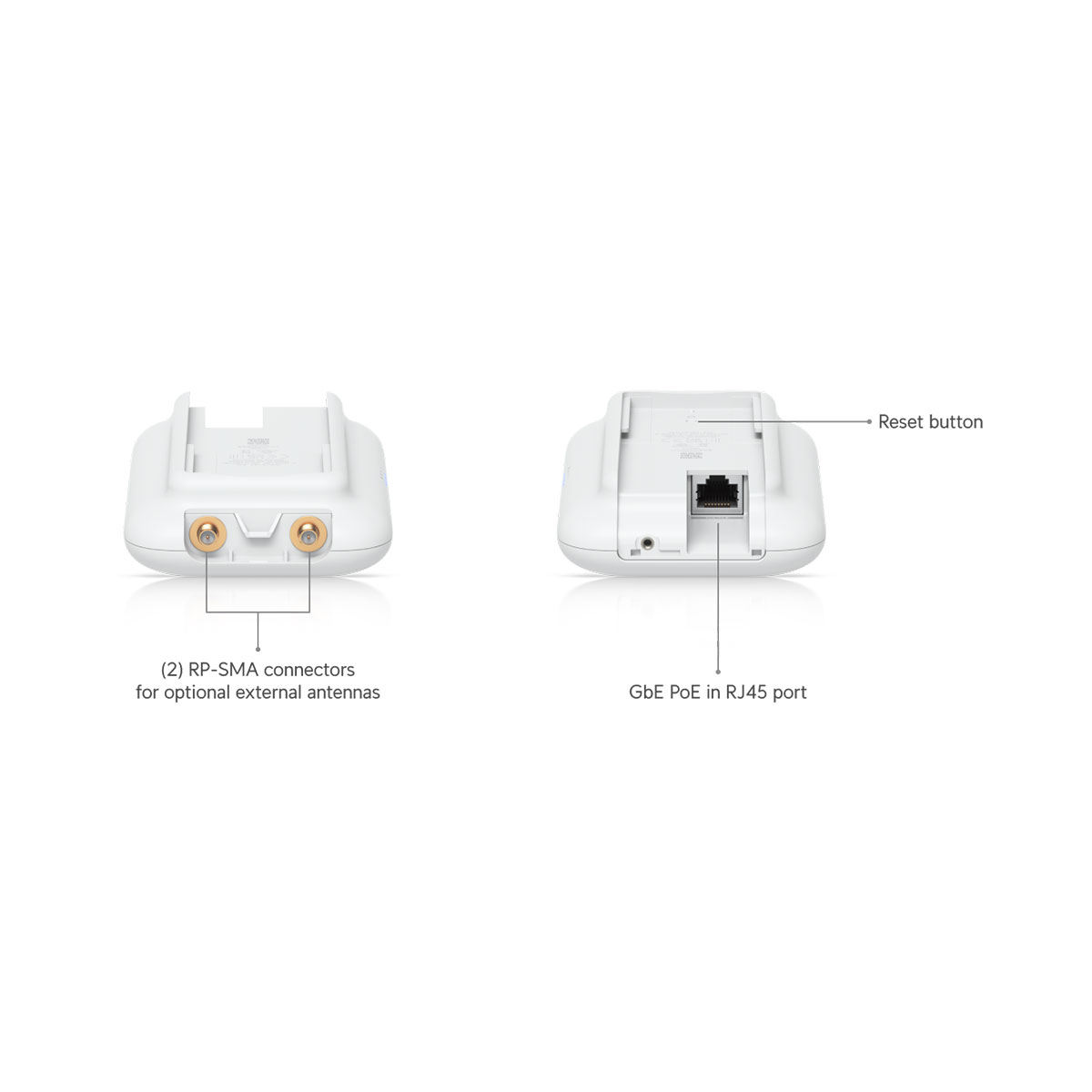

| Antenna | (1) Internal antenna (2) RP-SMA connectors for optional external antennas |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -40 to 60° C |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Application Requirements | |
| UniFi Network | Web: Version 8.0.7 and later iOS™: Version 10.11.1 and later Android™: Version 10.10.1 and later |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
