Ubiquiti UA-HUB-DOOR-MINI UniFi Access Mini Hub
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ POE

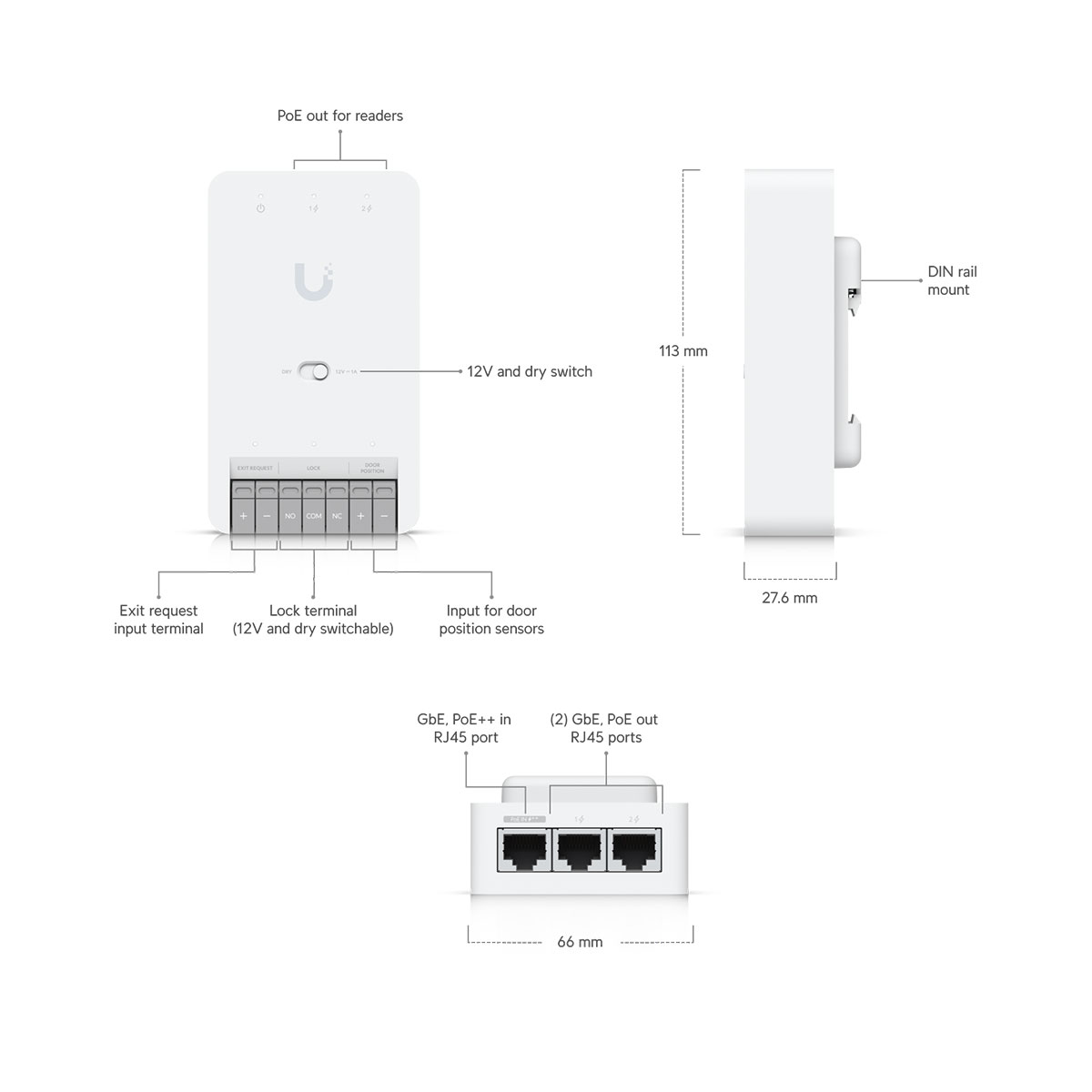

The Ubiquiti UniFi Access Door Hub Mini is designed for controlling one door and, thanks to its compact design, is suitable for households. It features one relay contact (configurable as 12V / 1A or dry contact), two digital inputs for connecting an exit button and a door position sensor, and two Ethernet ports with PoE support, where you can connect, for example, Protect series IP cameras or card readers.
Key Features
• Compact design
• Control of one door
• Two digital inputs
• Powered by PoE++
• Two Ethernet ports with PoE support (31W budget)
• Requires UniFi Access application version 2.5.2 or newer for management
Package Contents
• UniFi Access Hub Door Mini
• DIN rail
• (2) screws with wall plugs
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
| Specifications | |
| Dimensions | 113 x 66 x 27.6 mm |
| Supported Doors | 1 |
| Input Terminals | (2) Door exit request (1) Door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Mechanical | |
| Weight | 190 g |
| Enclosure Material | Polycarbonate, Metal |

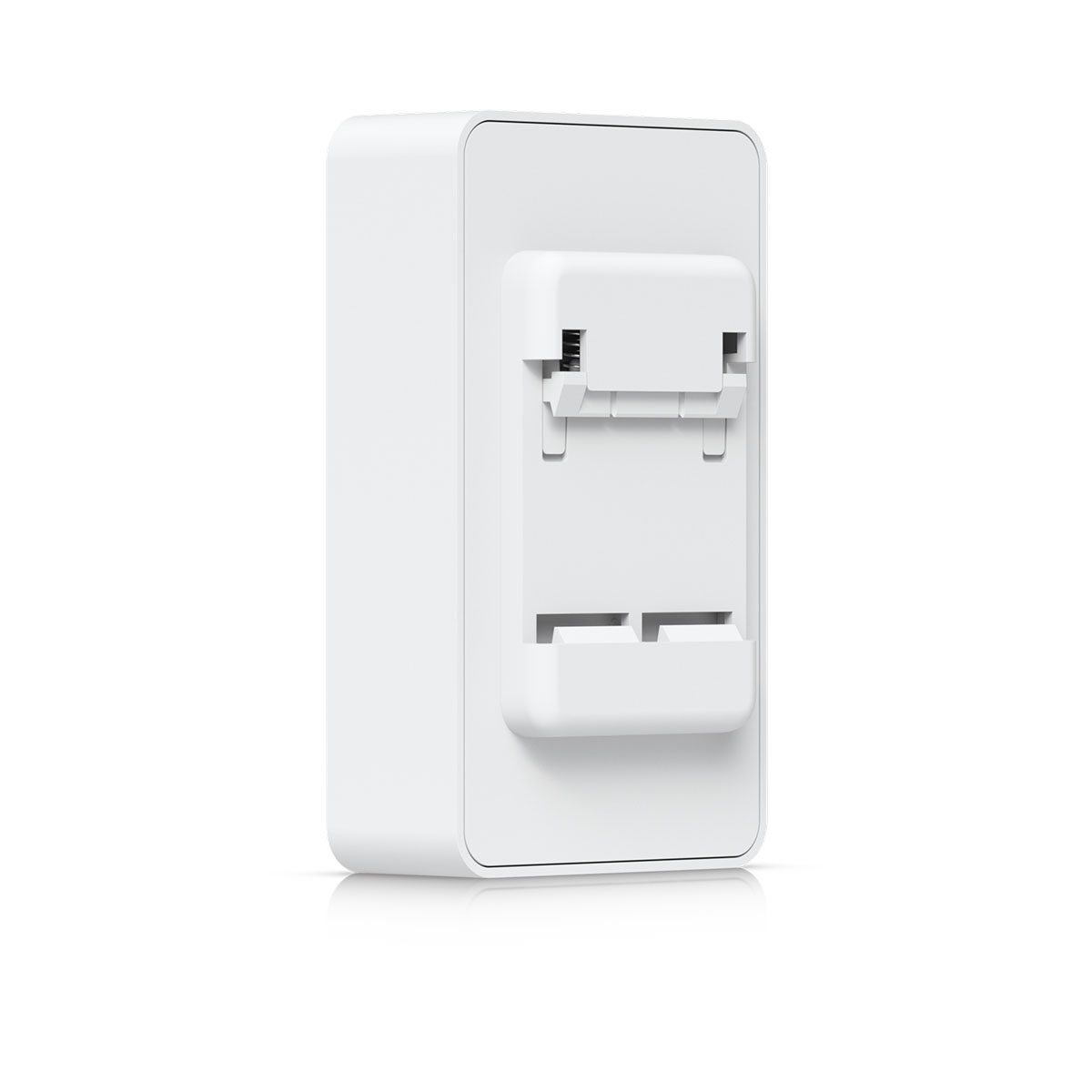

| Mounting | DIN-rail (Included) |
| Hardware | |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (2) PoE outputs, total 31W |
| Max. Power Consumption | 19W (Without PoE output) 50W (With PoE output) |
| Dry Output Relay | 30V DC, 1A |
| Wet Output Relay | 12V DC, 1A |
| LEDs | W/B |
| Buttons | (1) Factory-reset (1) Dry/Wet switch |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | ✓ |
