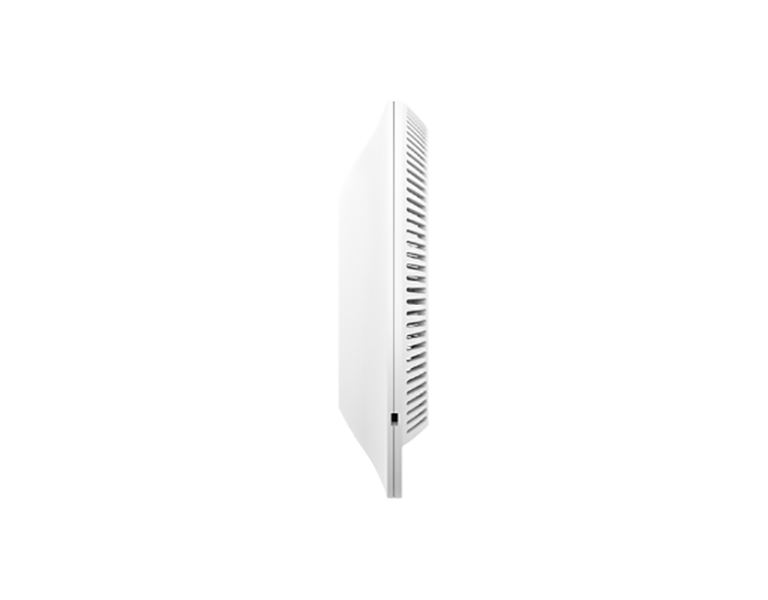

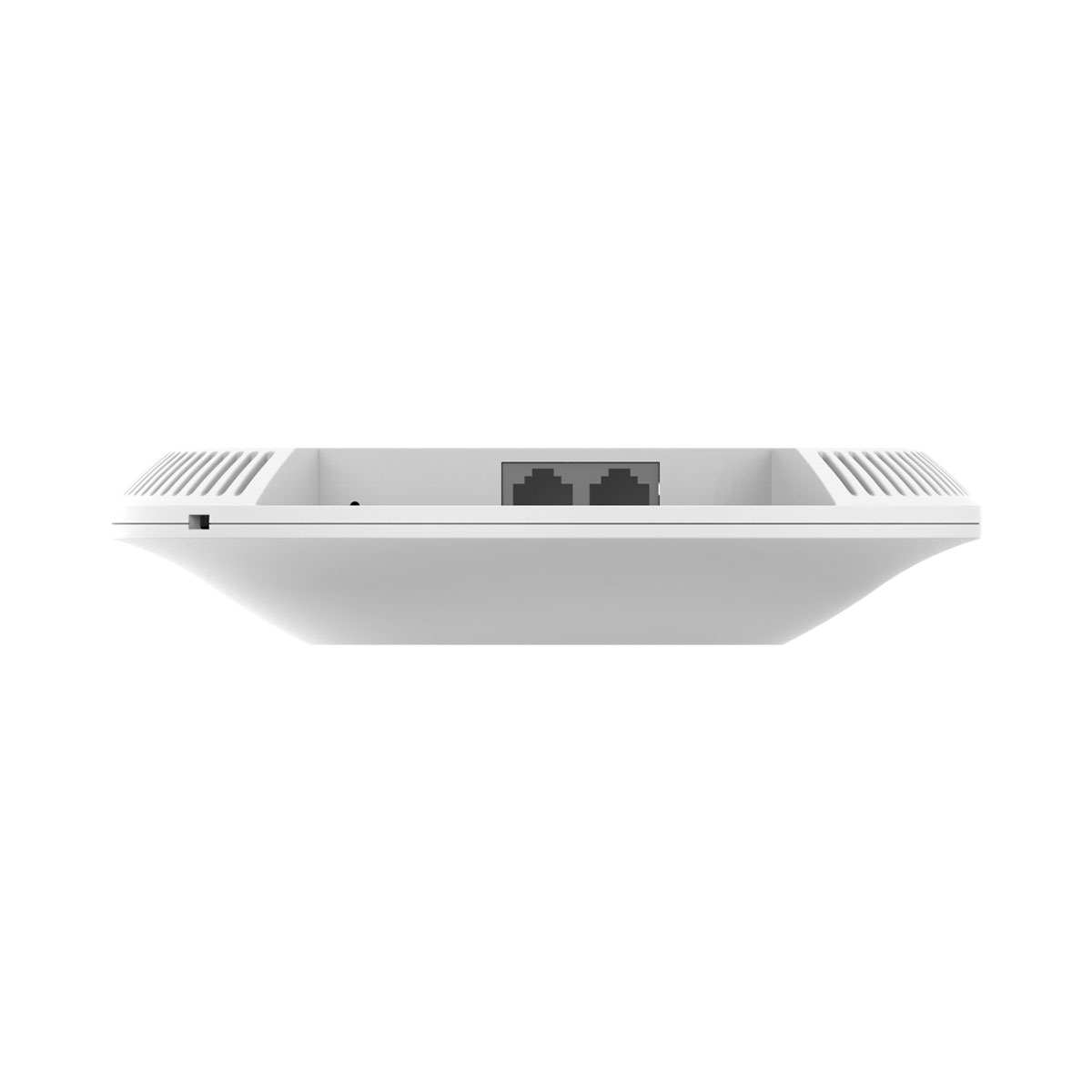

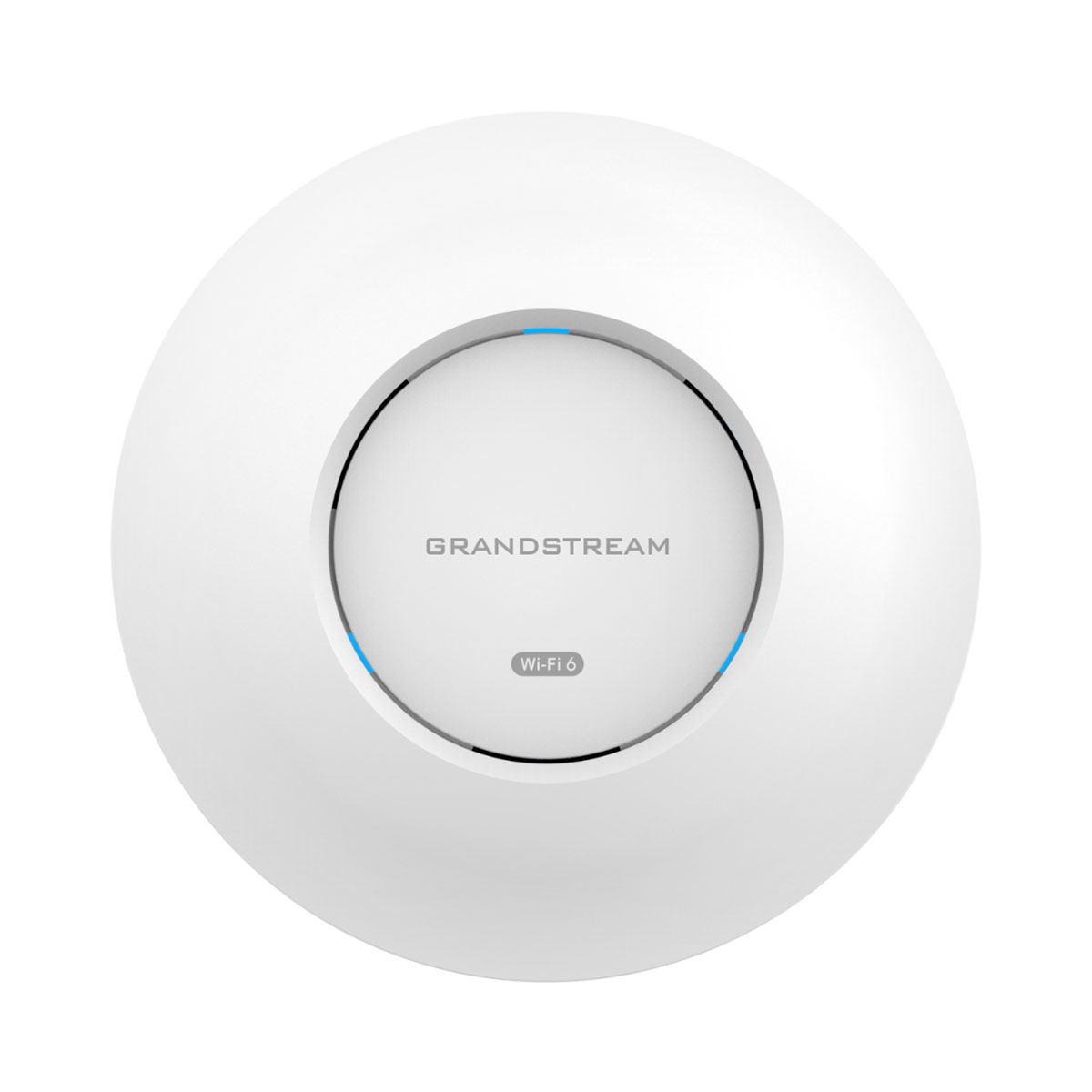

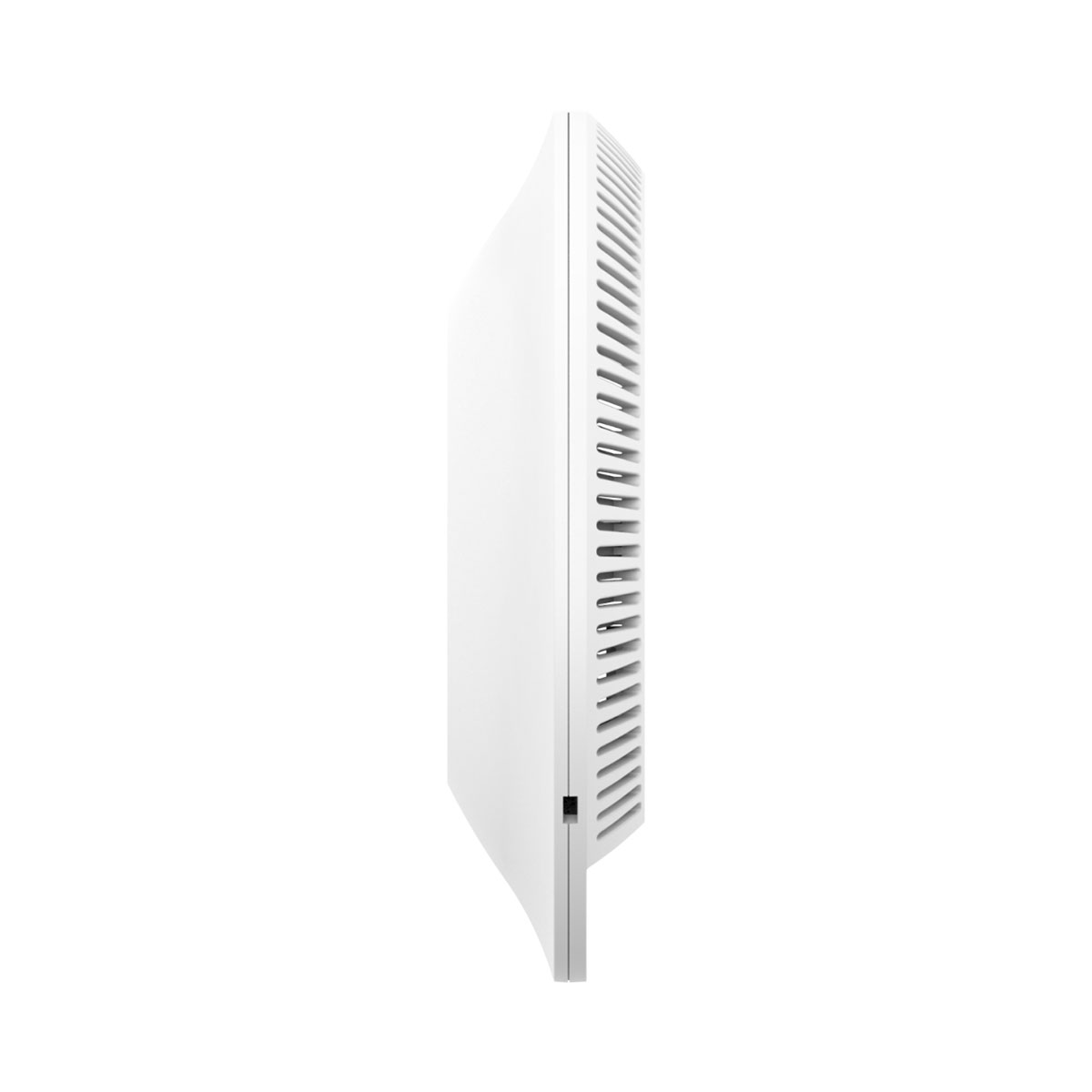

Grandstream GWN7660E 802.11ax 2X2:2 Wi-Fi 6 Access Point
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ
The GWN7660E is an enterprise-grade Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band as well as a sophisticated antenna design and uses XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range.To ensure easy installation and management, the GWN7660E uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface. The GWN7660E is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency realtime applications, mesh networks, captive portals, 256 concurrent clients per AP and Gigabit network ports with PoE/ PoE+, GWN7660E is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Features:
• 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
| Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους. |
| Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους. |
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| WiFi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 5 individual internal antennas 2.4GHz x 2, gain 4.0dBi 5 GHz x 3, gain 5.0dBi |
| WiFi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps, IEEE 802.11ac: 6.5 Mbps to 867 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands | 2.4GHz radio: 2400-2483.5MHz 5GHz radio: 5150-5850MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40,80 and 160MHz |
| WiFi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz 3x3:2 5GHz |
| Coverage Range | Up to 175 meters *Coverage range can vary based on environment |
| Maximum TX Power | 5G: 24dBm 2.4G: 24dBm *Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps, 802.11g: -93dBm @6Mbps, -75dBm@54Mbps, 802.11n 20MHz: -73dBm @MCS7, 802.11n 40MHz: -70dBm @MCS7, 802.11ax 20MHz: -60dBm @MCS11, 802.11ax 40MHz: -58dBm @MCS11, 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps, 802.11n 20MHz: -73dBm @MCS7, 802.11n 40MHz: -70dBm @MCS7, 802.11ac 20MHz: -67dBm@MCS8, 802.11ac: 40MHz: -63dBm @MCS9, 802.11ac 80MHz: -59dBm @MCS9 , 802.11ax 20MHz: -60dBm @MCS11, 802.11ax 40MHz: -58dBm @MCS11,802.11ax 80MHz: -56dBm @ MCS11,802.11ax 160MHz: -52dBm@ MCS11 |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz and 5 GHz) |
| Concurrent Clients | 256 |
| Network Interfaces | 1x autosensing 10/100/1000 Base-T Ethernet Ports |

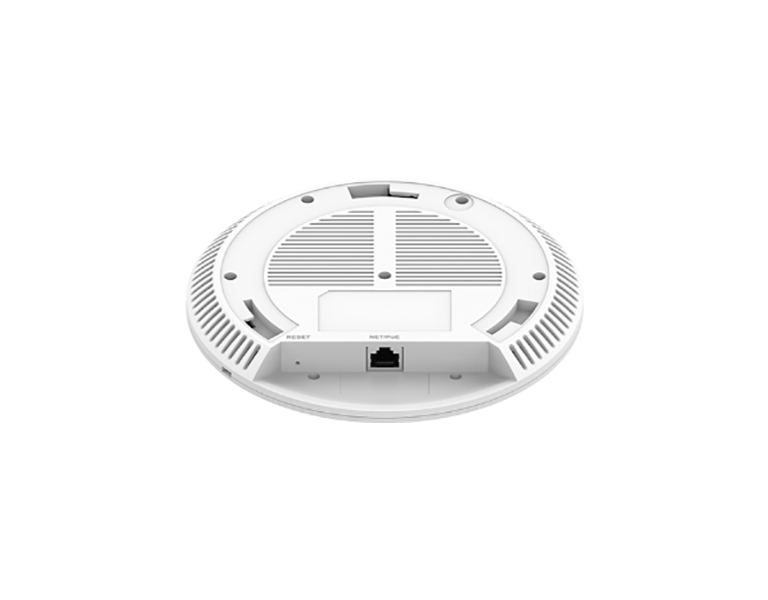

| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

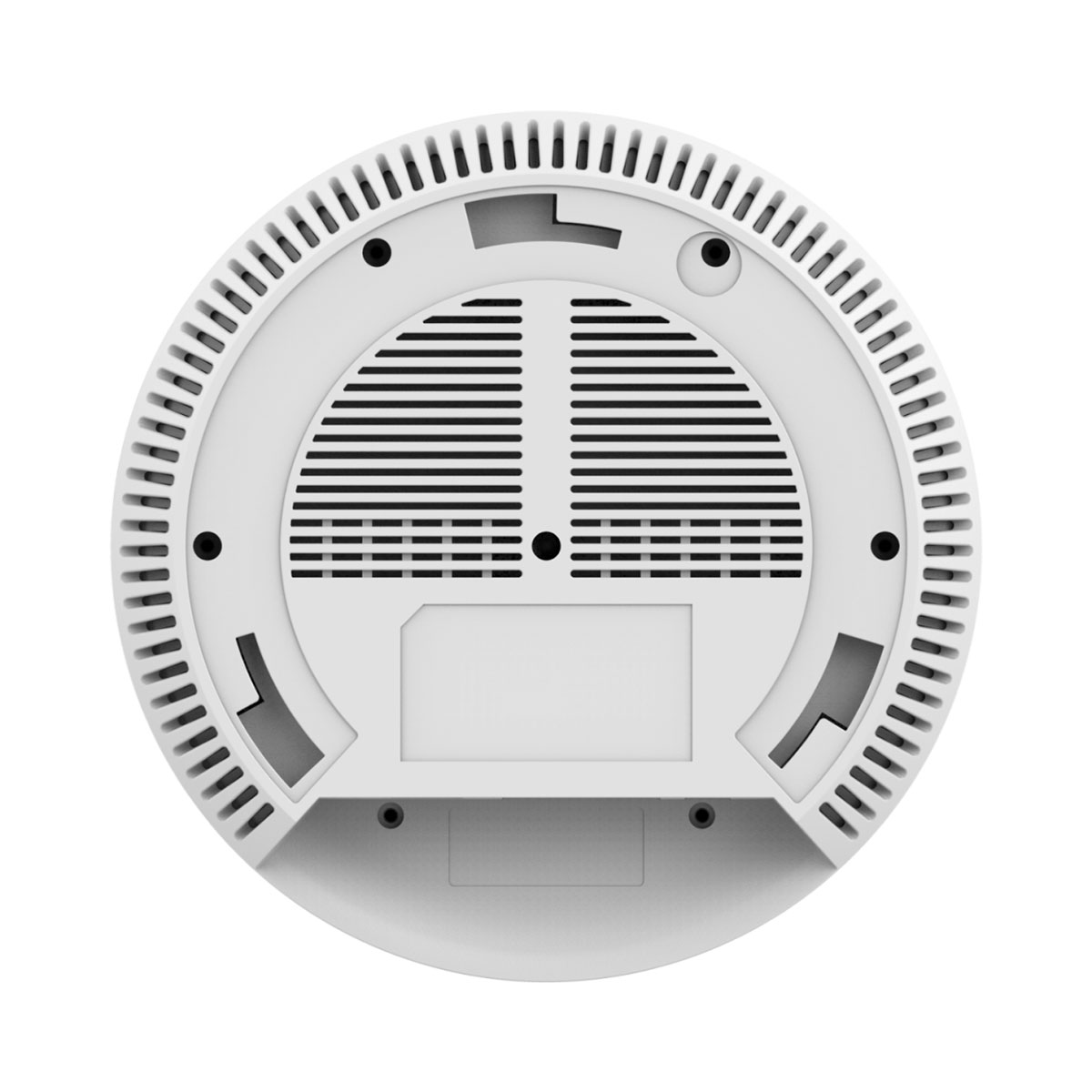

| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/802.3at, Maximum Power Consumption: 12.95W |
| Environmental | Operation: 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 180.4mmx180.4mmx40.8mm, Unit Weight: 385g Entire Package Dimension: 228.5x220x79mm, Entire Package Weight: 630g |
| Package Content | GWN7660E Wireless AP Mounting Kits Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
