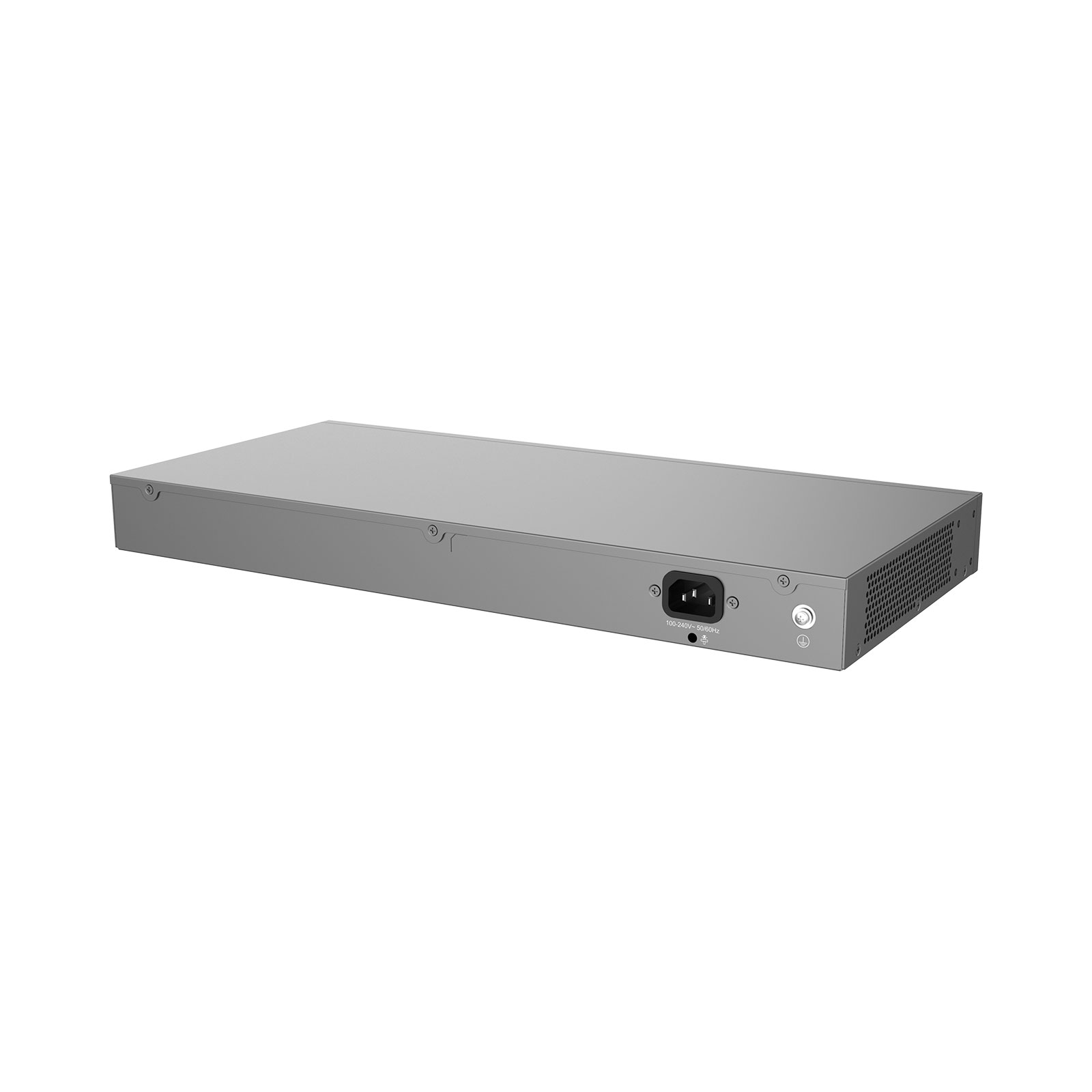

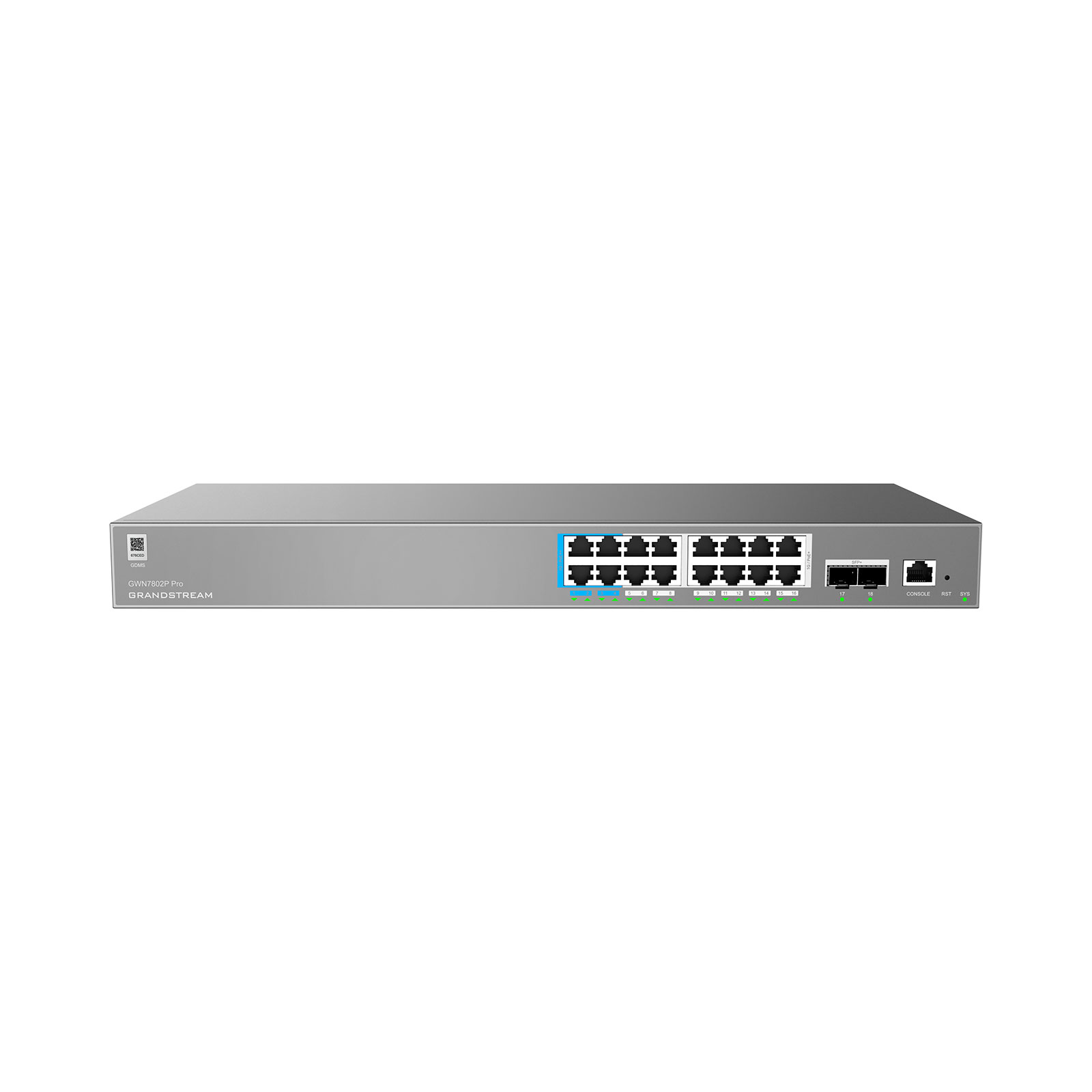

Grandstream GWN7802P PRO 16-Port Gigabit L2++ Managed PoE Switch With SFP+ Ports, PoE++
Grandstream GWN7802P PRO 16-Port Gigabit L2++ Managed PoE Switch With SFP+ Ports, PoE++
The GWN7800 Pro Series are layer 2++ managed network switches that allow small-to-medium enterprises to build scalable, secure, and high-performance business networks that are fully manageable. This Series provides high-speed SFP or SFP+ ports and Gigabit Ethernet ports on all models to support demanding business networks and offer switching capabilities up to 216Gbps. The GWN7800 Pro Series includes an advanced VLAN for flexible and sophisticated network traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE-capable models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 Pro Series supports a variety of free and flexible management options, including cloud management with GDMS Networking, on-premise software management with GWN Manager, the embedded controller in their web user interface, GWN Series Routers, and command-line interface (CLI). By providing high-speed SFP and SFP+ ports, advanced control and segmentation of network traffic, powerful security protection, and flexible management options, the GWN7800 Pro Series are ideal for small to medium enterprises.
Features:
• 8/16/24/48 Gigabit Ethernet ports with 2 SFP, 2 SFP+, or 6 SFP+ ports
• Smart power control to support dynamic PoE/PoE+/ PoE++ (on select models) power allocation per port for the PoE-capable models
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
• Pro AV (pending) uses built-in QoS that allows for prioritization of network traffic
| Hardware Specifications | |
| Interfaces | |
| Gigabit Ethernet Ports |
16 |
| SFP/SFP+ Ports | 2x SFP+ |
| Maximum Amount of Supported Modules |
SM-10G: 2 MM-10G: 2 RJ45-10G: 2 |
| MGMT Ports | 1x Console port |
| Auxiliary Ports | 1x Reset Pinhole |
| LEDs | |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Data Transferring LEDs |
18x green-color LEDs |
| PoE Supply LEDs | 16x yellow-color LEDs |
| System | |
| Flash | 32MB Nor Flash |
| RAM | 256MB RAM |
| CPU | Single-core, MIPS interAptiveTM 1GHz |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput |
36Gbps |
| Switching Capability | 72Gbps |
| Forwarding Rate | 53.568Mpps |
| Packet Buffer | 8.4Mb |
| Network Latency | <4µs |
| Power Supply | |
| Power Supply | 100-240V~ 50/60Hz |
| Max Power Consumption |
21.8W 294.4W(PoE 250W) |
| Max Output Power | 294.4W |
| PoE | |
| PoE Standards | IEEE 802.3af/at/bt |
| # of PoE Ports | 16 |
| Max Output Power per PoE Port |
60W |
| Max Total PoE Output Power |
250W |
| Physical | |
| Unit Dimension | 440mm(L) × 200mm(W) × 44mm(H) |
| Unit Weight | 2.9kg |
| Mounting | Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included) |
| Package Content | 1x Switch 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 8x Screws (KM3*6) 1x 1.2m(10A) AC Cable 1x Simplified Quick Installation Guide 1x Regulatory Paper 2x Rack-Mounting Kits |
| Environmental |
|
| Temperature | Operation: 0°C to 45°C Storage: -10°C to 60°C |
| Humdity | Operation: 10% to 90% RH(Non-condensing) Storage: 5% to 95% RH(Non-condensing) |
| MTBF | 70,000H |
| Fan | 2 |
| CPU Monitoring | Montioring CPU usage, over-CPU usage alarming |
| Memory Usage | Monitoring memery usage, over-memory usage alarming |
| Power Supply Monitoring |
Monitoring of power supply model and status Power supply failure alarming |
| Fan Monitoring | Automatic speed adjustment Fan failure alarming |
| Temperature Monitoring |
Temperature monitoring, over-temperature alarming |
| Surge Protection | ± 6KV CM for power ± 4KV CM for network ports |
| ESD | ± 12KV for contact discharge |
| Compliance | |
| Compliance | FCC, CE, RCM, IC |
| Software Specifications |
|
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x |
| Switching | • Jumbo frame (maximum length: 12288) • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging • QinQ • MAC-based VLAN • Protocol-based VLAN • Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI • GVRP(pending) • ERPS(pending) • Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+) • 16K MAC addresses including static, dynamic and filtering MAC address • Link aggregation, including static and LACP • Up to max 8 LAG groups and up to 8 members per LAG group |
| IP Service | • DHCP client, DHCP server, DHCP relay and DHCP snooping • DHCPv6 client and DHCPv6 snooping • ND snooping • DNS • 64 ARP/NDP, including static and dynamic ARP/NDP • 16 VLAN virtual interfaces with 9216 MTU |
| IP Routing | Policy routing (pending) 32(IPv4)/32(IPv6) static routes |
| Multicast | IGMP Snooping with IGMPv2 and IGMPv3, 384 IGMP Snooping groups MLD Snooping with MLDv1 and MLDv2, 384 MLD Snooping groups |
| AV Control | Pro AV (pending) |
| QoS | • Port priority • Priority mapping, including 802.1p mapping, DSCP mapping and IP precedence mapping • Queue shceduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit |
| ACL | • 128 ACL for Ethernet, IPv4 and IPv6 with 1.5K ACE • MAC ACLs (hardware ACLs based on source MAC address, destination MAC address, optional Ethernet type, and time range) • IPv4 ACLs (hardware ACLs based on source IP address, destination IP address, and optional protocol type, and time range) • IPv6 ACLs (hardware ACLs based on source IPv6 address, destination Ipv6 address, and optional protocol type, and time range) • Expert ACLs (hardware ACLs based on flexible conbinations of the VLAN ID, Ethernet type, MAC address, IP address, protocol type, and time range) (TBD) • Customized ACLs (ACL80) (TBD) • ACL redirection • ACL advanced settings, including stiatistics, mirror, priority mapping, and rate limit • ACL binding, including port and VLAN |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • Identity authentication, including 802.1X and MAC authentication • AAA authentication, including RADIUS, TACACS • Strom control • Port isolation • Port security, sticky MAC address, filtering invalid MAC addresses • IP/IPv6 source guard, DoS attack prevention, ARP inspection, CPU protection • Loop protection, including port loopback detection, BPDU protection, root protection, and loopback protection • Kensington Security Slot (Kensington Lock) support • Firmware signature |
| Reliability | • Power supply modules in 1+1 redundancy mode • Stack intelligent upgrade |
| Maintenance | • NTP • 1588v2 TC for precise time (pending) • CPU and memory monitoring • Fault detection and alarm for power supply and fan • SNMP including SNMPv1, SNMPv2c, SNMPv3 • RMON including history groups, event groups, alarm groups, and statistics groups • LLDP&LLDP-MED • Backup and restore • Syslog • Diagnostics including Ping, traceroute, Ping watchdog, mirror including SPAN and RSPAN, UDLD(TBD), copper test, fiber module, and one-click debugging • sFlow (pending) • Upgrade via FTPS/ TFTP/ HTTP/ HTTPS or local upload, mass provisioning using DHCP Option/ TR-069 (pending)/ GDMS Networking/ GWN Manager/ GWN series routers |
| Management Platform |
• Local Web GUI: embedded controller • GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches • GWN Manager: premise-based software controller • GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP • Management Protocol: SNMP, RMON, TR-069 (pending) |
