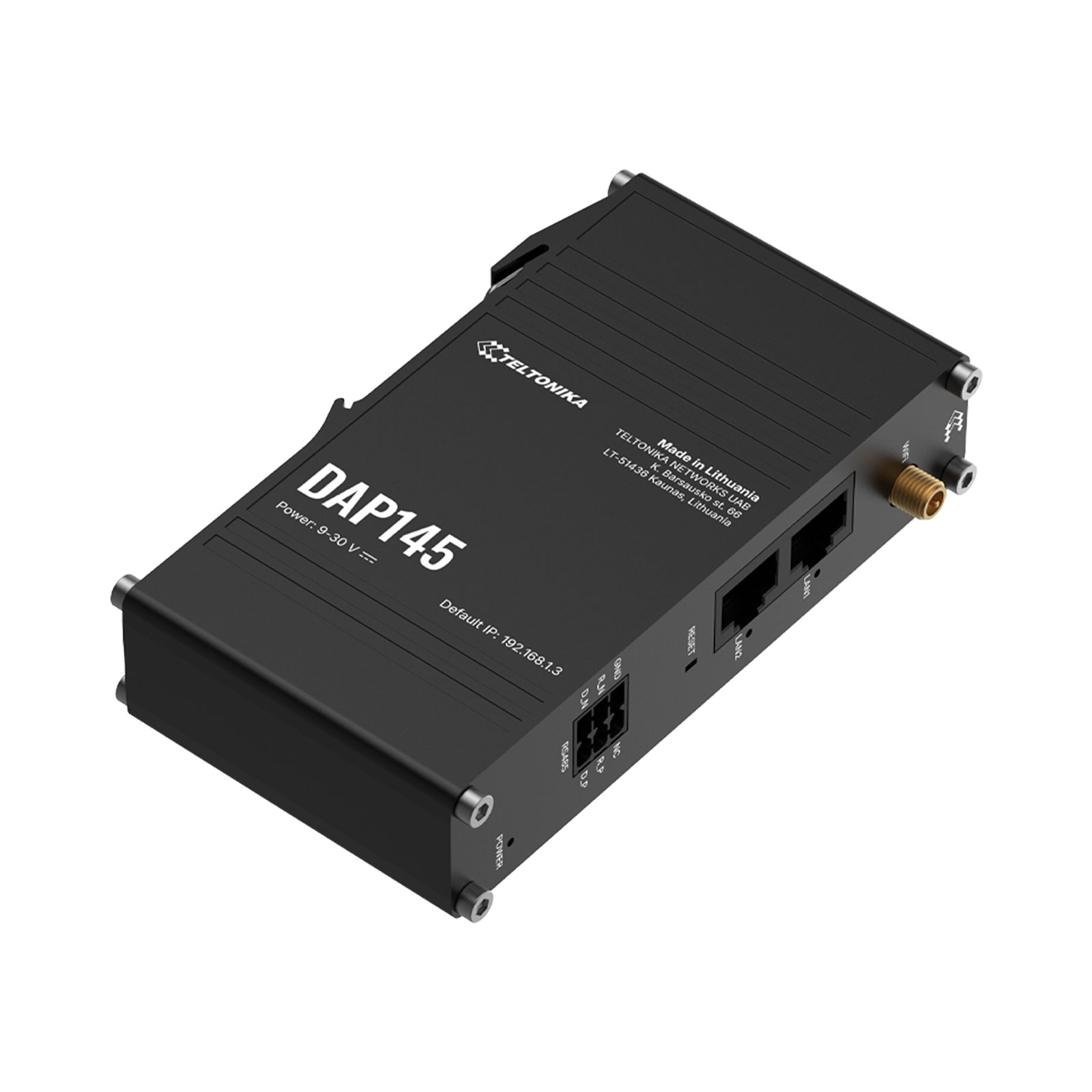

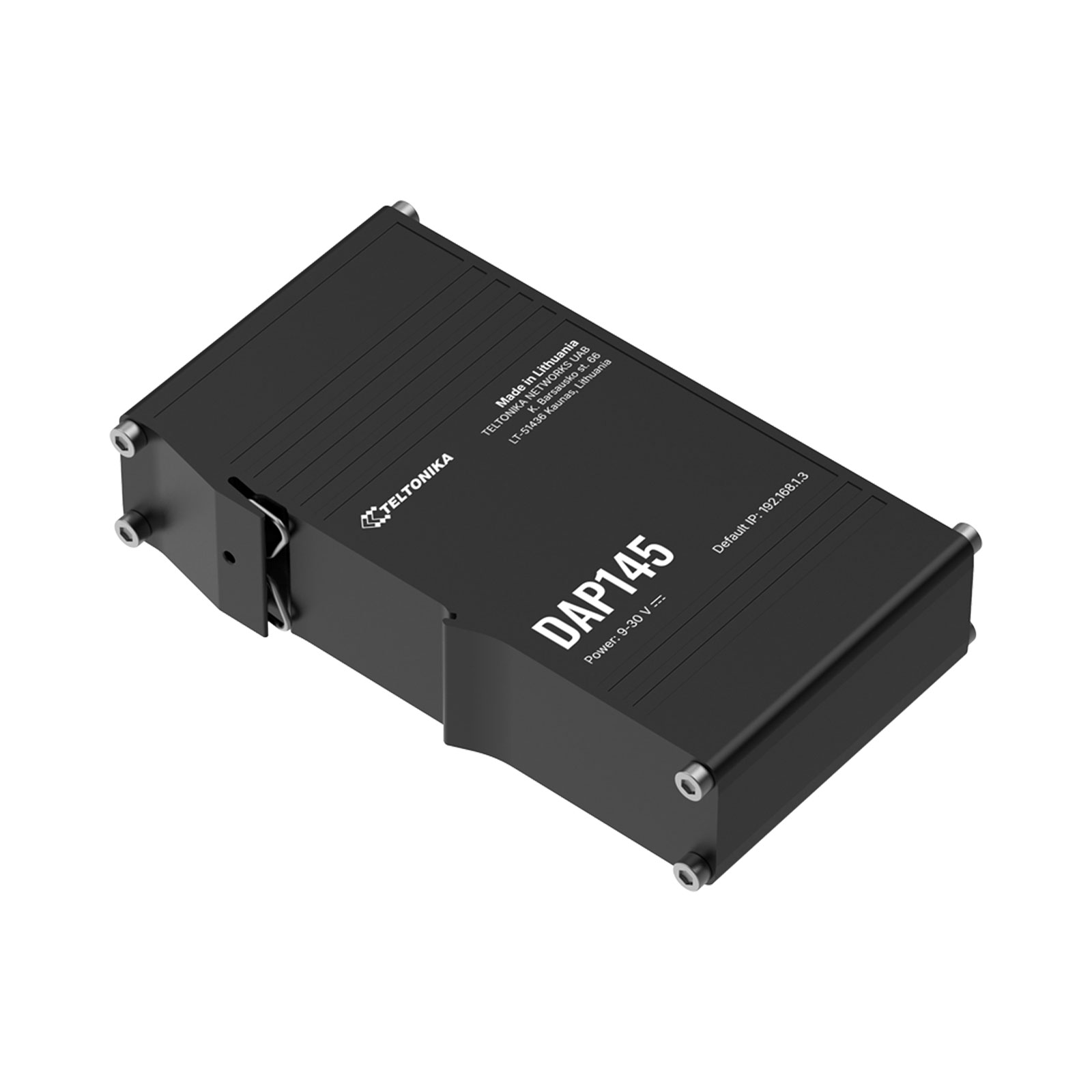

Teltonika DAP145 Industrial Wireless Access Point with RS485
The DAP145 is an industrial Wi-Fi access point with RS485 communication engineered for utilities, machine builders, and system integrators. It enables connecting wired industrial devices to modern IP networks without extensive cabling. The device functions as an access point or client (STA/Mesh/Fast roaming) and provides direct serial-to-IP bridging via its native RS485 port. Advanced RutOS tools like Data to Server and industrial protocol support facilitate secure data collection to the cloud, all managed remotely via the RMS platform.
Wi-Fi and RS485 Bridging
Bridge RS-485 devices to IP with Serial-over-IP and Modbus
Flexible Wi-Fi modes
Mesh, STA, and Fast Roaming for coverage extension, backhaul, and industrial asset mobility
Cloud-Ready Data Collection
Collect and convert industrial data with Data to Server tool and native protocol support
Designed for Industry

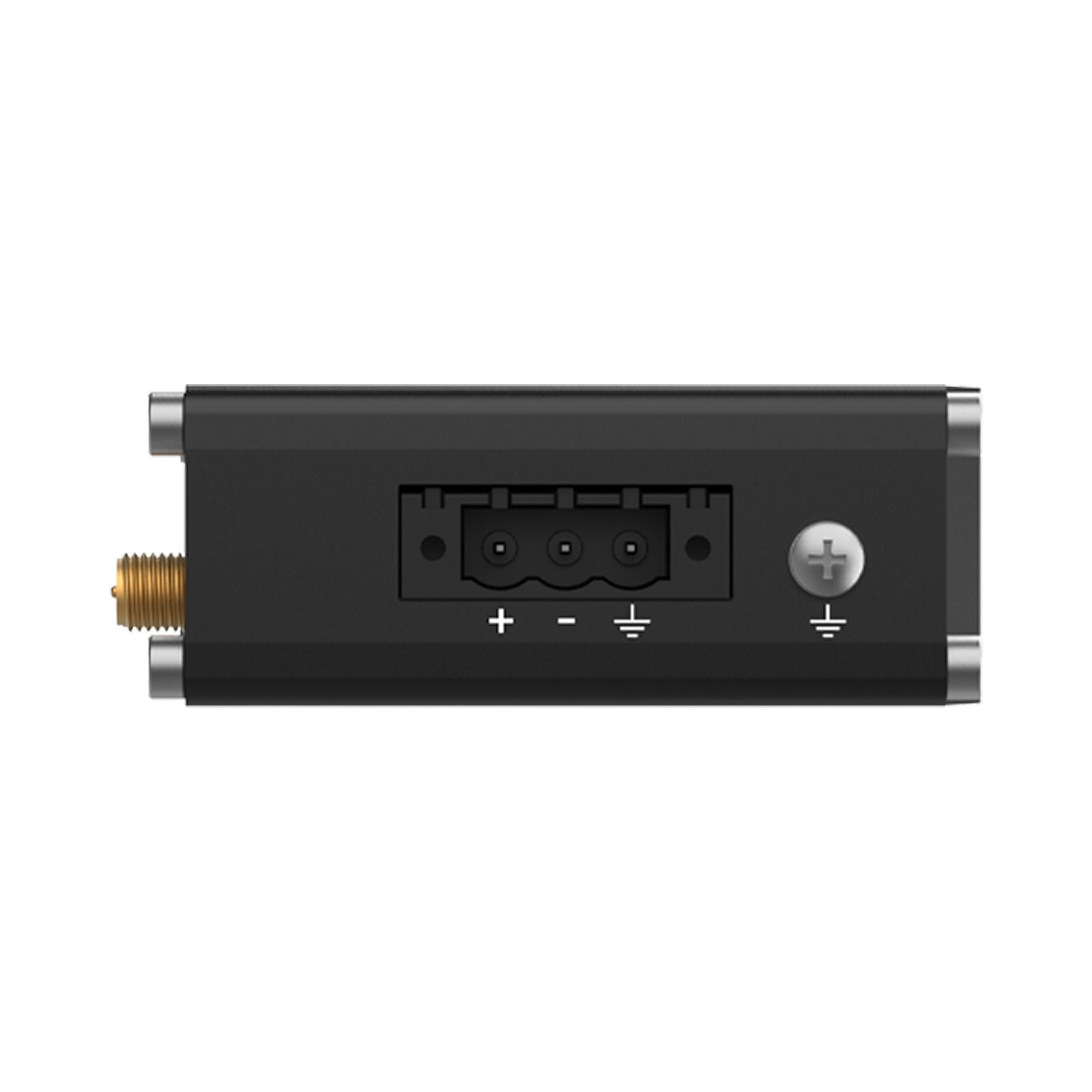

Narrow footprint with integrated DIN rail mounting and top-entry terminal block power
| HARDWARE | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 16 MB, NOR Flash |
| Powering options | 3-pos plugable terminal block, 9-30 VDC |
| Antenna connectors | 1 x RP-SMA for Wi-Fi |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps: 2 x LAN |
| Wi-Fi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Serial | RS485 |
| Grounding | 1 x Grounding screw |
| Status LEDs | 2 x LAN type LED, 1 x Power LED |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing |
| Dimensions (W x H x D) | 113.10 x 25 x 68.6 mm |
| Weight | 149.2 g |
| SOFTWARE | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Port management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, IGMP Proxy |
| Security | Authentication, Firewall, Attack prevention, VLAN, WEB filter, Access control, Certificate Manager, 802.1x |
| VPN and tunneling | VPN, OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, EoIP |
| Monitoring and Management | WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM, API |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
