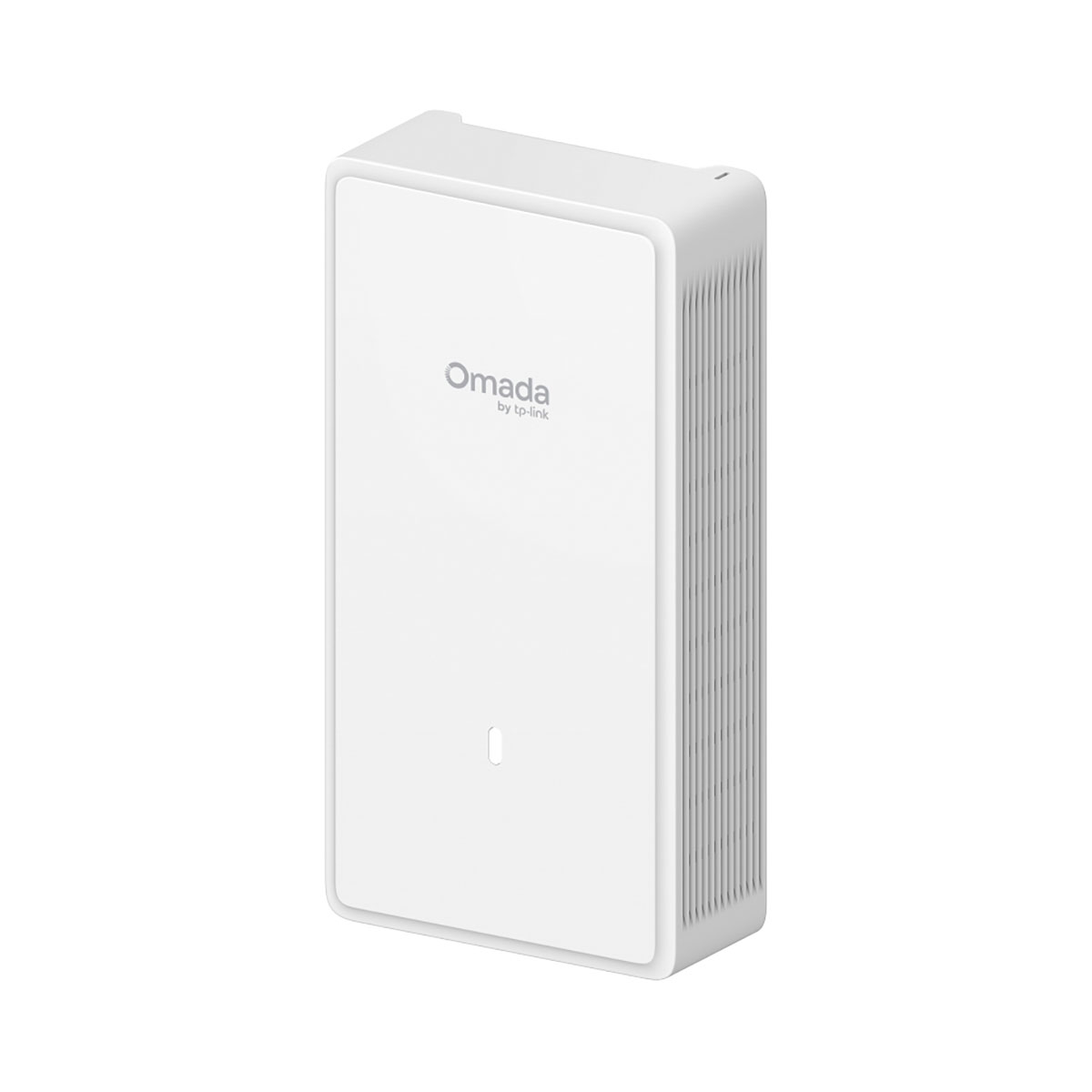

TP-LINK EAP775-WALL V1 BE9300 Wall Plate WiFi 7 Access Point
ΠΡΟΣΟΧΗ! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!
| • 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.† • Versatile & Aesthetic Wall-Mounted Design: Slim, versatile wall-mounted design sits flush against the wall for a seamless look and reliable Wi-Fi 7 performance. • Made to Be Discreet with Additional Paintable Cover: Includes an additional paintable cover that blends seamlessly into any wall or interior style.§ • Anti-Theft Design for Robust Physical Security: Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment. • Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out). The PoE out feature requires 802.3bt input. • Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡ • Easy Setup, Easy to Use: Works with Omada SDN for one-click setup. • Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△ • Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity. |
Additional Paintable Cover for Aesthetic Integration
Equipped with a paintable cover included at no extra cost, EAP775-Wall can be easily customized to match any backgrounds.
Robust Physical Security with Anti‑Theft Design
Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment and ensuring reliable, uninterrupted connectivity in public areas.
Seamless Integration into Omada SDN
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
§Painted covers cannot be returned or repaired.
‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
| HARDWARE FEATURES | ||||||||||||||||
| Main Design |
||||||||||||||||
| LAN Interfaces | Uplink: 1× 2.5G Ethernet Port Downlink: 1× 2.5G Ethernet Port (supporting PoE Out) + 2× 1G Ethernet Port |
|||||||||||||||
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be | |||||||||||||||
| Maximum Data Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) | |||||||||||||||
| Wireless Client Capacity | 2.4 GHz: 128, 5 GHz: 128 | |||||||||||||||
| Antennas | 2.4 GHz: 2 × 4dBi, 5 GHz: 2 × 5dBi | |||||||||||||||
| Bluetooth | Bluetooth 5.2 | |||||||||||||||
| Transmit Power | CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 25 dBm (5 GHz, band 3, EIRP) FCC:< 22 dBm (2.4 GHz); < 22 dBm (5 GHz, band 1&band 2&band 3&band 4) | |||||||||||||||
| Reception Sensitivity | 2.4 GHz: 11be EHE20 MCS0: -97dBm; 11be EHE20 MCS11: -66dBm 11be EHE40 MCS0: -93dBm; 11be EHE40 MCS11: -65dBm 5 GHz: 11be EHT20MCS0: -97dBm; 11be EHT20MCS13: -62dBm; 11be EHT40MCS0: -94dBm; 11be EHT40MCS13: -58dBm; 11be EHT80MCS0: -91dBm; 11be EHT80MCS13: -55dBm; 11be EHT160MCS0: -88dBm; 11be EHT160MCS13: -54dBm |
|||||||||||||||
| Centralized Management | ||||||||||||||||
| Omada Software Controller |
Yes |
|||||||||||||||
| Omada Hardware Controller |
Yes | |||||||||||||||
| Omada APP | Yes | |||||||||||||||
| Security | ||||||||||||||||
| Captive Portal Authentication |
Yes | |||||||||||||||
| Access Control | Yes | |||||||||||||||
| Maximum number of MAC Filter |
4000
|
|||||||||||||||
| Wireless Isolation between Clients |
Yes | |||||||||||||||
| VLAN | Yes | |||||||||||||||
| Rogue AP Detection | Yes | |||||||||||||||
| Wireless Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |||||||||||||||
| Wireless Function | ||||||||||||||||
| Multiple SSIDs | 16 (8 on each band) | |||||||||||||||
| Channel | 2.4 GHz:1 - 13 5 GHz: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140 |
|||||||||||||||
| Enable/Disable Wireless Radio | Yes | |||||||||||||||
| Enable/Disable SSID Broadcast |
Yes | |||||||||||||||
| Guest Network | Yes | |||||||||||||||
| Automatic Channel Assignment |
Yes | |||||||||||||||
| Transmit Power Control | Adjust transmit Power on dBm | |||||||||||||||
| QoS (WMM) | Yes | |||||||||||||||
| Seamless Roaming | Yes | |||||||||||||||
| Mesh | Yes | |||||||||||||||
| Beamforming | Yes | |||||||||||||||
| MIMO | 2*2 (2.4 GHz and 5 GHz) MIMO | |||||||||||||||
| OFDMA | DL/UL OFDMA | |||||||||||||||
| Rate Limit | Based on SSID/Client | |||||||||||||||
| Load Balance | Yes | |||||||||||||||
| Airtime Fairness | Yes | |||||||||||||||
| Band Steering | Yes | |||||||||||||||
| RADIUS Accounting | Yes | |||||||||||||||
| MAC Authentication | Yes | |||||||||||||||
| Reboot Schedule | Yes | |||||||||||||||
| Wireless Schedule | Yes | |||||||||||||||
| Wireless Statistics | Yes | |||||||||||||||
| Static IP/Dynamic IP | Yes | |||||||||||||||
| Support Data Rates | ||||||||||||||||
| 802.11be | 2.4 GHz Band: 8Mbps to 688Mbps(MCS0—MCS13,NSS=1 to 2 EHT20/40) 5 GHz Band: EU: 8Mbps to 2882Mbps(MCS0—MCS13,NSS=1 to 2 EHT20/40/80/160 |
|||||||||||||||
| 802.11ax | 2.4 GHz Band: 8Mbps to 568Mbps(MCS0—MCS11,NSS=1 to 2 HE20/40) 5 GHz Band: 8Mbps to 2402Mbps(MCS0—MCS11, NSS=1 to 2 HE20/40/80/160) |
|||||||||||||||
| 802.11ac | 6.5Mbps to 1733Mbps(MCS0—MCS9,NSS=1 to 2 VHT20/40/80/160) | |||||||||||||||
| 802.11n | 6.5Mbps to 300Mbps(MCS0—MCS15,HT20/40) | |||||||||||||||
| 802.11g | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps | |||||||||||||||
| 802.11b | 1, 2, 5.5, 11 Mbps | |||||||||||||||
| 802.11a | 6, 9, 12, 18, 24, 36, 48 ,54 Mbps | |||||||||||||||
| Management | ||||||||||||||||
| LED ON/OFF Control |
Yes | |||||||||||||||
| Management MAC Access Control |
Yes | |||||||||||||||
| Web-based Management |
Yes | |||||||||||||||
| SNMP |
v1, v2c, v3 | |||||||||||||||
| SSH |
Yes | |||||||||||||||
| Restore & Backup |
Yes | |||||||||||||||
| Firmware update via Web |
Yes | |||||||||||||||
| NTP |
Yes | |||||||||||||||
| System Log | Yes | |||||||||||||||
| Email Alerts | Yes | |||||||||||||||
| Physical & Environment | ||||||||||||||||
| Power Supply | 802.3at/bt PoE | |||||||||||||||
| Maximum Power Consumption |
|
|||||||||||||||
| Reset | Yes | |||||||||||||||

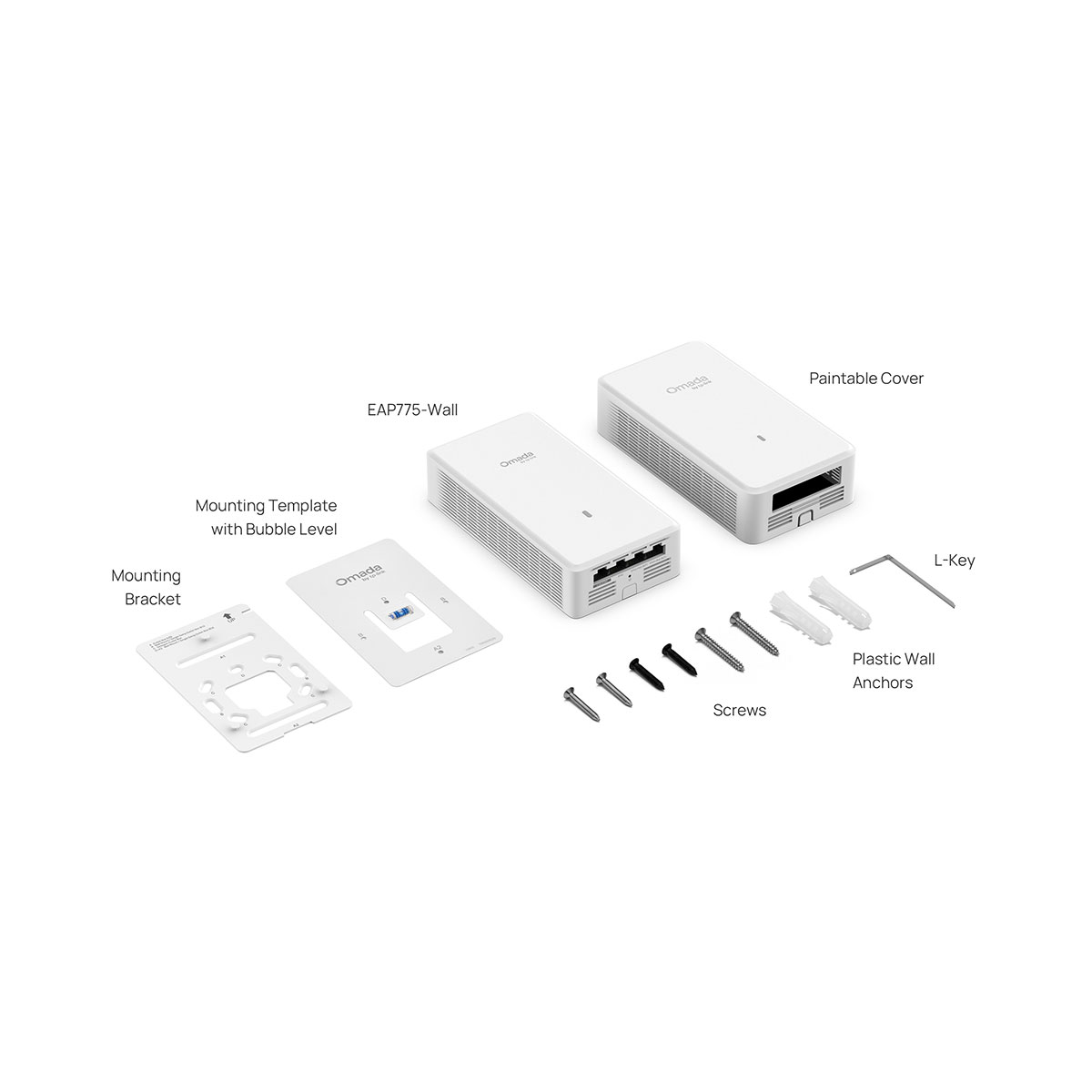

| Mounting | Wall mouting (Screws included) | |||||||||||||||
| Others | ||||||||||||||||
| Certifications | CE, FCC, RoHS, WFA | |||||||||||||||

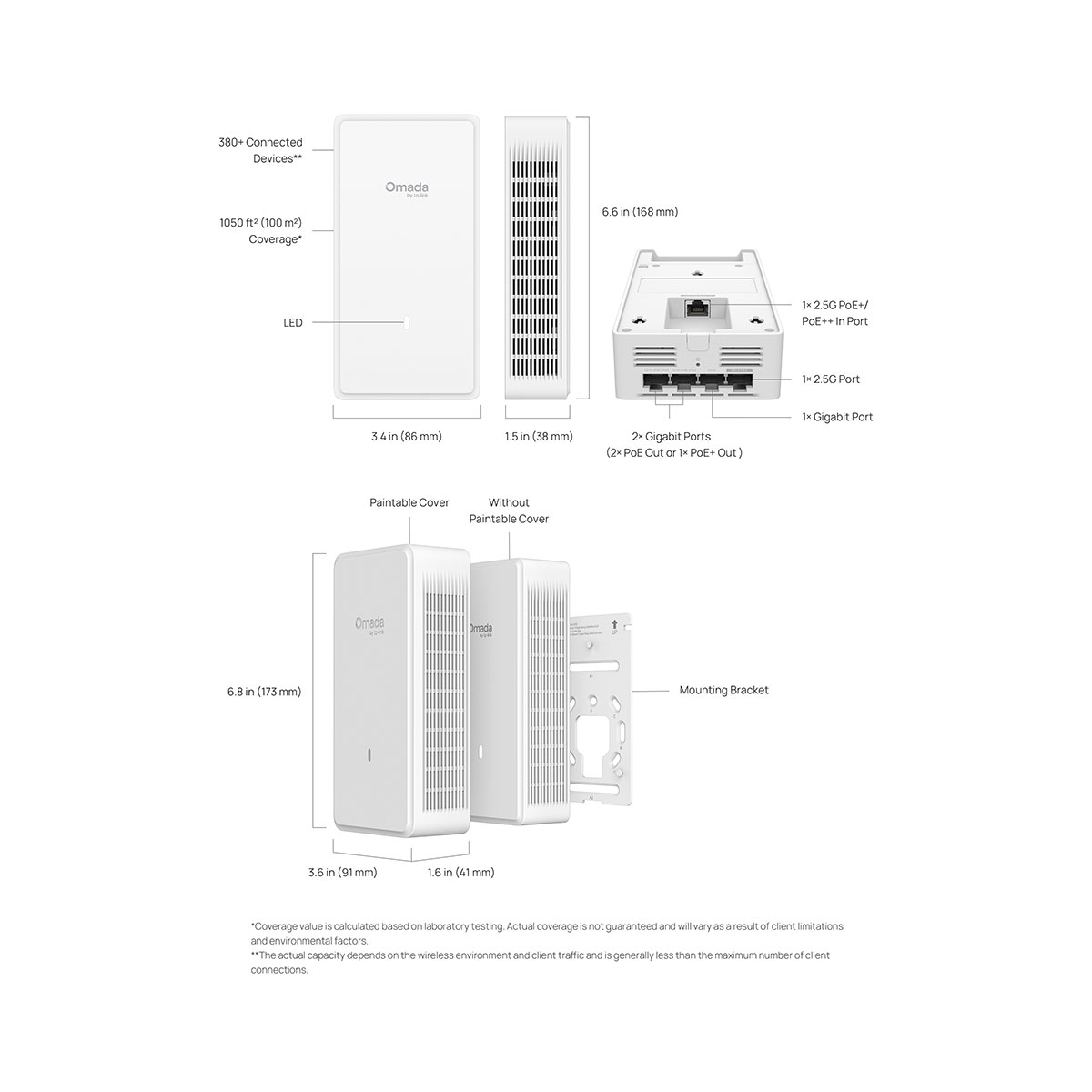

| Dimensions (W x D x H) | 143 x 86 x 40 mm | |||||||||||||||
| Net Weight | 365.8g | |||||||||||||||
| Enclosure Material / Rack Material |
Top Cover: PC Middle Frame: PC Bottom Shell: Aluminum Alloy | |||||||||||||||
| Environment | Operating Temperature: 0 °C–40 °C Storage Temperature: -40 °C–70 °C Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing; |
|||||||||||||||
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 5945 – 6425 MHz ορίζεται στο παρόν έγγραφο. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
