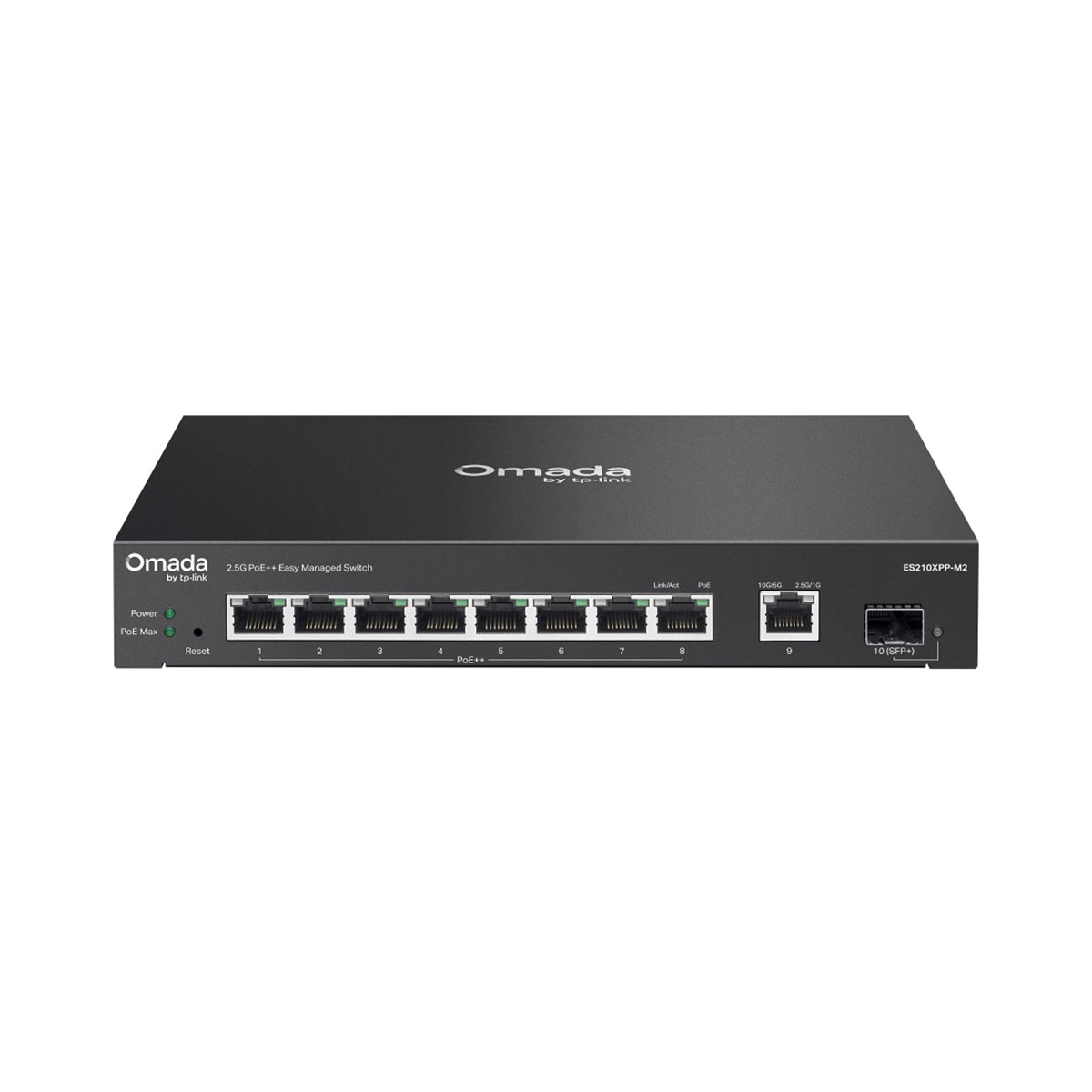

TP-LINK ES210XPP-M2 V1 Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++
|
• 8× 2.5 Gbps RJ45 ports (8× 802.3af/at/bt-compliant PoE++) |
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.
Cost-Performance Solution
• Lifetime Free Cloud Without Additional Fees
• Manage and Maintain from Anywhere
Multiple Application Scenarios
Wi-Fi Coverage - Works with Wi-Fi 6/7 Access Points
LAN Party - Works with Gaming Consoles and TVs
Wired Connections - Works with Non-PoE Devices such as PCs and Printers
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode.
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
| HARDWARE FEATURES | |
| General |
|

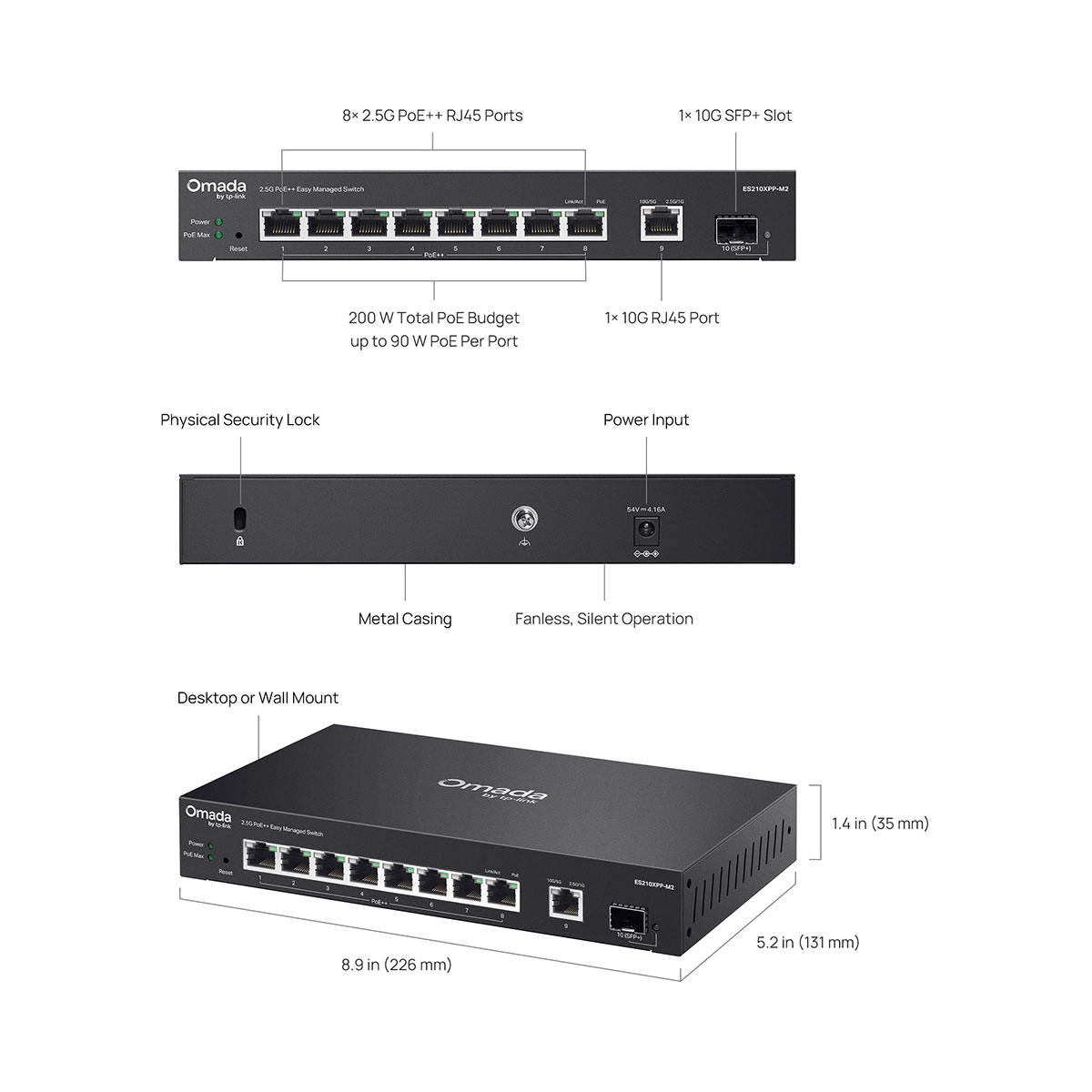

| Interface | 8 × 100 Mbps/1 Gbps/2.5 Gbps RJ45 PoE++ Ports 1 × 100 Mbps/1 Gbps/2.5 Gbps/5 Gbps/10 Gbps RJ45 Port 1 × 10 Gbps SFP+ Port |
| Flash | 64 Mbit |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3u:100BASE-X Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3bz: 2.5GBASE-T Ethernet IEEE 802.3an: 10GBASE-T 10G Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae:10GBASE-SR/LR 10G Ethernet (Optical fiber) IEEE 802.3aq:10GBASE-LRM 10G Ethernet (Optical fiber) IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1q: Virtual Bridged Local Area Networks IEEE 802.1ab: Station and Media Access Control Connectivity Discovery (LLDP) |
| PoE | |
| PoE Standard | 802.3af/at/bt |
| PoE Ports | 8, up to 90 W per port |
| PoE Power Budget | 200 W |
| Fast PoE | YES |
| Perpetual PoE | YES |
| Performance | |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 5 Mbit |
| Transmission Method | Store and Forward |
| Jumbo Frame | 10 KB |
| Physical & Environment | |

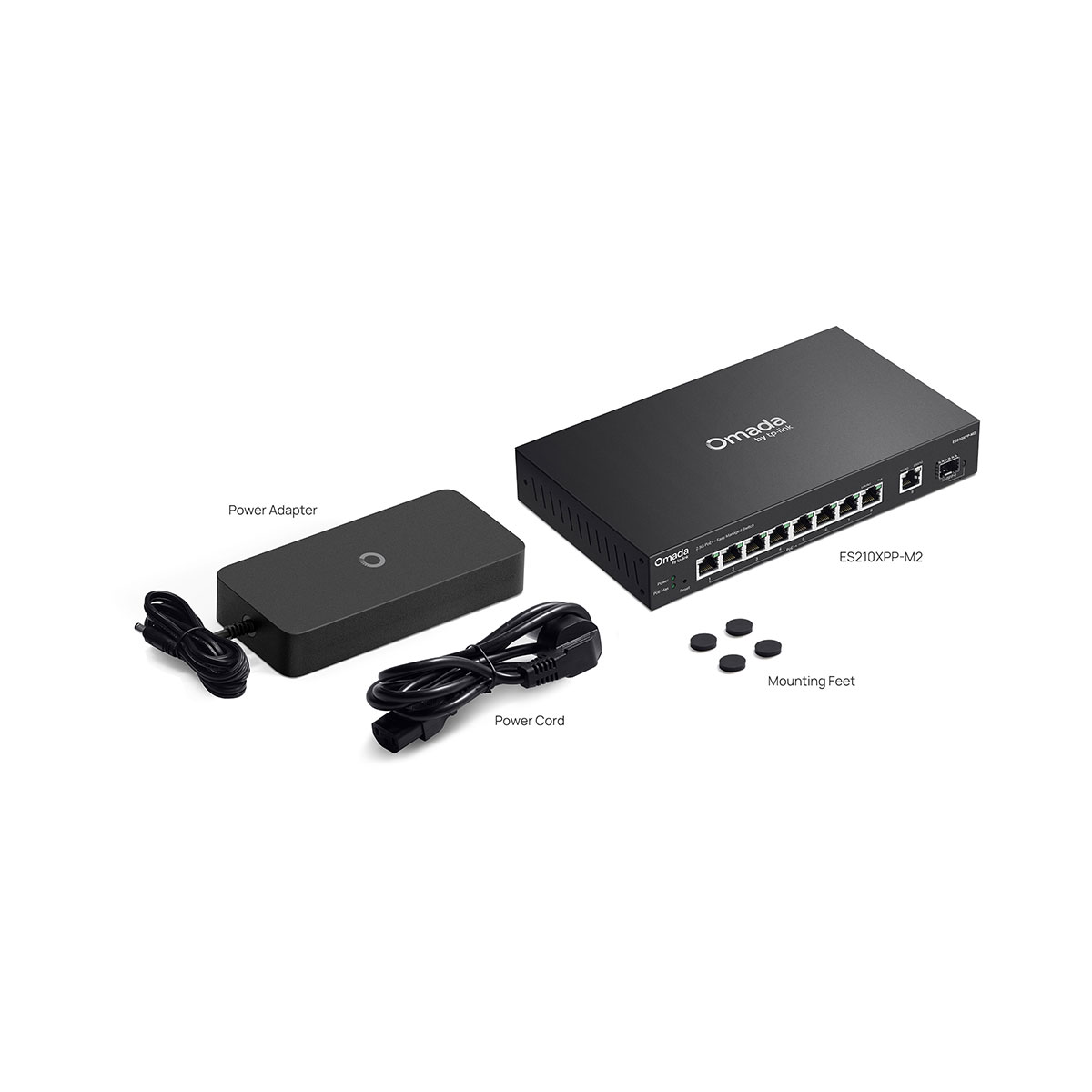

| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 54VDC / 4.16A) |
| Standby Power Consumption | 5.1 W (220 V/50 Hz) 5.4 W (110 V/60 Hz) |
| Max Power Consumption | 233.5 W (220 V/50 Hz @ 25 °C) (with 200 W PD connected) 236.4 W (110 V/60 Hz @ 25 °C) (with 200 W PD connected) |
| Max Heat Dissipation | 794.04 BTU/hr (220 V/50 Hz @ 25 °C) (with 200 W PD connected) 803.83 BTU/hr (110 V/60 Hz @ 25 °C) (with 200 W PD connected) |
| MTBF | 425260 h @ 25°C |
| Dimensions (W x D x H) | 226 ×131.2 ×35 mm |
| Net Weight | 0.51 kg |
| Fan Quantity | Fanless |
| Installation | Desktop / Wall Mounting |
| Operating Temperature | -10 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Surge Protection | ±6 kV in common mode for Ethernet Ports ±2 kV in differential mode for DC power input port |
| ESD Protection | Air: ±8 kV, Contact: ±4 kV |
| Certification | CE, FCC, RoHS |
