Teltonika PR5MEC15 CONNECTORS SET
Κωδικός προϊόντος:
PR5MEC15
Άμεσα διαθέσιμο
Teltonika PR5MEC15 CONNECTORS SET
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Κατηγορία:
Κατασκευαστής:
Χαρακτηριστικά
Λήψεις
Χαρακτηριστικά

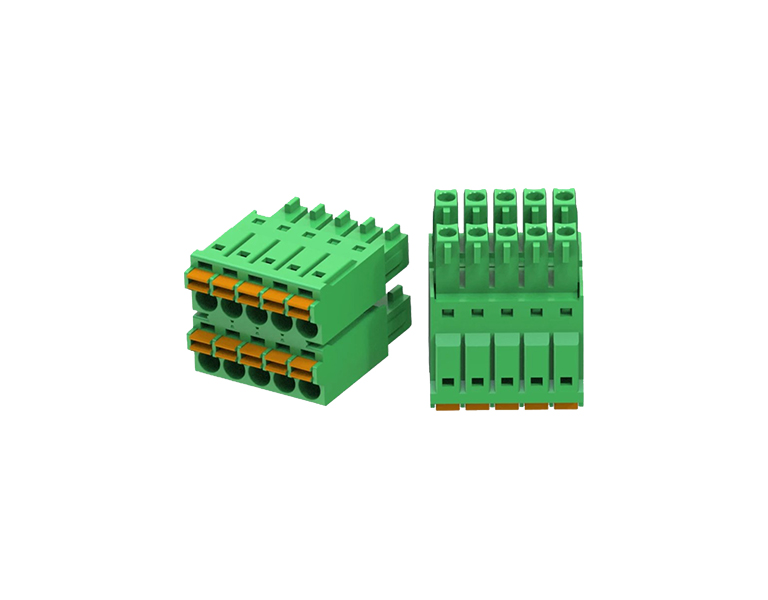

| GENERAL 2X5 PIN CONNECTOR | |
| Voltage rating | 300 V |
| Current rating | 8 A |
| Withstand voltage | 1600 V/1min |
| Wire range AWG | 24 - 16 AWG |
| Temperature range | -40°C +105°C |
| Insulator material | PA66 |
| Internal contacts material | Copper alloy |
| Internal contacts finishing | Sn plated |
| ADDITIONAL | |
| Strip Length | 9 - 10 mm |
| Pitch | 3.5 mm |
| Shrapnel | Stainless steel |
| Conductor cross section | 0.2 - 1.5 mm2 |
| Poles | 2 x 5 |
| Flammability rating | UL 94 V-0 |
| Certification | RoHS,REACH |

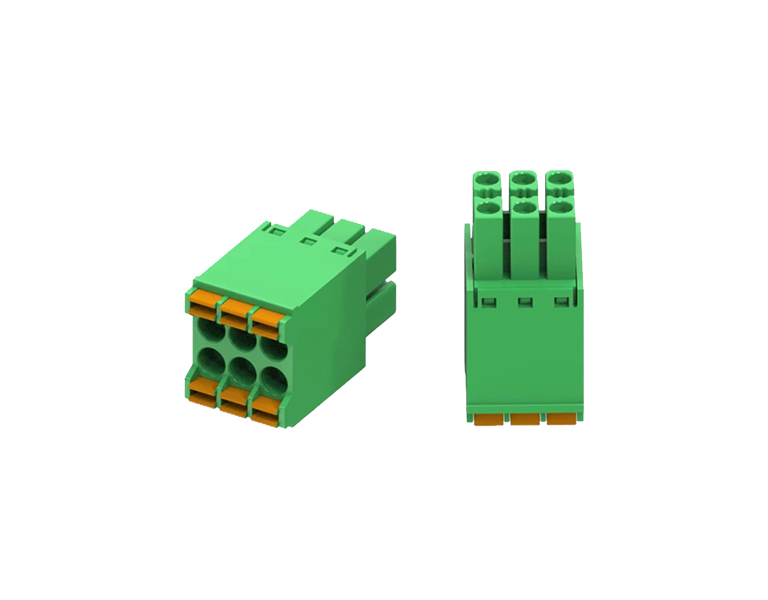

| GENERAL 2X3 PIN CONNECTOR | |
| Voltage rating | 300 V |
| Current rating | 8 A |
| Withstand voltage | 1600 V/1min |
| Wire range AWG | 24 - 16 AWG |
| Temperature range | -40°C +105°C |
| Insulator material | PA66 |
| Internal contacts material | Copper alloy |
| Internal contacts finishing | Sn plated |
| ADDITIONAL | |
| Strip Length | 9 - 10 mm |
| Pitch | 3.5 mm |
| Shrapnel material | Copper alloy |
| Conductor cross section | 0.2 - 1.5 mm2 |
| Poles | 2 x 3 |
| Flammability rating | UL 94 V-0 |
| Certification | RoHS,REACH |
