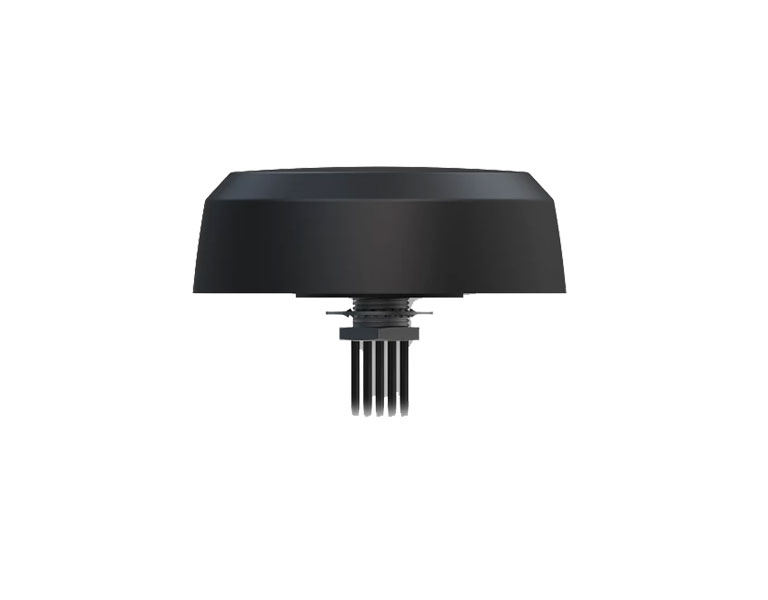

Teltonika PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna
Κωδικός προϊόντος:
PR1KCI49
Άμεσα διαθέσιμο
Ημερομηνία επόμενης παραλαβής: 30/06/2025
Teltonika PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna
Υπολογισμός κόστους μεταφορικών:
Καλέστε για τιμή
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
Combo MIMO Mobile/GNSSRoof SMA Antenna. Compatible with RUTX50, RUTC50, RUTM50.
Χαρακτηριστικά
| Specifications | |
| GNSS ANTENNA | |
| Frequency Range | 600 ~ 960, 1400 ~ 6000 MHz |
| Polarization | Linear |
| Gain | Max 4.9 dBi |
| Supply Voltage | 3 - 12 VDC |
| Impedance | 50 Ω |
| V.S.W.R | <3.2 |
| Connector type and count | 4x SMA Male |
| GNSS ANTENNA | |
| Frequency Range | 1164 ~ 1189, 1559 ~ 1606 MHz |
| Polarization | RHCP |
| Radiation pattern type | Directional |
| Gain | 17 ± 2 dB |
| V.S.W.R | ≤2 |
| Impedance | 50 Ω |
| Supply voltage | 3 - 5 VDC |
| Current consumption | 16 ± 3 mA |
| Connector type and count | 1x SMA Male |
| MECHANICAL/ENVIRONMENTAL | |
| Cable | 4x ALS302, 1x RG174, 3000 mm |
| Operating temperature | 40 °C to + 85 °C |
| Mounting method | Screw (M27 nut) |
| IP rating | IP67 (after installation) / IP69K (after installation) |
| Weight | 780g |
| RoHS compliant | Yes |
