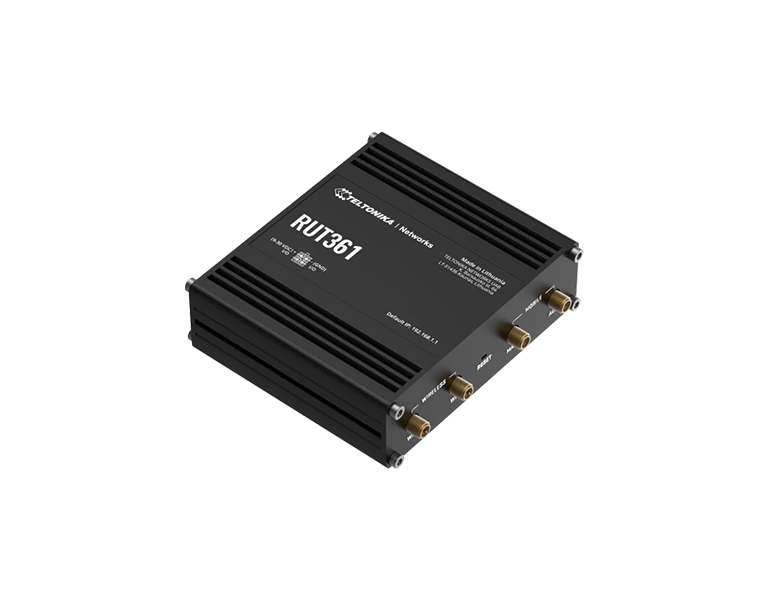

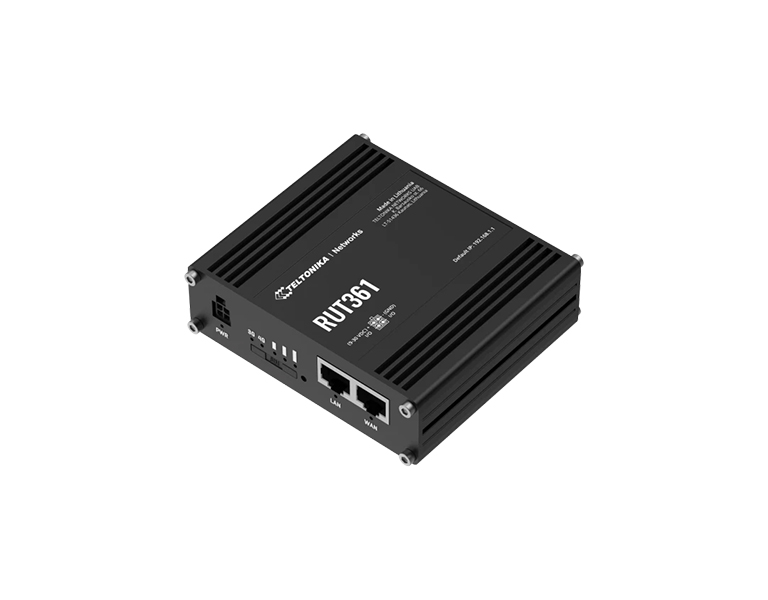

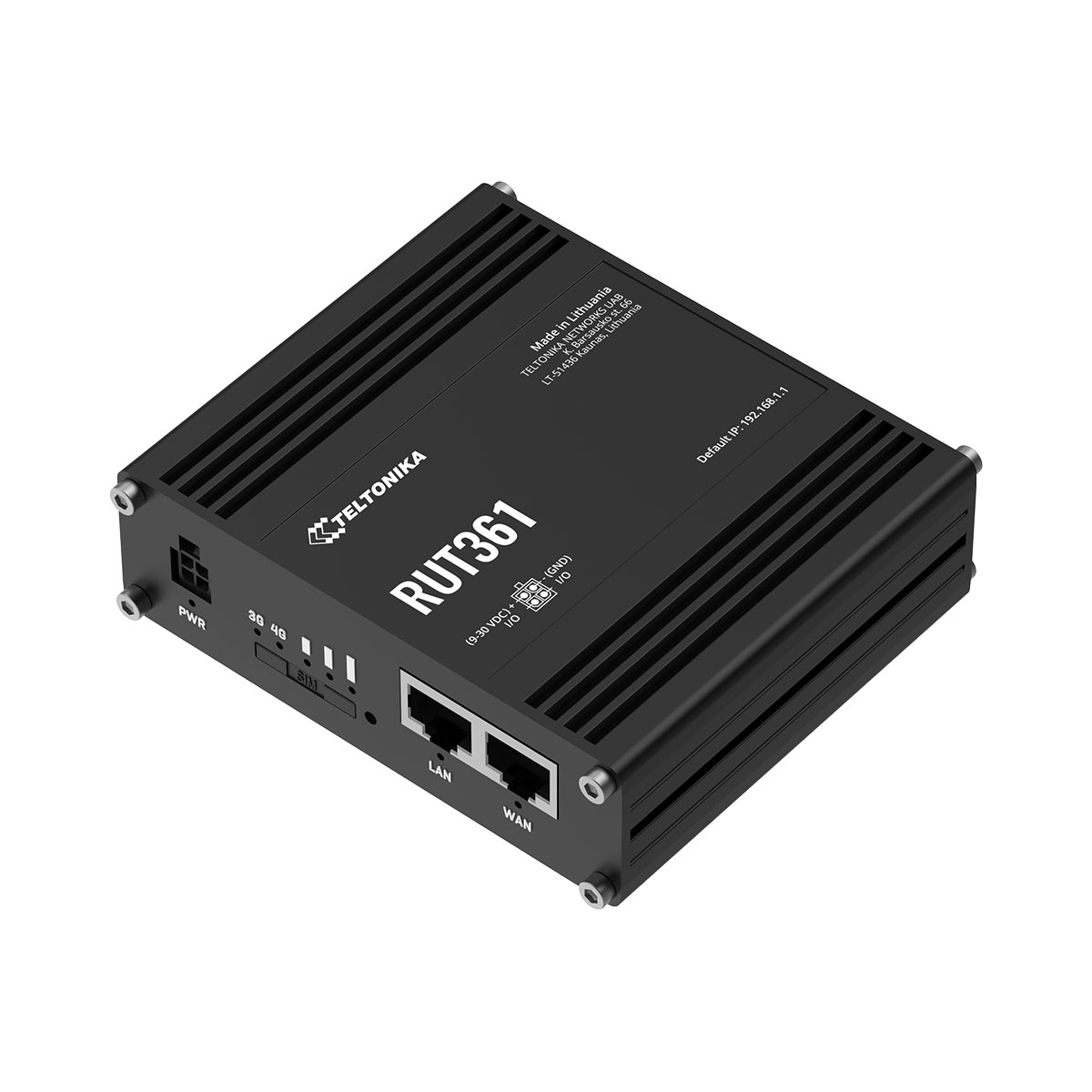

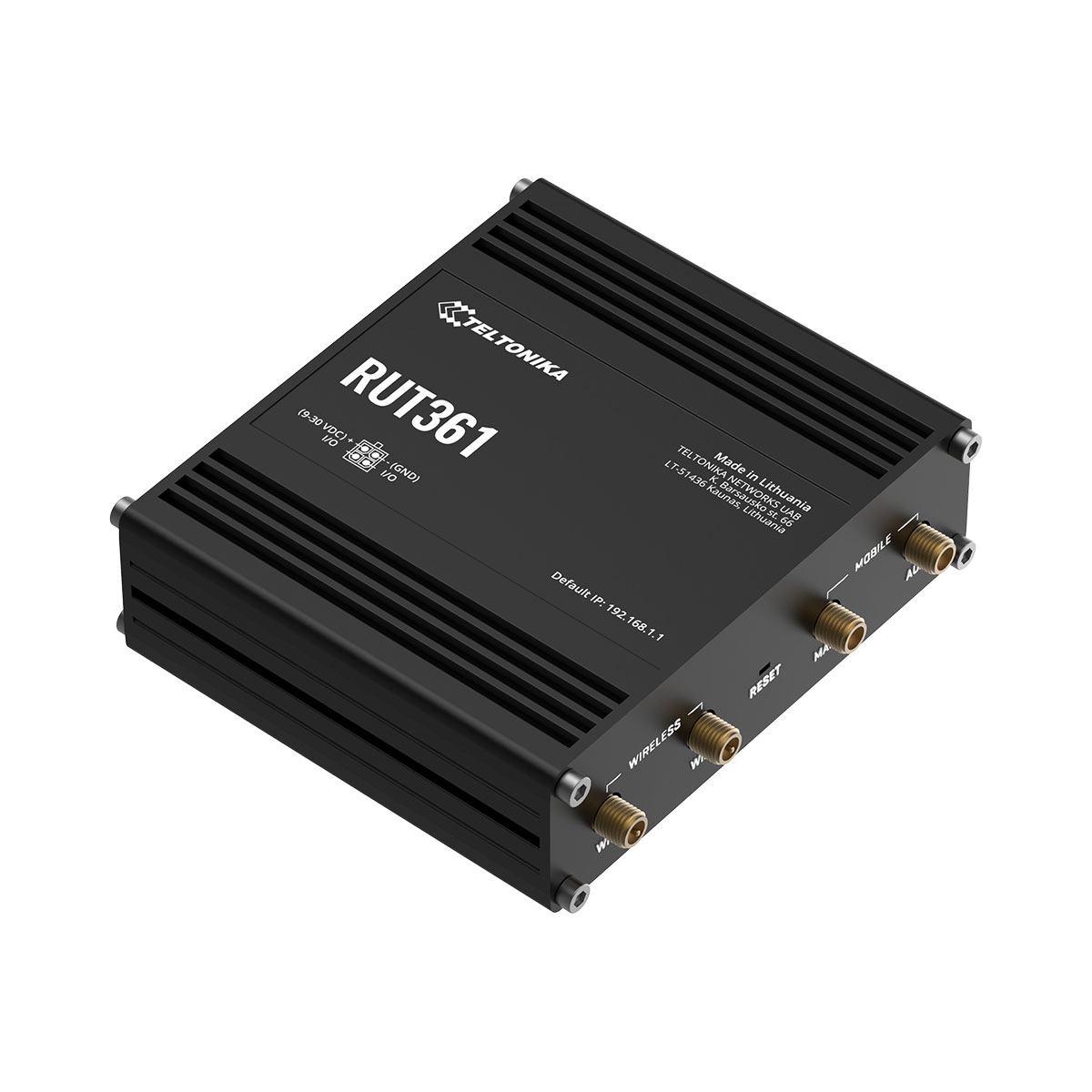

Teltonika RUT361 Industrial Celluler Router
Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας
The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.
| Specifications | |
| Hardware | |
| Mobile | 4G (LTE) – Cat 6 up to 300 Mbps (DL) / 50 Mbps (UL), 3G up to 42 Mbps (DL) |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128MB, DDR2 |
| Storage | 16MB serial NOR flash |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| WiFi | 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA) |
| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| Inputs/Outputs | 2 x Digital Input, 2 x Digital Output on 4-pin power connector |
| Antenna connectors | 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi |
| SIM | 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Status LEDs | 2 x Mobile connection type, 3 x Mobile connection strength, 2 x ETH status, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing |
| Dimensions(WxHxD) | 93.2 x 100 x 30 mm |
| Weight | 243 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Multiple PDN, Auto APN, Band lock, Operator black/white list, Data/SMS limits |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and Management | WEB UI, CLI, SSH, CALL, SMS,TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| SMS features | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP |
| Standard Package Contains | • Router RUT361 • 18 W PSU • 2x Mobile antennas (swivel, SMA male) • 2x Wi-Fi antennas (swivel, RP-SMA male) • Ethernet cable (1.5 m) • SIM Adapter kit • QSG (Quick Start Guide) • Packaging box |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
