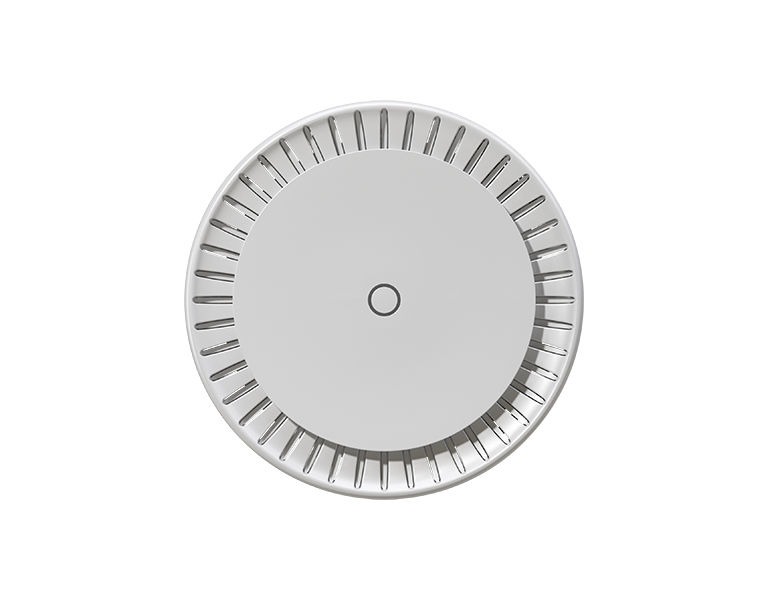

MikroTik cAPGi-5HaxD2HaxD_EG12-EA, cAP LTE12 AX
With a powerful quad-core ARM CPU running at 1.8 GHz, gigabyte of RAM, and the extremely flexible RouterOS v7 at its core, the cAP LTE12 ax is far more than just a simple access point. It offers a range of advanced features, including complex firewall rules, IPsec hardware encryption, Wireguard support, advanced routing, multiple VPN tunnels for remote work or file-sharing, and even some light BGP action! This makes it an ideal solution for businesses that require secure, high-performance mobile connectivity in challenging environments.
More Than Just an Access Point With Wi-Fi 6, you can utilize the full potential of the speedy CAT12 600 Mbps LTE modem. We’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations. Also, Wi-Fi 6 offers significantly improved energy efficiency and security. OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection help preventing all sorts of attacks, like brute-forcing and Deauthentication Attacks.

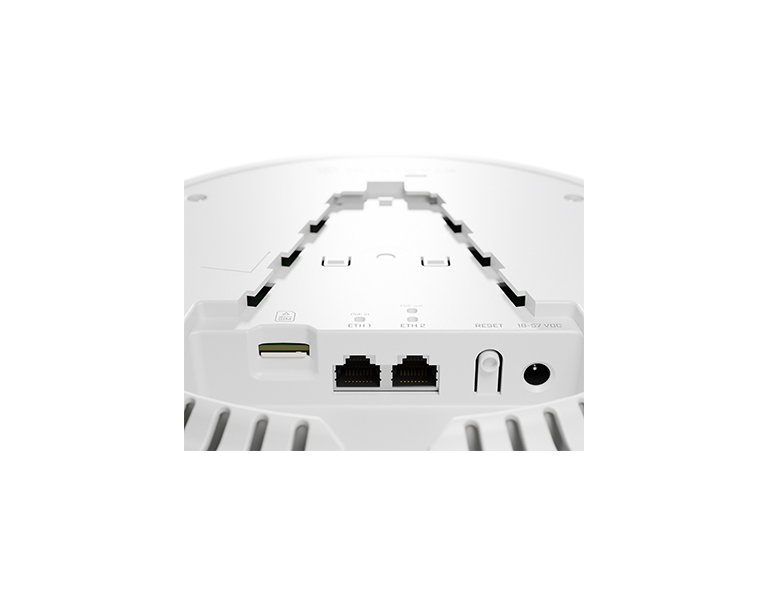

If you have multiple access points over a larger area, you’ll enjoy the improved seamless fast transition roaming – your devices will switch to the strongest signal… seamlessly! Unstoppable 802.11ax (Wi-Fi 6) Radio and Improved Security cAP LTE12 ax 3 cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifi-qcom CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.
| Specifications | |
| Product code | cAPGi-5HaxD2HaxD_EG12-EA |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 - 1800) MHz |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| Psec hardware acceleration | Yes |
| Operating system | RouterOS v7 |
| Powering | |
| PoE-in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Cooling type | Passive |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption (without attachments) | 13 W |
| Max power consumption | 34 W |
| PoE-Out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 0.6 A |
| Max out per port output (input 30-57 V) | 0.4 A |
| Max total out (A) | 0.6 A |
| Total output current | 0.6 |
| Total output power | 22.8 |
| Mobile | |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 12 (600Mbps Downlink, 150Mbps Uplink) |
| MIMO DL | 4x4 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC | 86056104 |
| Wireless Specifications | |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5022 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Other | |
| CPU temperature monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.
