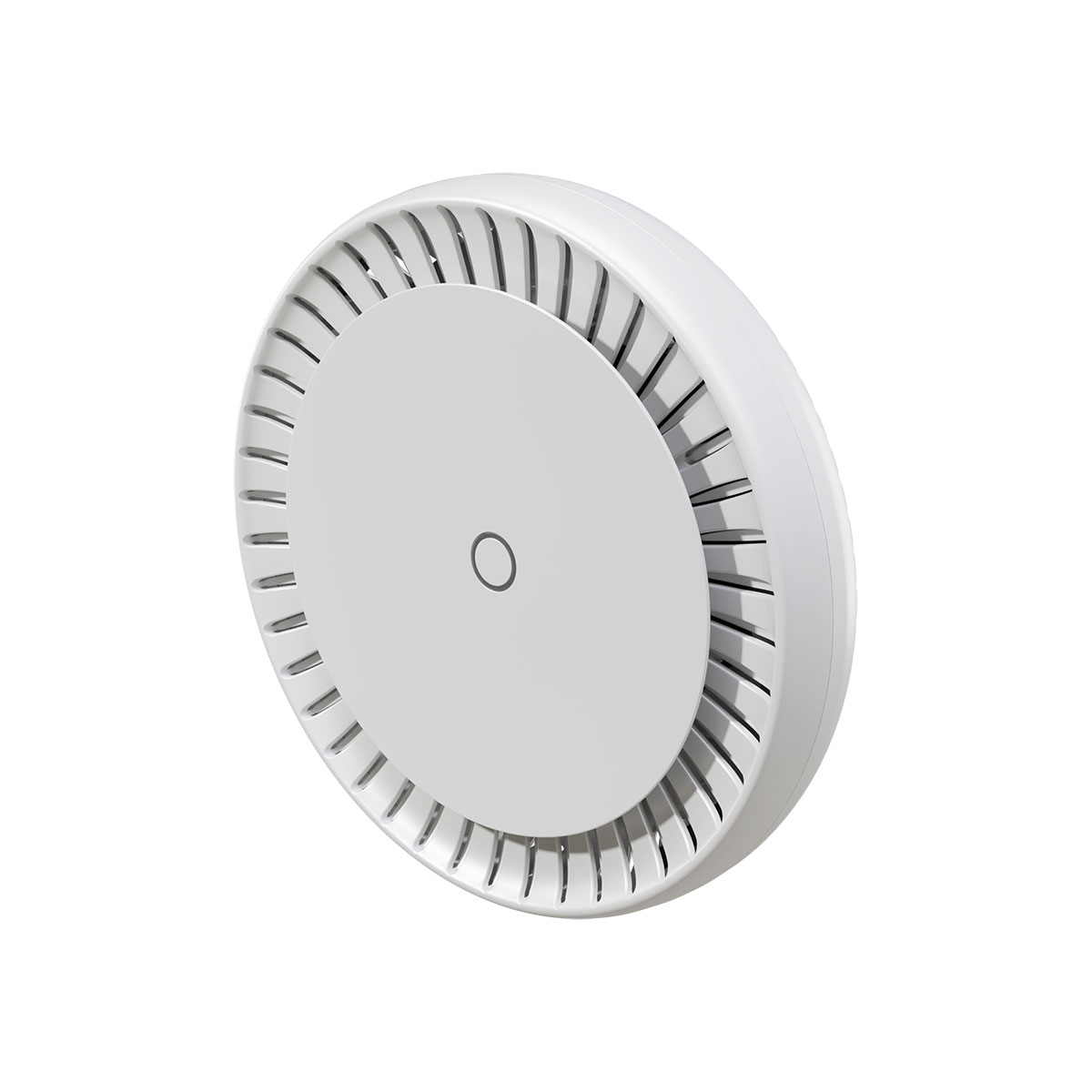

MikroTik cAPGi-5HaxD2HaxD_EG12-EA, cAP LTE12 AX
With a powerful quad-core ARM CPU running at 1.8 GHz, gigabyte of RAM, and the extremely flexible RouterOS v7 at its core, the cAP LTE12 ax is far more than just a simple access point. It offers a range of advanced features, including complex firewall rules, IPsec hardware encryption, Wireguard support, advanced routing, multiple VPN tunnels for remote work or file-sharing, and even some light BGP action! This makes it an ideal solution for businesses that require secure, high-performance mobile connectivity in challenging environments.
More Than Just an Access Point With Wi-Fi 6, you can utilize the full potential of the speedy CAT12 600 Mbps LTE modem. We’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations. Also, Wi-Fi 6 offers significantly improved energy efficiency and security. OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection help preventing all sorts of attacks, like brute-forcing and Deauthentication Attacks.

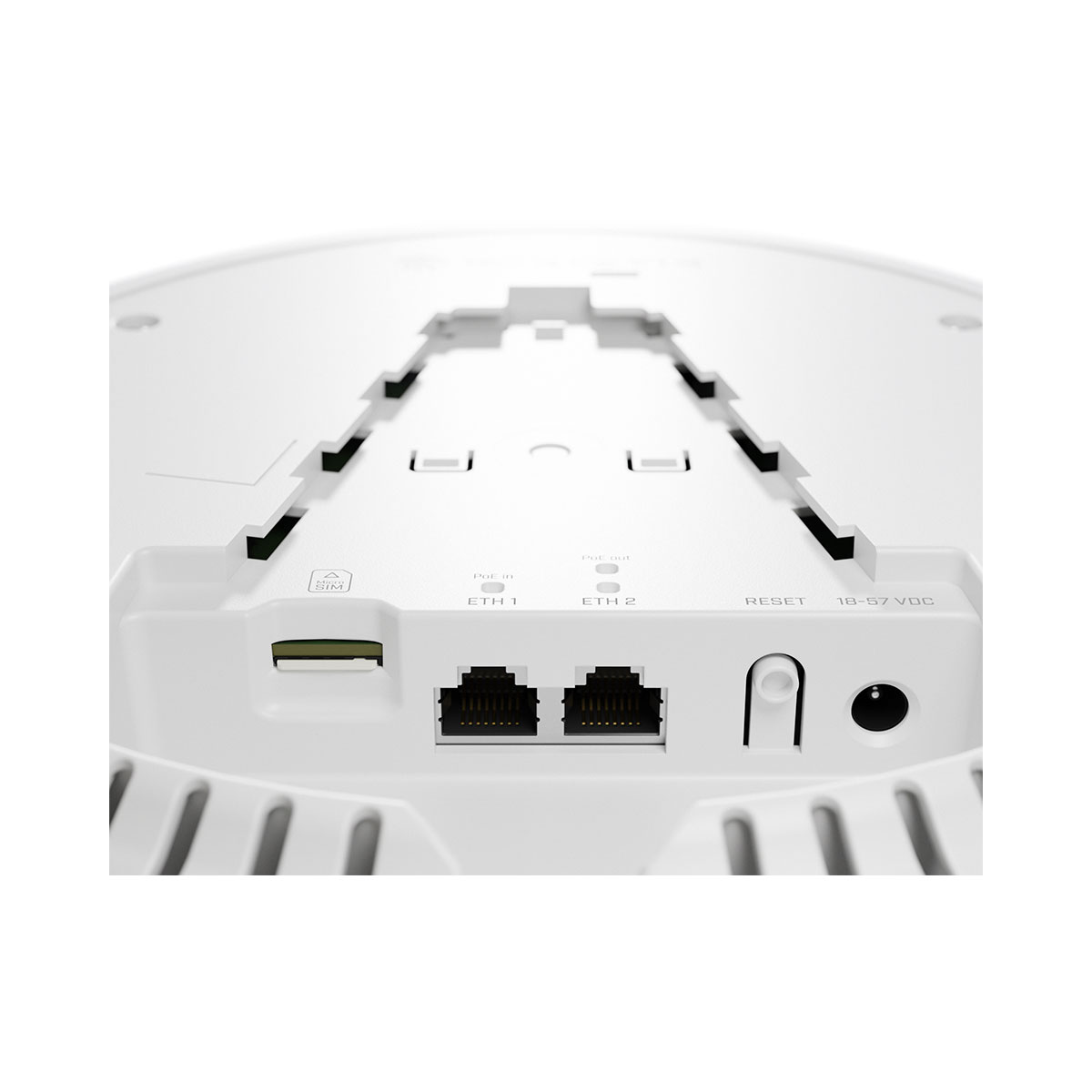

If you have multiple access points over a larger area, you’ll enjoy the improved seamless fast transition roaming – your devices will switch to the strongest signal… seamlessly! Unstoppable 802.11ax (Wi-Fi 6) Radio and Improved Security cAP LTE12 ax 3 cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifi-qcom CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
|
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 12 months |
| Specifications | |
| Product code | cAPGi-5HaxD2HaxD_EG12-EA |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto (864 - 1800) MHz |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| Psec hardware acceleration | Yes |
| Operating system | RouterOS v7 |
| Powering | |
| PoE-in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Cooling type | Passive |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption (without attachments) | 13 W |
| Max power consumption | 34 W |
| PoE-Out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 0.6 A |
| Max out per port output (input 30-57 V) | 0.4 A |
| Max total out (A) | 0.6 A |
| Total output current | 0.6 |
| Total output power | 22.8 |
| Mobile | |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 12 (600Mbps Downlink, 150Mbps Uplink) |
| MIMO DL | 4x4 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| TAC | 86056104 |
| Wireless Specifications | |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5022 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Other | |
| CPU temperature monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 20 |
