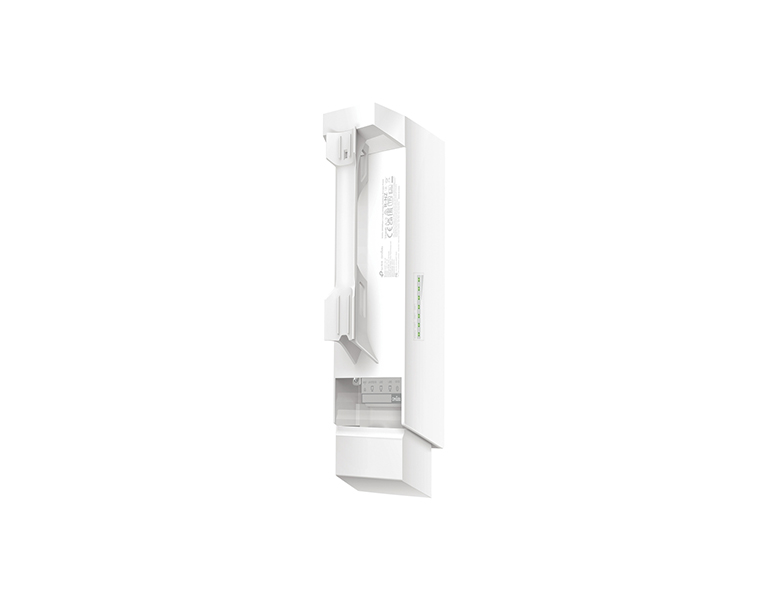

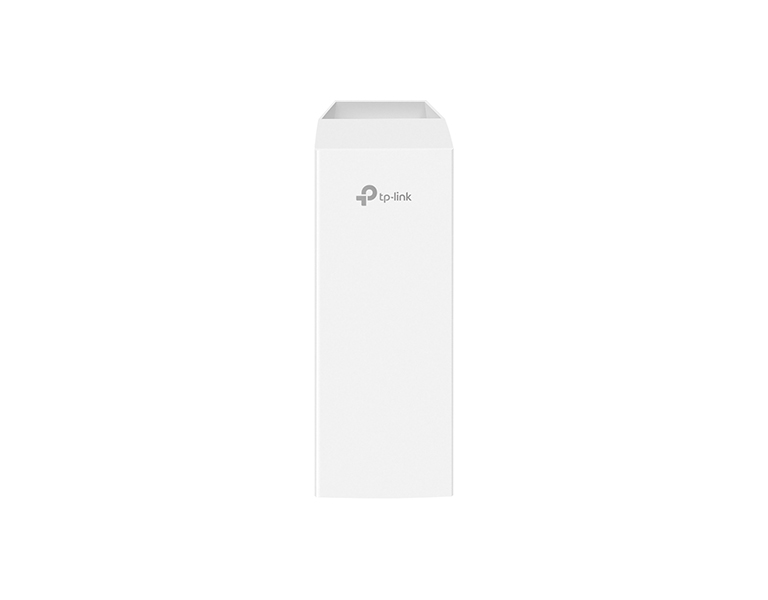

TP-LINK EAP215-Bridge V3 KIT Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point
TP-LINK EAP215-Bridge V3 KIT Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point
| • 802.11ac for up to 867Mbps on 5GHz wireless data rate*1 • Ideal for long-range wireless transmission up to 5 km.*2 • Auto-pairing and agile LEDs for efficient deployment • 3× Gigabit Ethernet ports for more high-speed IP camera connections. • Supports Omada SDN for remote and centralized management. • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3 • Supports Passive PoE for flexible deployment (adapter included). |
Omada Solution
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
| Main Design | |

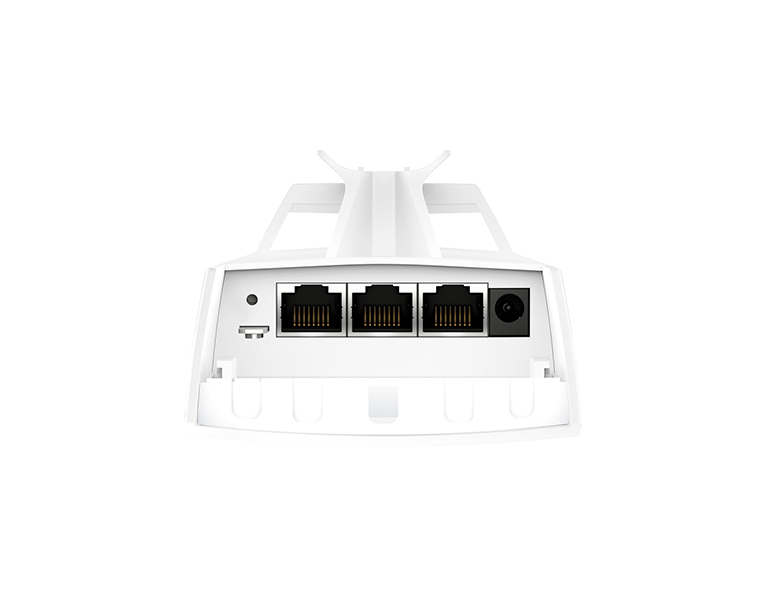

| LAN Interfaces | 3x Gigabit Ethernet Port |
| Wi-Fi Standards | IEEE 802.11a/n/ac |
| Maximum Data Rate | 867 Mbps (5 GHz) |
| Wireless Client Capacity | 8 |
| Antennas | Internal 2×2 Dual-polarized directional MIMO antenna 5 GHz: 11.0 dBi |
| Transmit Power | CE: <23dBm (5 GHz, band 1/2, EIRP) <30dBm (5 GHz, band 3, EIRP) FCC: <22dBm (5GHz band 1/4) |
| Reception Sensitivity | 5GHz: 11ac VHT20 MCS0:-94dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS0:-90.5dBm 11ac VHT40 MCS9:-66.5dBm 11ac VHT80 MCS0:-87.5dBm 11ac VHT80 MCS8:-63dBm |
| Centralized Management | |
| Omada Software Controller | Yes |
| Omada Hardware Controller | Yes |
| Omada APP | Yes |
| Security | |
| Captive Portal Authentication | Yes |
| Access Control | Yes |
| Maximum number of MAC Filter | 4000 |
| VLAN | Yes |
| Rogue AP Detection | Yes |
| Wireless Encryption | Yes |
| Wireless Function | |
| Multiple SSIDs | 8 |
| Channel | 5G: 36,40,44,48,52,56,60,64,100,104,108,112,116, 120,124,128,132,136,140 |
| Enable/Disable Wireless Radio | Yes |
| Enable/Disable SSID Broadcast | Yes |
| Guest Network | Yes |
| QoS (WMM) | Yes |
| Mesh | Yes |
| Beamforming | Yes |
| MU-MIMO | 5G 2x2 MU-MIMO DL |
| Rate Limit | Yes |
| Load Balance | Yes |
| Airtime Fairness | Yes |
| RADIUS Accounting | Yes |
| MAC Authentication | Yes |
| Reboot Schedule | Yes |
| Wireless Schedule | Yes |
| Wireless Statistics | Yes |
| Static IP/Dynamic IP | Yes |
| Support Data Rates | |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Management | |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| Web-based Management | Yes |
| SNMP | Yes |
| SSH | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| System Log | Yes |
| Physical & Environment | |
| Power Supply | 12V DC / 24V Passive PoE |
| Maximum Power Consumption | 11.5W |
| Reset | Yes |
| Mounting | Pole mounting (Accessories included) |
| Others | |
| Certifications | CE, FCC, RoHS |
| Dimensions (W x D x H) | 224 × 79 × 60 mm |
| Net Weight | 330.9g |
| Enclosure Material / Rack Material | Enclosure: ASA-HB Pole Mounting Straps: Nylon 66 |
| Lightning Protection | Air discharge: ±8kV Contact discharge: ±4kV Common mode 10/700: ±6kV |
| Environment | Operating Temperature: -40 °C – 70 °C Storage Temperature: -40 °C – 70 °C Operating Humidity:10% – 90% non-condensing Storage Humidity: 5% – 90% non-condensing |
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
