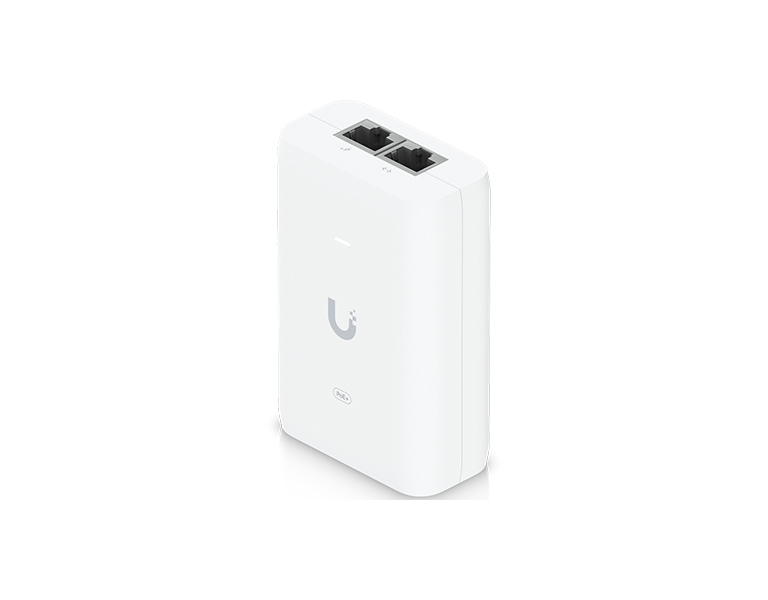

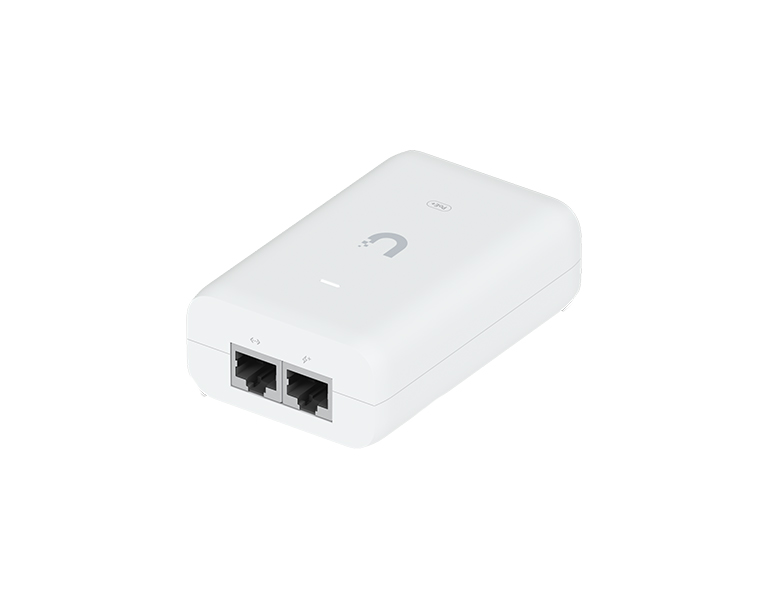

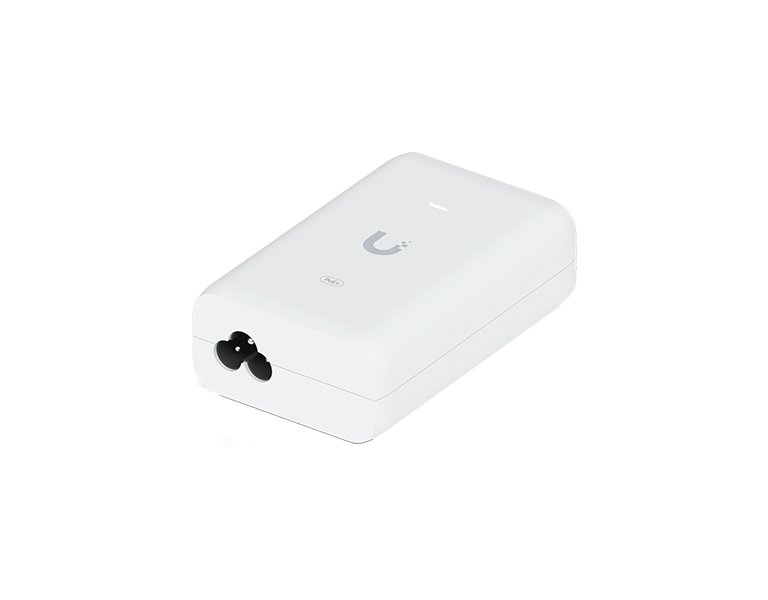

Ubiquiti U-POE+ Gigabit PoE+ Adapter (48V, 0.65A, 30W)
Κωδικός προϊόντος:
U-POE+
19,70 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
15,89 €
Άμεσα διαθέσιμο
Ubiquiti U-POE+ Gigabit PoE+ Adapter (48V, 0.65A, 30W)
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Κατηγορία:
Κατασκευαστής:
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
U-POE-at from Ubiquiti is a high-quality Gigabit PoE injector with one PoE output port for powering devices with voltage level of 48V with a maximum output power of 30W, which is sufficient for the latest devices such as U6 Access Points (U6-LR, U6-Lite, U6-Pro). The power supply is conducted on wires 4.5 (+) and 7.8 (-). Of course, the source also includes protection against electrical overvoltage. A 3-pin power cord is included.
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 24 μήνες |
Χαρακτηριστικά
| Specifications | |
| Dimensions | 93 x 62 x 35 mm |
| Weight | 156 g |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| Gigabit LAN Port | Yes |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| AC Connector |
IEC-320 C6
|
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 0.75A Max. |
| Inrush Current | <100A peak at 26°C |
| Efficiency | 87% |
| Switching Frequency | 70 kHz Max. |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and Common Mode |
| Ambient Storage Temperature | -30 to 70°C |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 10 to 95% Falsencondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL |
