AJAX SYSTEMS AJ-MP-PLUS-W - MOTION PROTECT PLUS WHITE
| • Up to 12 m detection distance with 88.5°/80° viewing angles • Pet immunity • False alarms prevention algorithm • Remote control and setup via the app • Thermal interference filter with additional K-band microwave sensor • Temperature compensation • Effortless installation and replacement • Connecting via QR code • Up to 5 years of operation on pre-installed battery • Up to 1,700m of two-ray encrypted wireless communication between hub or range extender and detector. |
Principle of operation
Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference.
Features
Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections.
Installation and set up

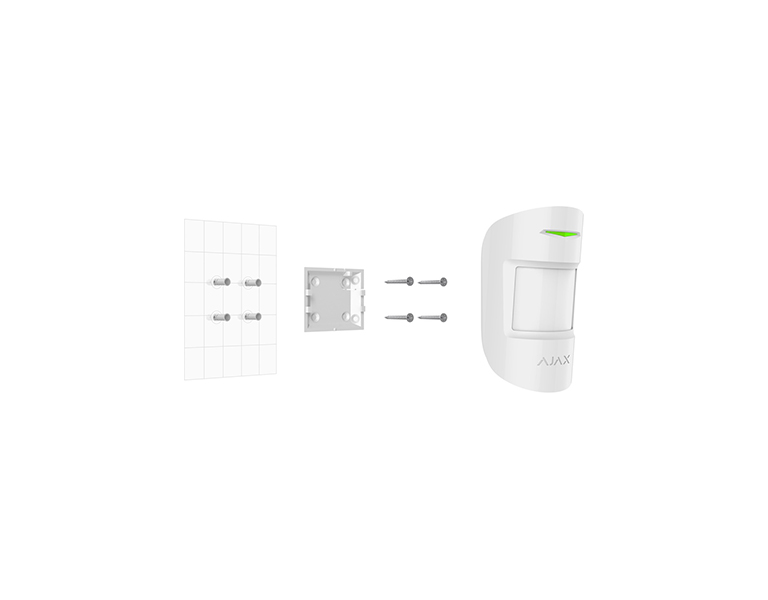

Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the SmartBracket mount.
| Technical Specifications | |
| Classification | Electro-optical radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Sensing element | PIR sensor, microwave sensor (24GHz) |
| Alarm signal delivery time | 0.15 s |
| Motion detection distance | Up to 12 m |
| Detection angles | Horizontal — 88.5° Vertical — 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 m |
| Pet immunity | Weight — up to 20 kg Height — up to 50 cm |
| Power supply | Battery: CR123A battery, 3 V |
| Battery life | Up to 5 years |
| Jeweller radio technology | • Communication range with central unit — up to 1,200 m in an open space • Two-way communication between devices • Self-adjusting RF output power — up to 20 mW • Block encryption based on AES algorithm • Detector polling period — 12−300 s |
| Temperature sensor | Available |
| Operating temperature range | From -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | • Protection against fraud • Jamming detection • Tamper-resistant |
| Remote setting and testing | Yes |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 96 g |
| Package contents | MotionProtect Plus motion detector SmartBracket mounting panel CR123A battery (pre-installed) Installation set User's guide |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 863 – 870 MHz, προβλέπει μέγιστη ισχύ εκπομπής όπως περιγράφεται στην απαίτηση διεπαφής ραδιοεξοπλισμού 105. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς και εξωτερικούς χώρους.
