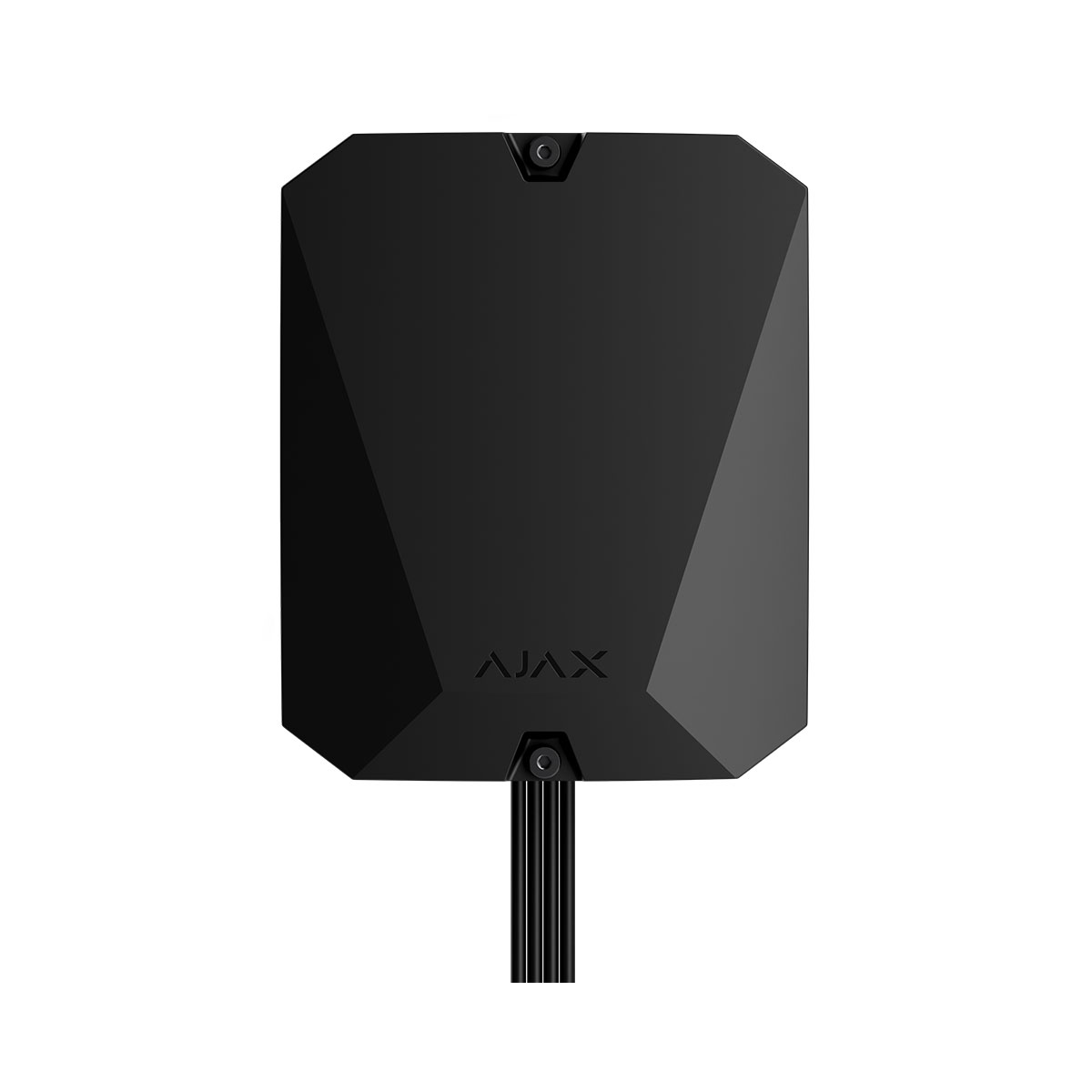

AJAX SYSTEMS AJ-S-HUB-HYB-4G-B, SUPERIOR HUB HYBRID (4G) FIBRA BLACK
AJAX SYSTEMS AJ-S-HUB-HYB-4G-B, SUPERIOR HUB HYBRID (4G) FIBRA BLACK
Προσοχή! Τα προϊόντα Ajax Fibra διατίθενται μόνο σε πιστοποιημένους εγκαταστάτες. Αν δεν έχετε ολοκληρώσει τη διαδικασία πιστοποίησης, επικοινωνήστε με το Τμήμα Πωλήσεών μας για να σας καθοδηγήσουμε.
|
• Built-in connectivity: Ethernet, 2 SIM cards, cellular and radio modules, power supply unit |
Superior Hub Hybrid is a hybrid control panel of the Ajax security system. Compatible with wired and wireless Ajax devices. Controls the operation of connected devices, interacts with the user and the security company. Intended for indoor installation.
Superior Hub Hybrid needs Internet access to connect to the Ajax Cloud service. Available communication channels: Ethernet and two SIM cards. The hub is available in four versions:
• in default casing with 2G modem — Superior Hub Hybrid (2G),
• in default casing with 2G/3G/4G (LTE) modem — Superior Hub Hybrid (4G) revision 1 (date of manufacture before June 2025),
• in default casing with 2G/3G/4G (LTE) modem — Superior Hub Hybrid (4G) revision 2 (date of manufacture from June 2025),
• as a board without casing with 2G/3G/4G (LTE) modem — Superior Hub Hybrid (4G) (without casing).
This is a device of the Ajax Superior product line. Only accredited Ajax Systems partners can sell, install and administer Ajax Superior products.
Operating principle
Superior Hub Hybrid is a hybrid control panel of the Ajax security system. It controls the operation of connected devices.
You can connect up to 100 wired and wireless Ajax devices to Superior Hub Hybrid. Connected devices protect against intrusion, fire, and flooding, and also allow you to control electrical appliances according to scenarios or manually — in a mobile app or by pressing the panic button, LightSwitch, or keypad with touch screen.
To monitor the operation of all security system devices, the hub communicates with the connected devices using three encrypted protocols:
1. Jeweller is a radio protocol for transmitting events and alarms from Ajax wireless devices. The communication range is up to 2,000 m without obstacles: walls, doors, or inter-floor constructions.
2. Wings is a radio protocol for transmitting photos from MotionCam and MotionCam Outdoor detectors. The communication range is up to 1,700 m without obstacles: walls, doors, or inter-floor constructions.
3. Fibra is a wired protocol for transmitting events and alarms from Ajax wired devices. The communication range is up to 2,000 m when connected via twisted pair U/UTP cat.5.
If a detector is triggered, the system raises an alarm in less than a second, regardless of the communication protocol. In case of an alarm, the hub activates the sirens, starts the scenarios, and notifies the security company’s monitoring station and all users.
Sabotage protection
Superior Hub Hybrid has 3 communication channels for connecting to the Ajax Cloud server: Ethernet and two SIM cards. This allows you to connect the device to three different communication providers at the same time. If one of the communication channels is unavailable, the hub will automatically switch to another one and inform the control station of the security company and system users. When a jamming attempt is detected, the system switches to an idle radio frequency and sends notifications to the control station of the security company and to system users.
The hub regularly checks the quality of communication with all connected devices. If any device loses connection with the control panel, upon expiry of the time specified by the administrator, all system users (depending on the settings), as well as the monitoring station of the security company, will receive a notification about the incident.
No one can turn off the hub unnoticed, even when the facility is disarmed. If an intruder tries to open the hub casing, the tamper button will trigger immediately. The alarm notification will be sent to the security company and to system users.
The hub rechecks Ajax Cloud connection at regular intervals. The ping period is specified in the hub settings. If a minimum ping period is set, the server may notify the users and the security company in as little as 60 seconds after the connection is lost.
The 7 A∙h backup battery can be connected to the hub, which can provide a system of 30 detectors with backup power for 60 hours.
Use 12 V⎓ batteries with a capacity of 4, 7, or 9 A∙h. There are special holders for batteries in the control panel casing.
You can use batteries of a different capacity if they are suitable in size and the charging time does not exceed 72 hours for Grade 2 compliance and 24 hours for Grade 3 compliance. The maximum battery charging current from the Superior Hub Hybrid is 350 mA. The maximum dimensions of the battery to be installed in the Superior Hub Hybrid casing are 151 × 65 × 94 mm, and the weight is 5 kg.
OS Malevich
Superior Hub Hybrid is run by the real-time operating system OS Malevich. It is protected from viruses and cyber-attacks.
OS Malevich brings new features and functionality to the Ajax security system through over-the-air updates. The update does not require the involvement of an installation engineer or user.
The update takes up to 2 minutes with the security system disarmed and the external power supply and backup battery connected.
| Capacity | |
|
Wireless Ajax devices |
up to 100 Wired and wireless devices in any proportion. 5 range extenders max. 10 sirens max. 50 wired keypads with a built-in buzzer max (with OS Malevich 2.30 and later versions). |
| Users | up to 50 |
| Automation scenarios |
up to 32
|
| Security groups | up to 9 |
| Rooms | up to 50 |
| Event log | up to 1000 events |
| Wired communication | |
| Fibra communication technology |
Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: |
| Compatible wire | 4–core cable |
| Input | 8 Fibra lines |
| Fibra line length | up to 2,000 m |
| Power supply of devices | up to 14.4 W |
| Output voltage range | 23–25.1 V⎓ |
| Topologies | • Star • Ring In the line breakage event, the ring splits into two working segments, the devices continue to operate, and the system notifies a security company and users about the incident. |
| Devices polling interval |
from 12 to 300 s |
| Wireless communication | |
| Jeweller communication technology |
Proprietary wireless communication technology to transmit alarms and events. It features: |
|
Frequency bands |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
|
Maximum effective radiated power (ERP) |
up to 20 mW |
| Radio signal modulation | GFSK |
| Radio signal range | up to 2,000 m |
| Polling interval | from 12 to 300 s |
| Encrypted communication | All the data stored and transmitted are protected by block encryption with a dynamic key. |
| Wings communication technology |
Proprietary wireless communication technology to transmit photo verifications. It features: |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Radio signal range | up to 1,700 m |
| Radio frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Recommendations |
100–240 V~ power supply. For indoor use only. |
| Communication channels | |
| Ethernet | 1 × 8P8C socket Up to 100 Mbps. |
| Cellular | 2 × micro–SIM slot |
| Cellular bands |
2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) 4G/LTE (FDD B1/B3/B5/B7/B8/B20) |
| Automatic switching between communication channels | • Switching between SIMs — up to 4 minutes. • Switching between 4G, 3G, and 2G networks of one SIM — instantly. • Switching between Ethernet and SIM — instantly. |
| Communication channels prioritization | 1. Ethernet 2. Cellular connection Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet. |
| Notifications | |
| Supported notification types | Push / SMS / Calls |
| Event types | Alarms Malfunctions Events Security mode changing |
| Photo verification | |
| Photo verification types | Photo by alarm Photo by scenario Photo on demand Photo by schedule |
| Photo delivery time | up to 9 s |
| Photo resolution | up to 640 × 480 pixels |
| Number of photos in a series | from 1 to 5 pictures |
| Monitoring | |
| Event types | System alarms and events Photo verifications Panic button coordinates |
| Power Supply | |
| Main power supply type | Type A. |
| Device operating AC voltage range | 100–240 V~, 50/60 Hz |
| Device operating DC voltage range | 10.5–15 V⎓ |
| Autonomous operation | up to 60 hours |
| Low battery voltage | 11.7 V⎓ |
| Low battery recovery voltage | 12.9 V⎓ |
| End of life battery voltage |
11 V⎓ |
| Maximum output peak-to-peak ripple battery voltage | 220 mV⎓ |
| Minimum backup battery energy level in the charged state | 100 % |
| Current consumption | |
| Maximum rated output | 0.53 A |
| Maximum at nominal voltage | 200 mA |
| Quiescent at nominal voltage | 130 mA |
| Average* |
up to 93 mA up to 72 mA * From the backup battery after the loss of the main power supply. |
| Casing | |

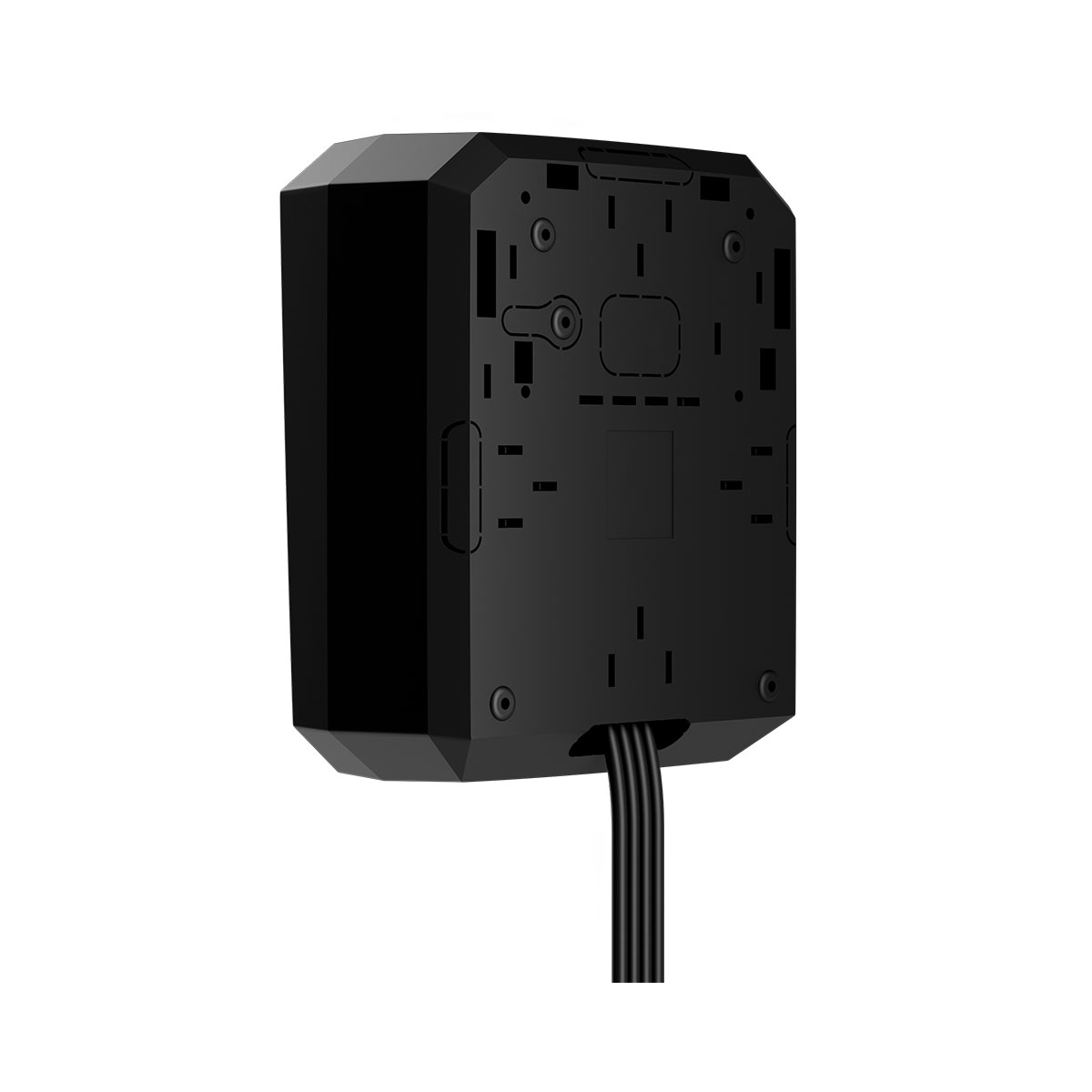

| Dimensions | 197 × 240 × 100 mm |
| Weight of the white device | 837 g |
| Weight of the black device | 765 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP30, IK06 |
| Complete set |
Superior Hub Hybrid (4G) |
