AJAX SYSTEMS AJ-S-STSIR-DDECK-FIBRA-B, SUPERIOR STREET SIREN DOUBLE DECK FIBRA BLACK

Προσοχή! Τα προϊόντα Ajax Fibra διατίθενται μόνο σε πιστοποιημένους εγκαταστάτες. Αν δεν έχετε ολοκληρώσει τη διαδικασία πιστοποίησης, επικοινωνήστε με το Τμήμα Πωλήσεών μας για να σας καθοδηγήσουμε.

Υπάρχει η δυνατότητα εκτύπωσης των εταιρικών σας στοιχείων, βάσει συγκεκριμένων προϋποθέσεων και κατόπιν συνεννόησης με το Τμήμα Πωλήσεών μας.
Το προϊόν διατίθεται σε συσκευασίες των 10 τεμαχίων, με δυνατότητα παραγγελίας και μεμονωμένων τεμαχίων χωρίς συσκευασία.

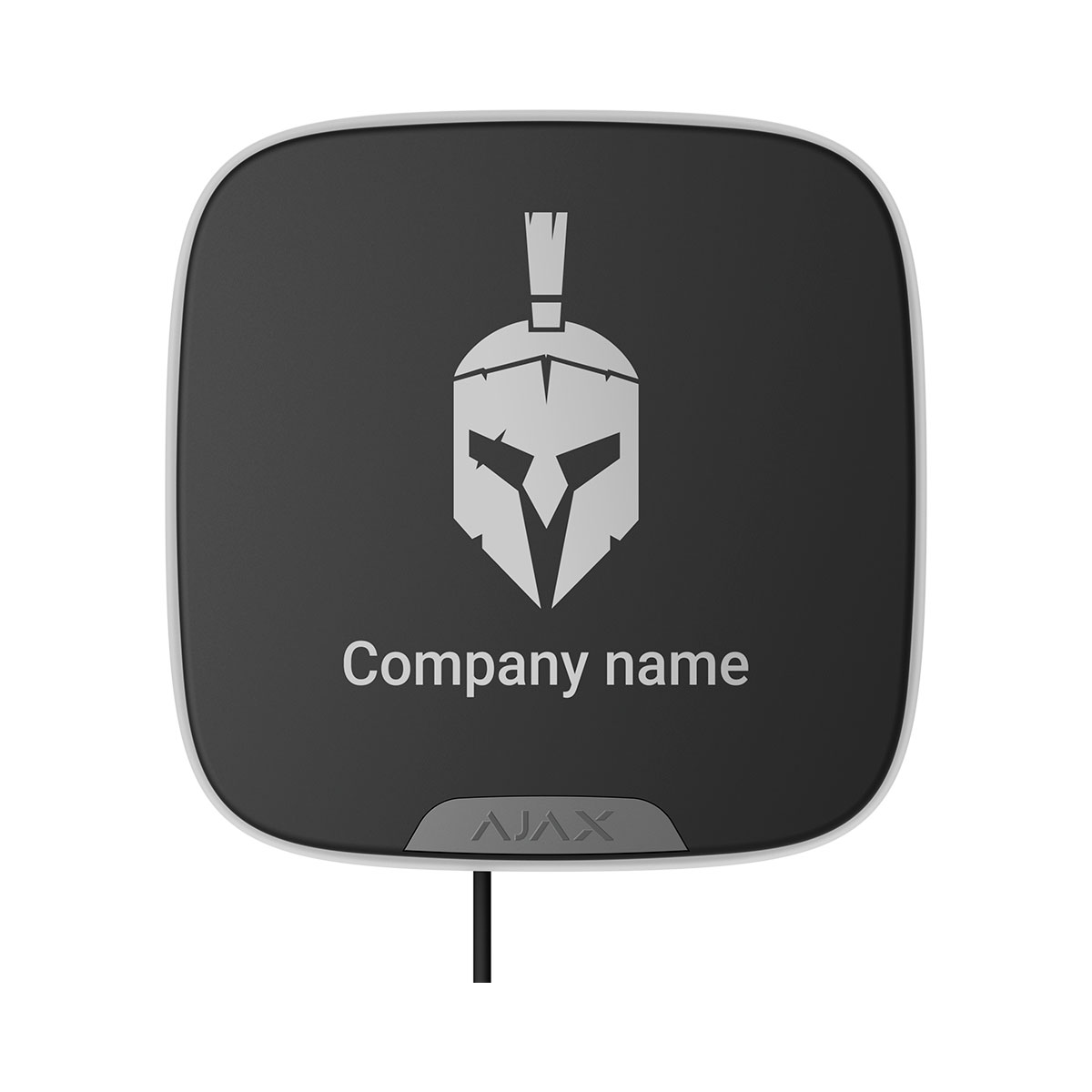

Superior StreetSiren DoubleDeck Fibra is a wired siren of the Ajax system with the ability to install a branded faceplate. Equipped with a LED frame and piezoelectric alarm indicator producing sound volume up to 113 dB. For both indoor and outdoor installation.
StreetSiren DoubleDeck works as part of the Ajax system, exchanging data with the hub via the secure protocol of Fibra wired technology. The communication range is up to 2,000 m when connected via twisted pair U/UTP cat.5.
StreetSiren DoubleDeck is the device of the Fibra wired product line. The installation, sale, and administration of these devices are performed only by accredited Ajax partners.

Operating principle
Superior StreetSiren DoubleDeck Fibra is a wired Ajax siren with the ability to install a branded faceplate.
The device is equipped with a piezoelectric buzzer for sound alerting and an LED frame for visual alerting. The siren has a sealed battery that is used to power the device. The battery is charged from the Fibra line and is used for an indication as well as notification of alarms and events.
In case of the Fibra line damage or an emergency power shortage, the backup battery will provide the siren with power to indicate and alert alarms and events.

Siren performs four tasks:
1. Informs about alarms. The siren responds to system alarms and the triggering of a tamper enabling a buzzer and LED backlight, which scares off intruders and attracts attention.
2. Indicates the security status. The siren, using LED indication, can notify that the object is armed, and inform with a sound signal and backlight about delays when entering/leaving.
3. Notifies of opening. Sirens with a particular sound inform you about the triggering of the opening detectors when the system is disarmed. The feature is used, for example, in stores, to notify employees that someone has entered the premises.
4. Notifies of triggering until the system is disarmed. The lower right corner of the siren’s LED frame flashes after the sound signal is played. Thanks to this option, users and passing patrols of security companies can see that the system was triggered.

Alarm volume and duration
By alarm the siren sounds from 3 seconds to 3 minutes, emitting a sound volume of 85 to 113 dB. In the Ajax apps, you can set the duration and volume of the alarm, as well as determine which devices will activate the siren.

Protection against sabotage
StreetSiren DoubleDeck is equipped with a tamper and raises the alarm when the main power (from the Fibra line) is lost. The tamper is triggered when the siren is removed from the mount and when the casing is opened or damaged.
In the event of sabotage, the users and the security company know exactly which siren the intruders are trying to disable. The notifications contain the hub name (name of the protected object), the incident time, the siren name, the alarm type, and the virtual room to which the device is assigned.
StreetSiren DoubleDeck has a pre-installed battery. It provides the siren with the power to indicate and notify of alarms and events as well as in case of damage to the Fibra line or an emergency power shortage.

Fibra data transfer protocol
The siren uses Fibra technology to transmit alarms and events. This is a wired data transfer protocol that provides fast and reliable two-way communication between the hub and the connected devices. Using the bus connection method, Fibra delivers alarms and events instantly, even if 100 devices are connected to the system.
Fibra supports block encryption with a floating key and verifies each communication session with devices to prevent sabotage and spoofing. The protocol requires regular polling of devices by the hub with a predetermined frequency to monitor communication and display the status of the system devices in the Ajax apps.

Sending events to the monitoring station
The Ajax system can transmit alarms to the PRO Desktop monitoring app, as well as to the central monitoring station (CMS) using SurGard (Contact ID), SIA (DC-09), ADEMCO 685, and other protocols.

StreetSiren DoubleDeck can transmit the following events:

1. Tamper alarm/recovery.
2. Alarm due to loss/recovery of the main power.
3. Loss/recovery of connection between StreetSiren DoubleDeck and the hub.
4. Turning the siren off/on.
5. Battery discharge/charge.
6. Battery disconnection/connection.

When an alarm is received, the monitoring station operator of the security company knows what happened and where the rapid response unit has to be sent. Addressability of Ajax devices allows you to transmit to PRO Desktop and to the CMS events, device type, its assigned name and location (room, group). The list of transmitted parameters may differ depending on the type of CMS and the selected communication protocol.
