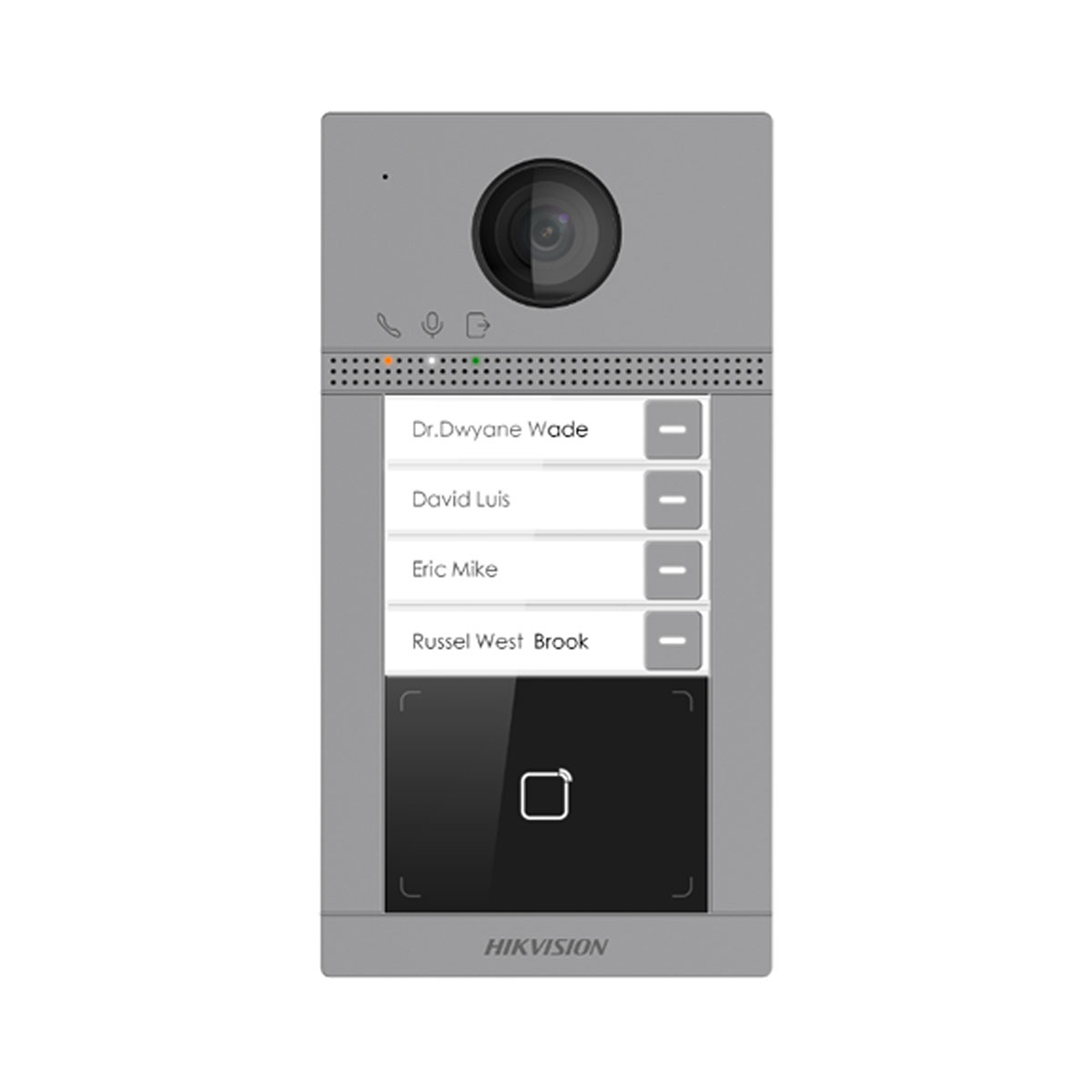

Hikvision DS-KV8413-WME1(C) Video Intercom Villa Door Station
• Support Wifi, convenient setting up and no wiring required
• Support web configuration
• Aluminum alloy, nice industry design, IP65, IK08, 3 indicator integrated
• Internal Mifare card reader, 4-ch Indoor station access control
• Noise suppression and echo cancellation
• 2MP HD camera with IR supplement
• Standard PoE/12 VDC
| Specifications | |
| System | |
| Operation system | Embedded Linux operation system |
| ROM | 32 M |
| RAM | 256 M |
| CPU | Embedded MCU Processor |
| Video parameters | |
| Lens | 1 |
| Resolution | Main stream : 1920 × 1080 Sub stream : 640 × 480 |
| FOV | Horizontal: 124° Vertical: 75° |
| WDR | Support |
| Supplement light | IR supplement |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio compression standard | G.711 U, G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 30 cm |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Card capacity | 10000 |
| Network parameters | |
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| Received frequency | 2.4 to 2.4835GHz |
| Transmitted frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20/40 MHz |
| Frequency power | 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm |
| Authentication | |
| Card reading frequency | 13.56 MHz |
| Device interfaces | |
| Alarm input | 4 |
| Network interface | 1 |
| TAMPER | 1 |
| Exit button | 2 Max. |
| RS-485 | 1 |
| USB | 0 |
| Wiegand | 0 |
| TF card | 1 (reserved) |
| Alarm output | 0 |
| Lock control | 2 |
| Door contact input | input 2 |
| Power interface | 1 |
| General | |
| Button | 4 |
| Installation | Surface mounting |
| Indicator | 3 |
| Weight | 380 g |
| Protective level | IP65, IK08 |
| Working temperature | -40°C to 53°C |
| Working humidity | 10% to 95% |
| Dimensions | 174 mm × 91 mm × 29 mm |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Language | English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
