Ubiquiti UCG-FIBER, Desktop 10G Cloud Gateway Fiber With Integrated Poe Switch
Κωδικός προϊόντος:
UCG-FIBER
350,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
282,26 €
Άμεσα διαθέσιμο
Ubiquiti UCG-FIBER, Desktop 10G Cloud Gateway Fiber With Integrated Poe Switch
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή
The highly powerful gateway with an optical interface, UniFi Gateway Fiber from Ubiquiti Networks, combines a security gateway, data router, and network protection. Additionally, it comes with pre-installed UniFi Network, allowing management of up to 50 UniFi devices and 500 clients. The product is suitable for homes and businesses. The router features 4x 2.5 Gigabit LAN ports, 1x 10 Gigabit WAN port, 1x SFP+ LAN, and 1x SFP+ WAN port. It delivers 5 Gbps routing performance with QoS, firewall, and Intrusion Detection (IDS) and Prevention System (IPS) enabled. The device can be managed via the UniFi Network application, installed on platforms such as Cloud Key.
Key Features
- (4) 2.5 Gigabit LAN - 1x PoE 802.3af/at (max. 30W)
- (1) 10 Gigabit WAN
- (2) SFP+ (1x LAN, 1x WAN)
- Pre-installed UniFi Network
- Ability to install UniFi Protect, Access, Talk, and Connect
- Sufficient performance to manage 50+ UniFi devices and 300+ clients
- 5 Gbps routing performance with IDS/IPS enabled
- Powered via DC connector
- Compact, fanless design
- Multi-WAN, VPN, QoS, IPS/IDS, and enterprise-grade layered firewall configuration via UniFi Network
- Option to install M.2 SSD storage

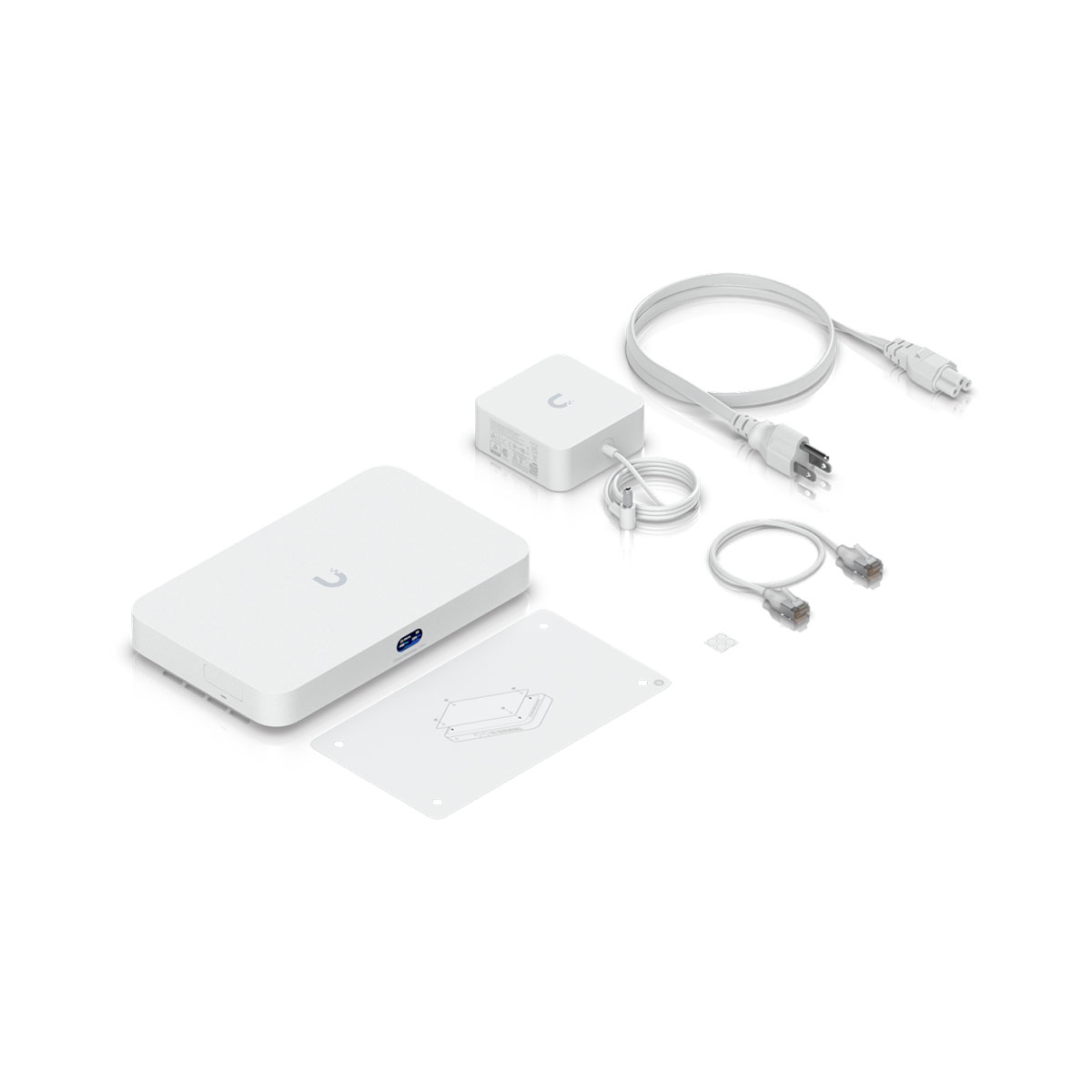

Package Contents
- Device
- 54V / 1.1A power adapter
- Power cable
- Patch cable
Χαρακτηριστικά
| Overview | |
| Dimensions | 212.8 x 127.6 x 30 mm |
| UniFi Application Suite | |
| Network | ✓ 🛈 Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN |
| Protect | ✓ 🛈 AI-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management |
| Access | ✓ 🛈 Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms. |
| Talk | ✓ 🛈 Plug-and-play VoIP system with advanced call routing and automations for seamless communication. |
| Connect | ✓ 🛈 Manage digital signage, EV chargers, and Lutron lighting systems with ease. |
| Managed UniFi Devices 🛈 Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |
50+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 500+ |
| Max. WAN Port Count | 6 |
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 |
| Port Layout | 2.5 GbE RJ45 - 4 (2.5G/1G/100M/10M) 10 GbE RJ45 - 1 (10G/2.5G/1G) 10G SFP+ - 2 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic - ✓ IPsec - ✓ OpenVPN - ✓ |
| VPN Server | Identity Endpoint One-Click VPN - ✓ Teleport Zero-Configuration VPN - ✓ WireGuard - ✓ OpenVPN - ✓ L2TP - ✓ |
| VPN Client | OpenVPN - ✓ WireGuard - ✓ |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF - ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 4,000 |
| Virtual Network Override | ✓ |
| All Traffic Flows | ✓ |
| Hardware | |
| NVR Storage | Selectable NVMe SSD up to 2 TB 🛈 No storage option does not include NVMe SSD. Third-party SSD installation requires a tray accessory. 1/2 TB option includes tray accessory and NVMe SSD |
| PoE Budget | 30W |
| Voltage Range PoE Mode | 50-57V |
| Max. Power Consumption | 29.4W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Heat Dissipation | 100 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 675 g With SSD: 734 g |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet - ✓ SFP+ - ✓ |
| Button | (1) Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, Anatel: 04395-25-08356 |
