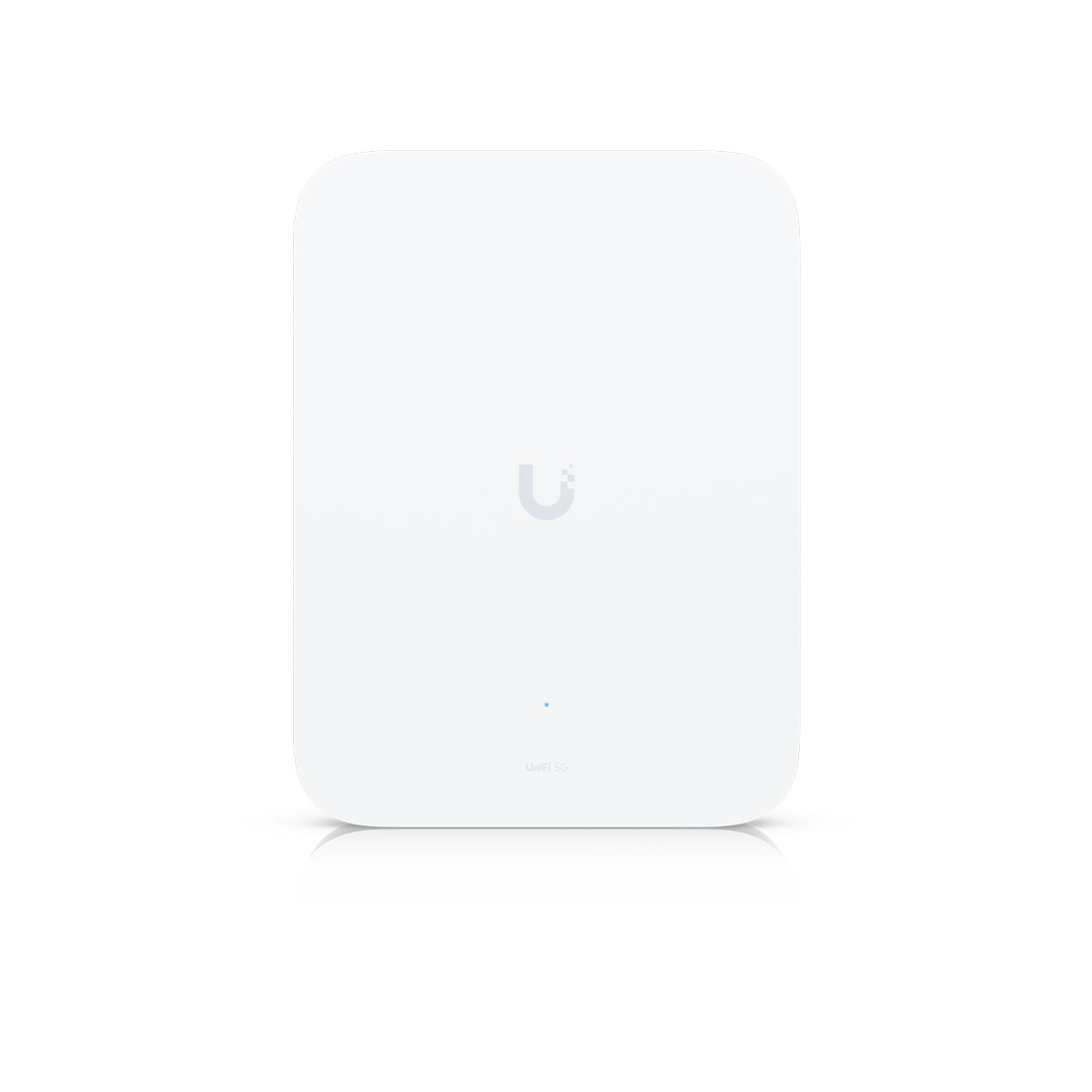

Ubiquiti U5G-MAX-OUTDOOR, 5G Modem for UniFi Consoles and Cloud Gateways
The powerful outdoor 5G modem ensures transfer speeds of up to 3400 / 550 Mbps (download/upload), ideal for professional UniFi networks. The device automatically integrates into the UniFi Gateway and instantly sets up the network through all switches via VLAN. The Dual SIM mode with support for nano-SIM and eSIM allows for reliable failover or primary connection during a cable network outage.
Easy installation and practical management
The modem is powered via PoE with a maximum consumption of 14.5 W, making installation easy without complicated configuration. The compact design with four built-in mobile antennas HPUE power class 2 ensures high reliability. The network interface 2.5 GbE RJ45 provides high-speed connection to the UniFi Gateway, and wide support for frequencies 5G NR, 4G LTE, and 3G UMTS guarantees compatibility for all professional and demanding applications.
Key features
- 5G modem with speeds up to 3400 / 550 Mbps (down/up)
- Automatic integration into UniFi Gateway with VLAN support
- Dual SIM mode: nano-SIM or a combination of nano-SIM and eSIM for failover
- Network interface 2.5 GbE RJ45 and powered via PoE
- Four built-in mobile antennas with HPUE power class 2
- Wide support for frequencies 5G NR, 4G LTE, and 3G UMTS
- IP67 protection rating, operating temperature -40 to 65°C

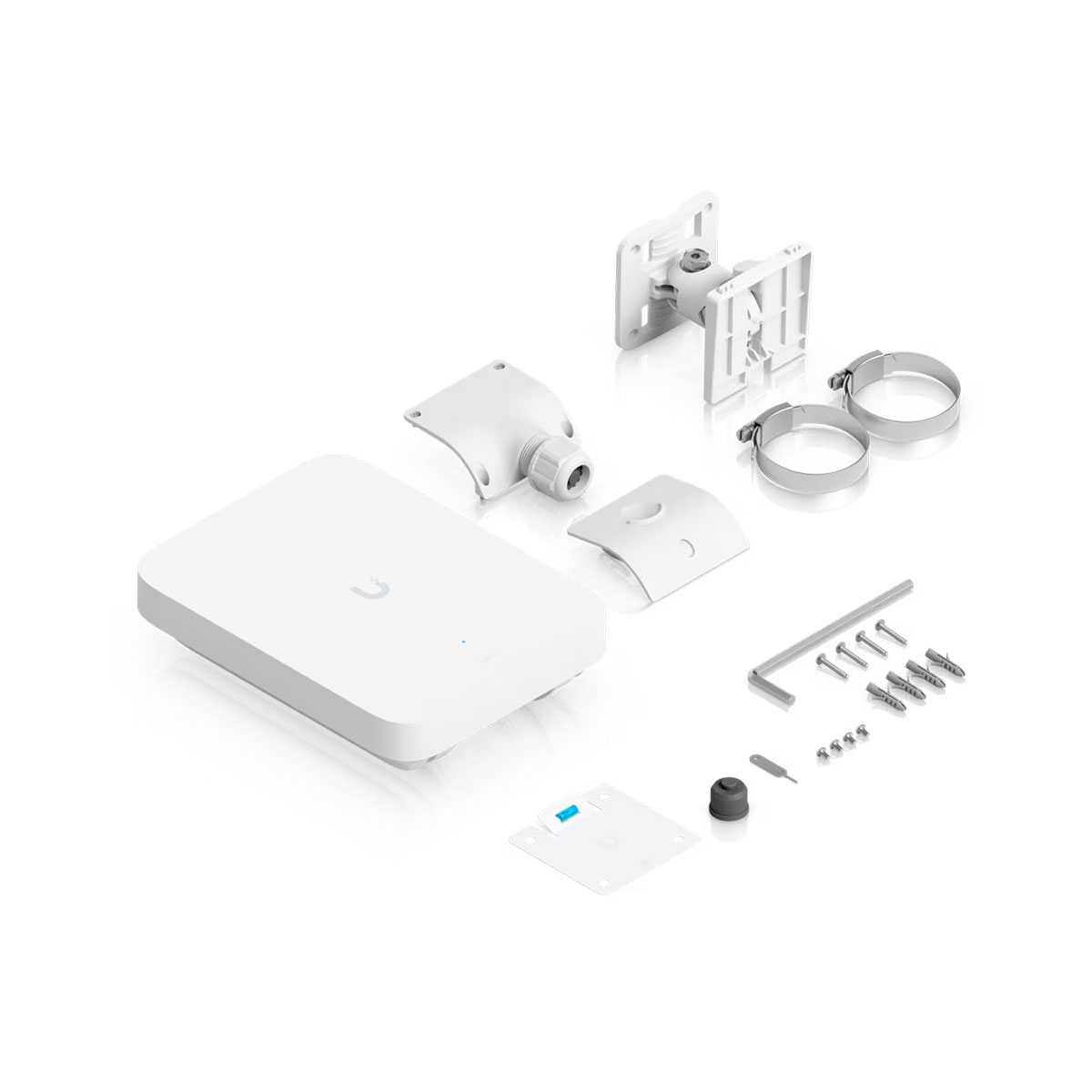

Package contents
- Device
- Wall mount
- Window mount
- (2) metal zip ties
- Screws and accessories
| Overview | |

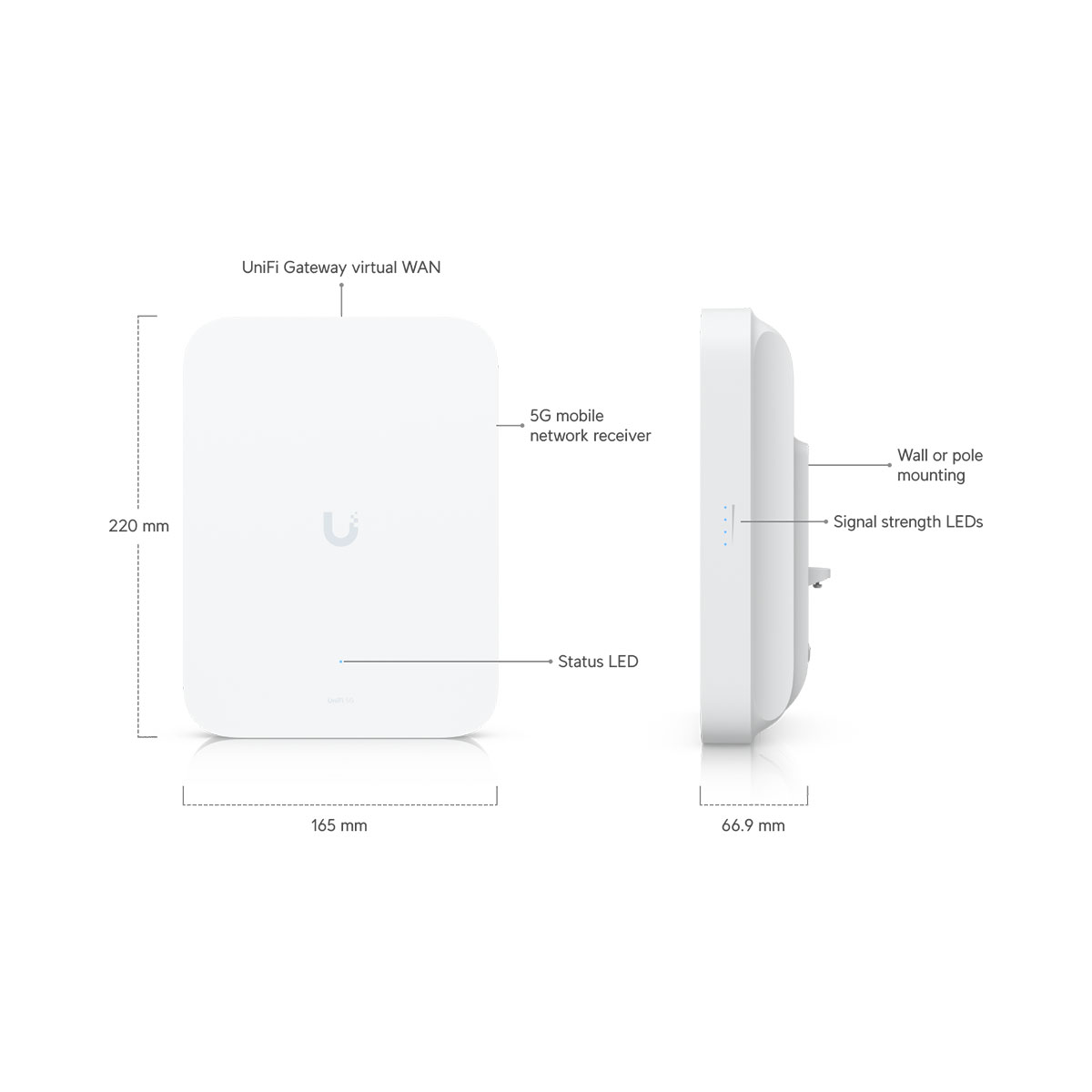

| Dimensions | Device: 220 x 165 x 66.9 mm With mount: 220 x 165 x 122 mm |
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |

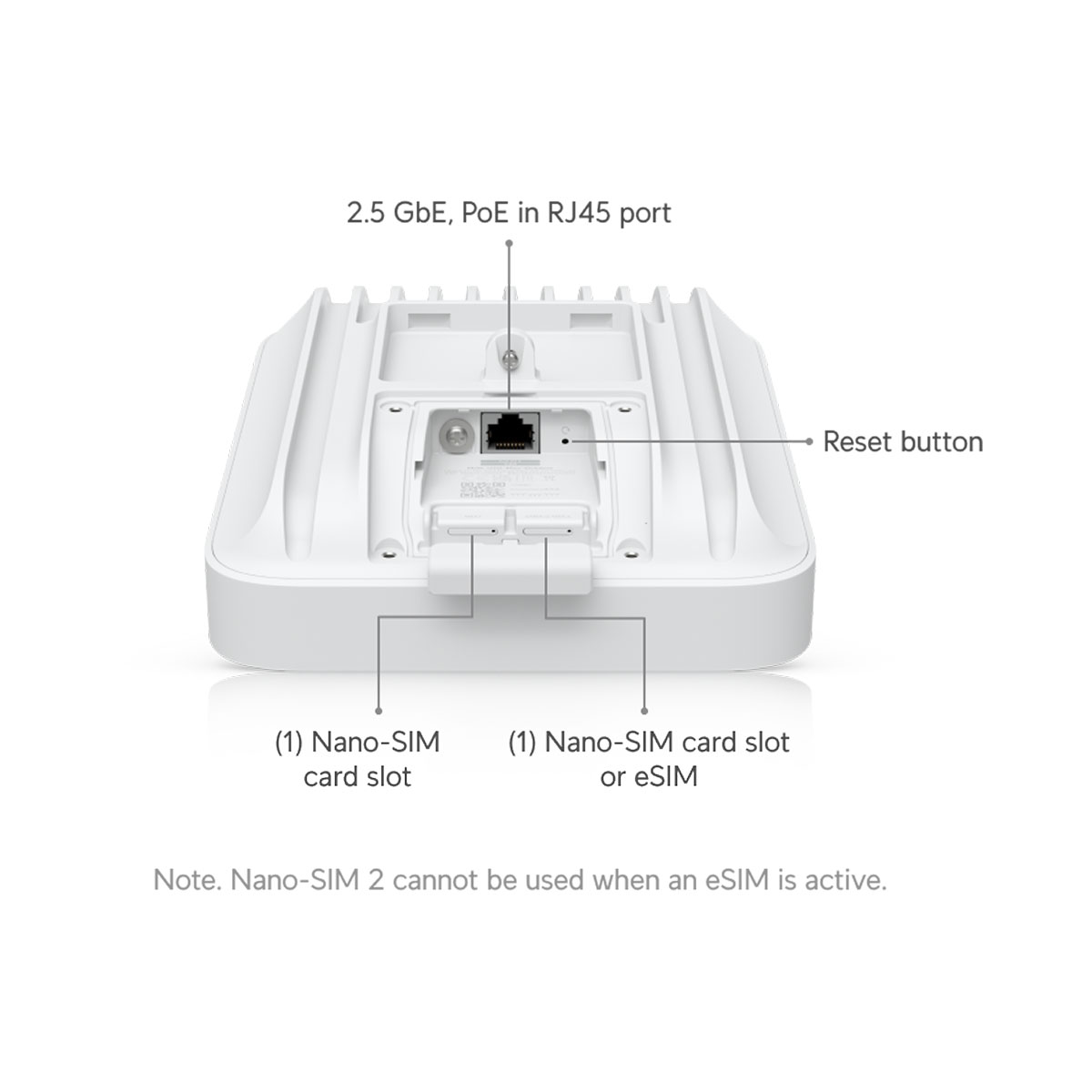

| SIM | (1) Nano SIM (1) Nano-SIM or eSIM 🛈 Nano-SIM 2 cannot be used when an eSIM is active |
| PoE Interface | (1) PoE input |
| Mounting | Pole mount, wall mount (Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Mechanical | |
| Weight | Device: 1.2 kg Mount: 130 g |
| Enclosure Material | Aluminum-alloy, UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 25–63.5 mm on pipe outer diameter |
| Wind Loading | 91N at 200 km/h |
| Hardware | |
| Management | Ethernet |
| 5G NR | Category 5G NR |
| Frequency Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
|
| Max. TX Power HPUE power class 2: 26 dBm | |
| 4G LTE | Frequency Bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| 3G UMTS | Frequency Bands B1, B2, B4, B5, B8, B19 |
| Peak Data Speed | 5G NSA Downlink 3.4 Gbps Uplink 560 Mbps |
| 5G SA Downlink 1.8 Gbps Uplink 650 Mbps |
|
| 4G LTE Downlink 1.6 Gbps Uplink 210 Mbps |
|
| Antennas | Type (6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85° |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Buttons | (1) Factory reset |
| LEDs | ✓ |
| Ambient Operating Temperature | -40 to 65 °C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, PTCRB, GCF |
