Περιγραφή
Κάθε συσκευή της Teltonika έρχεται με 1 μήνα δωρεάν RMS άδειας

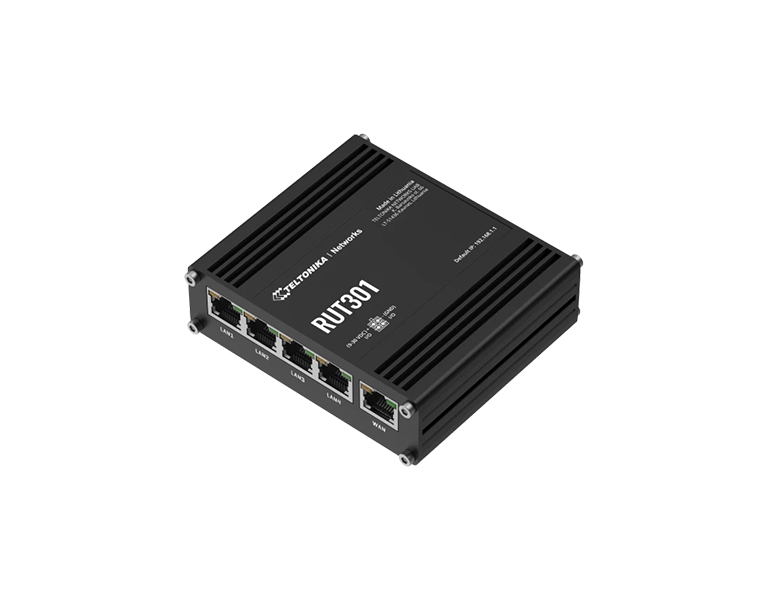

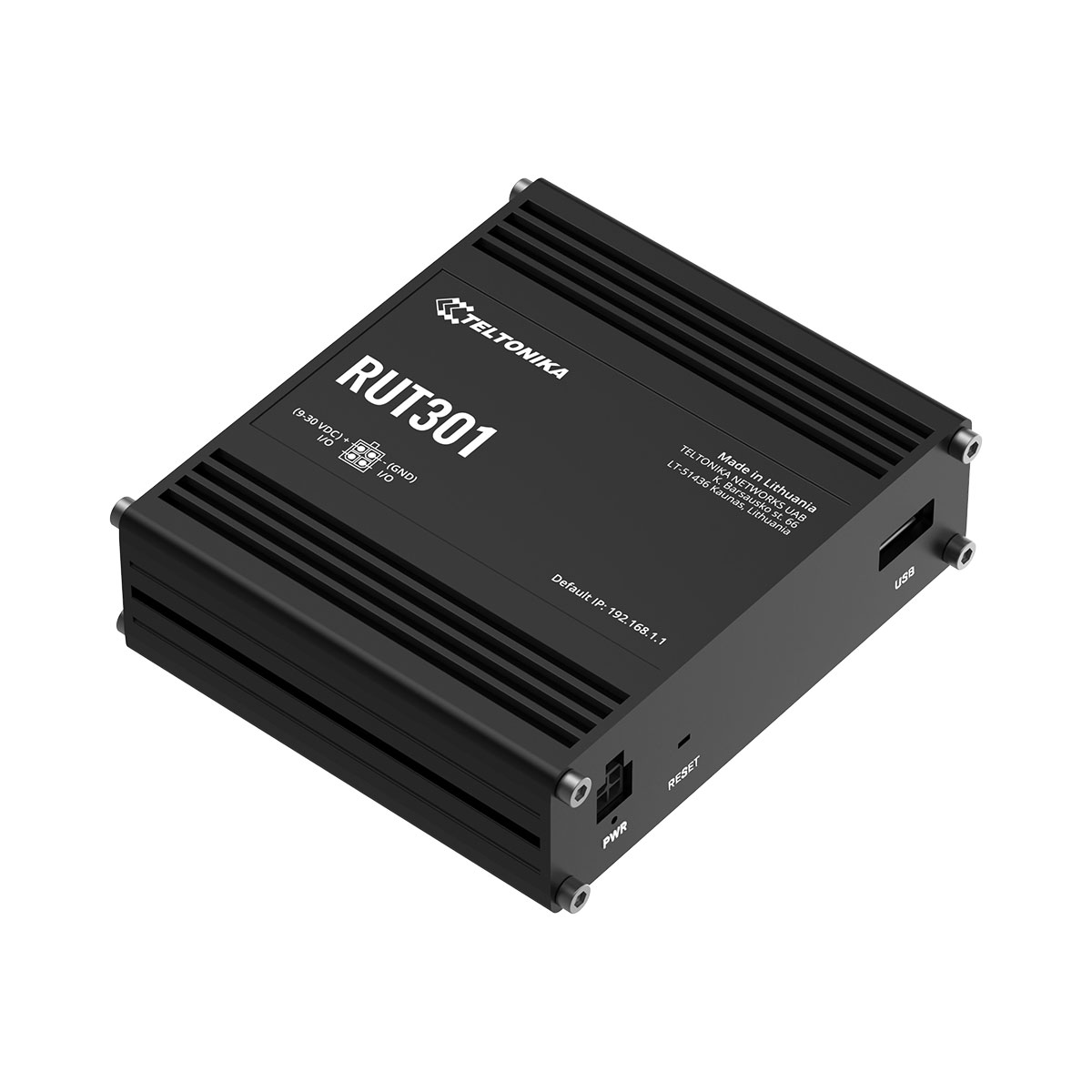

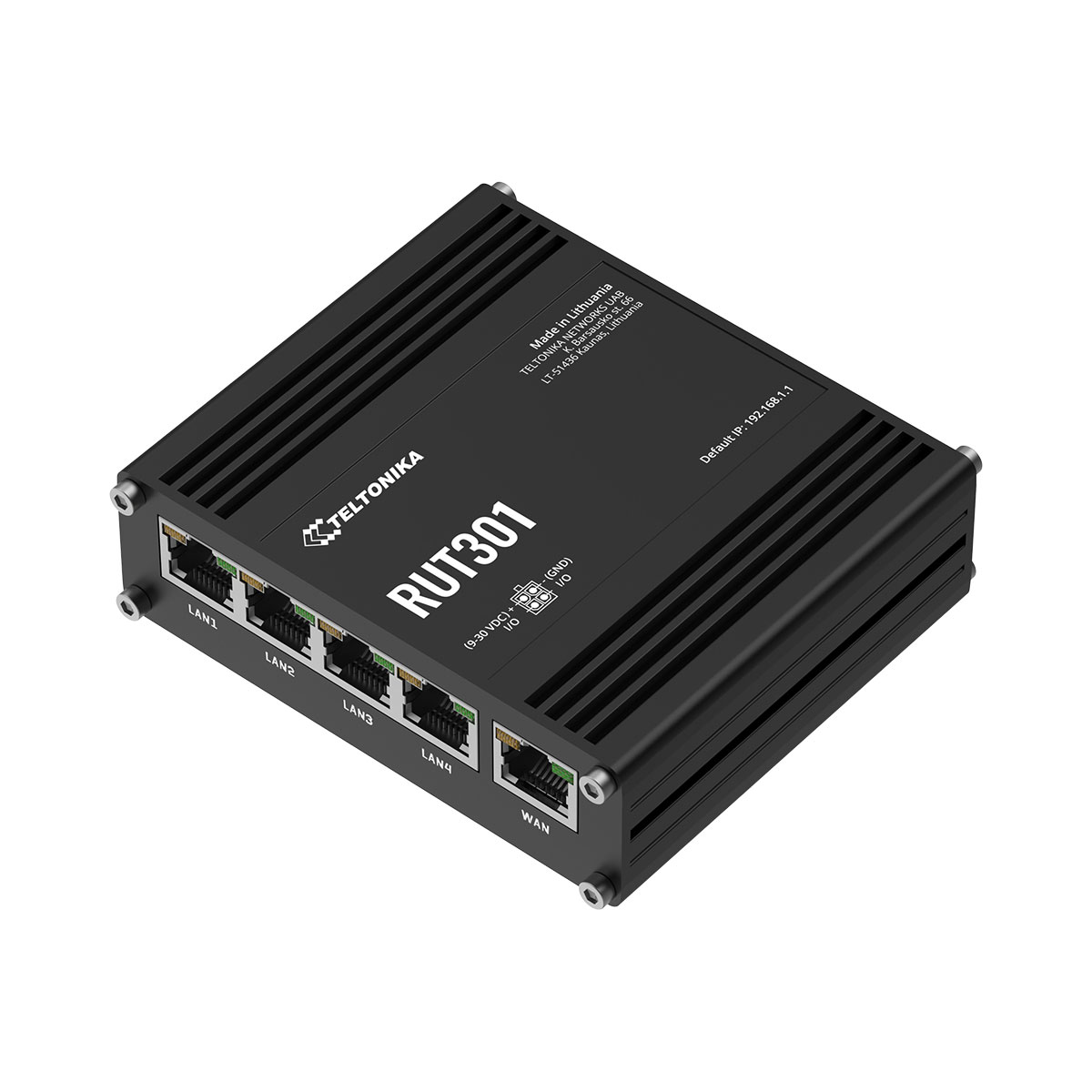

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.
Χαρακτηριστικά
| Specifications | |
| Hardware | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Flash Storage | 16 MB serial NOR flash |

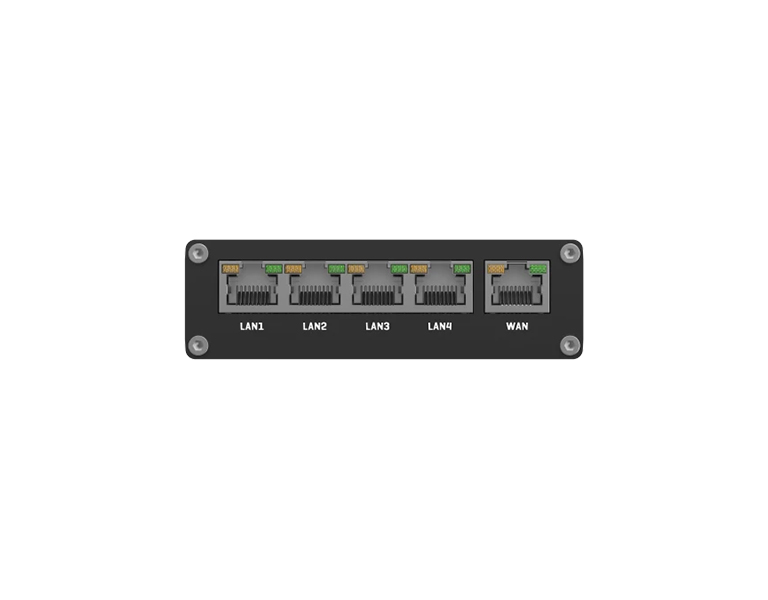

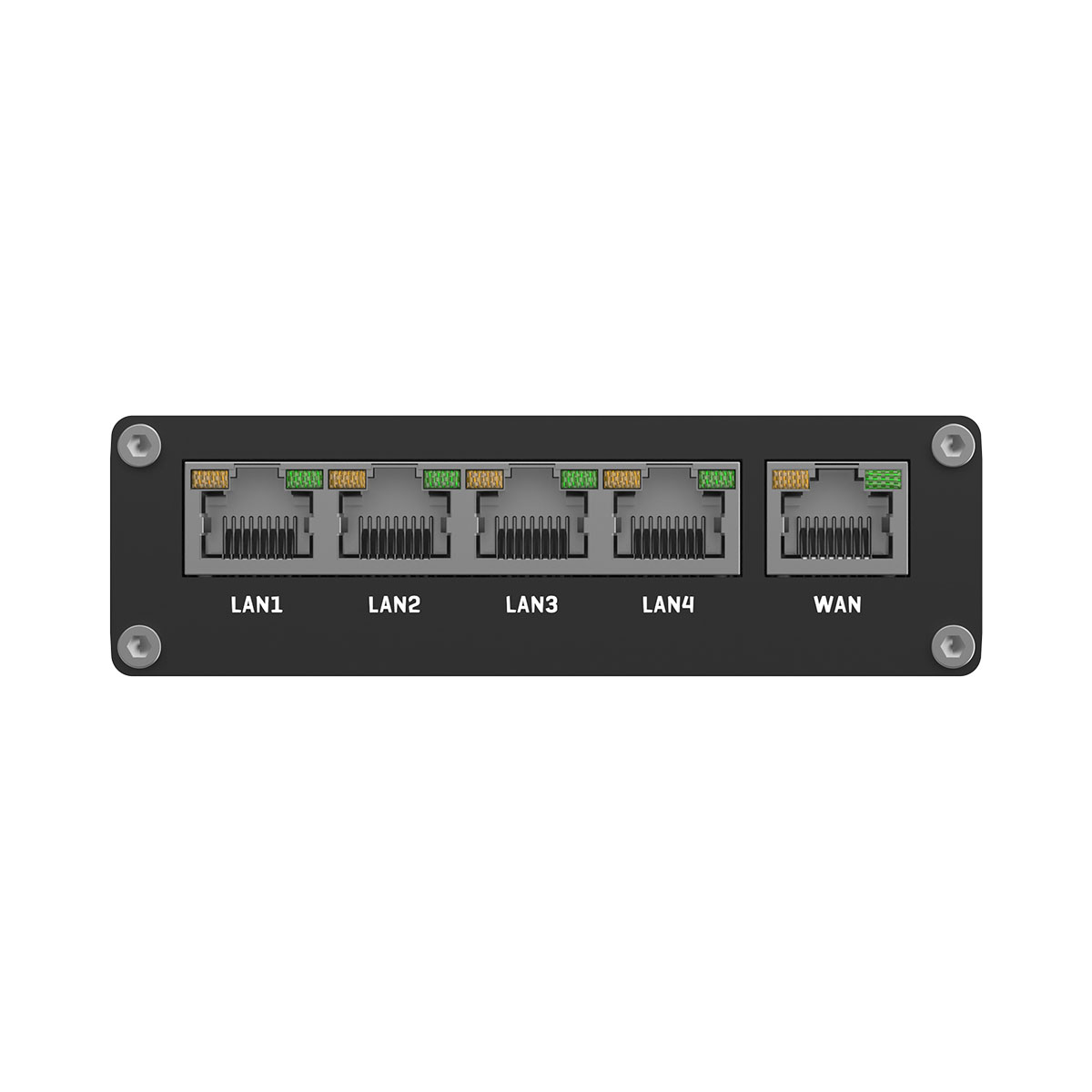

| Ethernet | 5 x 10/100 RJ45 ports |

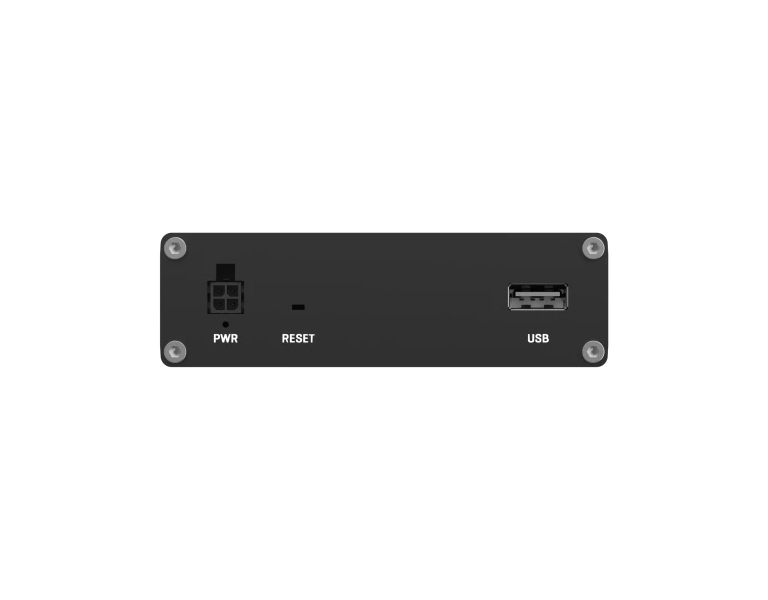

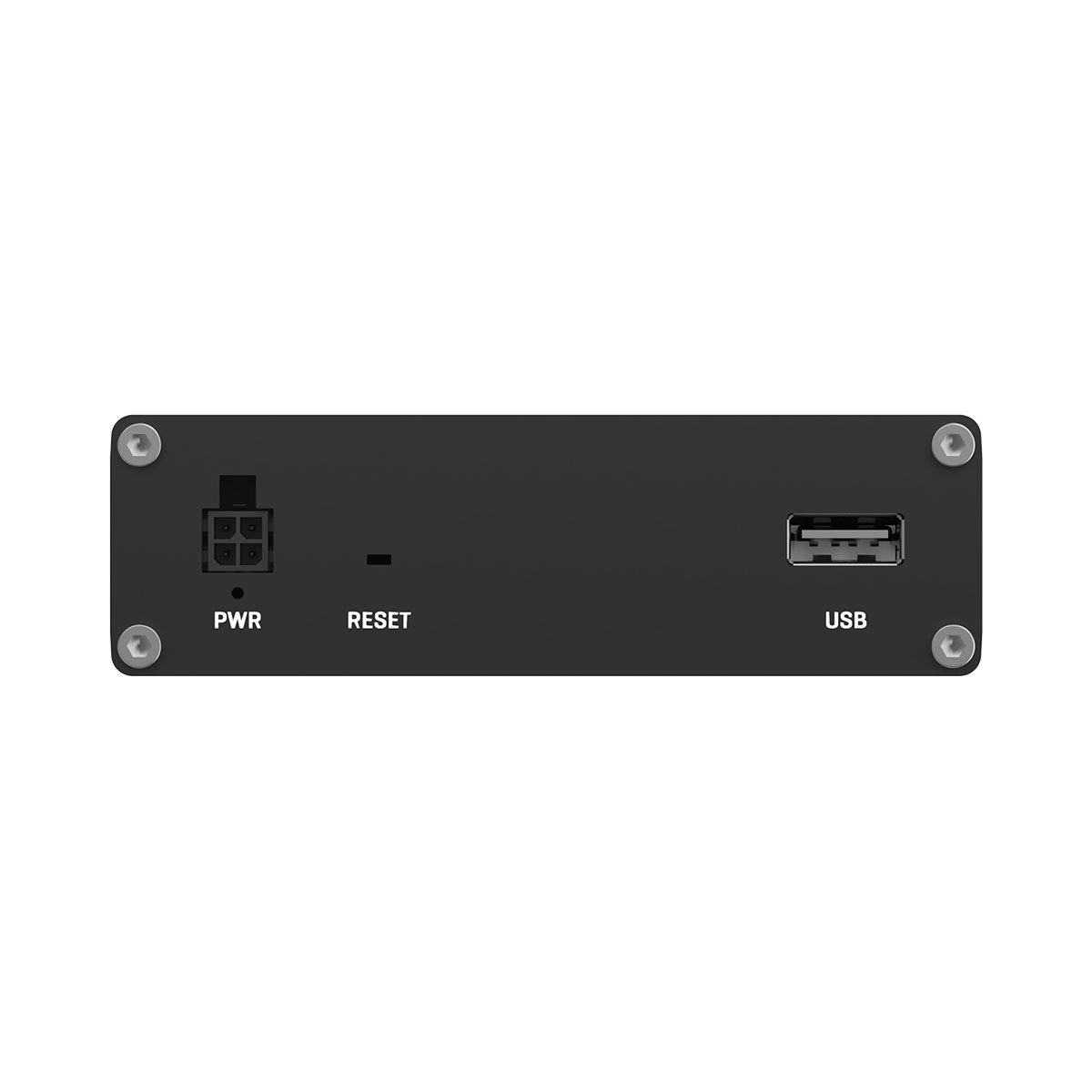

| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| Inputs/Outputs | 2 x Digital Input, 2 x Digital Output on 4-pin power connector |
| Status LEDs | 1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing |
| Dimensions(WxHxD) | 100 mm x 30 mm x 85 mm |
| Weight | 233 g |
| Software | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Firewall | Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring & Management | WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity |
| Services | DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba) |
| Administration | Update FW from file, check FW on server, configuration profiles, configuration backup |
| Standard Package Contains | • Router RUT301 • 9 W PSU • Ethernet cable (1.5 m) • QSG (Quick Start Guide) • Packaging box |
