Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
TP-LINK ER605 V2.2 Omada Gigabit VPN Router
• Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring. • Centralized Management: Cloud access and Omada app for ultra convenience and easy management. • Five Gigabit Ports: High-speed wired connectivity. • Up to 3 WAN Ports:1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband. • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port. • Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN*, 16x L2TP, and 16x PPTP VPN connections. • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data. |
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.
High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL)
DoS Defense
Forcefully prevent viruses and attacks from intruders.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec and PPTP.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
‡For the complete compatibility list of 4G/3G modem, go to https://www.tp-link.com/en/er605/compatibility/
*These functions requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller.
† LAN MAC Address can be modified only in Standalone Mode.
§ These functions are supported only in Standalone Mode.
△For OpenVPN: When set up as a VPN server, each WAN port can connect with up to 10 VPN clients. At the same time, the ER605 can work as a VPN client to connect with up to 10 VPN servers. The total number of OpenVPN tunnels is limited to 16.
**For PPTP and L2TP VPN: ER605 can work as a VPN client and can connect with up to 10 VPN servers.
***Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 60 μήνες |
HARDWARE FEATURES | |
Standards and Protocols |
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec,
PPTP, L2TP, OpenVPN, SNMP
|

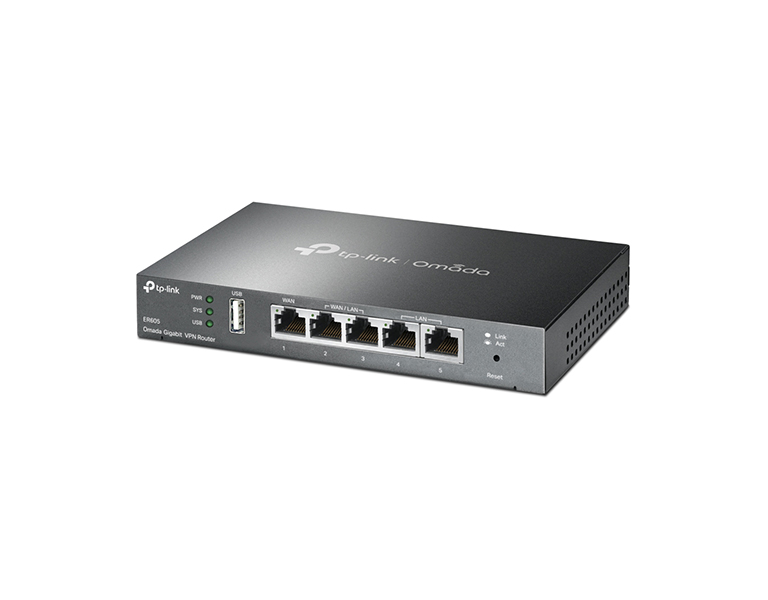

Interface | 1 Gigabit WAN port 2 Gigabit LAN/WAN ports 2 Gigabit LAN ports |
USB |
1 USB2.0 (supports USB LTE dongle1)
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
|
Button | Reset Button |

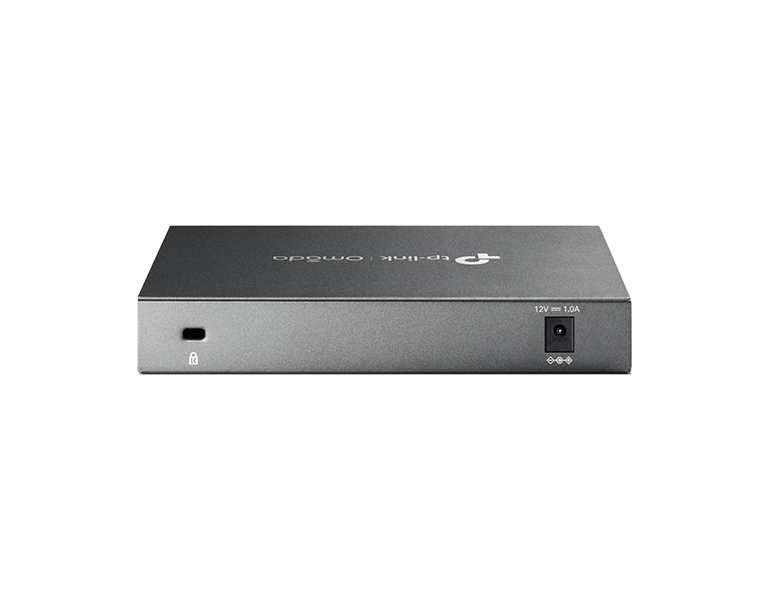

Power Supply | External 12 V/1 A DC Adapter |
Flash | 128 MB NAND |
DRAM | 256 MB DDR |
LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
Power Consumption(max.) | 7.94 W |
Dimensions(WxDxH) | 158 x 101 x 25mm |
SDN SUPPORT | |
Hardware Controller (OC200/OC300) | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
Software Controller | |
PERFORMANCE | |
Concurrent Session | 150,000 |
New Sessions / Second | 2,600 |
DPI Throughput |
TCP: 905 Mbps
UDP: 788 Mbps
|
Static IP NAT Throughput |
Upload: 945.77 Mbps; Download: 938.79 Mbps
Bi-Directional: 1808.29 Mbps
|
DHCP NAT Throughput |
Upload: 945.54 Mbps;
Download: 945.66 Mbps
Bi-Directional: 1802.77 Mbps
|
PPPoE NAT Throughput |
Upload: 939.71Mbps; Download: 939.43 Mbps
Bi-Directional: 1788.54 Mbps
|
L2TP NAT Throughput |
Upload: 815.55 Mbps; Download: 835.59 Mbps
Bi-Directional: 903.13 Mbps
|
PPTP NAT Throughput |
Upload: 813.23 Mbps; Download: 850.91 Mbps
Bi-Directional: 894.41 Mbps
|
66 Byte Packet forwarding rate |
Upload/Download: 954.50 Mbps
Bi-Directional: 1130.00 Mbps
|
1518 Byte Packet forwarding rate |
Upload/Download: 997.50 Mbps
Bi-Directional: 1965.00 Mbps
|
IPSec VPN Throughput |
ESP-SHA1-AES256: 259.78 Mbps
ESP-SHA256-AES256: 260.81 Mbps
ESP-SHA384-AES256: 37.65 Mbps
ESP-SHA512-AES256: 38.32 Mbps
|
OpenVPN | 21.70 Mbps |
WireGuard VPN | 130.96 Mbps |
GRE |
Unencrypted: 359.74 Mbps
Encrypted: 78.11 Mbps
|
L2TP VPN Throughput |
Unencrypted: 640.99 Mbps
Encrypted: 77.31 Mbps
|
PPTP VPN Throughput |
Unencrypted: 759.55 Mbps
Encrypted: 75.80 Mbps
|
BASIC FUNCTIONS | |
WAN Connection Type | Static IP Dynamic IP PPPoE PPTP L2TP |
DHCP |
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
|
MAC Clone | Modify WAN/LAN MAC Address2 |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
IPv6 |
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
|
VLAN | 802.1Q VLAN |
TRANSMISSION | |
Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
NAT |
One-to-One NAT
Multi-Net NAT
Port Forwarding
Port Triggering3
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
|
Routing |
Static Routing
Policy Routing
RIP3
OSPF3
|
Session Limit | IP-based Session Limit |
Bandwidth Control | IP-based Bandwidth Control |
VPN | |
IPSec VPN | 20 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IKE v1/v2 MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
PPTP VPN | PPTP VPN Server 10 PPTP VPN Clients1 16 Tunnels PPTP with MPPE Encryption |
L2TP VPN | L2TP VPN Server 10 L2TP VPN Clients 16 Tunnels L2TP over IPSec |
GRE | Yes |
OpenVPN |
OpenVPN Server
OpenVPN Client(10)
16 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
|
SECURITY | |
Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
Filtering | Web Group Filtering2 URL Filtering Web Security2 |
DNS Proxy | DNSSEC, DoH and DoT |
ARP Inspection3 | Sending GARP Packets ARP Scanning IP-MAC Binding |
Access Control | Source/Destination IP Based Access Control |
AUTHENTICATION | |
Web Authentication |
No Authentication
Simple Password1
Hotspot (Local User / Voucher1/ SMS1/ Radius1)
External Radius Sever
External Portal Sever1
LDAP2
|
MANAGEMENT | |
Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute)3 NTP Synchronize3 Port Mirroring
CLI (only in Standalone Mode)
Syslog Support |
Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
|
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | ER605, Power Adapter, RJ-45 Ethernet Cable, Quick Installation Guide |
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
|
Environment | Operating Temperature: 0°C to 40°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
3. Diagnostics (Ping & Traceroute) and NTP Synchronize are supported only in Standalone Mode.
