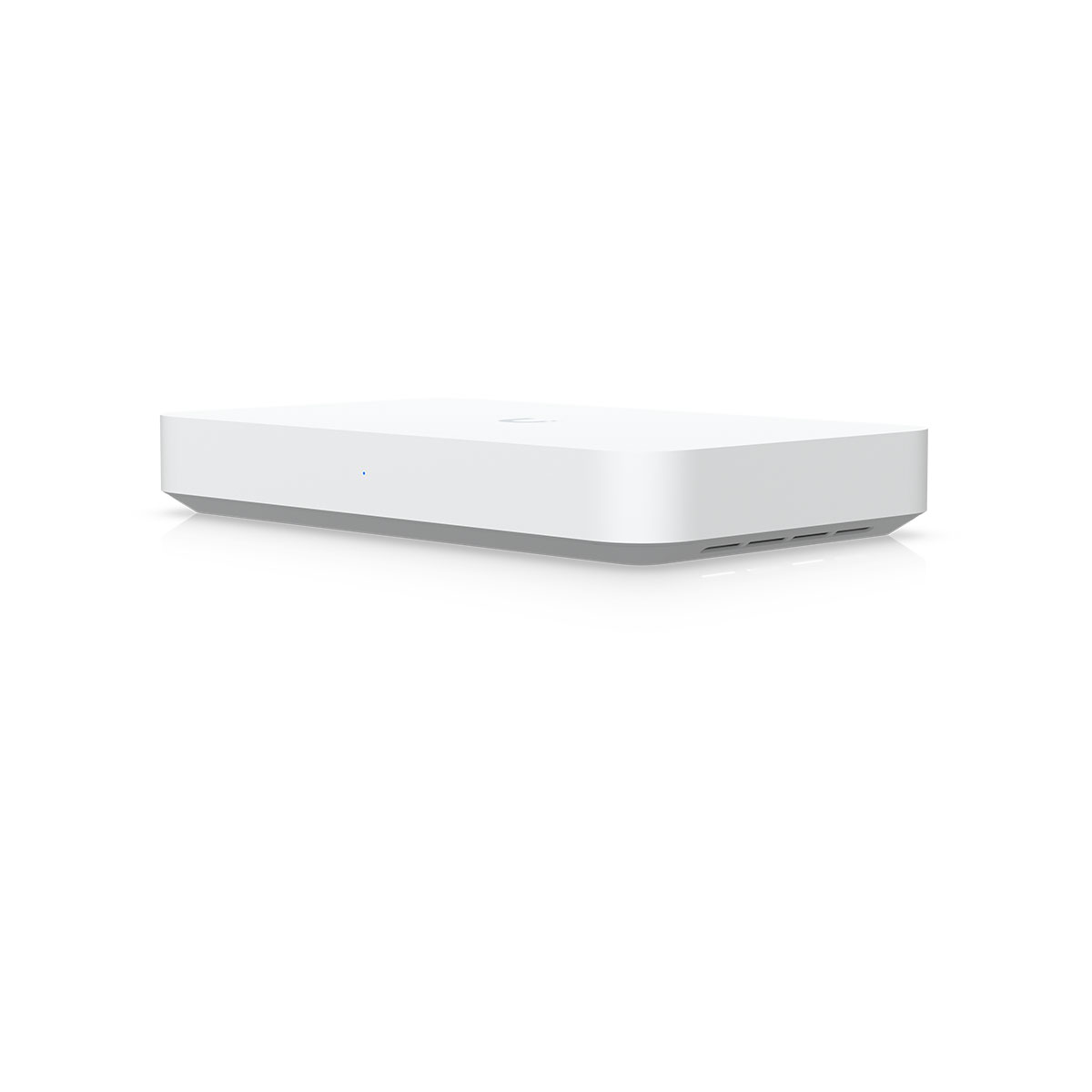

The highly powerful gateway with an optical interface, the UniFi Gateway Fiber from Ubiquiti Networks, integrates a security gateway, data router, and network security. This product is suitable for homes and businesses. The router features 4x 2.5 Gigabit LAN ports, 1x 10 Gigabit WAN port, 1x SFP+ LAN, 1x SFP+ WAN port, and a 5 Gbps routing performance with QoS, firewall, intrusion detection system (IDS), and intrusion prevention system (IPS) enabled. The device can be managed using the UniFi Network application, which can be installed on devices like the Cloud Key.
Key Features

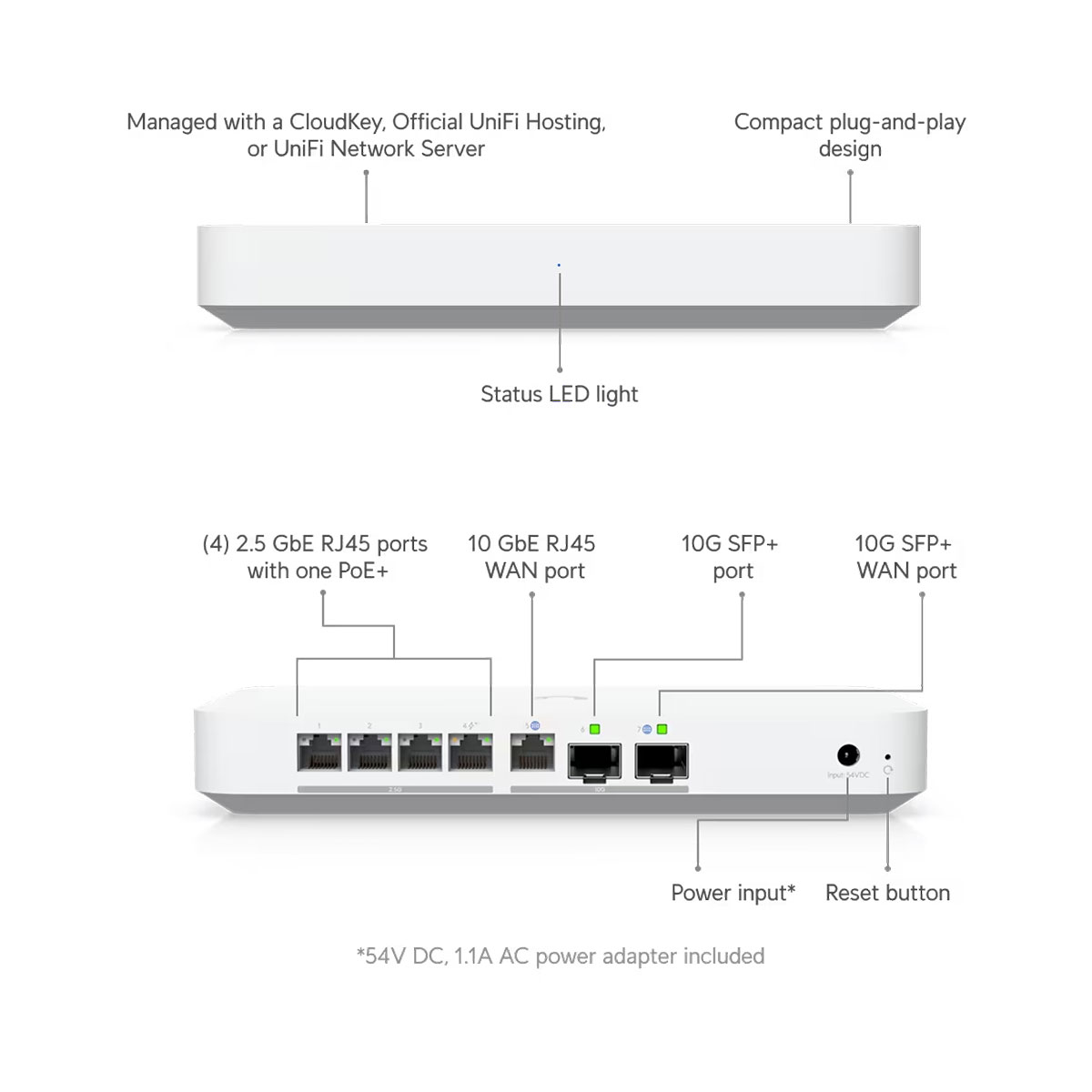

• (4) 2.5 Gigabit LAN - 1x PoE 802.3af/at (max. 30W)
• (1) 10 Gigabit WAN
• (2) SFP+ (1x LAN, 1x WAN)
• Control and management via UniFi Network
• 5 Gbps routing performance with IDS/IPS enabled
• Power supply via DC connector
• Compact size, fanless design
• Multi-WAN configuration, VPN, QoS, IPS/IDS, and enterprise-grade layered firewall via UniFi Network
• Setup through the UniFi Network application

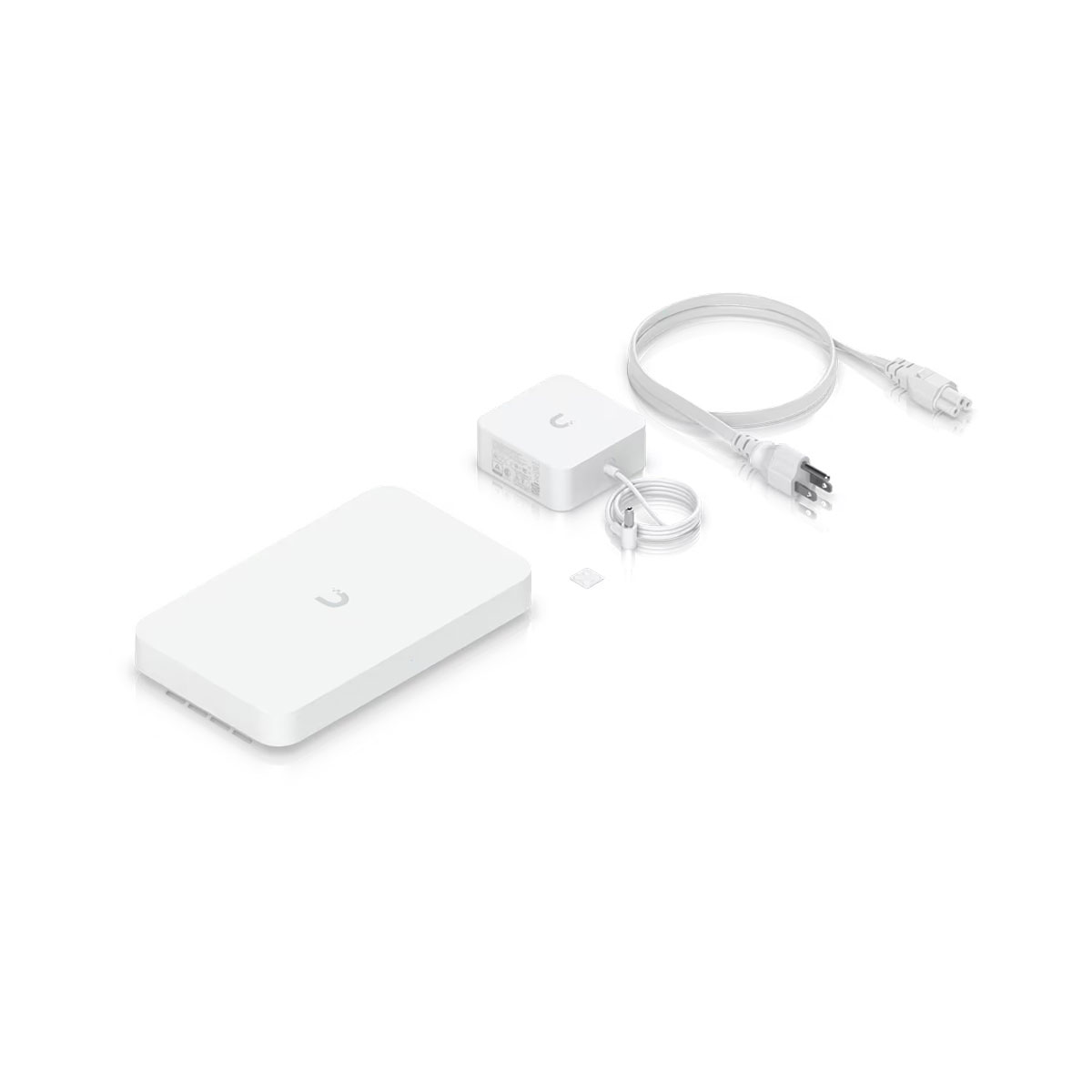

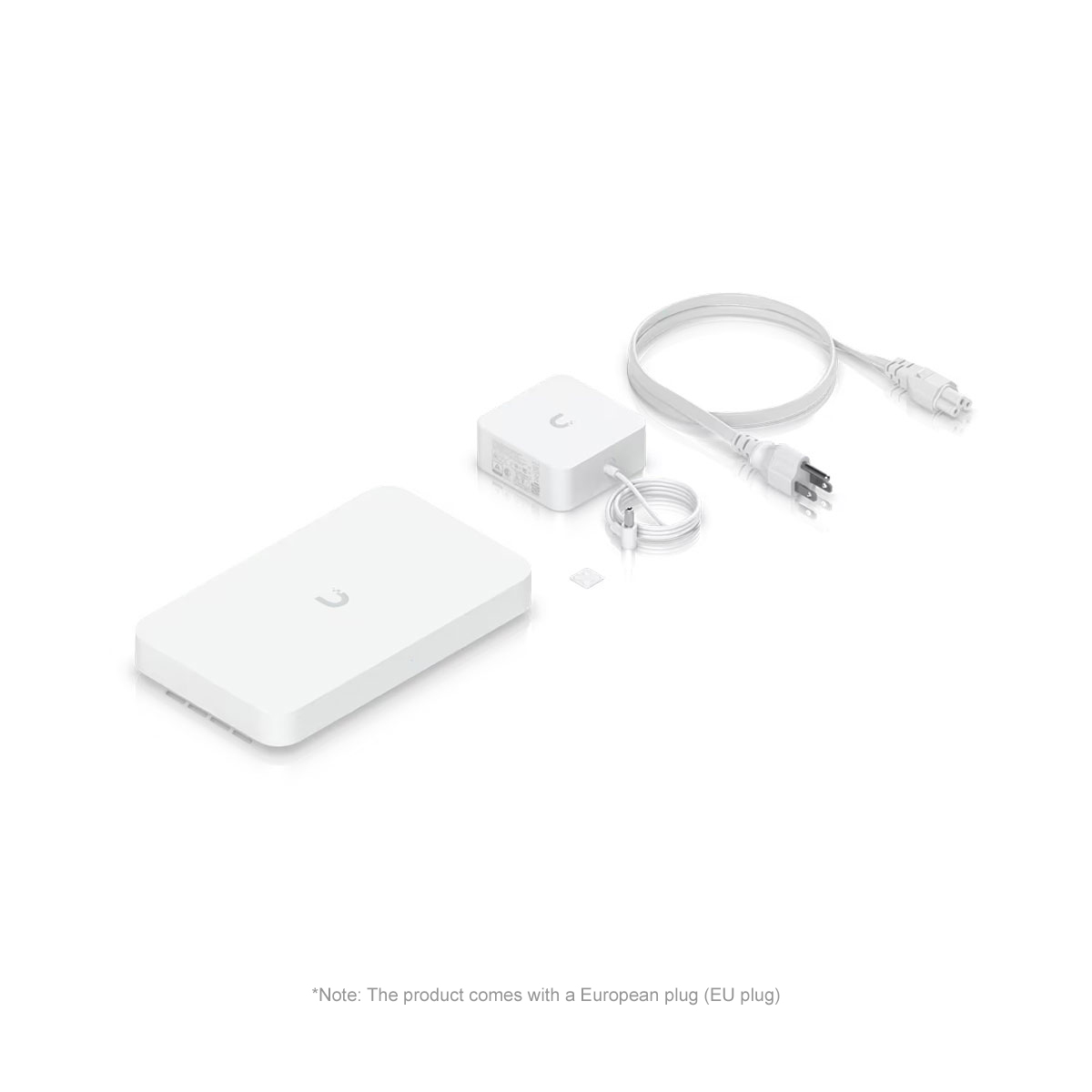

Package Contents
• Device
• 54V / 1.1A power adapter
• Power cable
| Overview | |

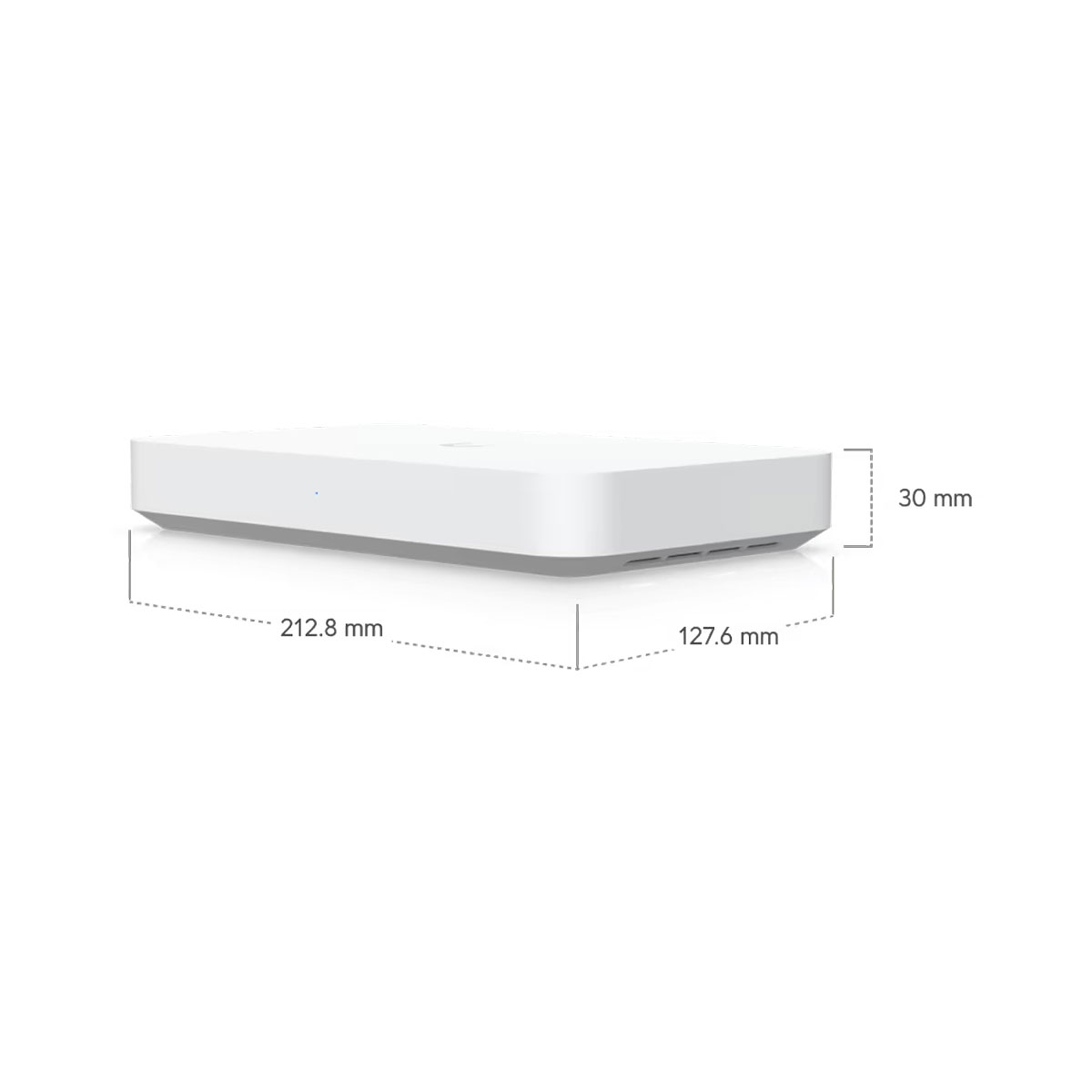

| Dimensions | 212.8 x 127.6 x 30 mm |
| Max. WAN Port Count | 6 |
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 |
| Port Layout | 2.5 GbE RJ45 4 (2.5G/1G/100M/10M) 10 GbE RJ45 1 (10G/2.5G/1G) 10G SFP+ 2 (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ With CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic IPsec OpenVPN |
| VPN Server | Teleport Zero-Configuration VPN WireGuard OpenVPN L2TP |
| VPN Client | OpenVPN WireGuard |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 4,000 |
| Virtual Network Override | ✓ |
| All Traffic Flows | ✓ |
| Hardware | |
| PoE Budget | 30W |
| Max. PoE Wattage per Port by PSE | PoE+ 30W |
| Voltage Range PoE Mode | 50—57V |
| Max. Power Consumption | 25W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Heat Dissipation | 85 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 2 GB |
| Weight | 605 g |
| Enclosure Material | Polycarbonate |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet SFP+ System |
| Button | (1) Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 04395-25-08356 |
