Ubiquiti UACC-ETH-SP-PRO, Ethernet Surge Protector, max. 20kA
Ubiquiti UACC-ETH-SP-PRO, Ethernet Surge Protector, max. 20kA
Outdoor surge protection for Ethernet is designed to protect your devices from electrostatic discharge (ESD) and surges that can damage your network components. This protection can handle surge current up to 20 kA, making it ideal for high-speed outdoor Ethernet networks. This means you can rely on its effectiveness in safeguarding your devices against unexpected discharges that can cause significant damage.
Easy installation and long lifespan
This product offers passive RJ45 connectors that are surge-protected and allow for quick and easy installation on outdoor devices. It is compatible with 10GbE networks, making it suitable for modern network infrastructures that require high transmission speeds. Additionally, it has an IPX5 rating, which means it is resistant to water and dust. The polycarbonate material provides excellent protection against weather conditions, while the wide temperature range -30 to 65 °C ensures stable performance under all conditions.
Key features
- Protection against electrostatic discharge (ESD) up to surge current of 20 kA

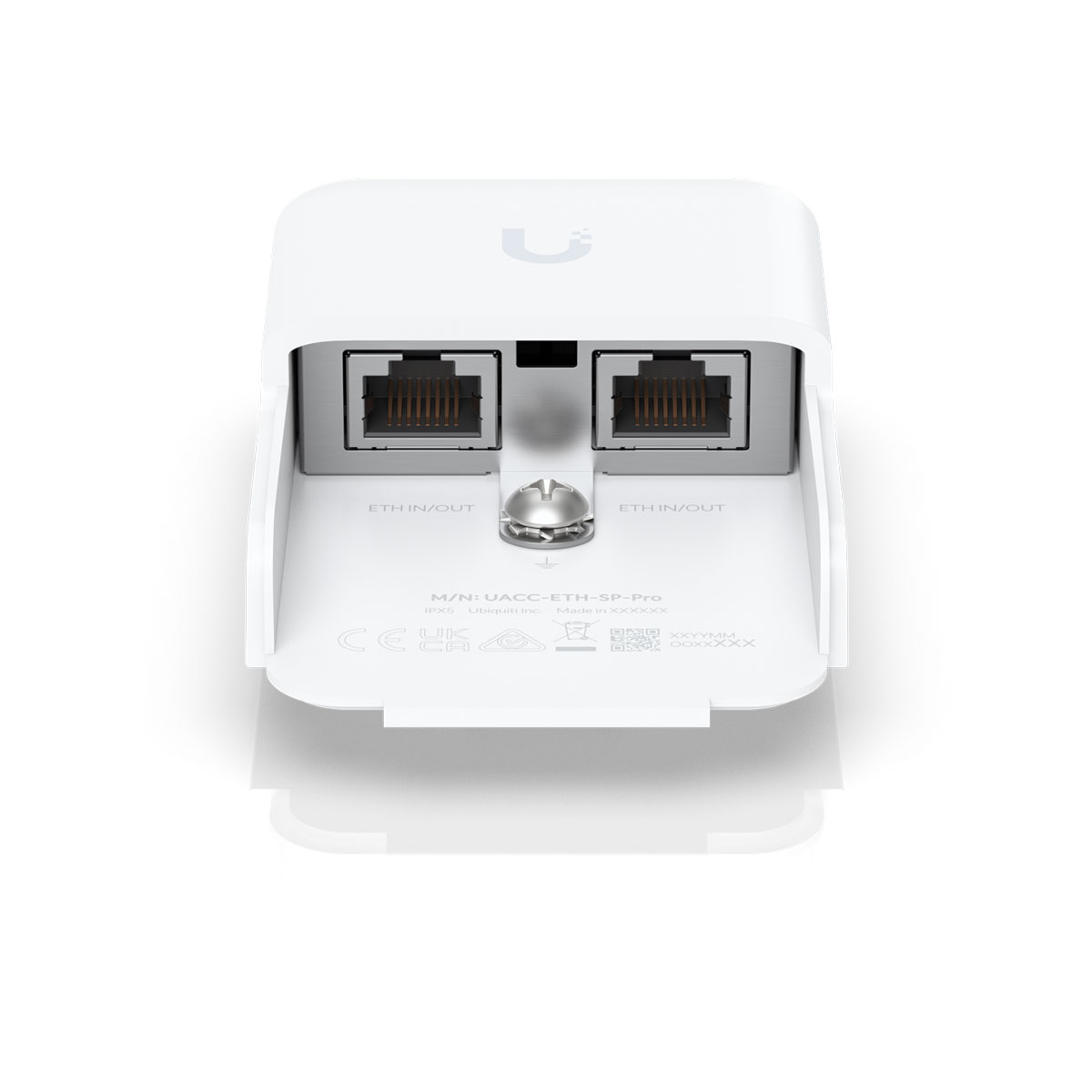

- Passive surge-protected RJ45 connectors for easy installation
- Compatible with 10GbE networks for high-speed transmissions
- IPX5 rating for water and dust resistance
- Operating temperature -30 to 65 °C for stable performance in extreme conditions
| Specifications | |
| Dimensions | 91 x 61 x 32.5 mm |
| Weight | 95 g |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ 🛈 Up to PoE++ |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65° C |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
