Ubiquiti U7-PRO-OUTDOOR, Access Point WiFi 7, IP67
ΠΡΟΣΟΧΗ Η ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΙ ΤΡΟΦΟΔΟΤΙΚΟ

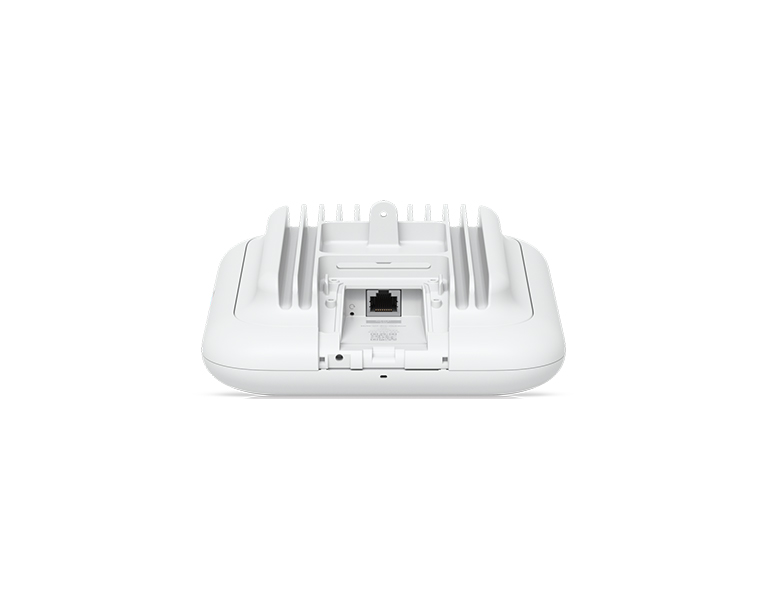

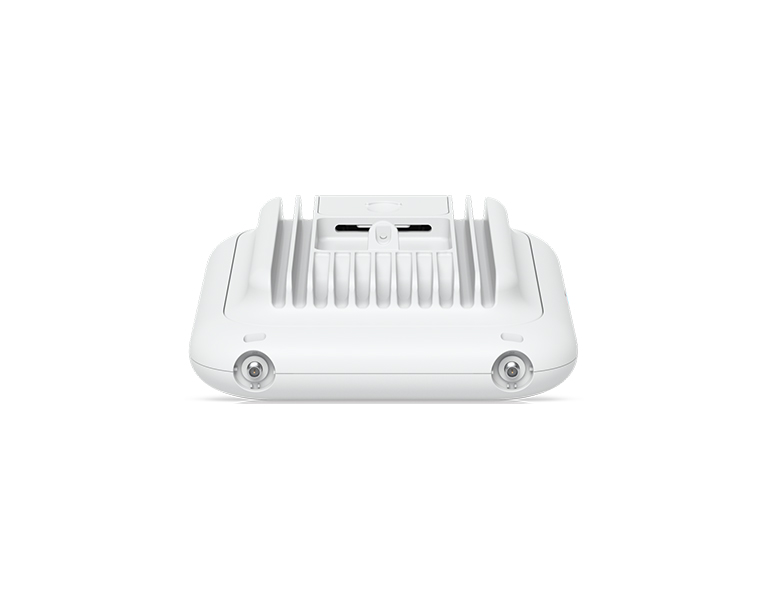

The UniFi U7 Pro Outdoor is a Wi-Fi 7 Dual Band access point with up to 4x4 MIMO and modulation speeds of 688 + 8640 Mbps (2.4 + 5 GHz), supporting Wi-Fi standards 802.11a/b/g/n/ac/ax/be. Its compact design allows for discreet integration into any environment. Thanks to its rugged construction, the access point can be installed both indoors and in outdoor environments (IPx6-rated). It is powered exclusively via PoE (802.3at / 44 to 57V DC) through a 2.5 Gigabit LAN port located at the bottom of the device. Wi-Fi signal distribution is handled by dual built-in antennas, but external antennas can also be connected via RSMA female connectors at the top of the device.
Key Features
• Dual Band Wi-Fi 7 - 802.11a/b/g/n/ac/ax/be
• 688 + 8640 Mbps (2.4 GHz, 2x2 MIMO / 5 GHz, 4x4 MIMO)
• Built-in antennas + option for external antennas
• Power via 802.3at or passive 44 to 57V DC PoE
• 2.5 Gigabit LAN
• Maximum power consumption: 21 W
• Wide operating temperature range: -30 to 60 °C

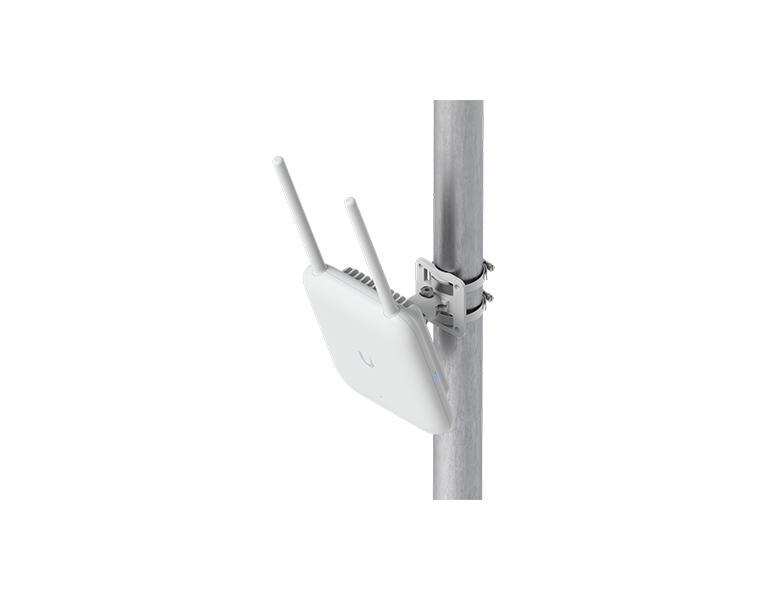

• Wall or pole mountable
Centralized Management
To operate the device, you need to download the official UniFi Network software, which enables complete network management. A major advantage of the UniFi Network is that it is completely free with no limitations! This centralized management system allows you to upload maps and configure basic parameters such as SSID, guest access, landing page, traffic statistics, and a list of associated clients—all easily and efficiently.
Benefits of UniFi Solutions
• Zero Handoff Roaming – seamless transition between APs
• Wireless uplink (ideal for locations where a data cable is not an option)
• Up to 8 SSIDs
• Detailed traffic statistics
• Guest network
• Voucher system
• Load balancing – ensures even network load distribution / client switching
• Speed limitation per SSID
Package Contents
• Device
• Wall and pole mounting bracket
• Screws, wall plugs, hex key
• (2) Metal zip ties
• (2) Omnidirectional antennas
| Specifications | |
| Mechanical | |
| Dimensions | Without mount: 170 x 208 x 66.5 mm With mount: 170 x 208 x 121.8 mm |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 465 m² (5,000 ft²) |
| 465 m² (5,000 ft²) | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
| Power Method | PoE+ |
| Performance | |
| MIMO | 5 GHz 4 x 4 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz 8.6 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) |
| Antenna Gain | 5 GHz Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° 2.4 GHz Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
| Max. TX Power | 5 GHz 29 dBm 2.4 GHz 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page ✓ Voucher Authentication ✓ Payment-Based Authentication ✓ External Portal Server Support ✓ Password Authentication ✓ Guest Network Isolation ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 1.2 kg With mount: 1.33 kg |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | UV-stabilized polycarbonate |
| LEDs System | (1) Power: White/Blue (4) Mesh signal: Blue |
| NDAA Compliant | ✓ |
| Certifications | CE, Anatel: 04999-25-08356 |
| Ambient Operating Temperature | -30 to 60° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 9.0.114 and later Mobile App iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
Προσοχή! Bάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στις ζώνες συχνοτήτων 5150 – 5250MHz και 5250 – 5350MHz προβλέπει μέγιστη ισχύ εκπομπής τα 200 mW e.i.r.p. και στη ζώνη συχνοτήτων 5470 – 5725MHz, προβλέπει μέγιστη ισχύ εκπομπής το 1 W e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE Βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εξωτερικούς χώρους.
