Ubiquiti USW-Pro-48-POE UniFi Switch Pro 48-Port PoE

Κωδικός προϊόντος:
USW-Pro-48-POE
1.360,00 €
(Περιλαμβάνει ΦΠΑ 24%)
Τιμή χωρίς ΦΠΑ:
1.096,77 €
Άμεσα διαθέσιμο
Ubiquiti USW-Pro-48-POE UniFi Switch Pro 48-Port PoE, SFP+
Υπολογισμός κόστους μεταφορικών:
Ποσότητα
Προσθήκη στο καλάθι
Κατηγορία:
Κατασκευαστής:
Εγγύηση:
24 Μήνες
Περιγραφή
Χαρακτηριστικά
Λήψεις
Περιγραφή

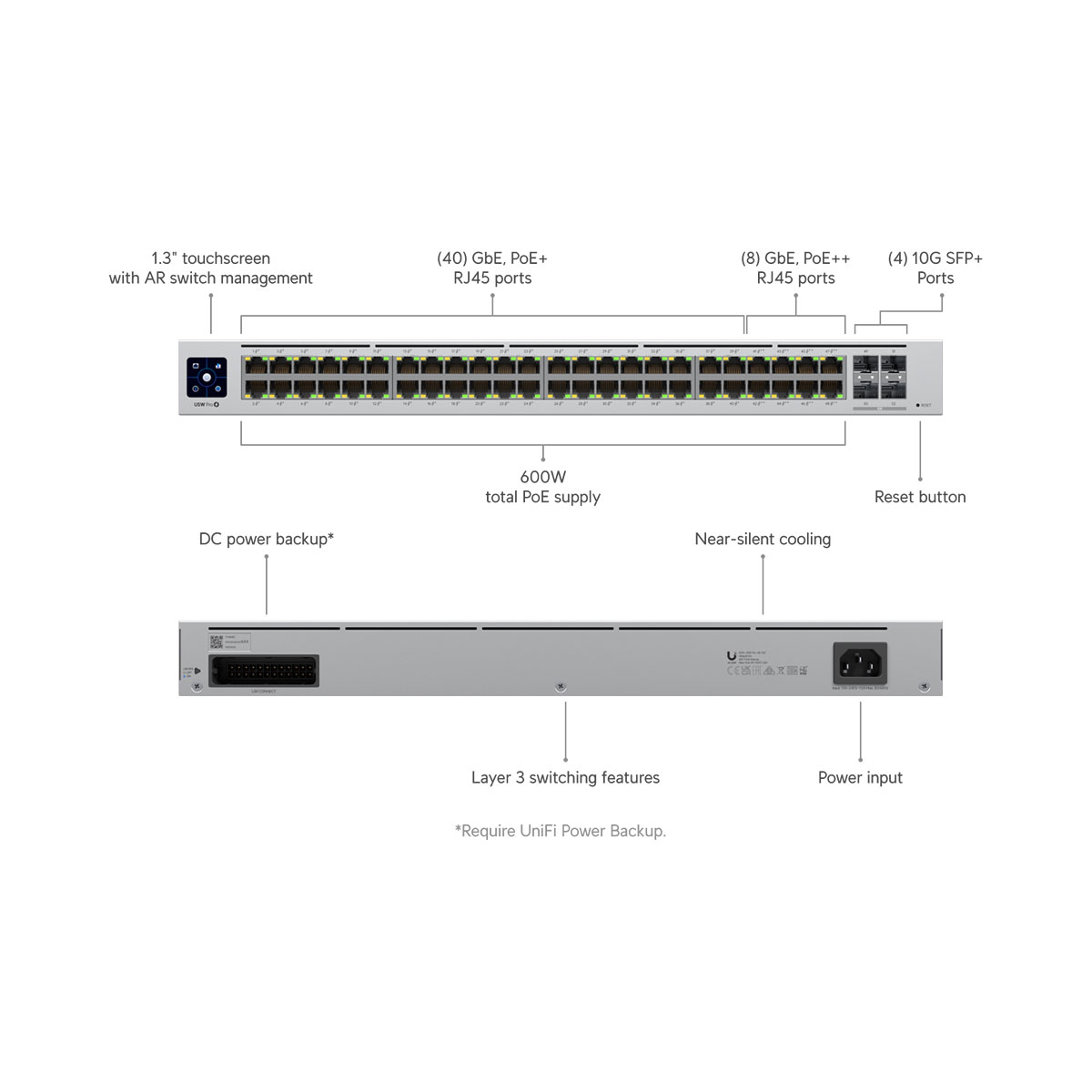

• (40) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports with 802.3bt
• (4) 1/10G SFP+ ports

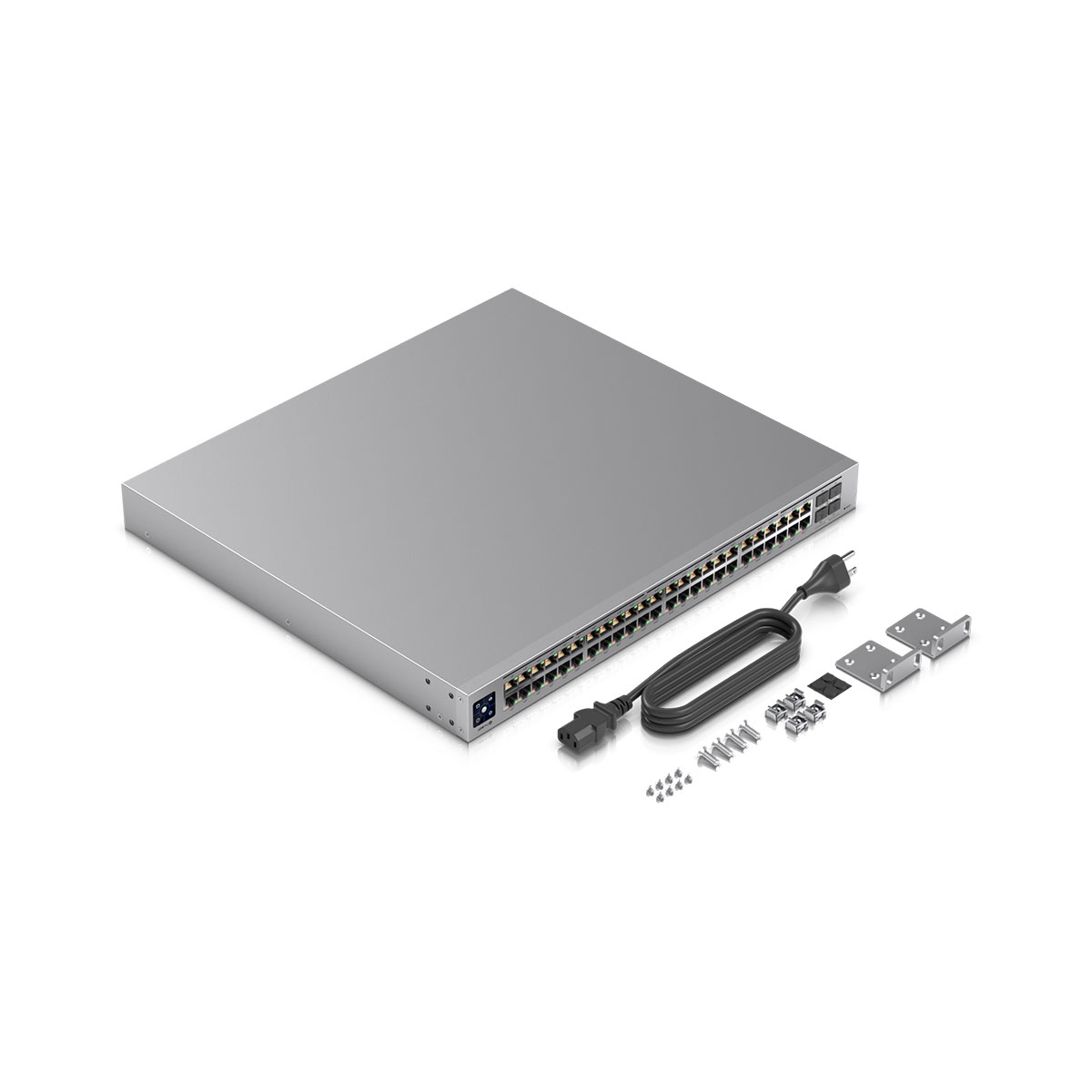

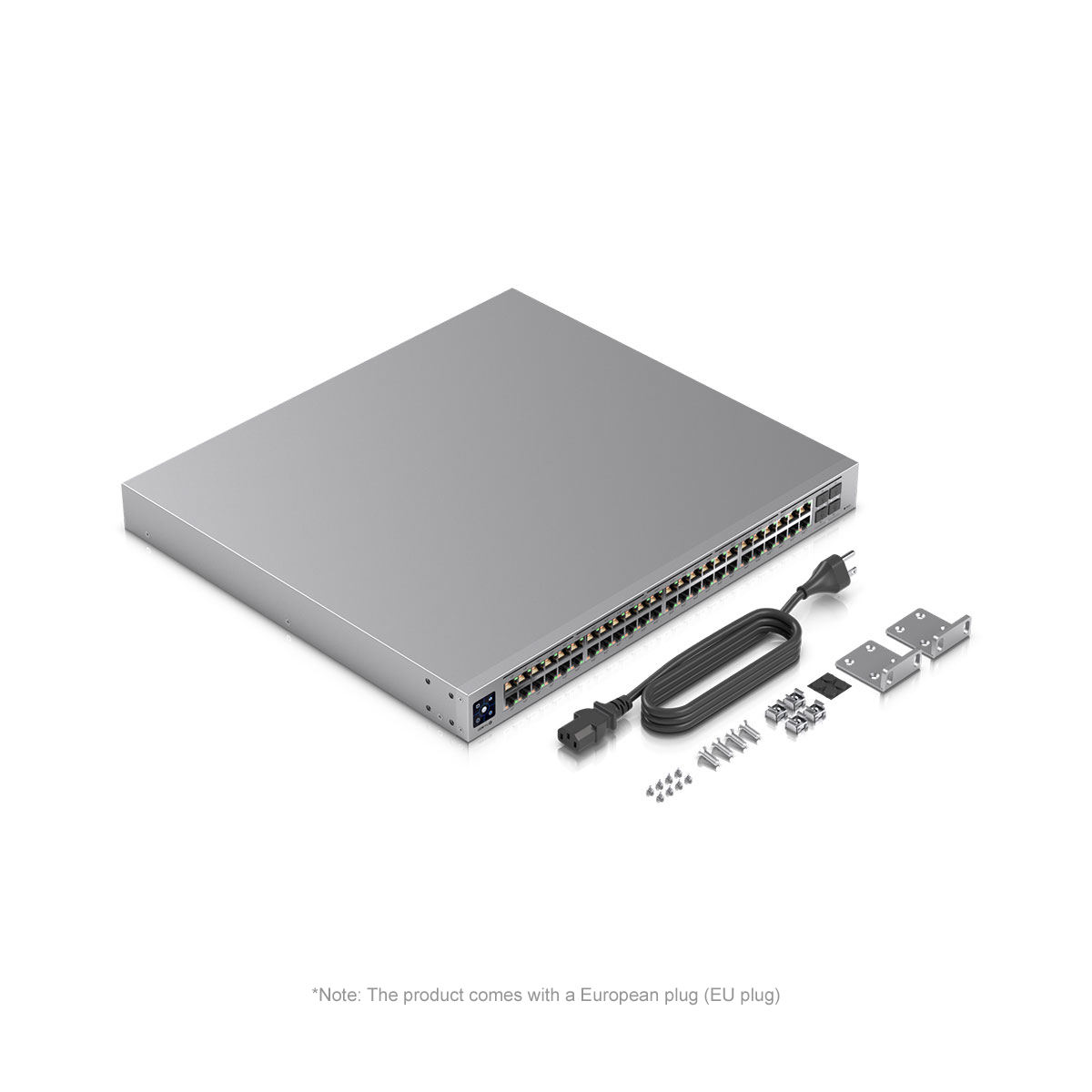

• 1U Rackmountable (hardware included)

Overview
Expand and power your network with the UniFi PoE Switch, part of the Ubiquiti UniFi Enterprise System.

Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities*, such as inter‑VLAN routing, static routing, and DHCP server functionality.
* Available in a future software release.

Near-Silent
Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.

Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high‑power PoE devices. Remaining ports offer 802.3af/at PoE.

Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.

Scalable UniFi Network Controller
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status
You can also view status information for each port:
• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Software Features
The UniFi Network Controller software offers the following features:
• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN



Χαρακτηριστικά
Specifications

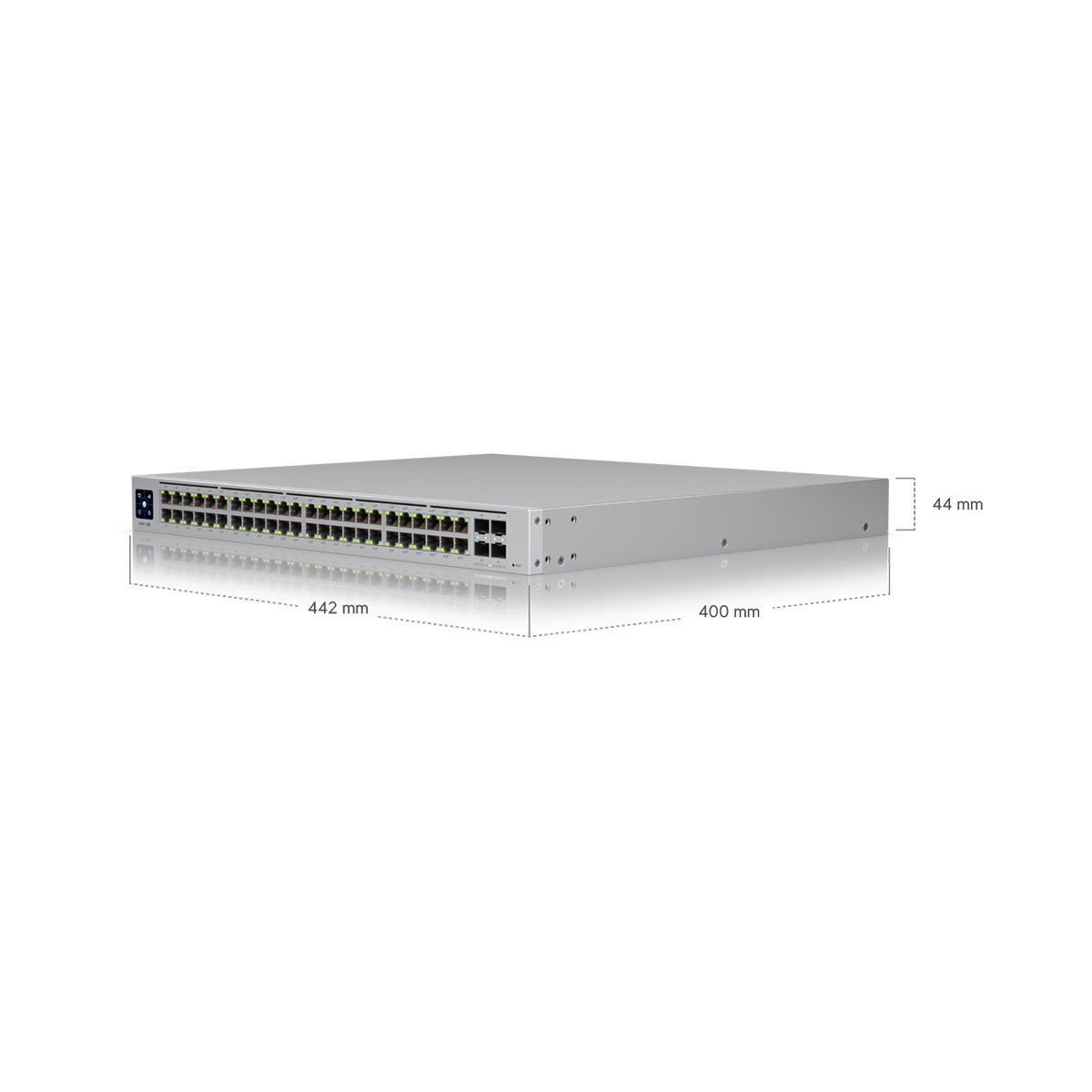

Dimensions 442.4 x 399.6 x 43.7 mm
Weight
With Brackets
6.25 kg
6.34 kg
Interfaces
Networking

Management

(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking
Throughput
88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power Method
Universal Input
USP RPS DC Input

100-240VAC, 50/60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 660W
Voltage Range 100 to 240VAC
Max Power Consumption
(Excluding PoE Output)
60W
LEDs
System
RJ45 Data Ports
SFP+ Data Ports

Status
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
PoE
Total Available PoE 600W
PoE Interfaces
Ports 1-40

Ports 41-48
802.3af/at
802.3bt

PoE+ IEEE 802.3af/at
(Pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3af/at/bt
(Pins 1, 2+; 3, 6-)
(Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per
Port by PSE
802.3at
802.3bt


32W
64W
Voltage Range
802.3af Mode
802.3at/bt Mode

44-57V
50-57V
